Laser Cutting Machine


Enclosed Fiber Laser Cutting Machine
Specification
  • Model
    CPC-500G3 / CPC-500G3 EXCEL
  • Laser Source
    Imported Fiber Laser
  • Cutting Area
    100mm × 200mm
  • Cutting Thickness
    Maximum 5.0mm (Depending on Material)
  • Cutting Line Width
    0.04mm ~ 0.12mm
  • Cutting Speed
    300mm ~ 2000mm/min
  • Cutting Accuracy
    ±0.02mm
  • Cooling Mode
    Air Cooled
  • Cutting Air Pressure Requirement
    6 ~ 16 bar
  • Computer Software
    Included
  • Accessories Jig
    Small Workpiece Jig
  • Optional
    1. Auto Feed Conveyor Jig

    2. Ring/ Bangle Rotary Cutting Jig

    3. Air Compressor

    4. Dust Collector

  • Maximum Power Consumption
    5kW
  • Power supply
    220V/1P
  • Machine Dimension
    940mm×1100mm×1650mm (L×W×H)
  • Weight
    530kg(Net)/ 600kg(Gross)



Machine Details Display


the door of the workbench

computer screen and various switches

keyboard and mouse kit


A laser cutting machine is a device that uses a laser to cut materials. The laser beam is generated by a laser source, and is then focused onto the material to be cut by a lens or mirror system. The material is vaporized or burned by the intense heat of the laser beam, and the resulting cut is very clean and precise.Laser cutting machines are used in a variety of industries, including aerospace, automotive, electronics, medical, and more. They are often used to cut metals, but can also be used to cut other materials such as plastics and wood. Laser cutting machines are very versatile and can be used for a wide range of applications.




workbench(machine bed), place the finished workpieces and waste, auto-feed device

computer screen, control panel, keyboard & mouse, caster

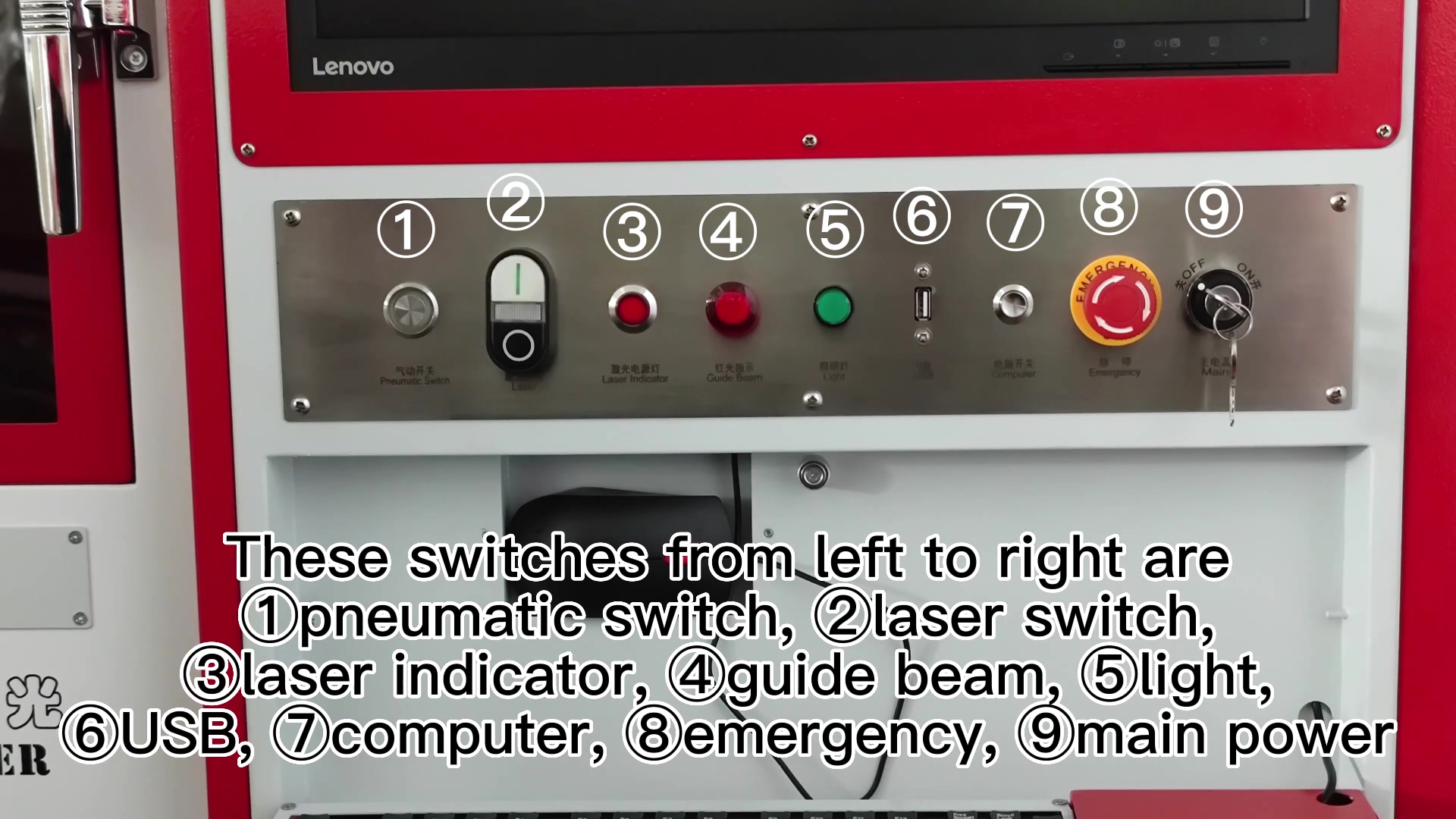

These switches from left to right are

①pneumatic switch, ②laser switch, ③laser indicator, ④guide beam,

⑤light, ⑥USB, ⑦computer, ⑧emergency, ⑨main power

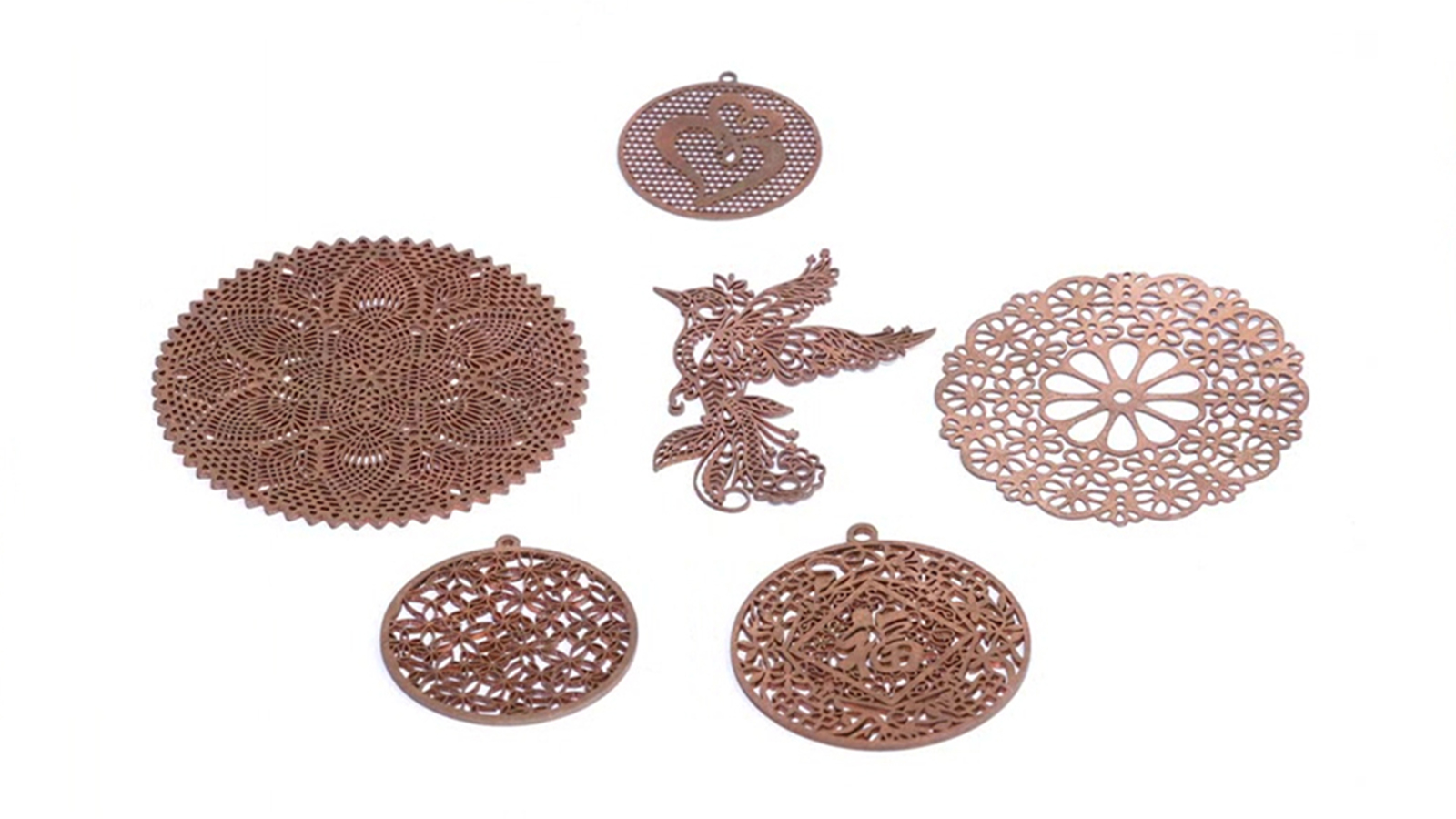

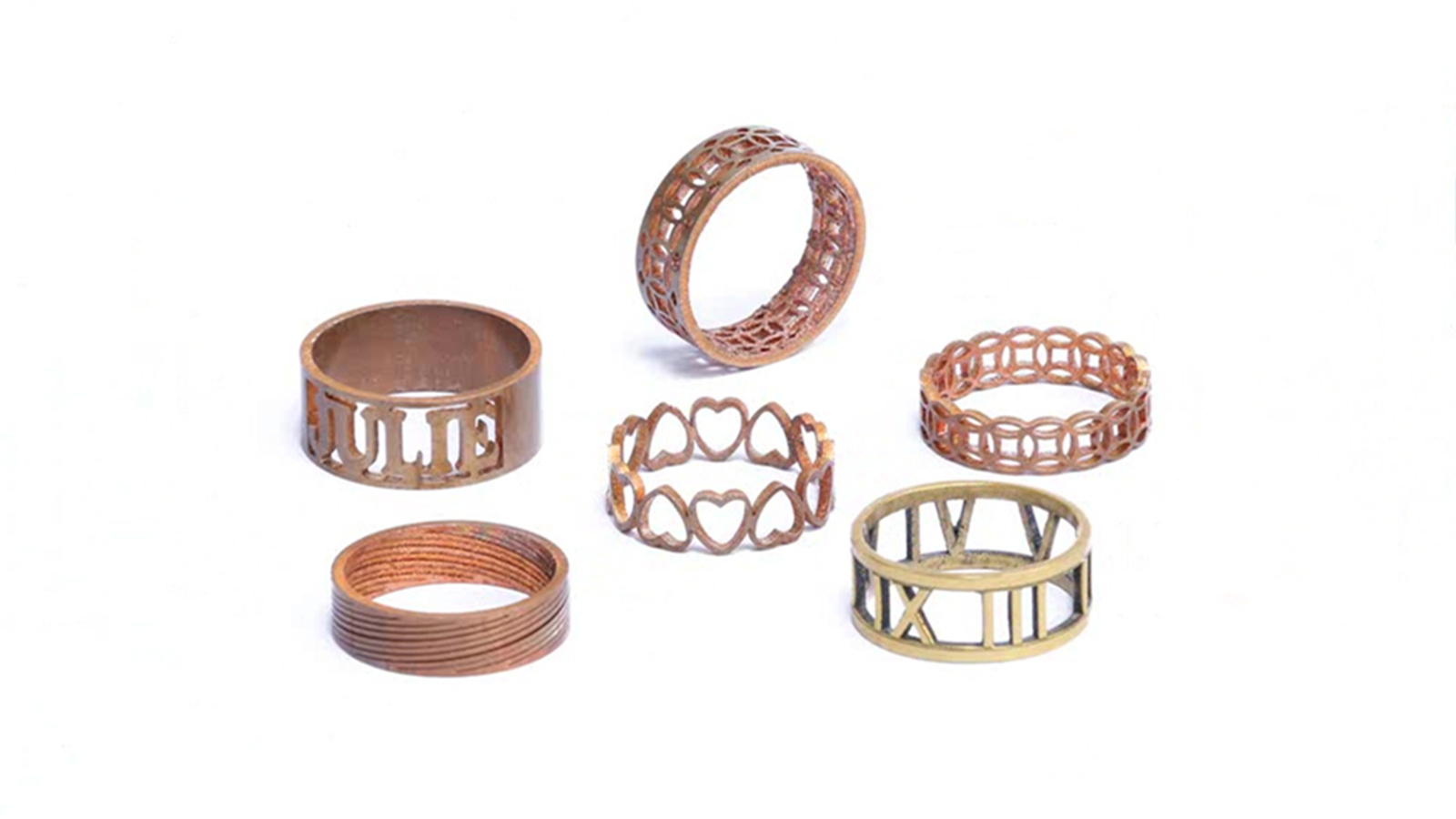

Samples Display
