Product Introduction

  01. Uses high-quality fiber laser source and cutting head.

  02. Stable laser output.
  03. Customized user-friendly software. Able to automatically optimized the cutting paths to minimize the cutting time.
  04. Uses high-quality servo motor for high accuracy cutting.
  05. Auto-tracking focusing. When cutting the uneven workpieces, the system is able to track and autofocus the laser for accurate and even cutting.




Product Parameters

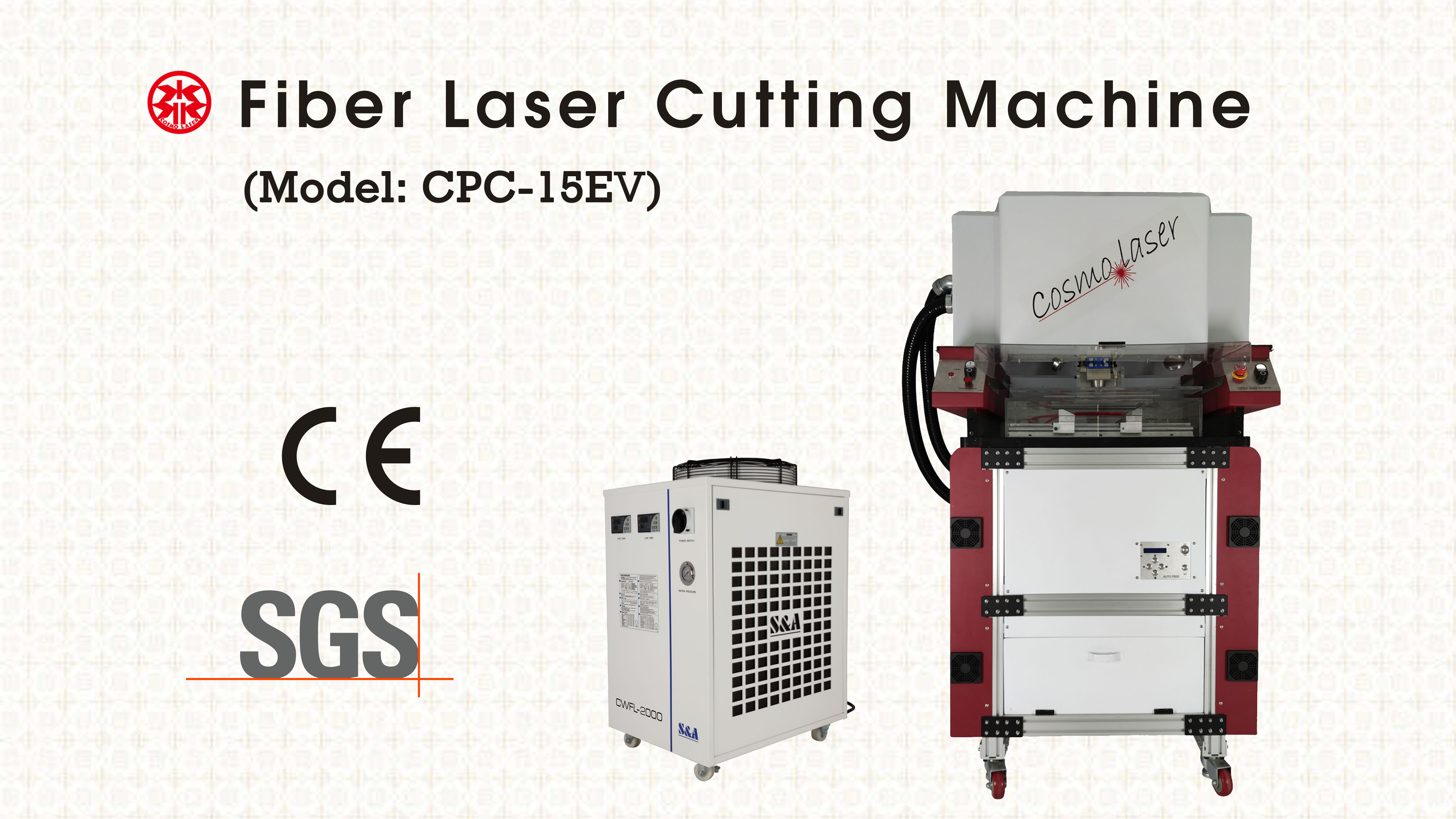

Model NO.
CPC-15EV
Laser Source
CW Fiber Laser
Cutting Area

250mm×400mm


Cutting Thickness
Maximum 3.0mm (Depending on material)


Cutting Line Width
0.06 ~0.2mm
Cutting Speed

800 ~ 2000mm/min


Cutting Accuracy
0.02mm
Cooling Mode

Water Cooled


Cutting Air Pressure Requirement
8~16bar
Computer Software

Included

Accessories Jig
Pneumatic Jig
1. Air Compressor
2. Dust Collector

Optional

Maximum Power Consumption
8kW (Cutting Machine)/3kW (Chiller)
Power Supply

220V/1P (Cutting Machine)

Dimension (L×W×H)
1100×800×1700mm (Cutting Machine)
500×700×900mm (Chiller)
Weight

350kg (Net)/420kg (Gross)




Product Details


Cutting Head

When Cutting Workpiece

Magnetic Remote Control Device

can be attached to the machine

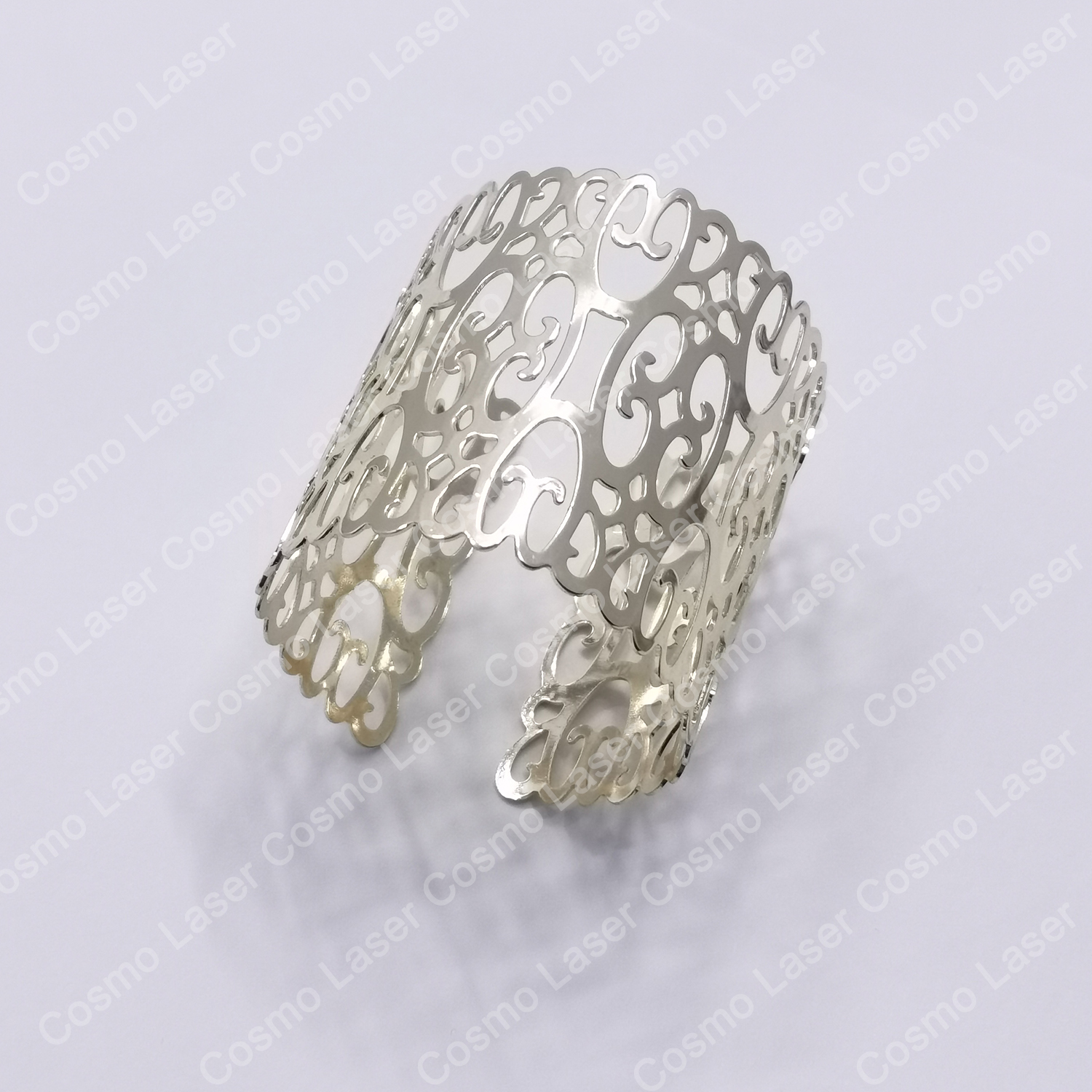

Samples Display
