Auto Feeding Laser Cutting Machine
HOME > PRODUCTS > Laser Cutting Machine > Auto Feeding Laser Cutting Machine
Recommended
Replay


Company Introduction
PROFILE





Cosmo Laser Equipment Company Limited is a laser equipment manufacturer integrating R&D, production, sales and after-sales service.

Since 2004, Cosmo Laser starts producing high-quality laser equipment for the global jewellery industry, precious metal and gift production fields,

such as watches, eyeglasses, hardware products, and electrical appliances. We have a worldwide sales and service network.



Certifications and Patents
QUALIFICATION


 CE certification; SGS certification; two copyright of the software for machine; three patents for utility model; three patents for industrial design

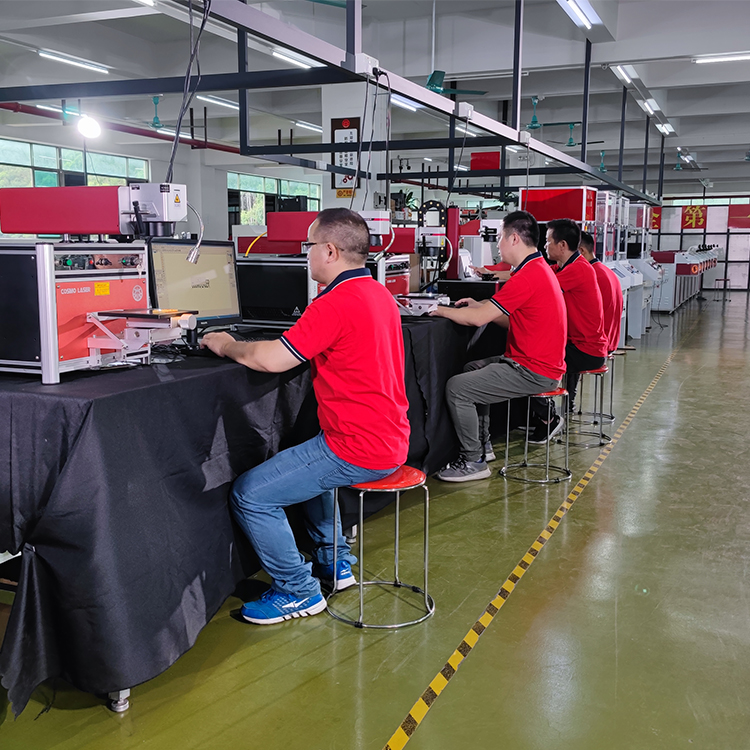

Production Line Display
WORKSHOP

Pin Marking Machine Production Line

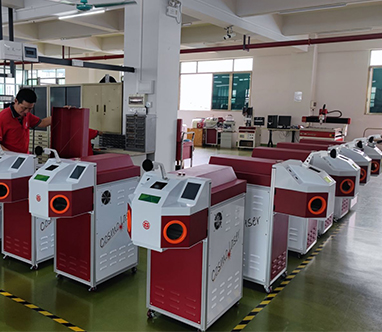

Laser Welding Machine Production Line

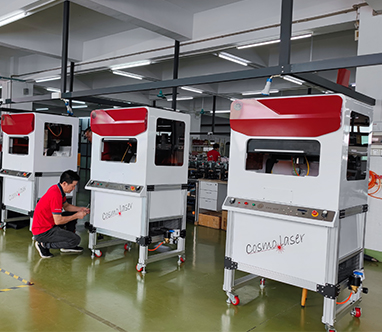

Laser Cutting Machine Production Line


CNC Design Cutting Machine Line

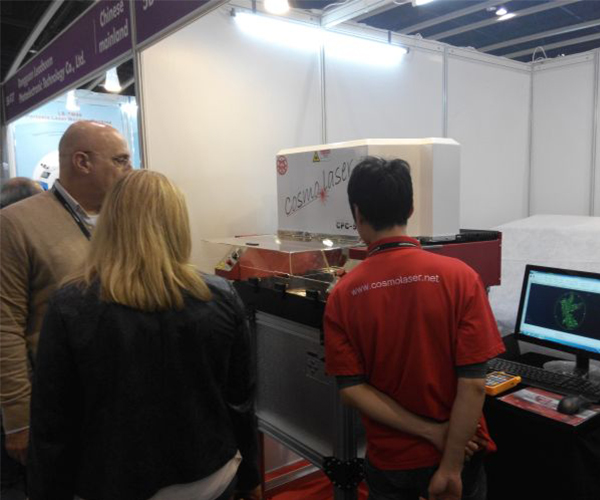

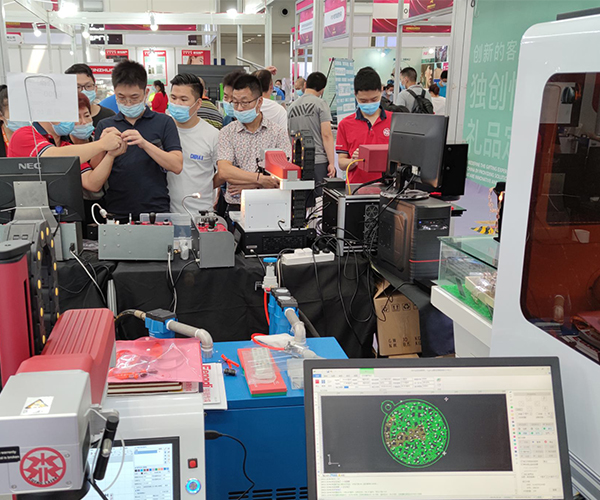

Attend Fairs at Home and Abroad
COMMUNICATION











Product Advantages
BENEFITS

  01.  High quality Imported fiber laser and cutting head

  02.  Stable laser output.
  03.  Customized software. Automatically optimized the cutting paths to minimize the cutting time.
  04.  Uses high-quality servo motor for high accuracy cutting.
  05.  Auto-tracking focusing. When cutting of uneven workpiece, the system is able to track and auto-focus the laser for accurate and even cutting.
  06.  Auto-feed cutting for roll material.
  07.  Rotary cutting for bangles.
  08.  Highly efficient material lost retrieval system design.



Parameter Table
 PRODUCT PARAMETER
  • Model

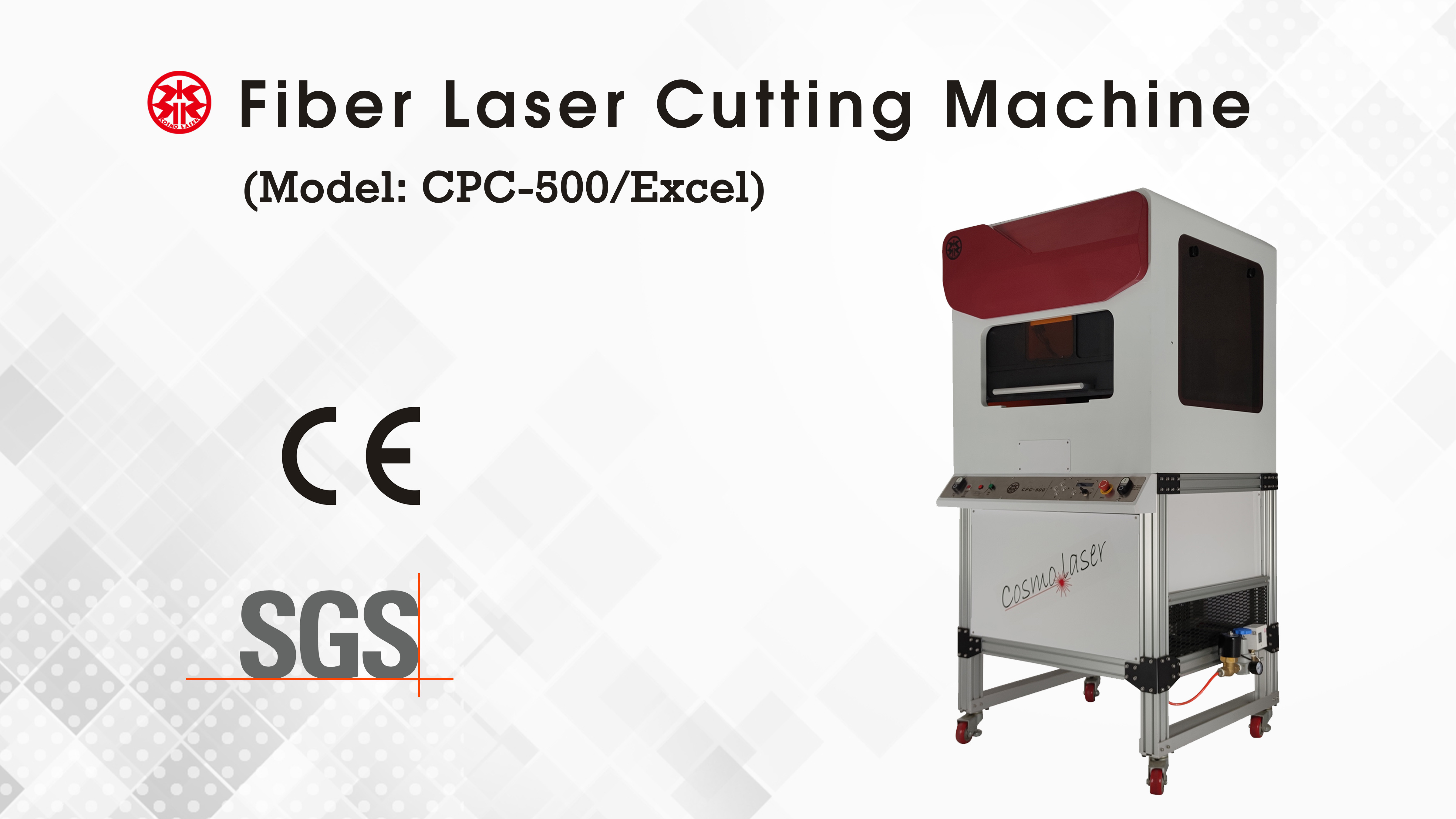

    CPC-500/ CPC-500 Excel
  • Laser Source
    Imported Fiber Laser
  • Cutting Area
    300mm×300mm
  • Cutting Thickness
    Maximum 5.0mm (Depending on material)
  • Cutting Line Width
    0.04~0.12mm
  • Cutting Speed
    300mm~2000mm/min
  • Cutting Accuracy
    0.02mm
  • Cooling Mode
    Air Cooled
  • Cutting Air Pressure Requirement
    6~16bar
  • Computer Software
    Included
  • Accessories Jip
    1. Small Workpiece Jig; 2. Auto Feed Conveyor Jig; 3. Ring/ Bangle Rotary Cutting Jig
  • 1. Air Compressor; 2. Dust Collector
    Optional
  • Maximum Power Consumption
    5kW
  • Power Supply
    220V/1P
  • Machine Dimension(L×W×H)
    980mm×960mm×1730mm
  • Weight
    320kg (Net); 400kg (Gross)

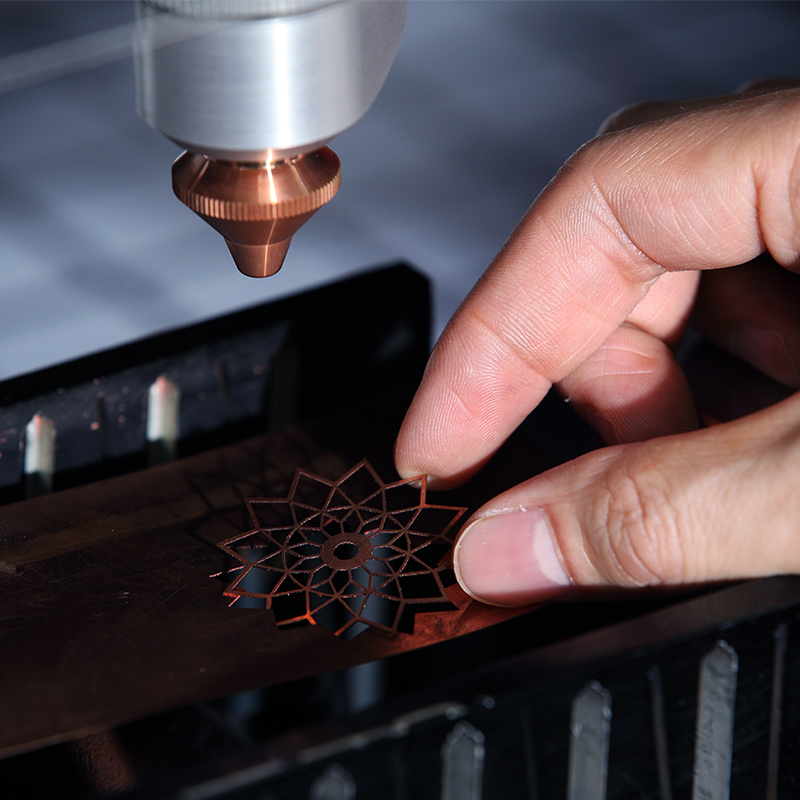

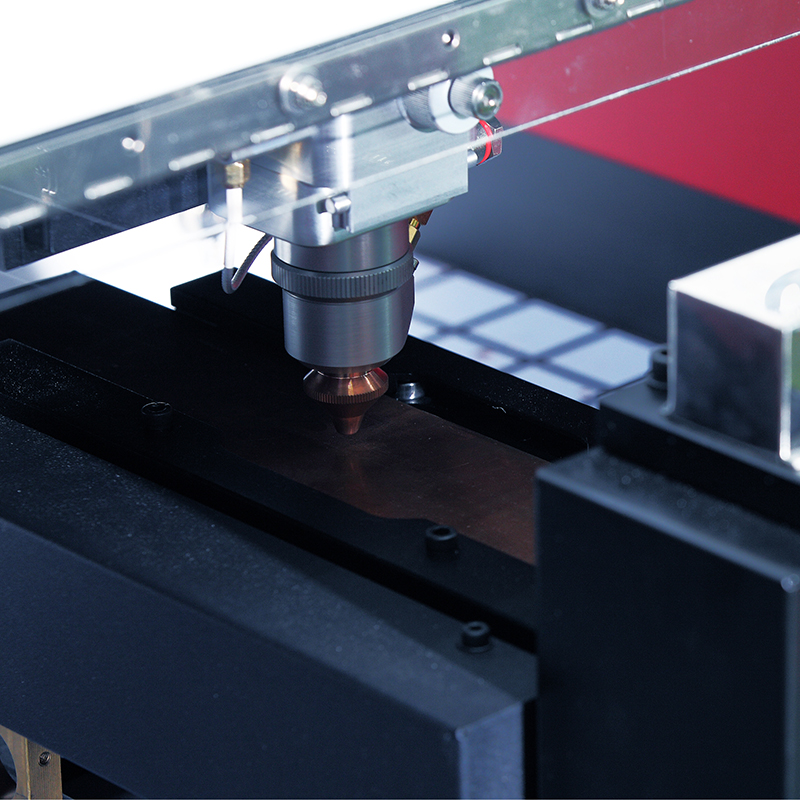

Machine Detail Display
DESIGN



Samples Display
CUT BY CPC-500/EXCEL











FAQ
EVERYTHING YOU WANT TO KNOW
  • What is the warranty for machines?
    12 months from the time of shipment on the whole machine, except for consumables parts.
  • Will installation/training be provided?
    Yes, methods include 1. Online: for free, by remote control, voice/ video chat, and other methods. 2. At our factory: for free, but customers will bear for their transportation and accommodation cost. 3. Door-to-door service: a fee is required and depends on our time and number of personnel.
  • How is the packing?
    Products will be packed in seaworthy wooden boxes.
  • What kinds of shipping modes are available?
    Sea or air transportation. It depends on the customer's choice and type of machines. Due to aviation safety regulations, certain machines can only be transported by sea.
  • What is the delivery time upon confirmation of the order?
    The delivery time is usually between 3 to 5 workings days, depending on the type of machine. When it is at the peak of production, it may be longer. Please contact us for the actual delivery time.
  • What are the main products of Cosmo Laser?
    Products include laser welding machine, laser marking/engraving machine, laser cutting machine, finger ring/bangle pin marking machine, CNC design cutting machine.
  • What other products Cosmo Laser manufacture?
    Products include dust collectors, polishing machines, non-standard customized equipment, etc.
  • Is the laser safe to operate?
    Yes, the laser is completely safe to operate. No special safety gear is required to run the laser.
  • What services Cosmo Laser provides?
    Pre-sales: online consultation (by email, telephone, WeChat, WhatsApp, etc.), test on samples, visit our factory, provide customization project, provide financial services. In-sales: design, manufacture, installation, debugging, transportation logistics. After-sales: training, supply of repair parts, troubleshooting, maintenance, return visits
  • What are the payment terms?
    Full payment upon order confirmation. Payment by bank transfer. If you have other ideas, feel free to contact us.

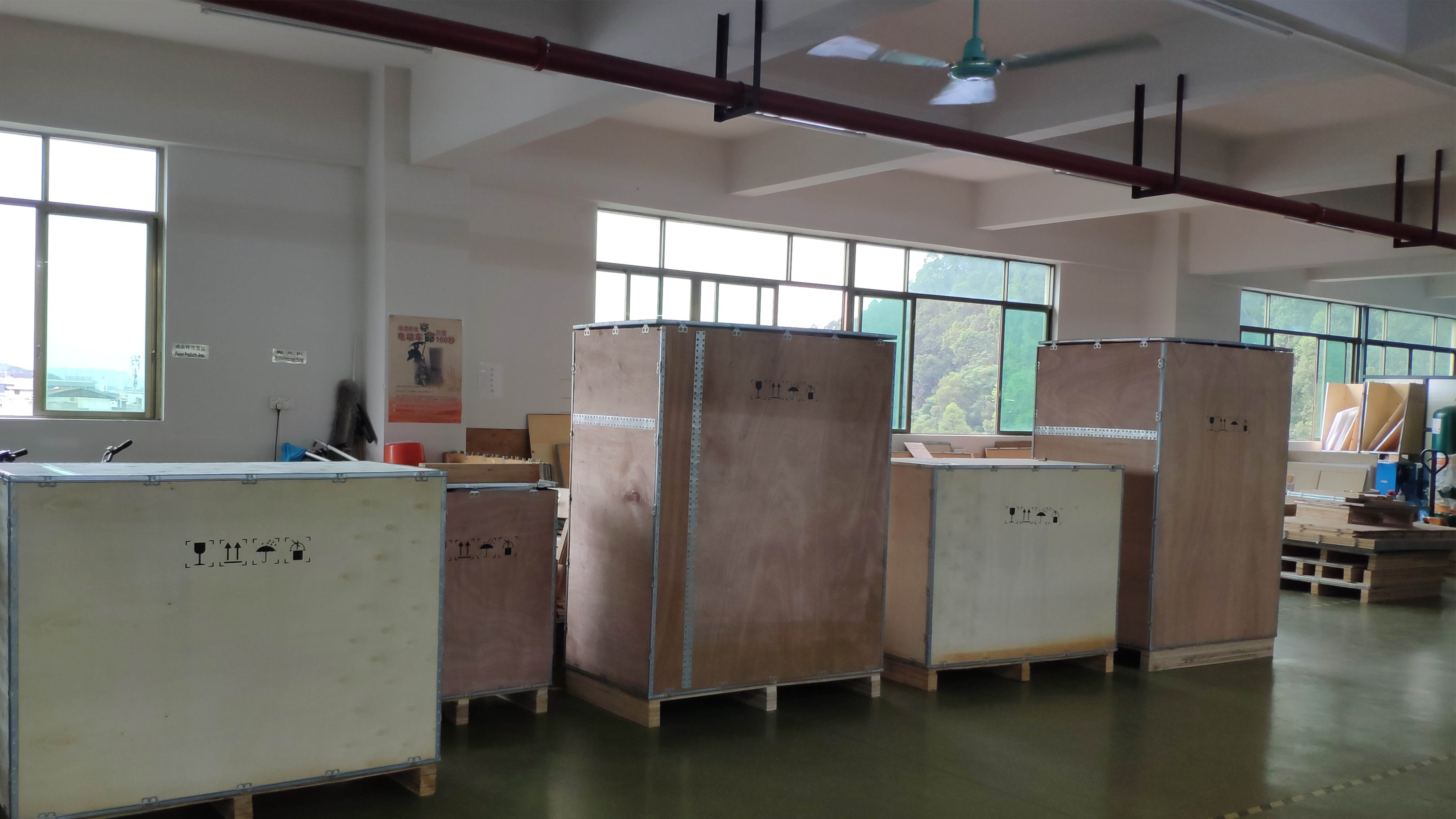

Loading and Shipping
