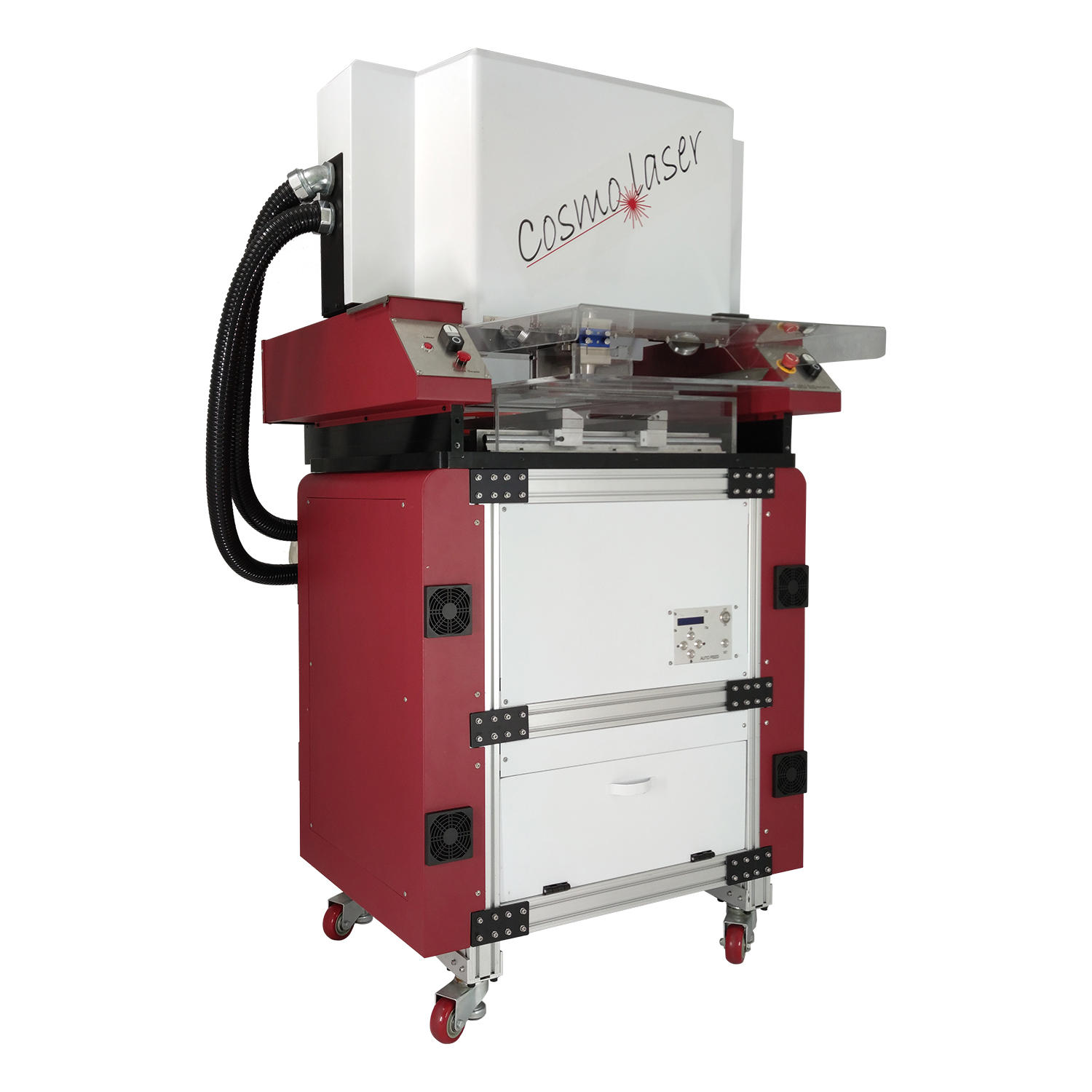

Fiber Laser Cutting Machine (model: CPC-15EV)
VR
  • Product Details
  • Company Profile
Product Introduction

  01. Uses high-quality fiber laser source and cutting head.

  02. Stable laser output.
  03. Customized user-friendly software. Able to automatically optimized the cutting paths to minimize the cutting time.
  04. Uses high-quality servo motor for high accuracy cutting.
  05. Auto-tracking focusing. When cutting the uneven workpieces, the system is able to track and autofocus the laser for accurate and even cutting.



Product Parameters
Model NO.
CPC-15EV
Laser Source
CW Fiber Laser
Cutting Area

250mm×400mm


Cutting Thickness
Maximum 3.0mm (Depending on material)


Cutting Line Width
0.06 ~0.2mm
Cutting Speed

800 ~ 2000mm/min


Cutting Accuracy
0.02mm
Cooling Mode

Water Cooled


Cutting Air Pressure Requirement
8~16bar
Computer Software

Included

Accessories Jig
Pneumatic Jig
1. Air Compressor
2. Dust Collector

Optional

Maximum Power Consumption
8kW (Cutting Machine)/3kW (Chiller)
Power Supply

220V/1P (Cutting Machine)

Dimension (L×W×H)
1100×800×1700mm (Cutting Machine)
500×700×900mm (Chiller)
Weight

350kg (Net)/420kg (Gross)


Product Details

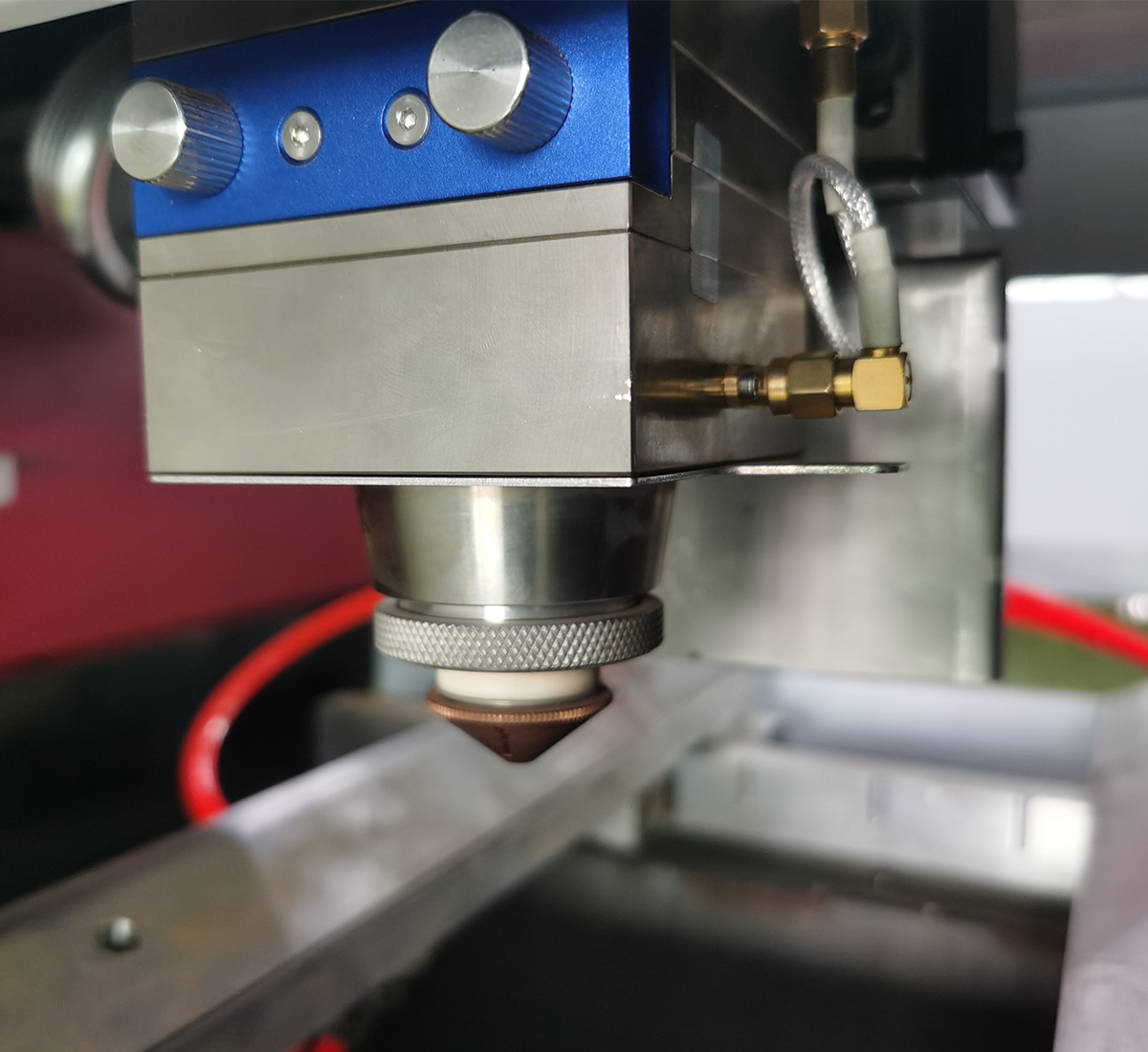

Cutting Head

When Cutting Workpiece

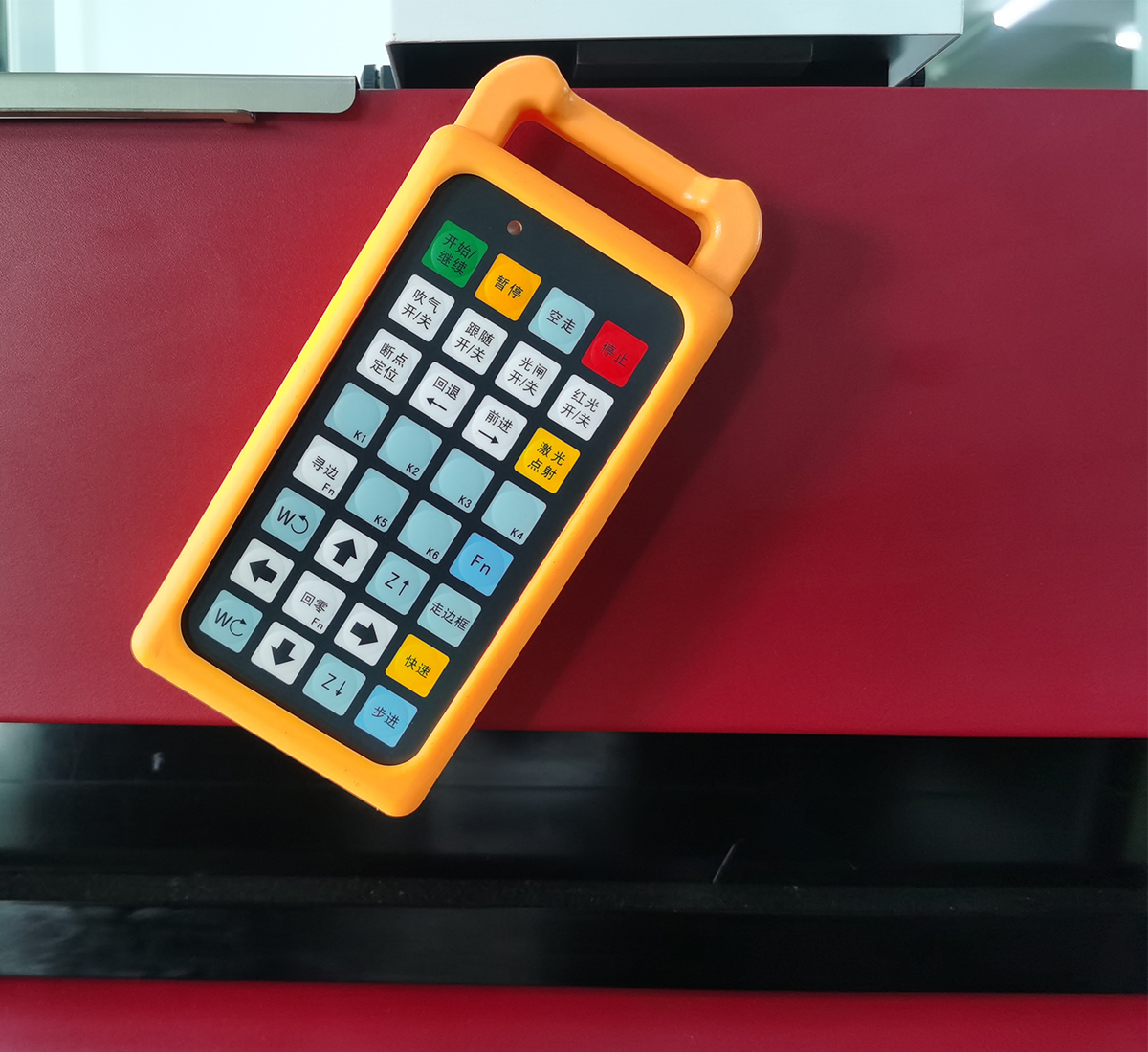

Magnetic Remote Control Device

can be attached to the machine


Samples Display



Product Features
Specialize in Laser Machines for around 20 years
Strict Quality Tested before Sales
Cooperate with over 20 famous brands
Multi Payment Terms
Abundant Inventory and Short Lead Time
1 Year Warranty
24hrs Supports from our Customer Service Team
Competitive and Reasonable Price
Our services

1. OEM or ODM are acceptable.

2. We accept small order/trial orders for the customer to check whether the products are suitable for the market.

3. Will be available online for almost 24 hours of service for your esteemed company.

4. We are glad to hear from you soon and to start a business relationship with your esteem company.


Do you have questions and want to contact us?


Call or visit us
No.27/1, 4th Floor, Sha Du Road, Fu Chong Cun, Sha Wan Town, Panyu, Guangzhou, China 511400
  •
    Shirley Guo
  •
    Guangzhou, China
  •
    cosmolaser@vip.163.com
  •
    +86-19974138611
Basic Information
  • Year Established
    2004
  • Business Type
    Factory
  • Country / Region
    China
  • Main Industry
    Industry Laser Equipment
  • Main Products
    laser cutting machine, laser marking machine, laser welding machine, ring and bangle pin marking machine, CNC design cutting machine
  • Enterprise Legal Person
    Yihua Zou
  • Total Employees
    16~100 people
  • Annual Output Value
    1,000,000 USD
  • Export Market
    Chinese Mainland,European Union,Middle East,Eastern Europe,Latin America,Africa,Oceania,Hong Kong and Macao and Taiwan,Japan,Southeast Asia,America,Others
  • Cooperated Customers
    Cosmo Laser has long-term cooperation with many well-known brands at home and abroad.
Company Profile
We, Guangzhou Cosmo Laser Equipment Co.,Ltd., are a quality oriented company which offers products like laser cutting machine, laser marking machine, laser welding machine, ring and bangle pin marking machine, CNC design cutting machine etc. We use the finest raw material that is procured from reliable sources after rigorous testing of various parameters. We have a quality management team that makes sure that all the production processes are carried out flawlessly. Our transparent and timely deals have fetched us a wide client base that is spread across the world.
Company Video
Certifications
CE Certification of Fiber Laser Cutting Machine
Issue by:Shenzhen Huatongwei International Inspection Co., Ltd.
CE Certification of Laser Spot Welding Machine
Issue by:Third Party Authority
SGS Certification
Issue by:SGS-CSTC Standards Technical Services Co., Ltd.
Copyright of the Software for Pin Marking Machine (1.0 Version)
Issue by:NATIONAL COPYRIGHT ADMINISTRATION OF THE PEOPLE'S REPUBLIC OF CHINA
Copyright of the Software for Pin Marking Machine (2.0 Version)
Issue by:NATIONAL COPYRIGHT ADMINISTRATION OF THE PEOPLE'S REPUBLIC OF CHINA
Patent of Utility Model for an Improved Structure of a Laser Spot Welding Machine
Issue by:China National Intellectual Property Administration
Patent of Utility Model for Pin Marking Machine
Issue by:China National Intellectual Property Administration
Patent of Utility Model for Pin Marking Machine's Rotating Structure
Issue by:China National Intellectual Property Administration
Industrial Design for Laser Marking Machine
Issue by:China National Intellectual Property Administration
Industrial Design for Laser Spot Welding Machine
Issue by:China National Intellectual Property Administration
Industrial Design for Pin Marking Machine
Issue by:China National Intellectual Property Administration
