Newest Model Enclosed Fiber Laser Cutting Machine Display

Name: Newest Model Enclosed Fiber Laser Cutting Machine Display
Uploaded: 2022-10-07T09:47:49+08:00
Duration: 20 s

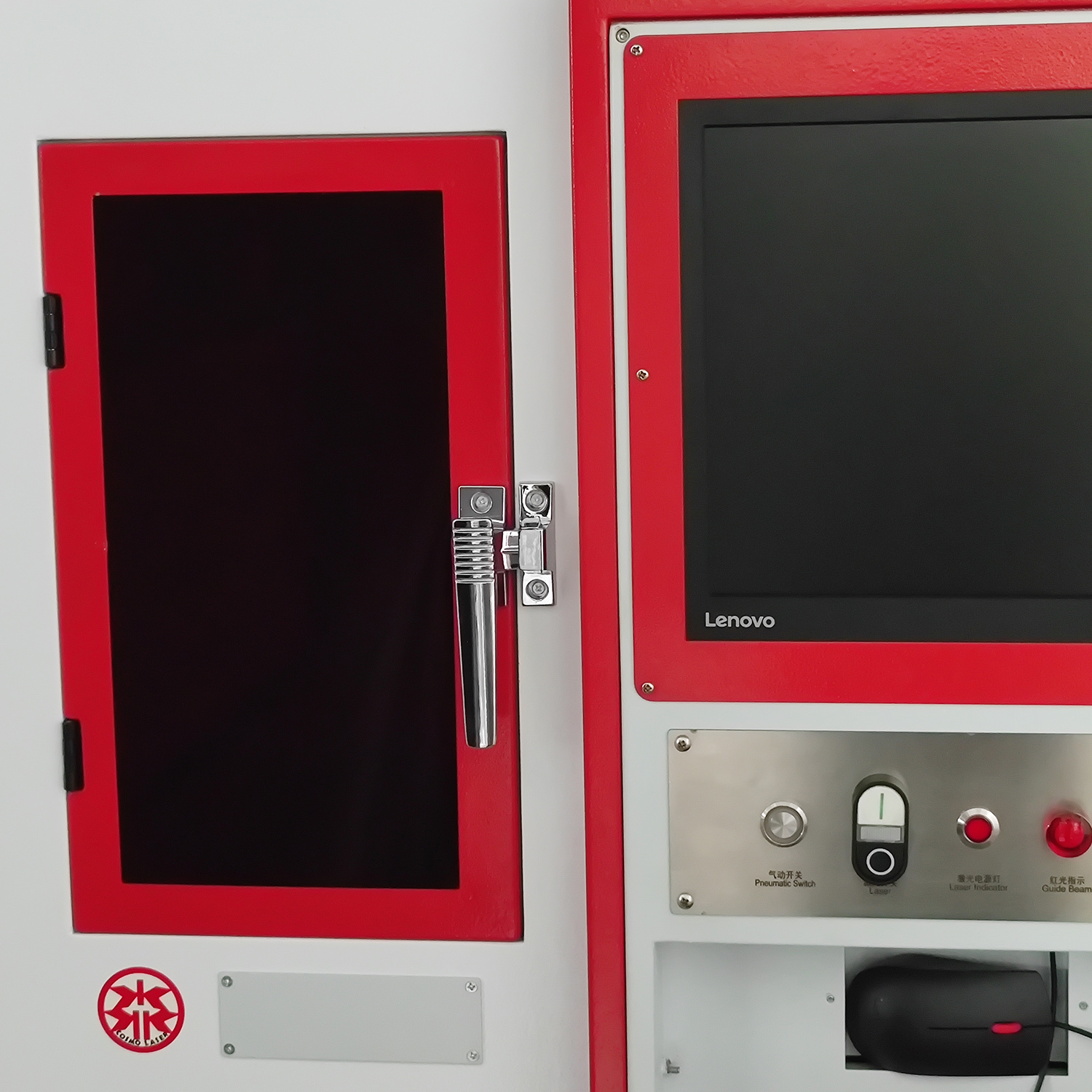

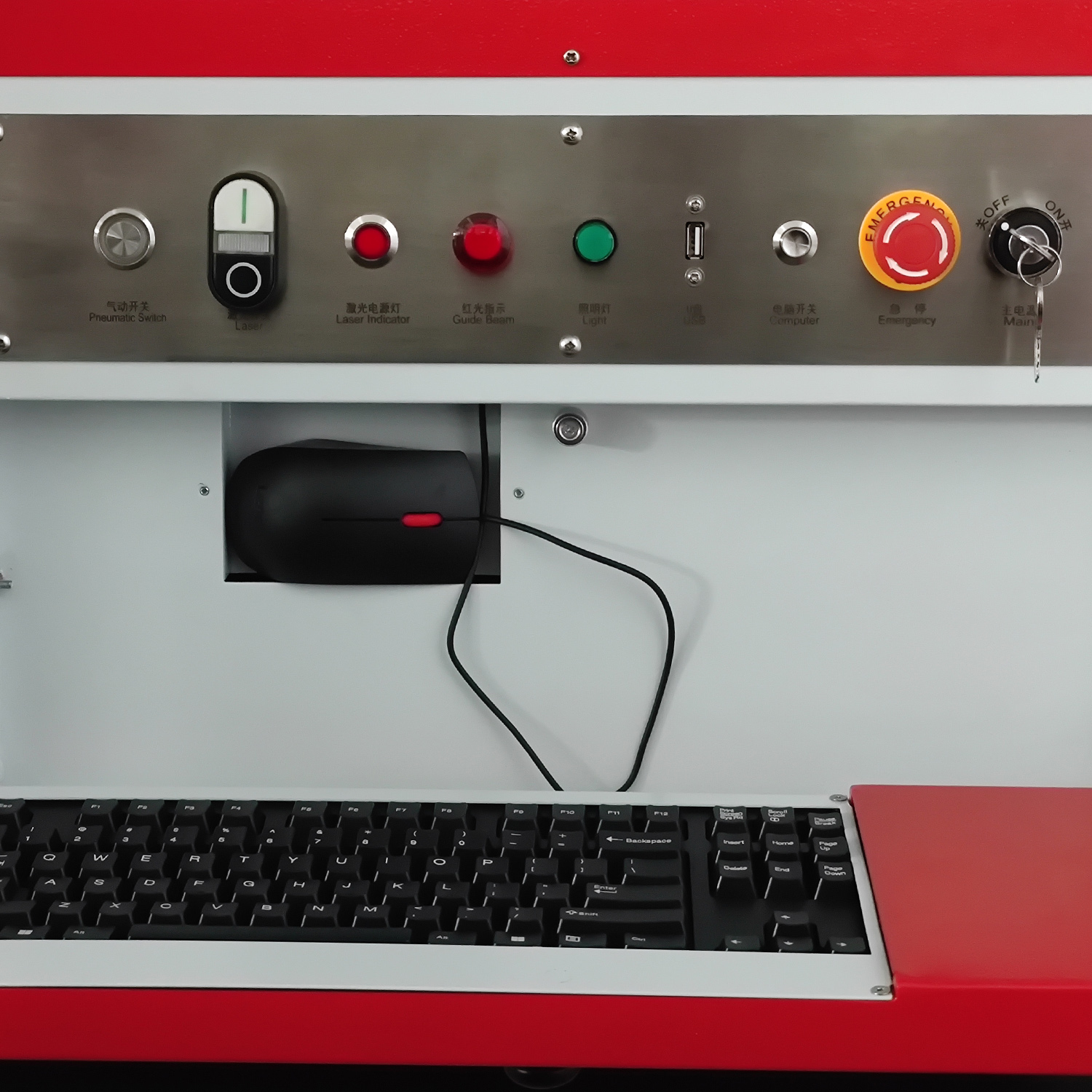

Description: The CPC-500G3 is a fully enclosed fibre laser cutting machine. Visually, we use a large format of eye-catching red colour which is the feature of Cosmo. In terms of machine structure, compared to the split structure of the CPC-500, the computer control system of the G3 is combined with the machine, saving space and making it easy to see at a glance.

The CPC-500G3 is a fully enclosed fibre laser cutting machine. Visually, we use a large format of eye-catching red colour which is the feature of Cosmo. In terms of machine structure, compared to the split structure of the CPC-500, the computer control system of the G3 is combined with the machine, saving space and making it easy to see at a glance.

SEND INQUIRY NOW

Enclosed Fiber Laser Cutting Machine

Specification

Model
CPC-500G3 / CPC-500G3 EXCEL
Laser Source
Imported Fiber Laser
Cutting Area
100mm × 200mm
Cutting Thickness
Maximum 5.0mm (Depending on Material)
Cutting Line Width
0.04mm ~ 0.12mm
Cutting Speed
300mm ~ 2000mm/min
Cutting Accuracy
±0.02mm
Cooling Mode
Air Cooled
Cutting Air Pressure Requirement
6 ~ 16 bar
Computer Software
Included
Accessories Jig
Small Workpiece Jig
Optional
1. Auto Feed Conveyor Jig
2. Ring/ Bangle Rotary Cutting Jig
3. Air Compressor
4. Dust Collector
Maximum Power Consumption
5kW
Power supply
220V/1P
Machine Dimension
940mm×1100mm×1650mm (L×W×H)
Weight
530kg(Net)/ 600kg(Gross)
