Enclosed Sealed Laser Cutting machine


Enclosed Fiber Laser Cutting Machine
Specification
  • Model
    CPC-500G3 / CPC-500G3 EXCEL
  • Laser Source
    Imported Fiber Laser
  • Cutting Area
    100mm × 200mm
  • Cutting Thickness
    Maximum 5.0mm (Depending on Material)
  • Cutting Line Width
    0.04mm ~ 0.12mm
  • Cutting Speed
    300mm ~ 2000mm/min
  • Cutting Accuracy
    ±0.02mm
  • Cooling Mode
    Air Cooled
  • Cutting Air Pressure Requirement
    6 ~ 16 bar
  • Computer Software
    Included
  • Accessories Jig
    Small Workpiece Jig
  • Optional
    1. Auto Feed Conveyor Jig

    2. Ring/ Bangle Rotary Cutting Jig

    3. Air Compressor

    4. Dust Collector

  • Maximum Power Consumption
    5kW
  • Power supply
    220V/1P
  • Machine Dimension
    940mm×1100mm×1650mm (L×W×H)
  • Weight
    530kg(Net)/ 600kg(Gross)



Machine Detail Display

the door of the work area
the door of the work area
computer screen and many switches
computer screen and many switches
wired keyboard and mouse set
wired keyboard and mouse set


Laser cutting machines have revolutionized the metal fabrication industry. They offer a much faster and more precise alternative to traditional cutting methods such as plasma cutting or waterjet cutting.


Samples Display

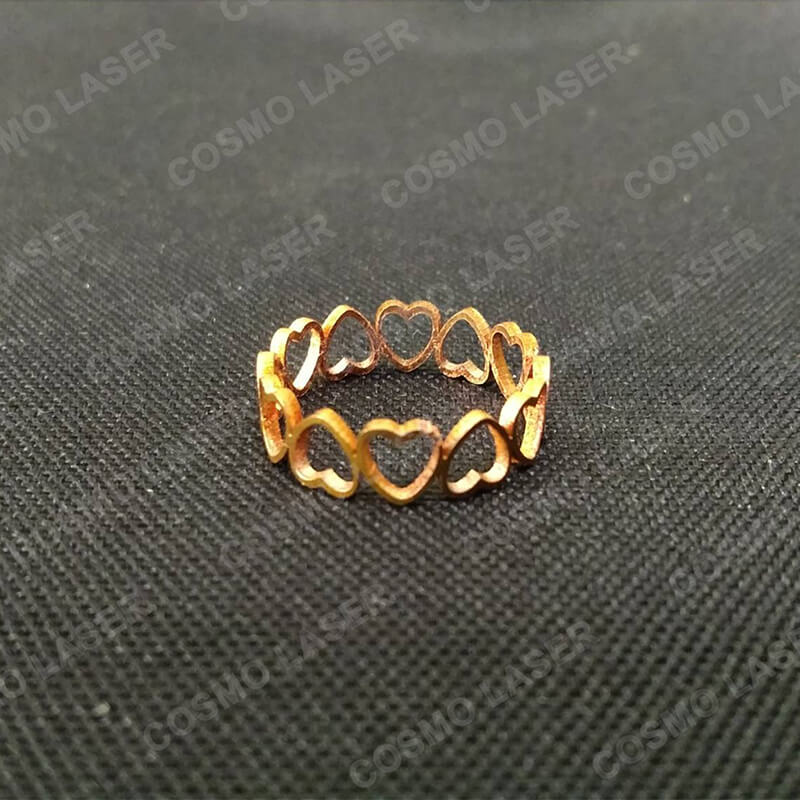

cutting sample1

cutting sample2


cutting sample3

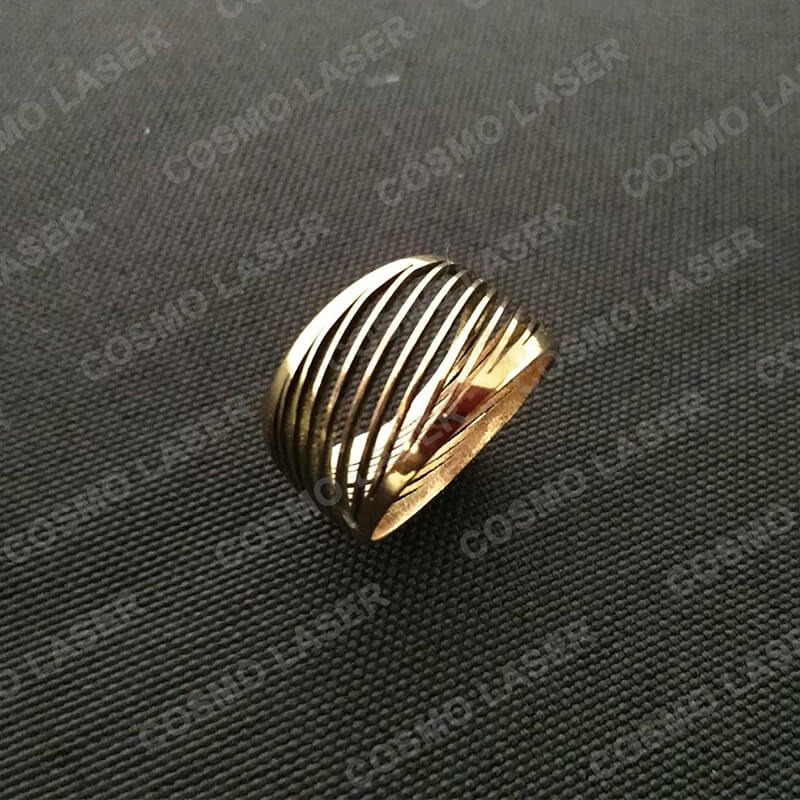

cutting sample4

laser cut sample5
laser cut sample6
laser cut sample7
laser cut sample8
