PRODUCTS


- Precious Metal Fiber Laser Cutting Machine -
Specification
  • Model
    CPC-500G3 / CPC-500G3 EXCEL
  • Laser Source
    QCW 150W / QCW 450W Imported Fiber Laser
  • Cutting Area
    150mm × 250mm
  • Cutting Thickness
    Maximum 5.0mm (Depending on Material)
  • Cutting Line Width
    0.04mm - 0.12mm
  • Cutting Speed
    300mm - 2000mm/min
  • Cutting Accuracy
    ±0.02mm
  • Cooling Mode
    Air Cooled
  • Cutting Air Pressure Requirement
    6 - 16 bar
  • Computer Software
    Included, full version "Cypcut" cutting software
  • Accessories Jig
    Small Workpiece Jig
  • Optional
    1. Auto Feed Conveyor Jig

    2. Ring/ Bangle Rotary Cutting Jig

    3. Air Compressor

    4. Dust Collector

  • Maximum Power Consumption
    5kW
  • Power supply
    main machine & air dryer: 220V/1P, air compressor: 380V/3P
  • Machine Dimension
    main machine: 940mm×1100mm×1650mm (L×W×H)
  • Weight
    530kg(Net)/ 600kg(Gross)



Machine Detail Display


cosmo laser cutting machine

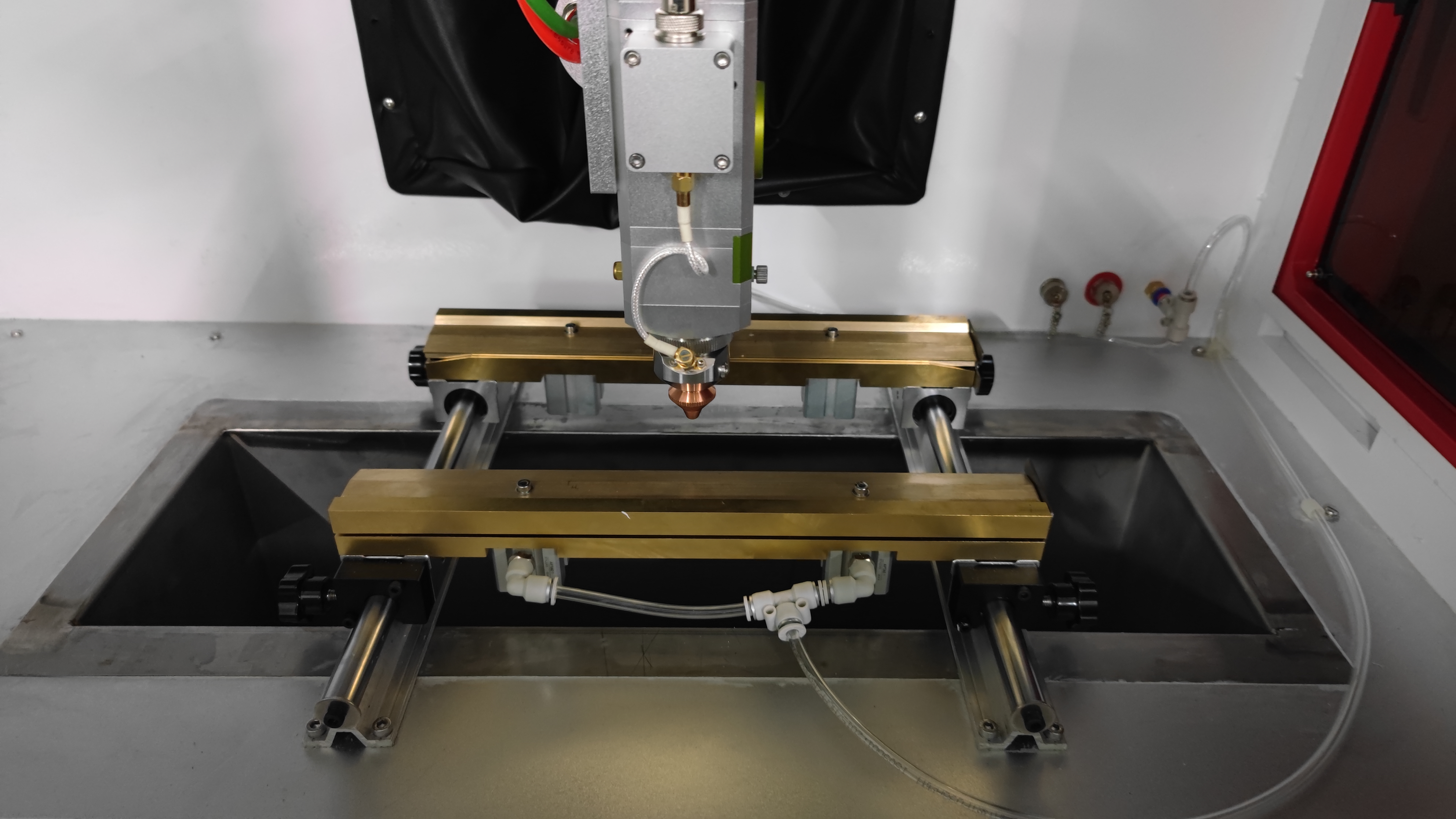

working area
cosmo laser cutting machine

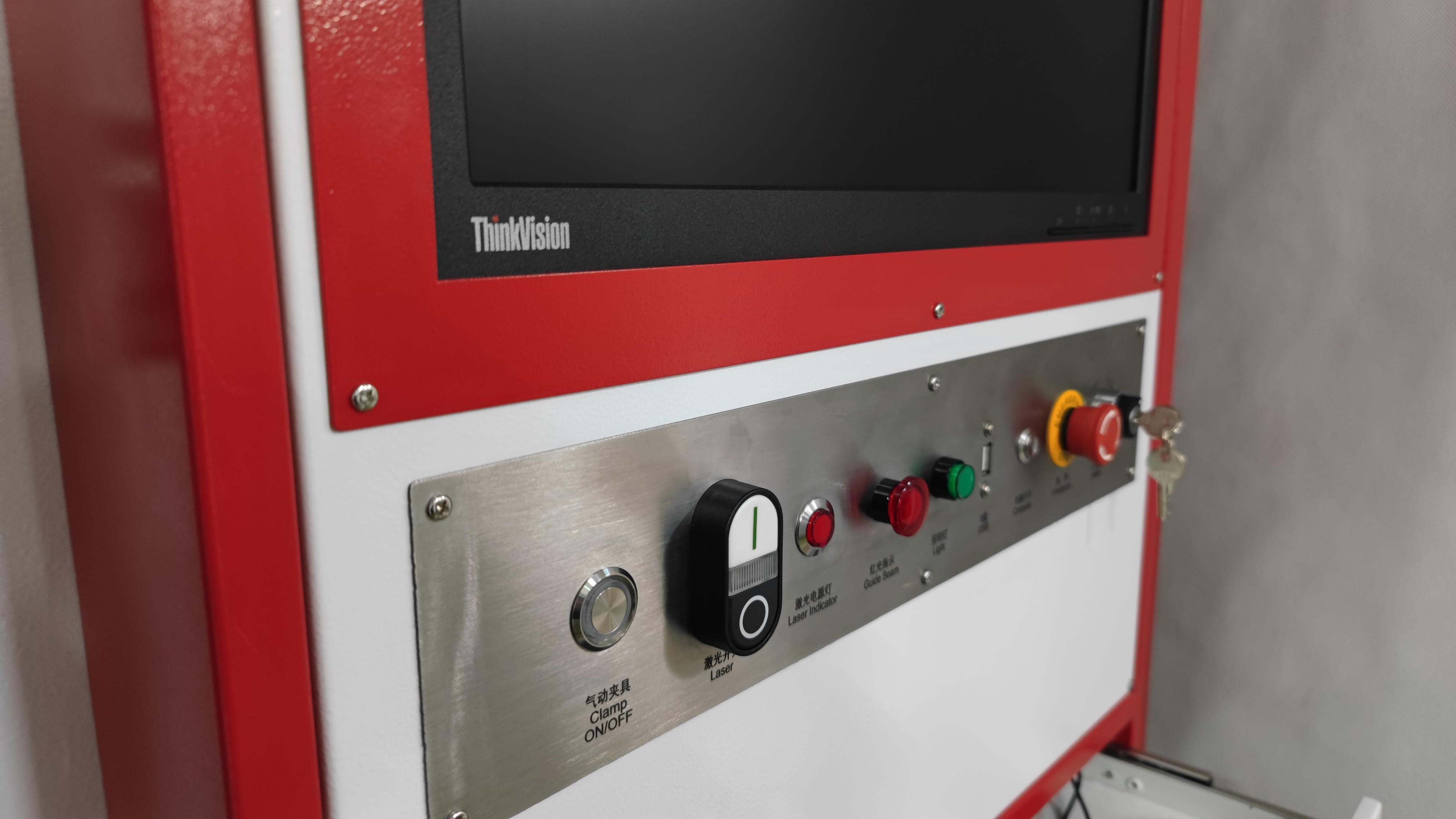

computer screen and various switches
cosmo laser cutting machine

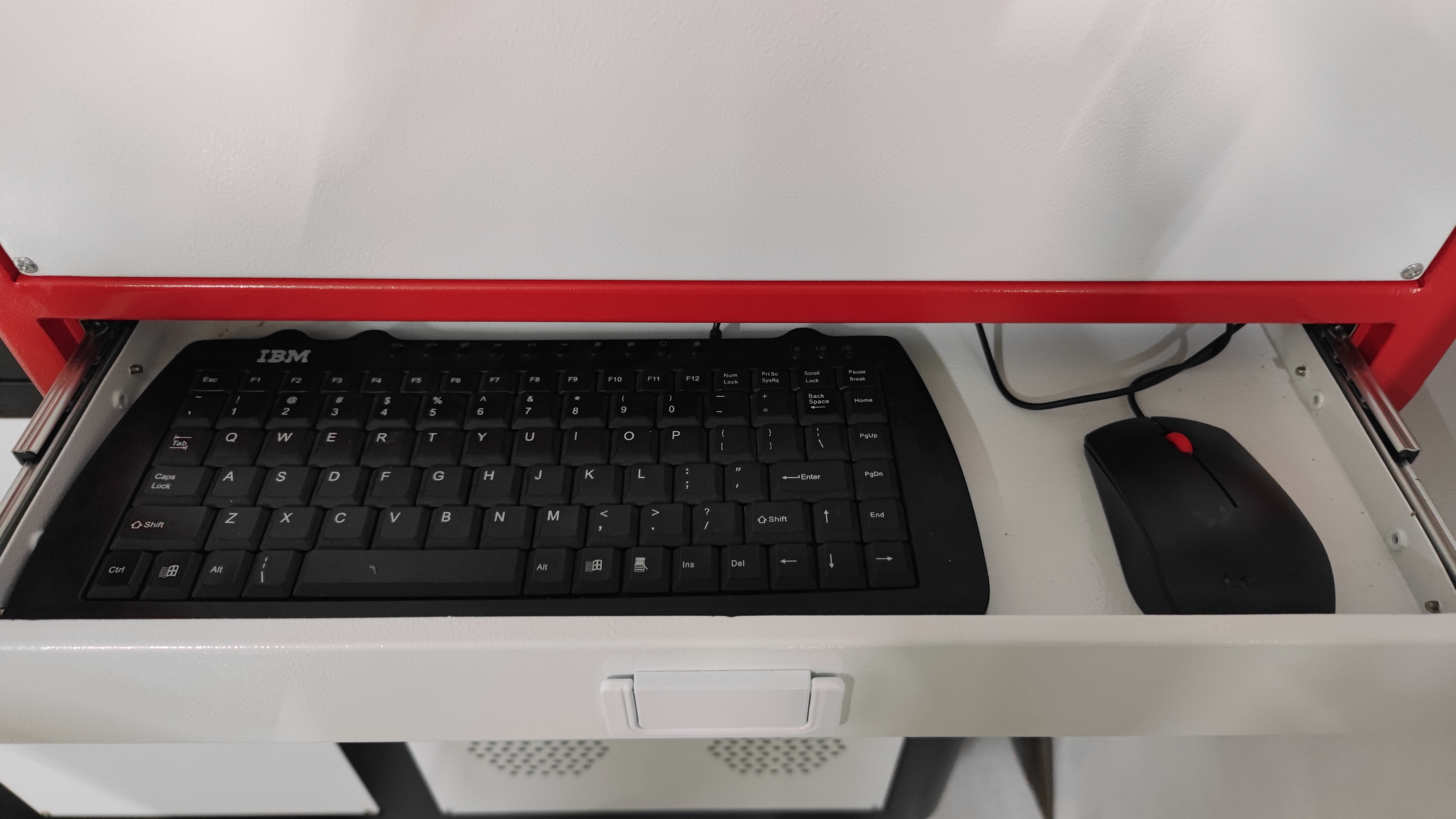

keyboard and mouse




Samples Display


laser cutting sample

complex graphic cutting

laser cutting sample

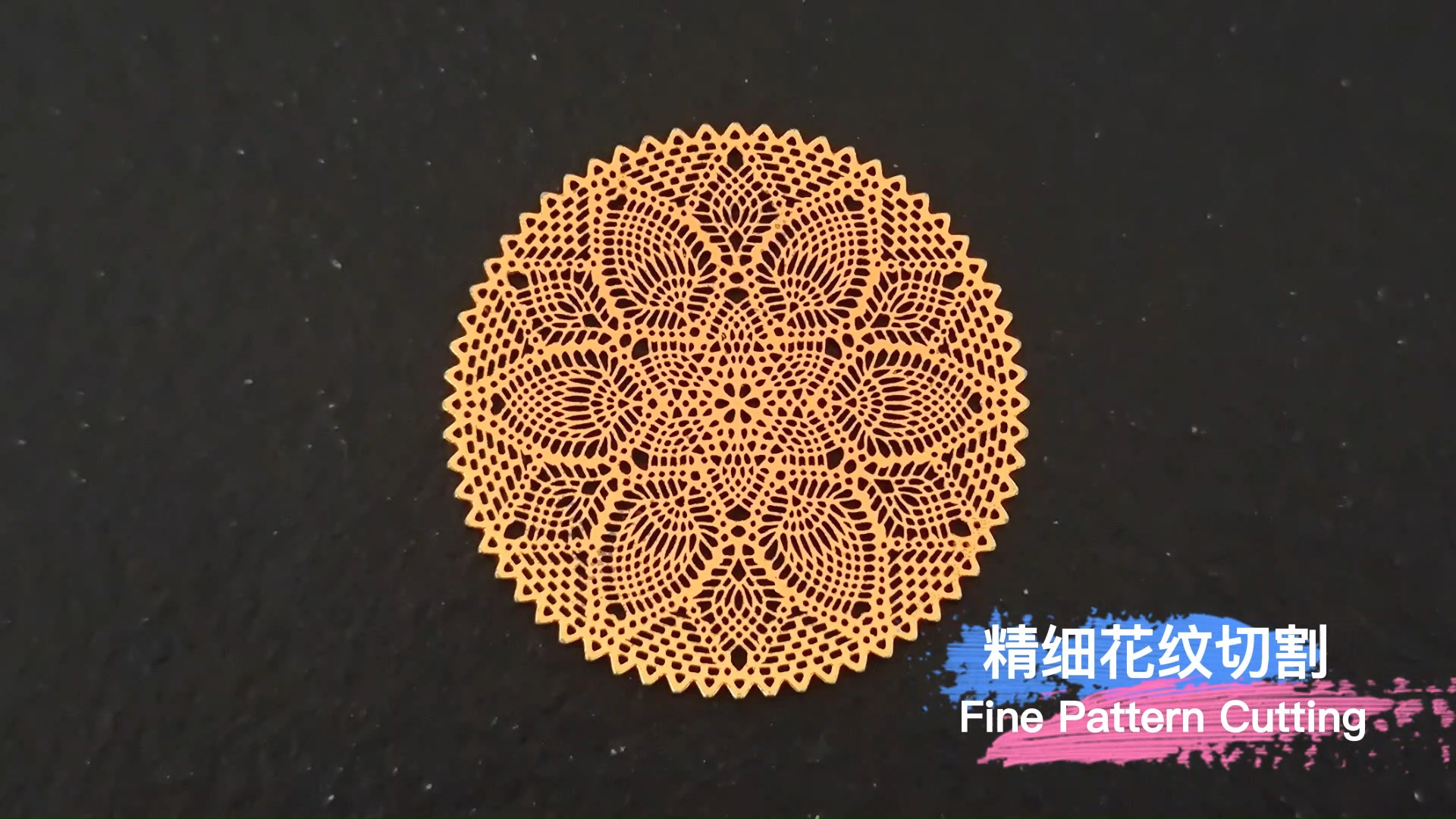

fine pattern cutting

laser cutting sample

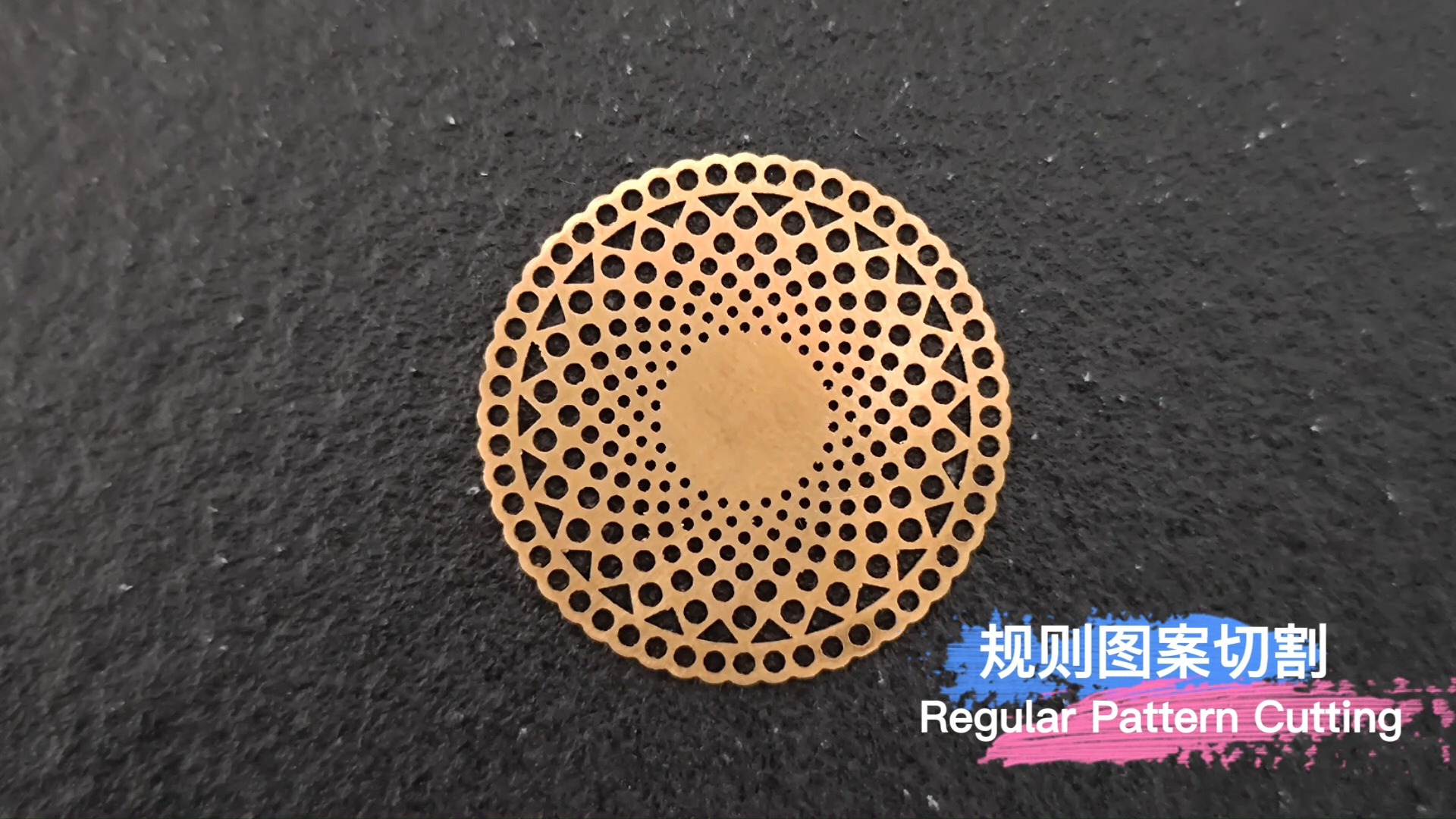

regular pattern cutting

laser cutting sample

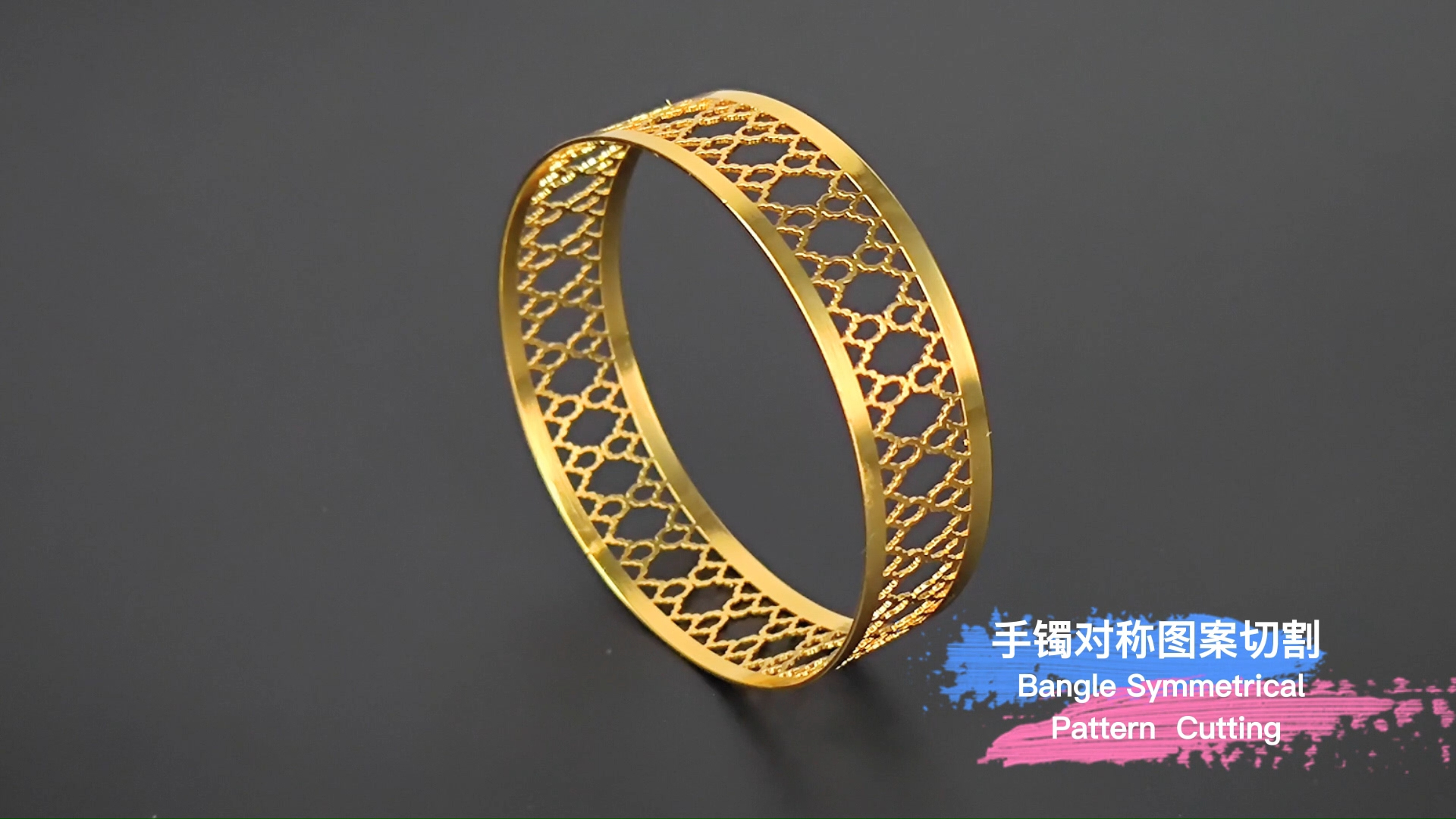

bangle symmetrical pattern cutting

laser cutting sample

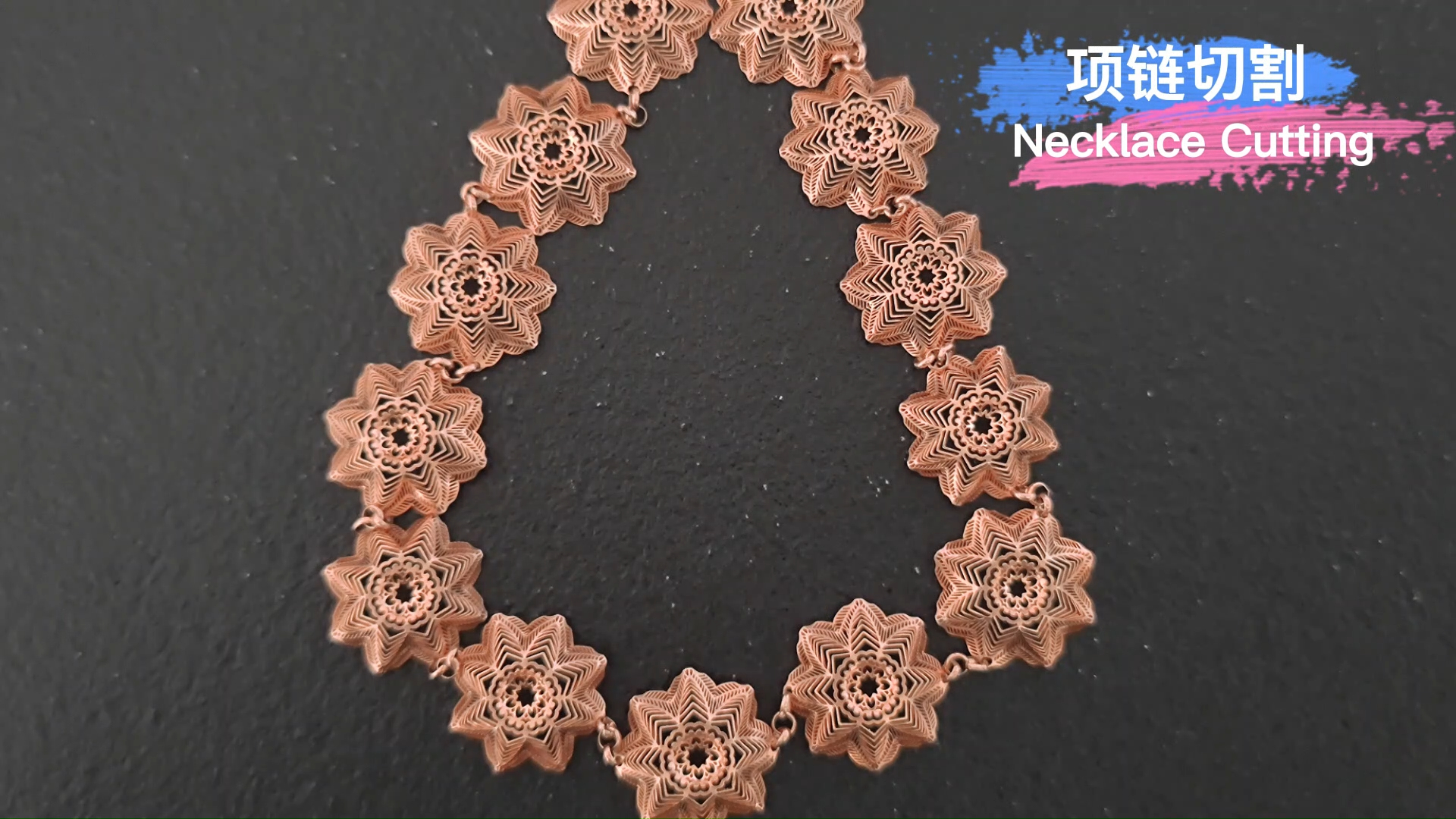

necklace cutting

laser cutting sample

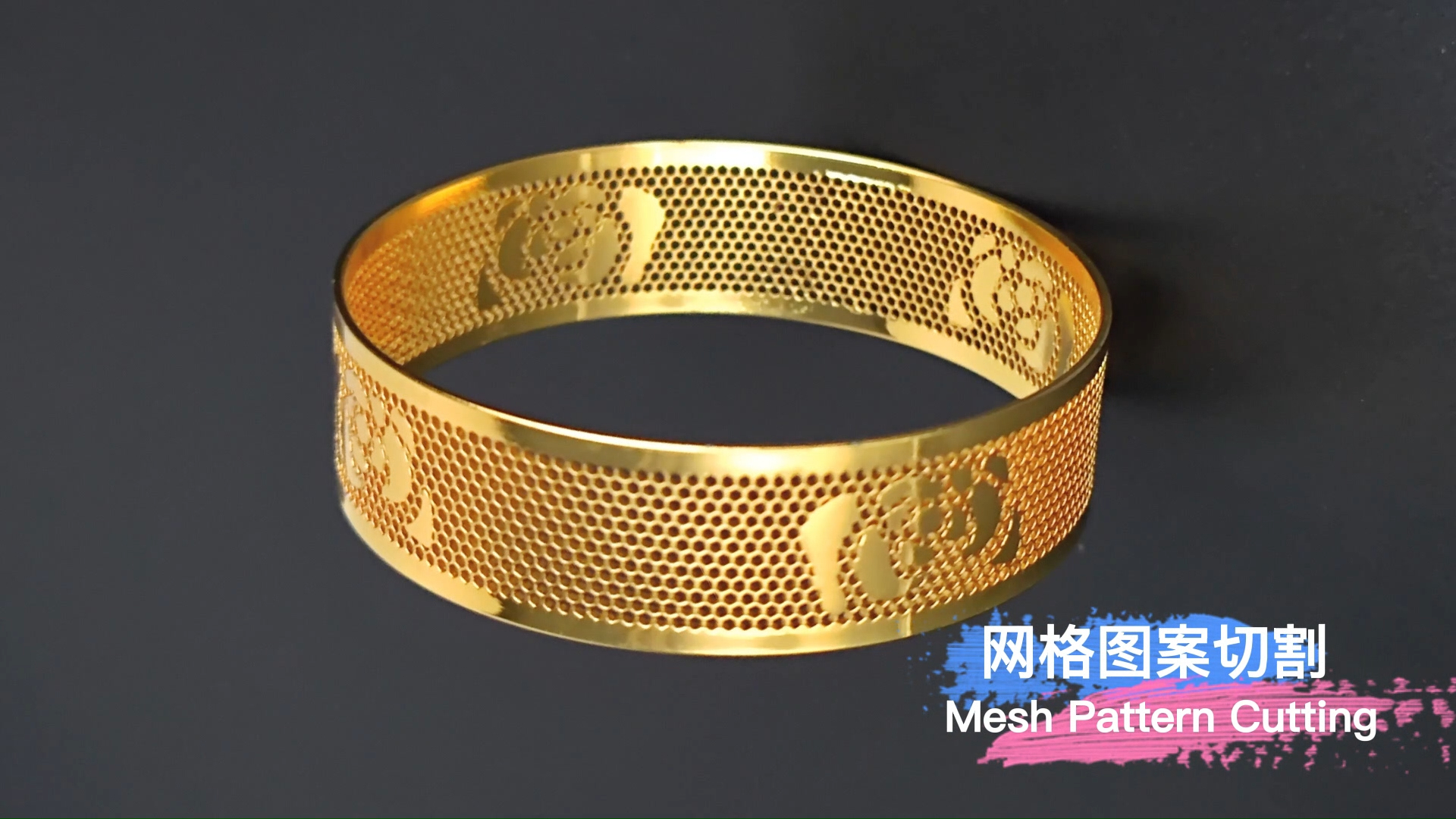

mesh pattern cutting

laser cutting sample

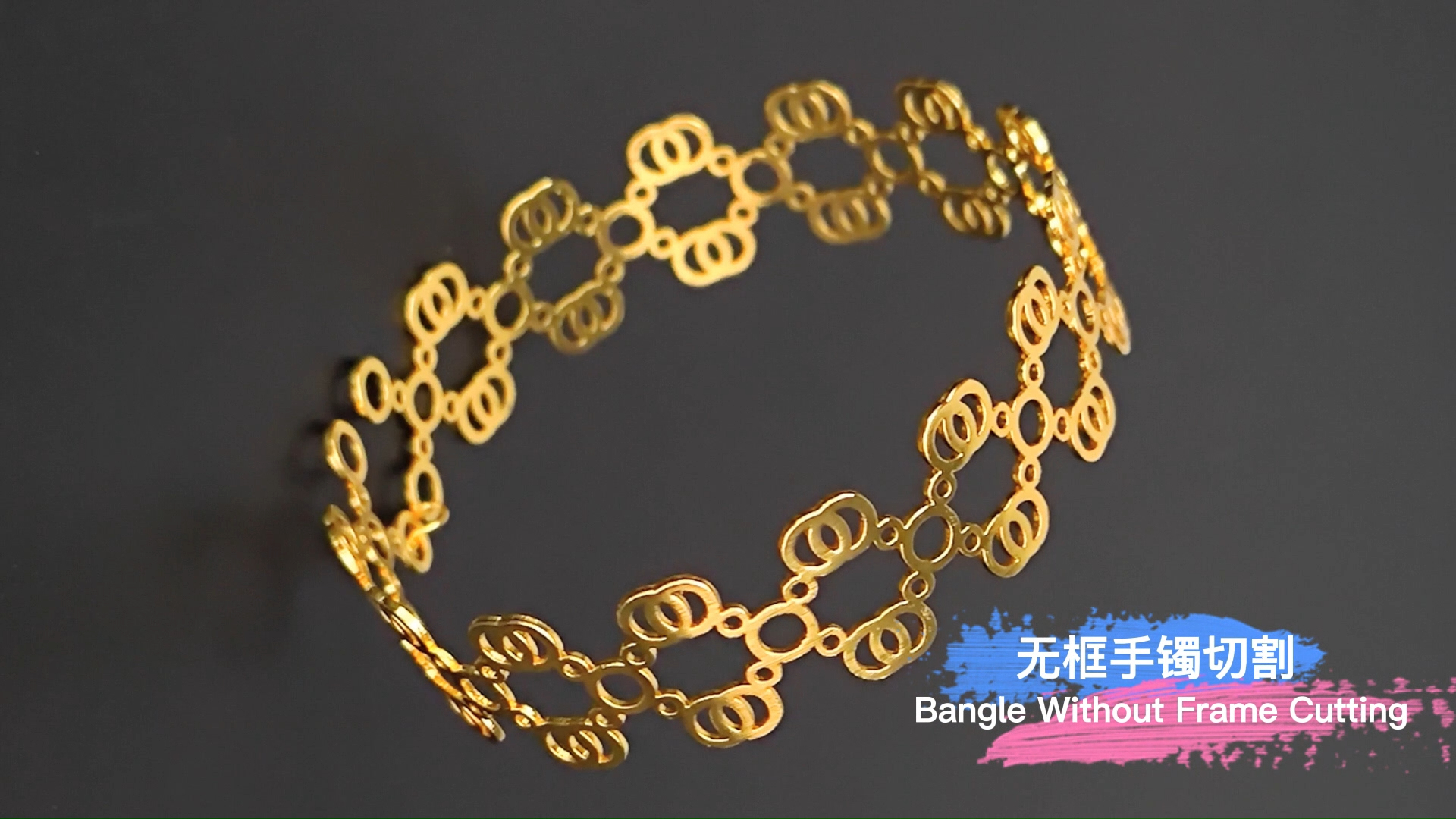

no-frame bangle cutting

laser cutting sample

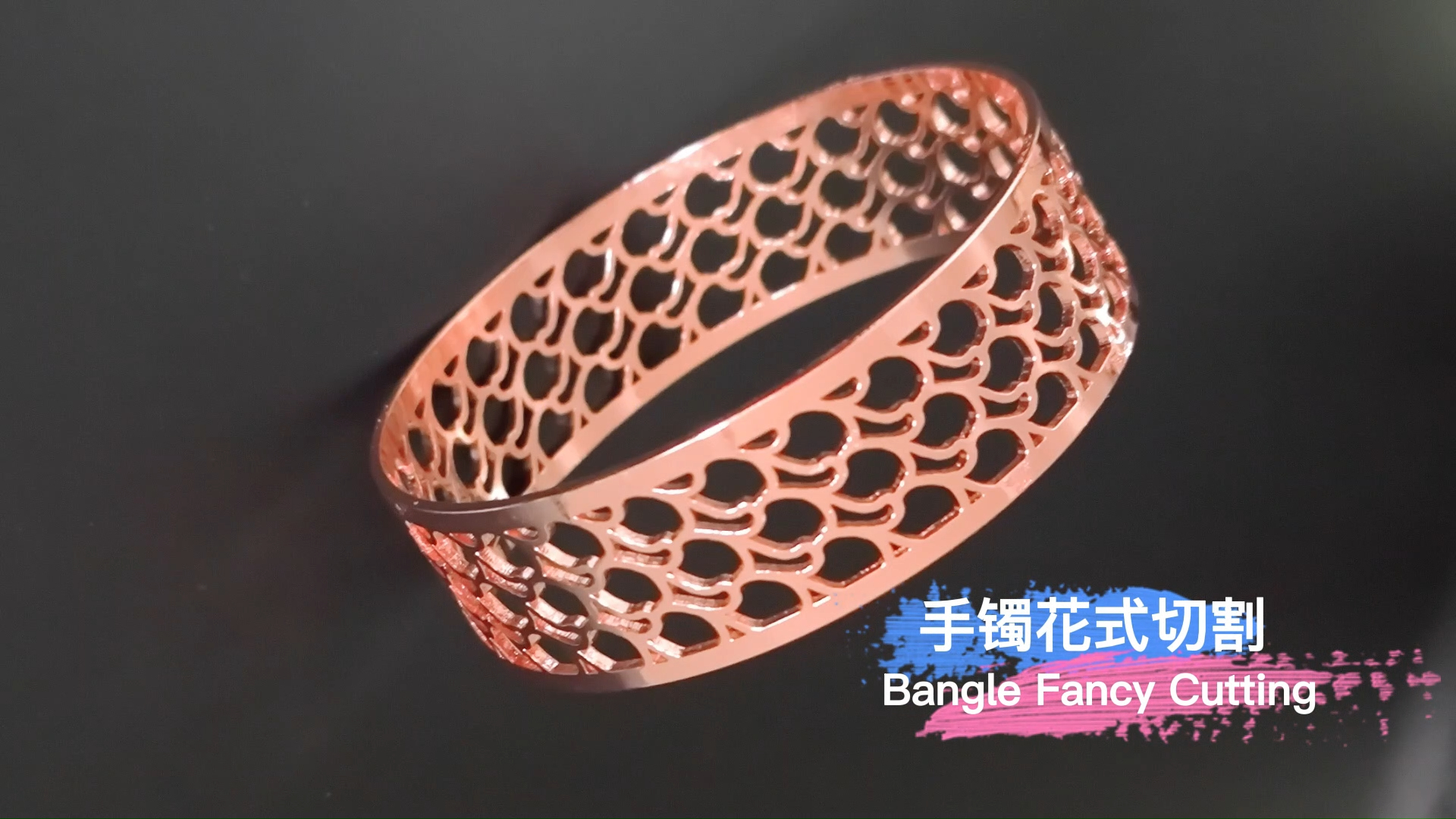

fancy bangle cutting

laser cutting sample

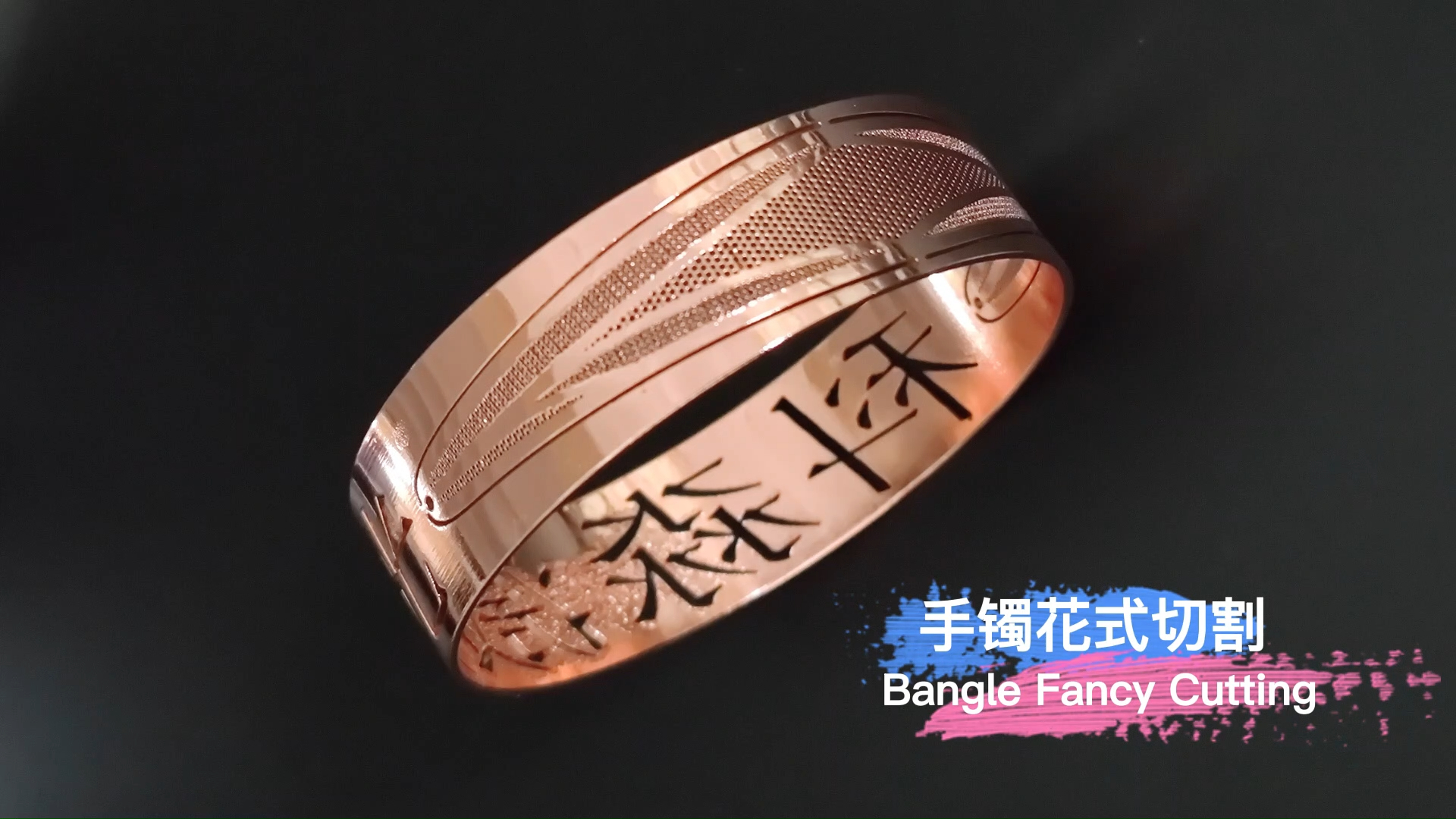

fancy bangle cutting

laser cutting sample

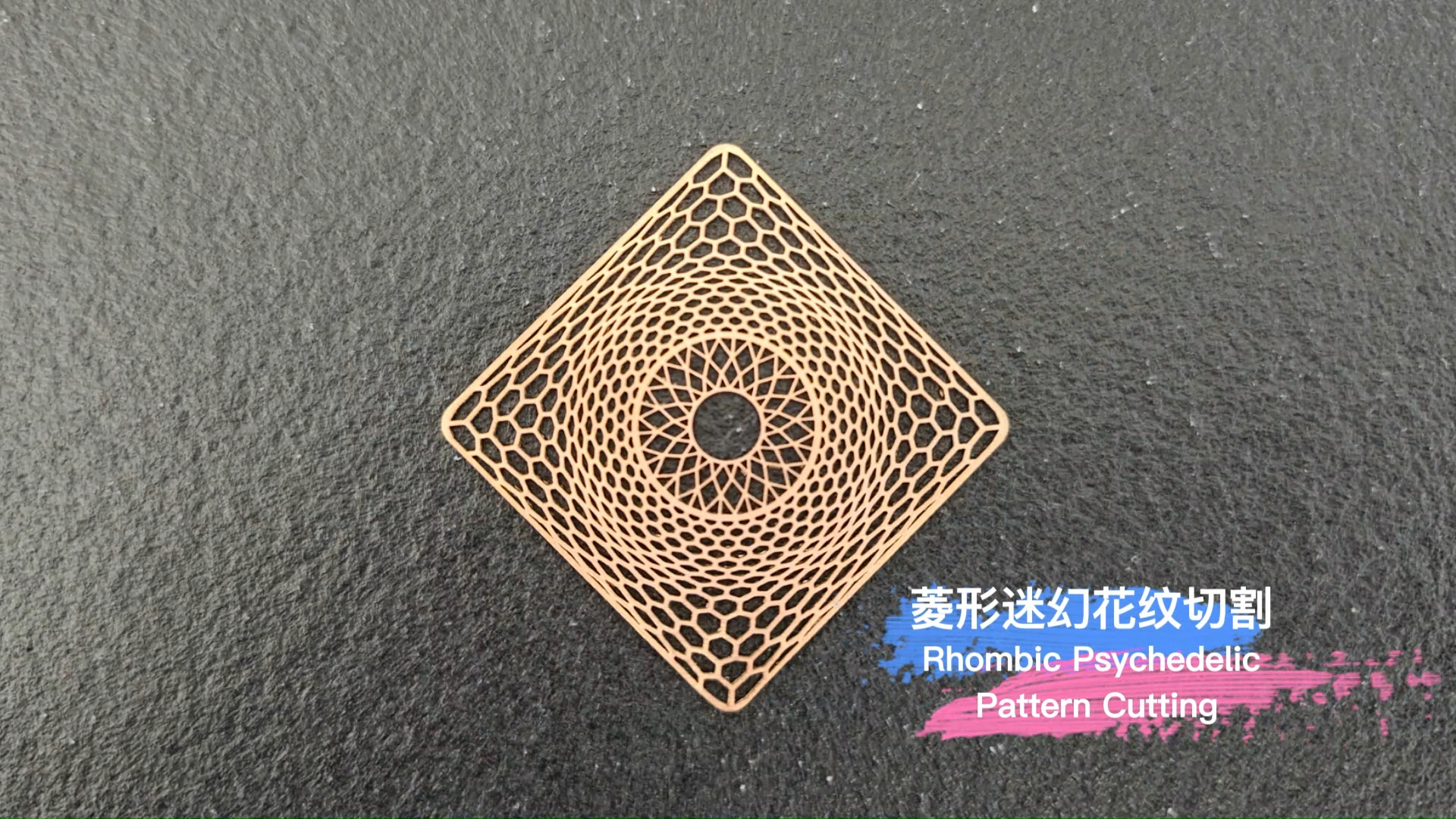

rhombic psychedelic pattern cutting

laser cutting sample

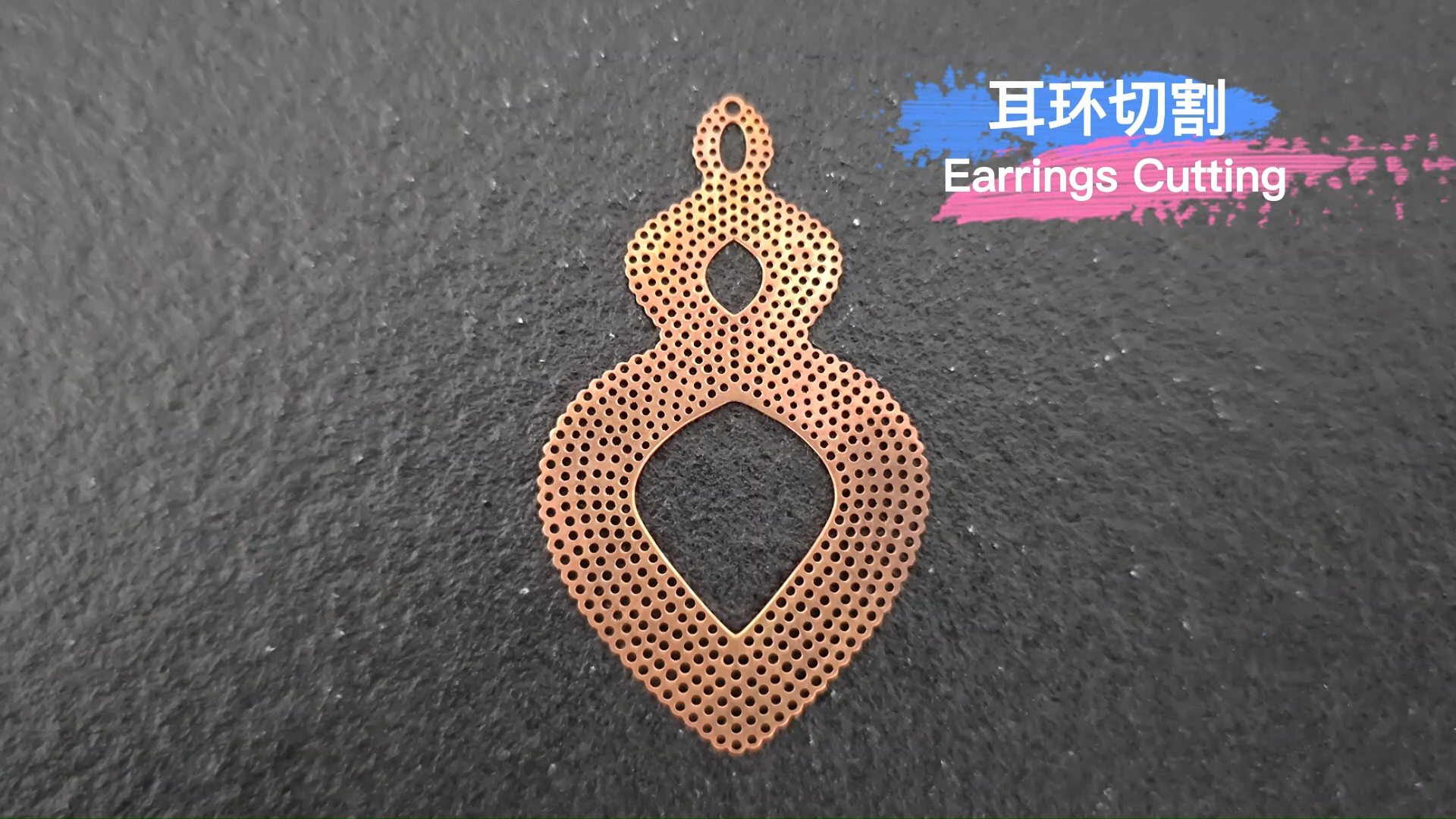

earrings cutting

laser cutting sample

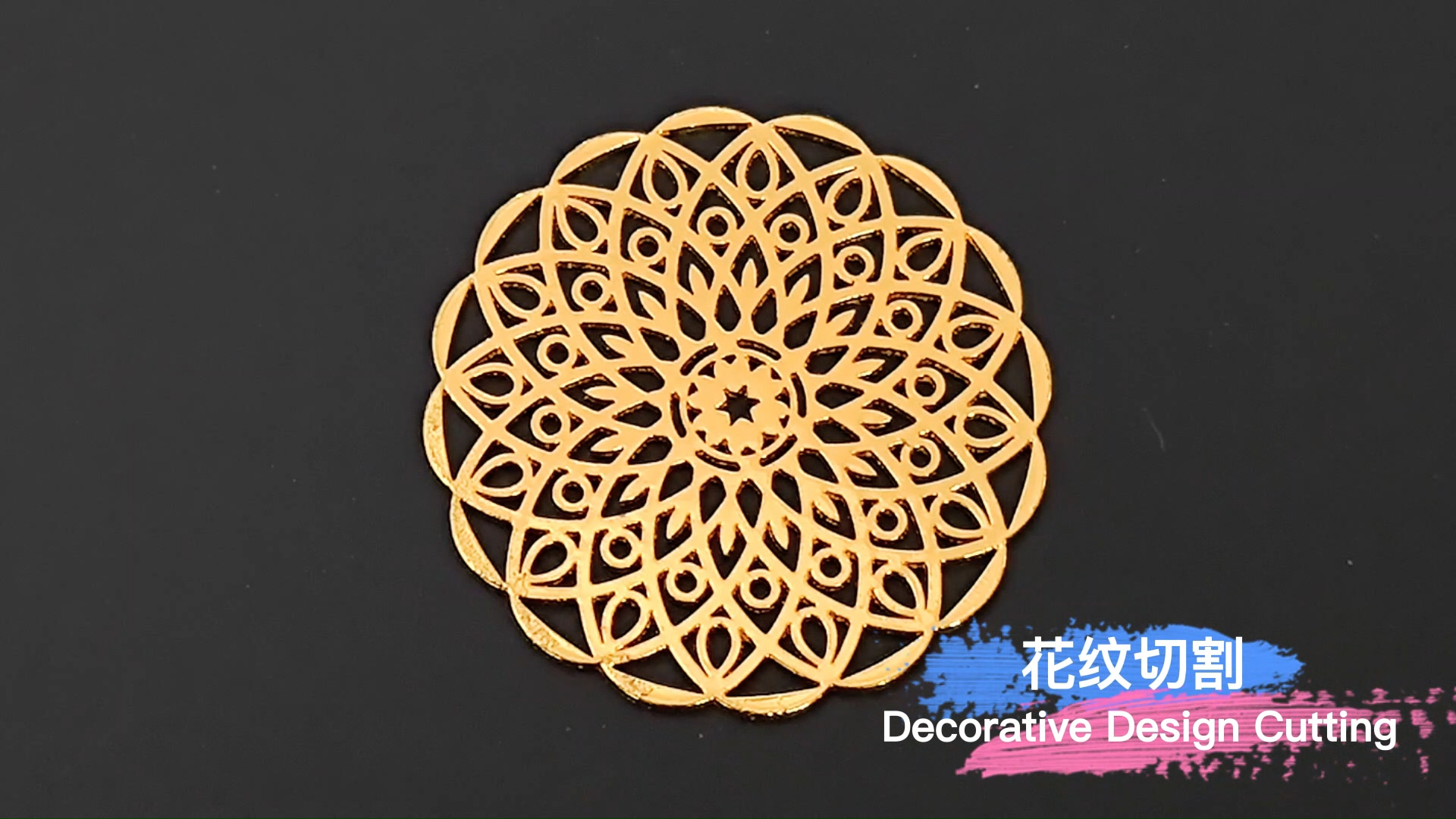

decorative design cutting

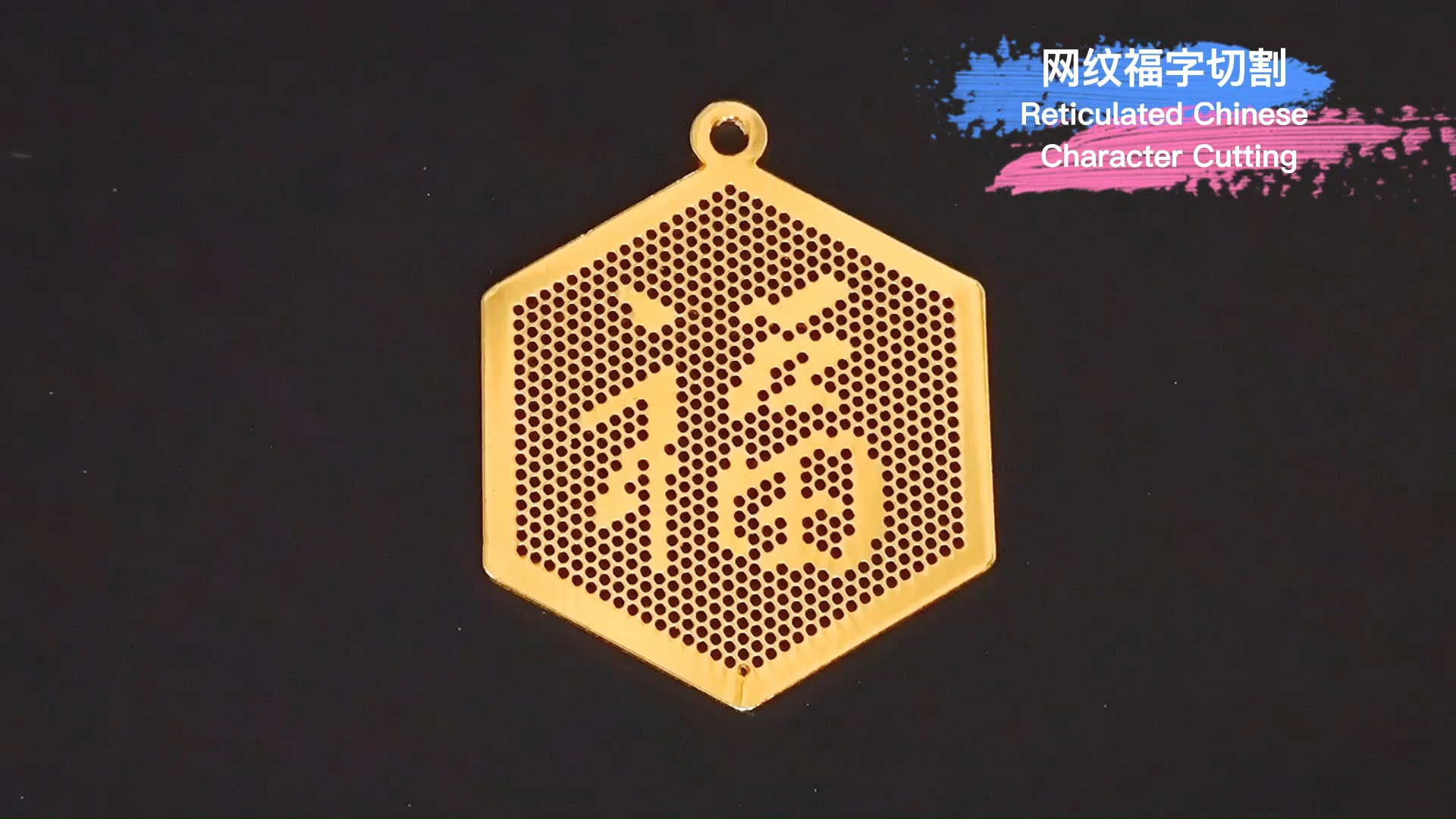

laser cutting sample

reticulated Chinese character cutting

laser cutting sample

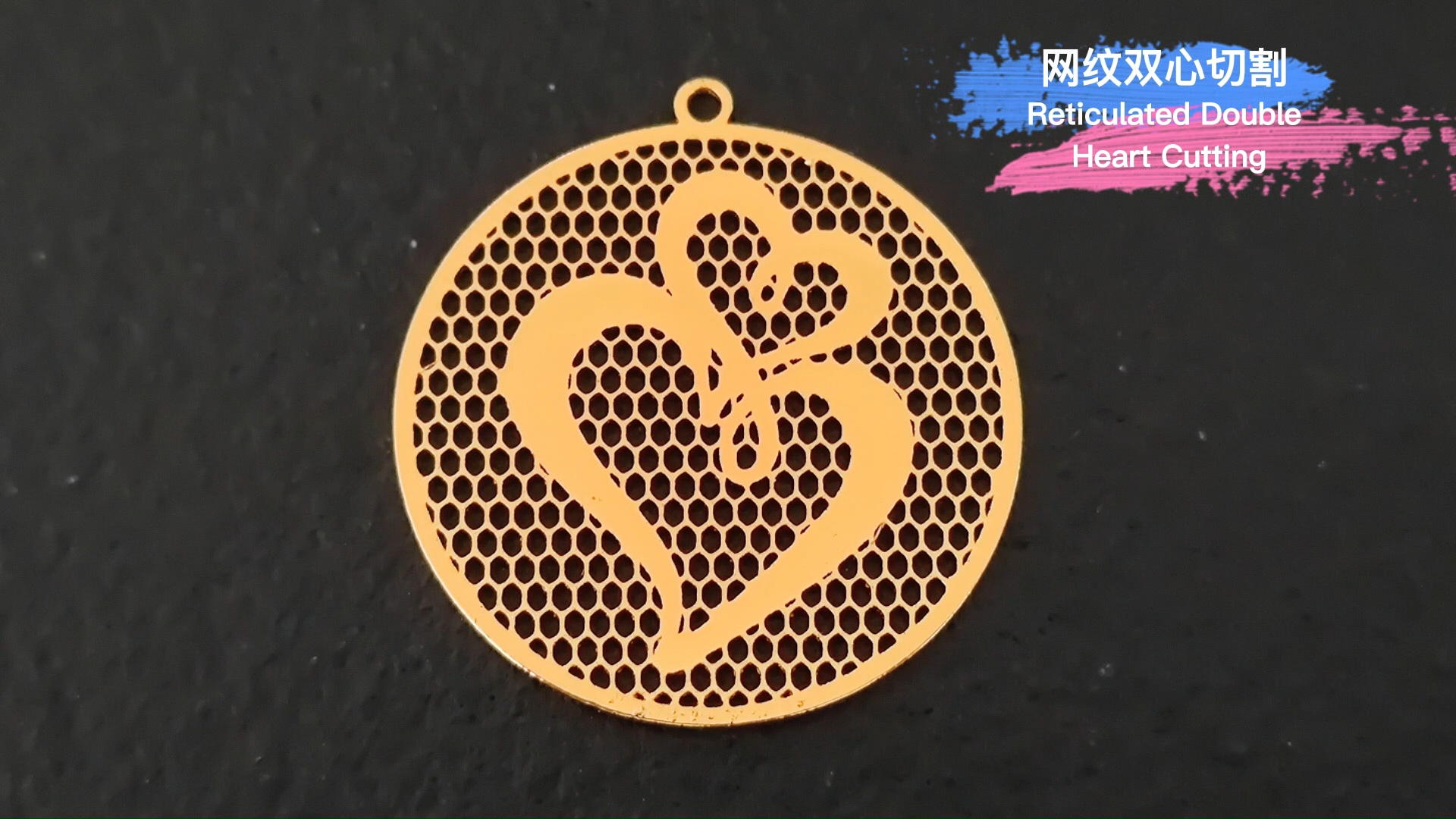

reticulated double heart cutting

laser cutting sample

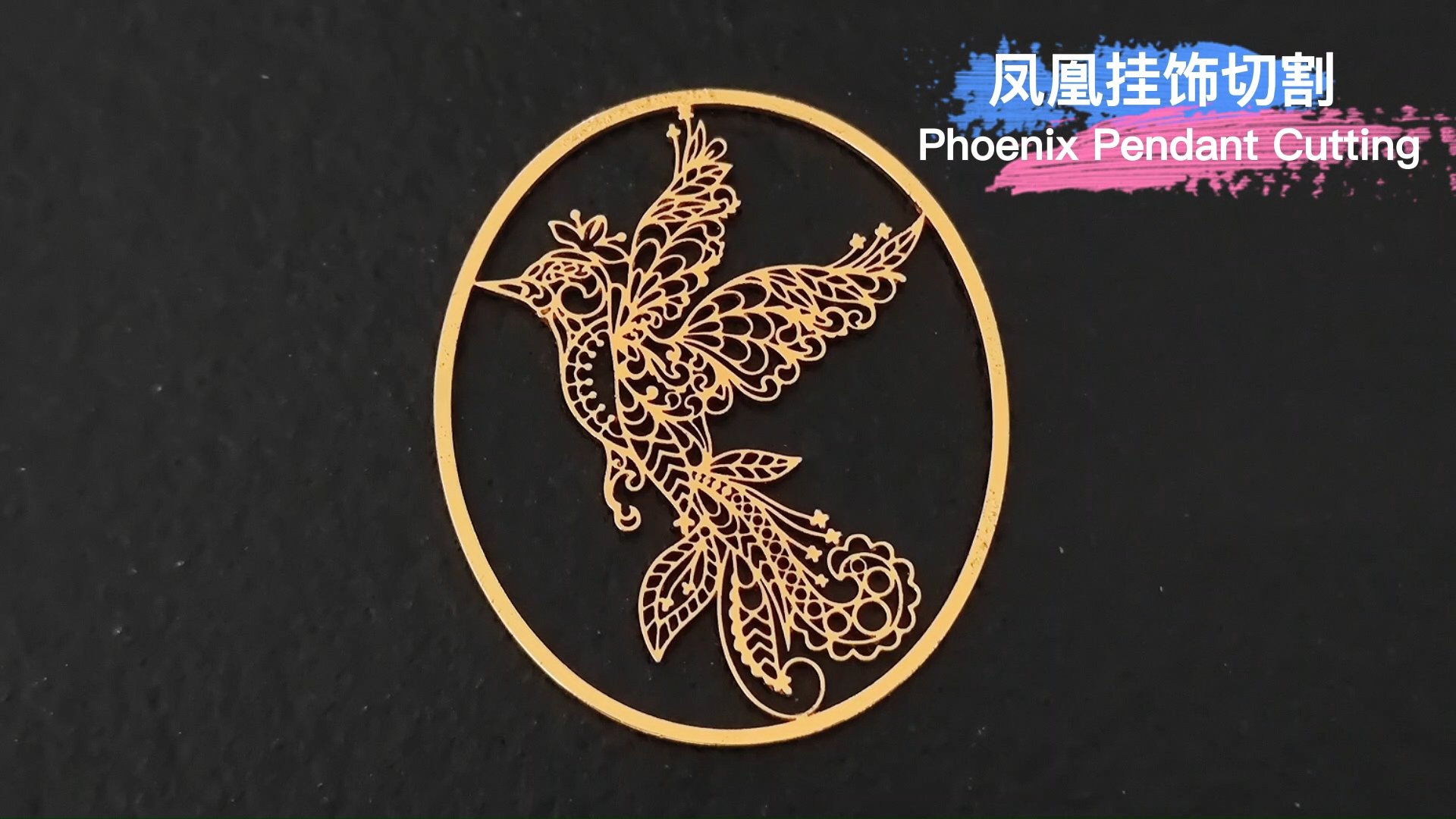

phoenix or other animal pendant cutting

laser cutting sample

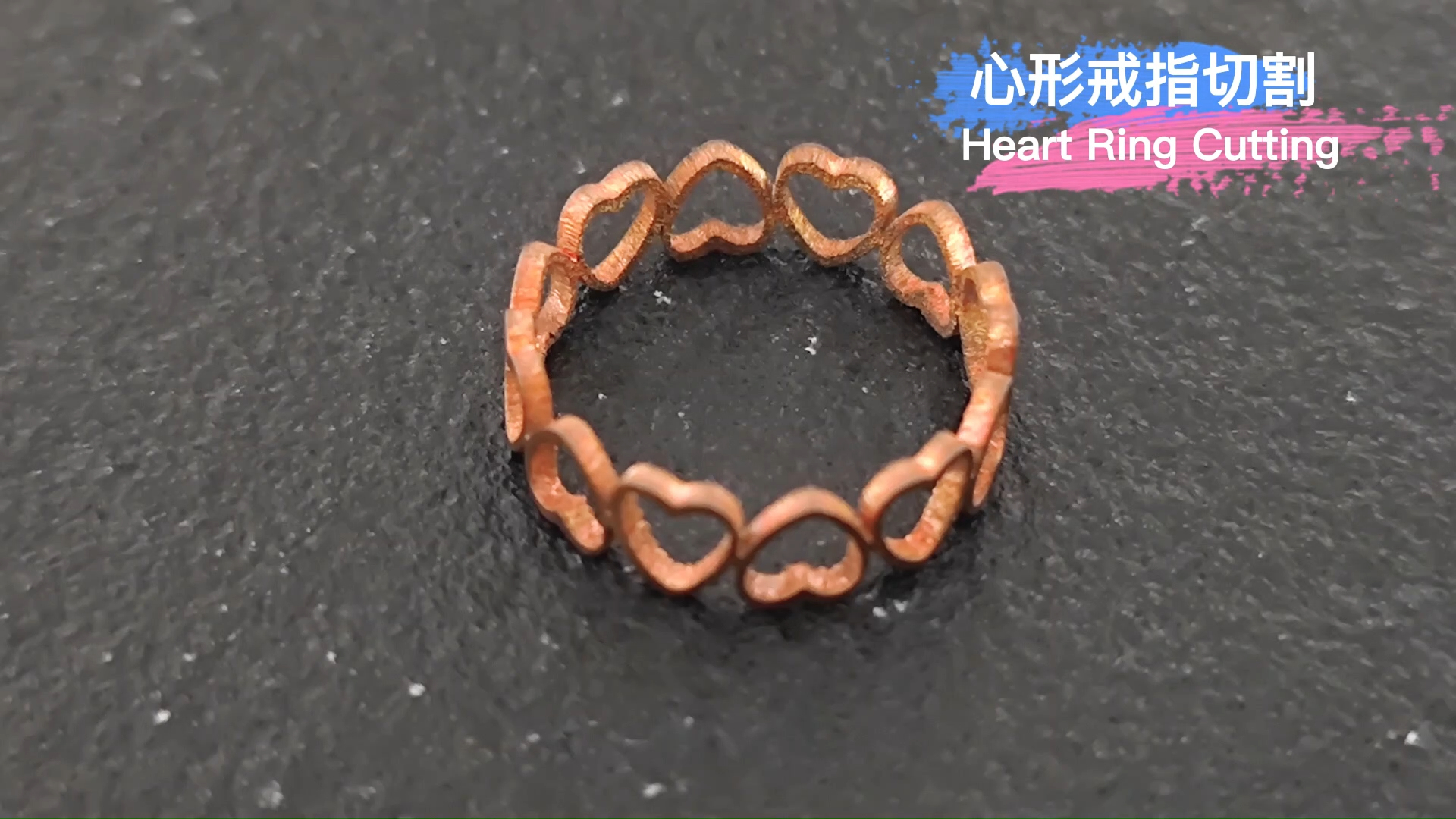

heart ring cutting

laser cutting sample

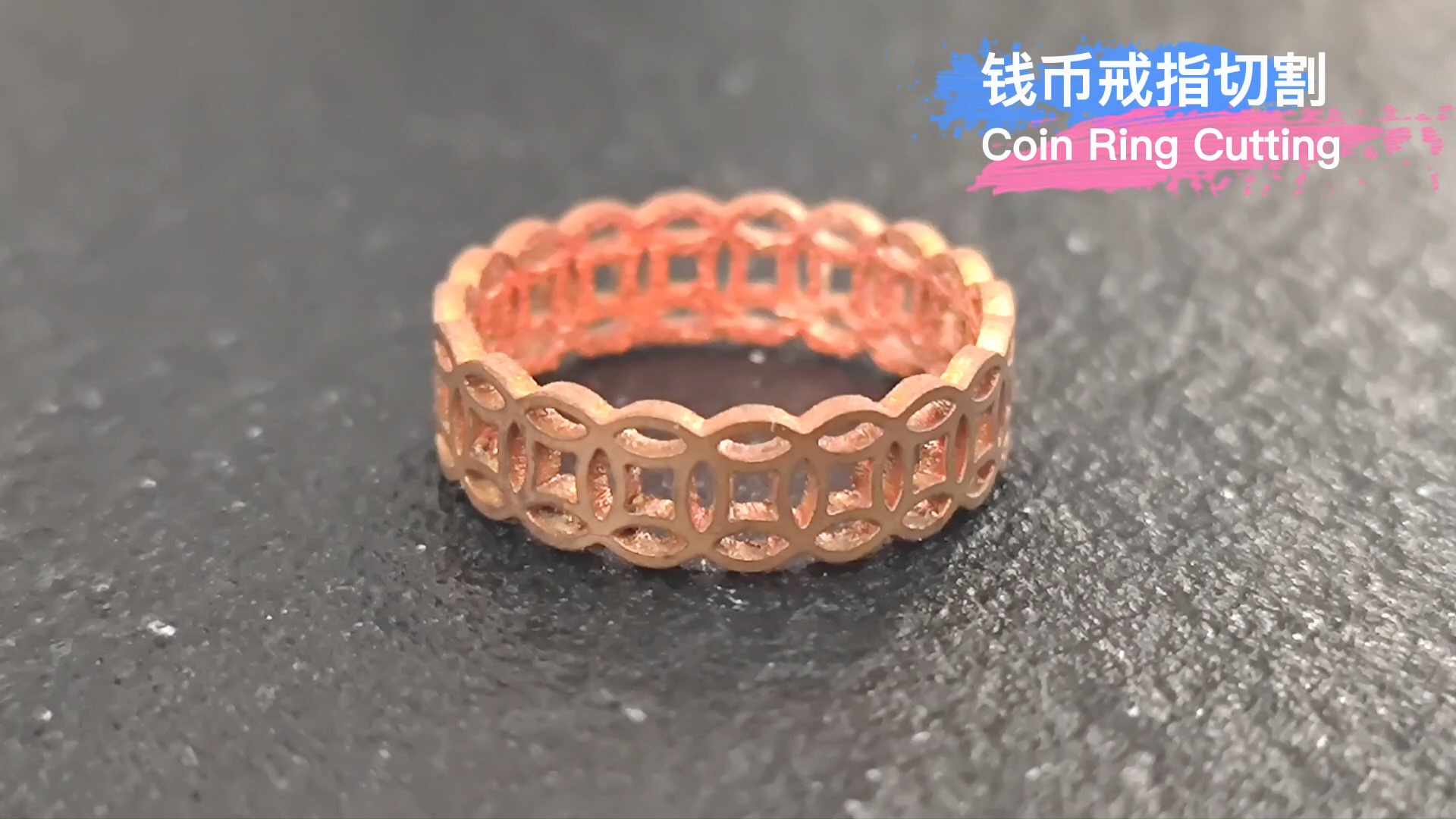

coin ring cutting

laser cutting sample

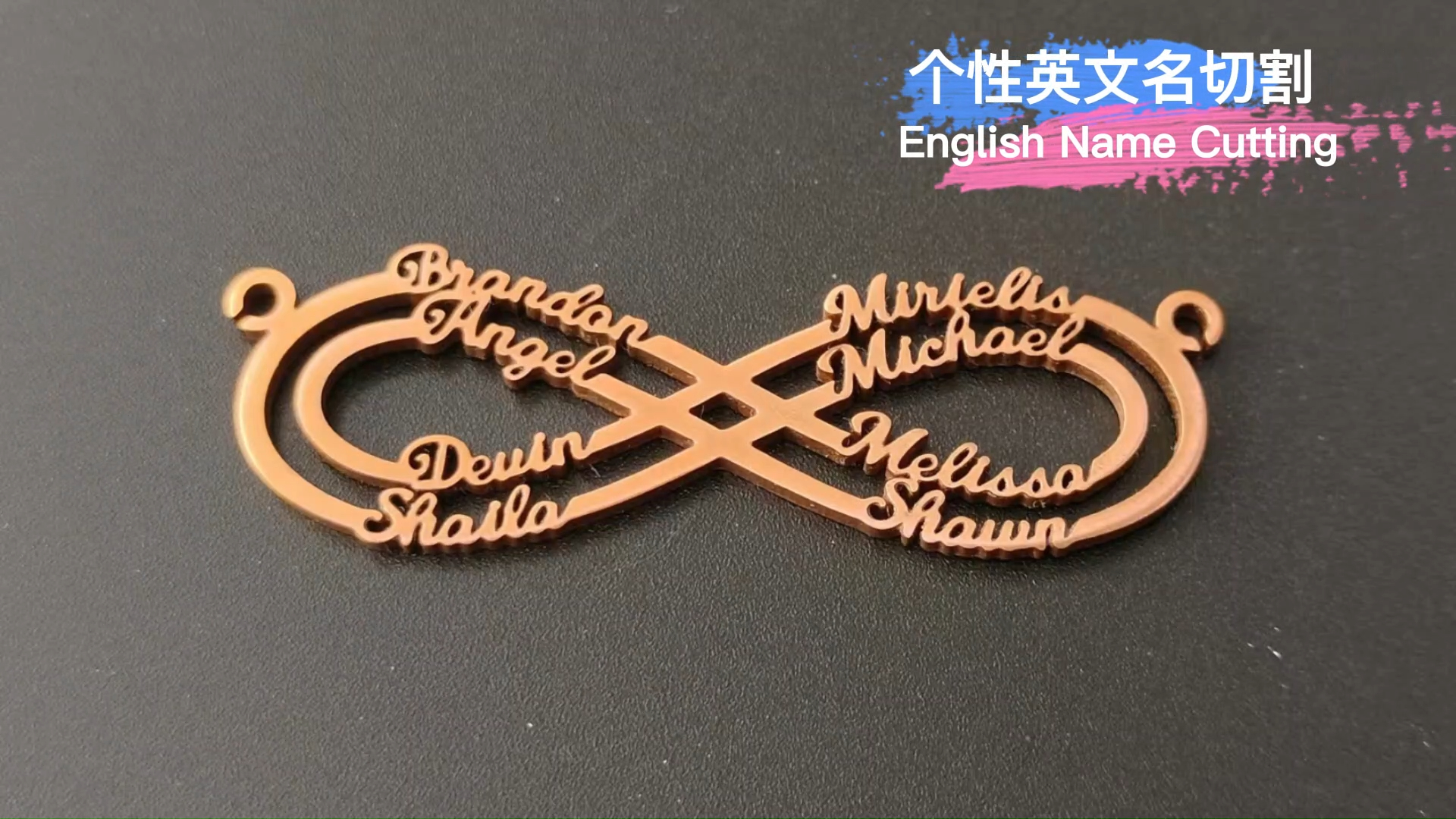

English name cutting

laser cutting sample

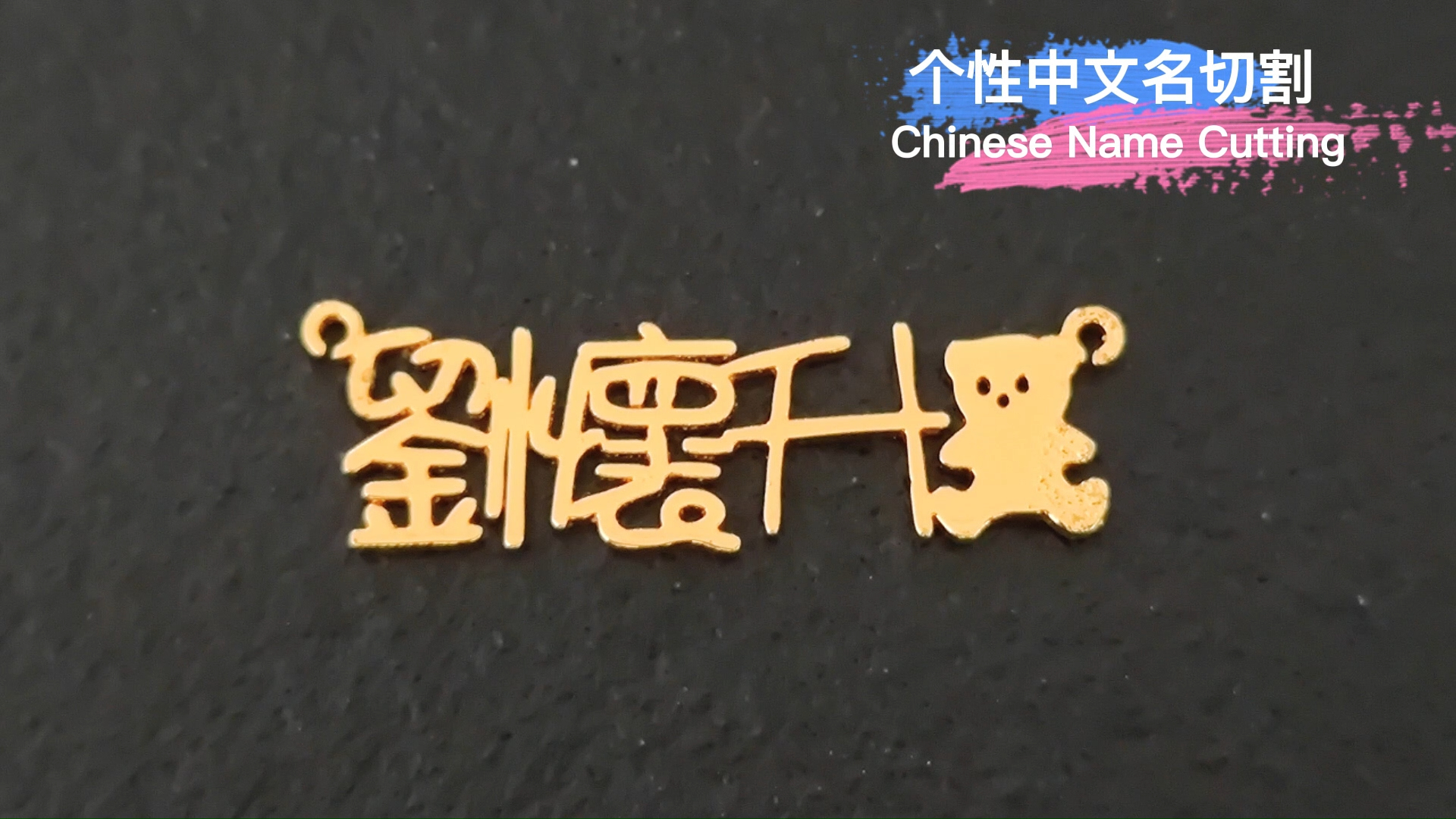

Chinese name cutting

laser cutting sample

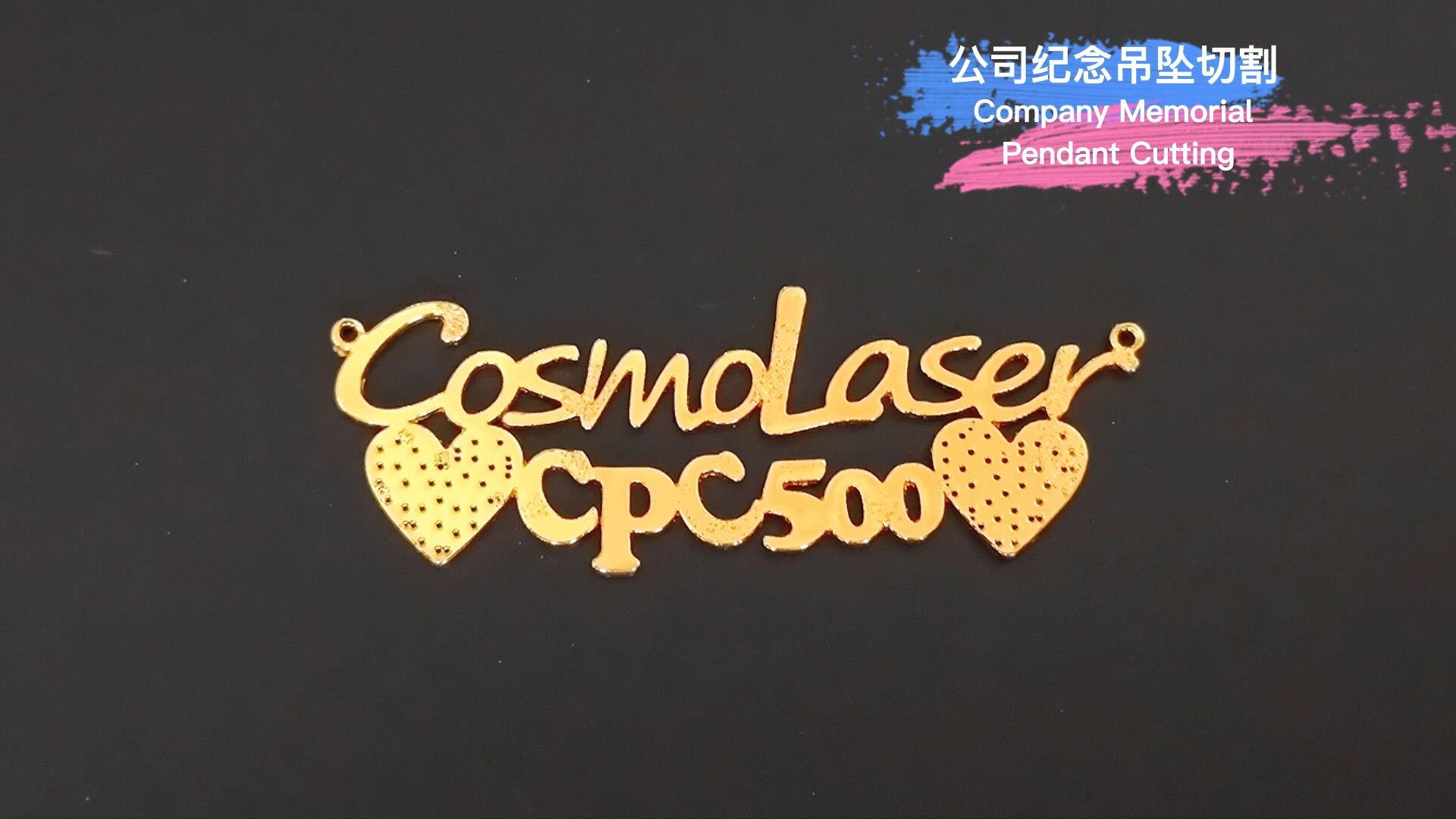

company memorial pendant cutting

laser cutting sample

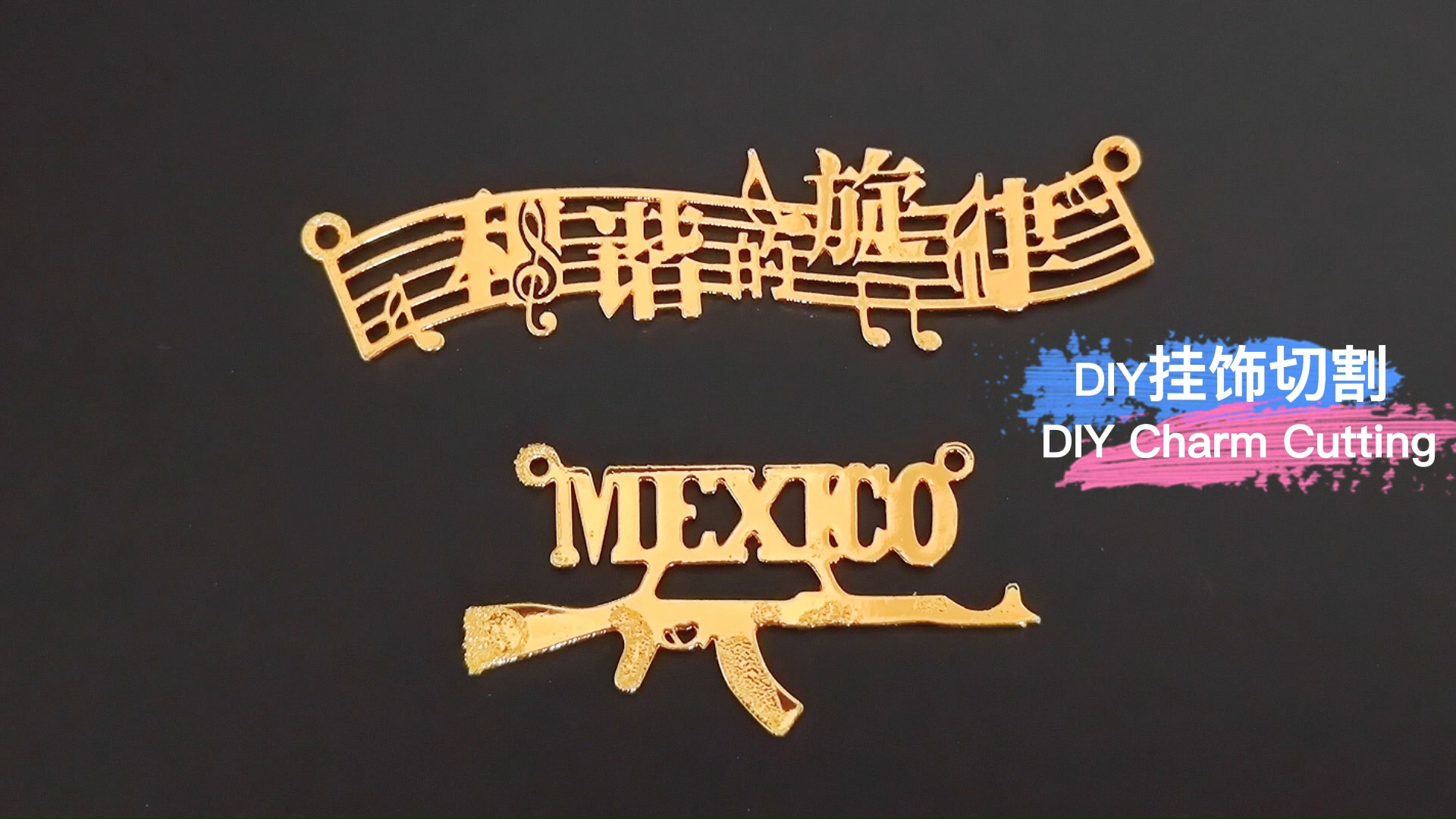

DIY charm cutting

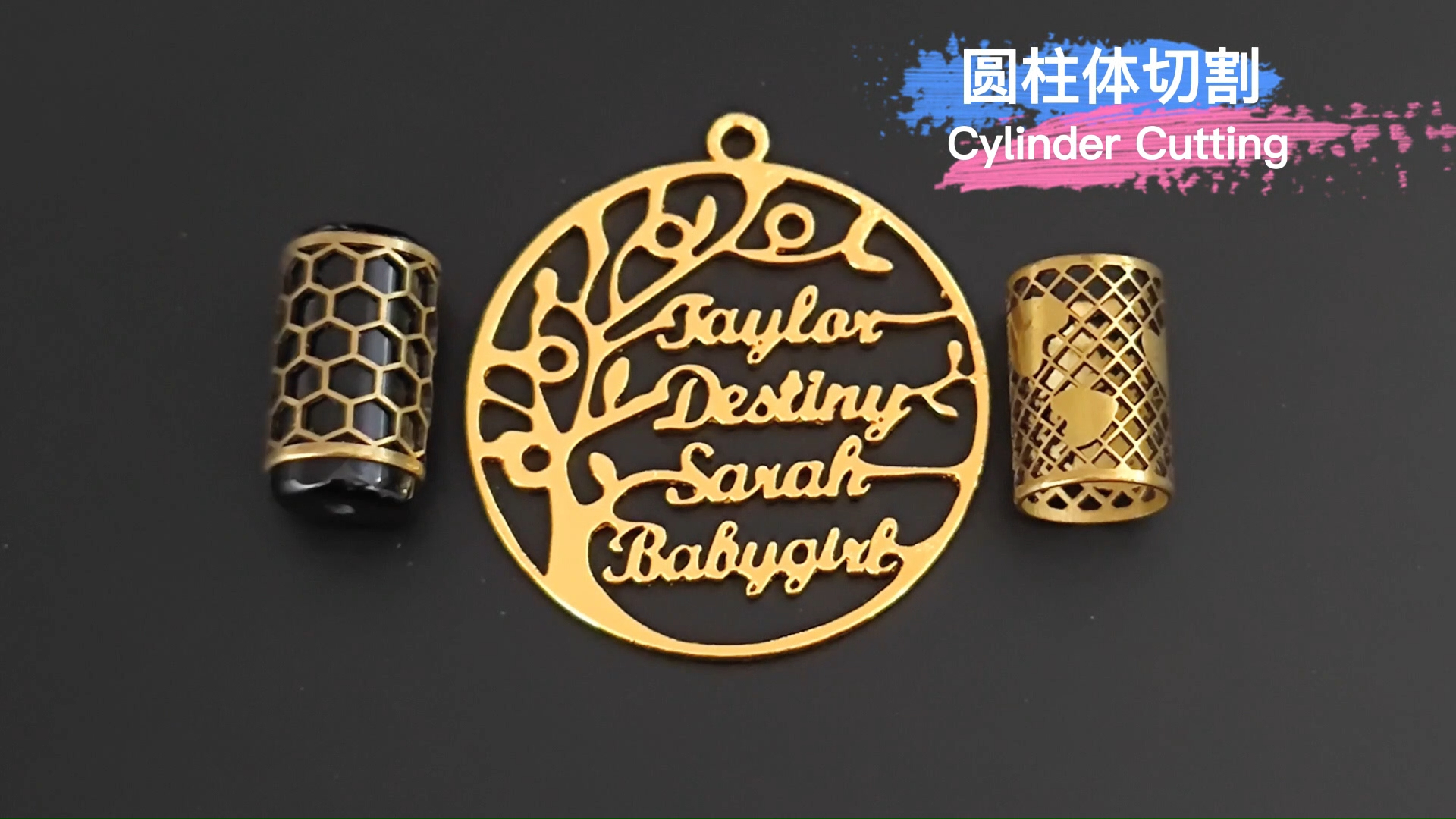

laser cutting sample

cylinder cutting

laser cutting sample

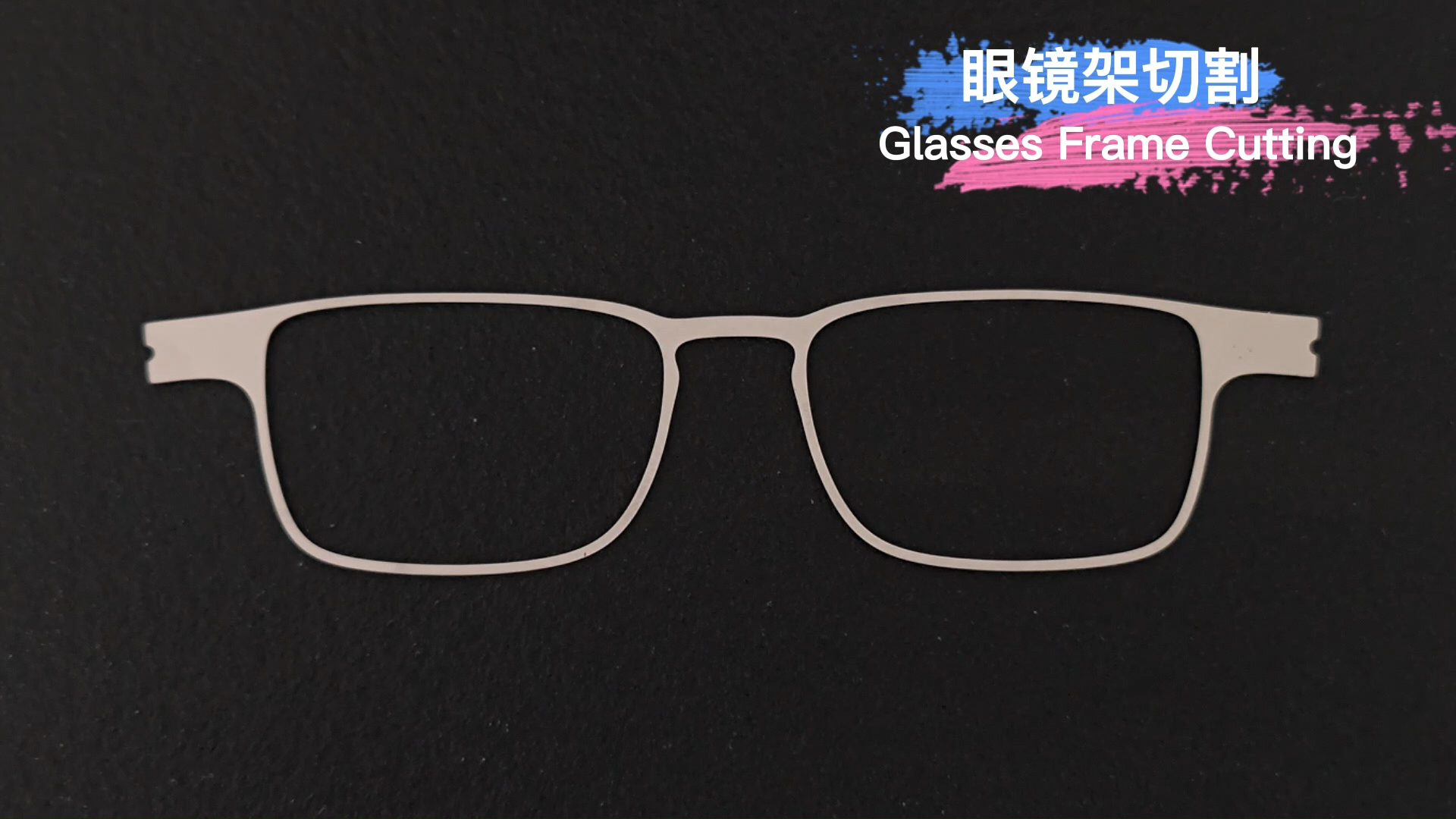

glasses frame cutting

laser cutting sample

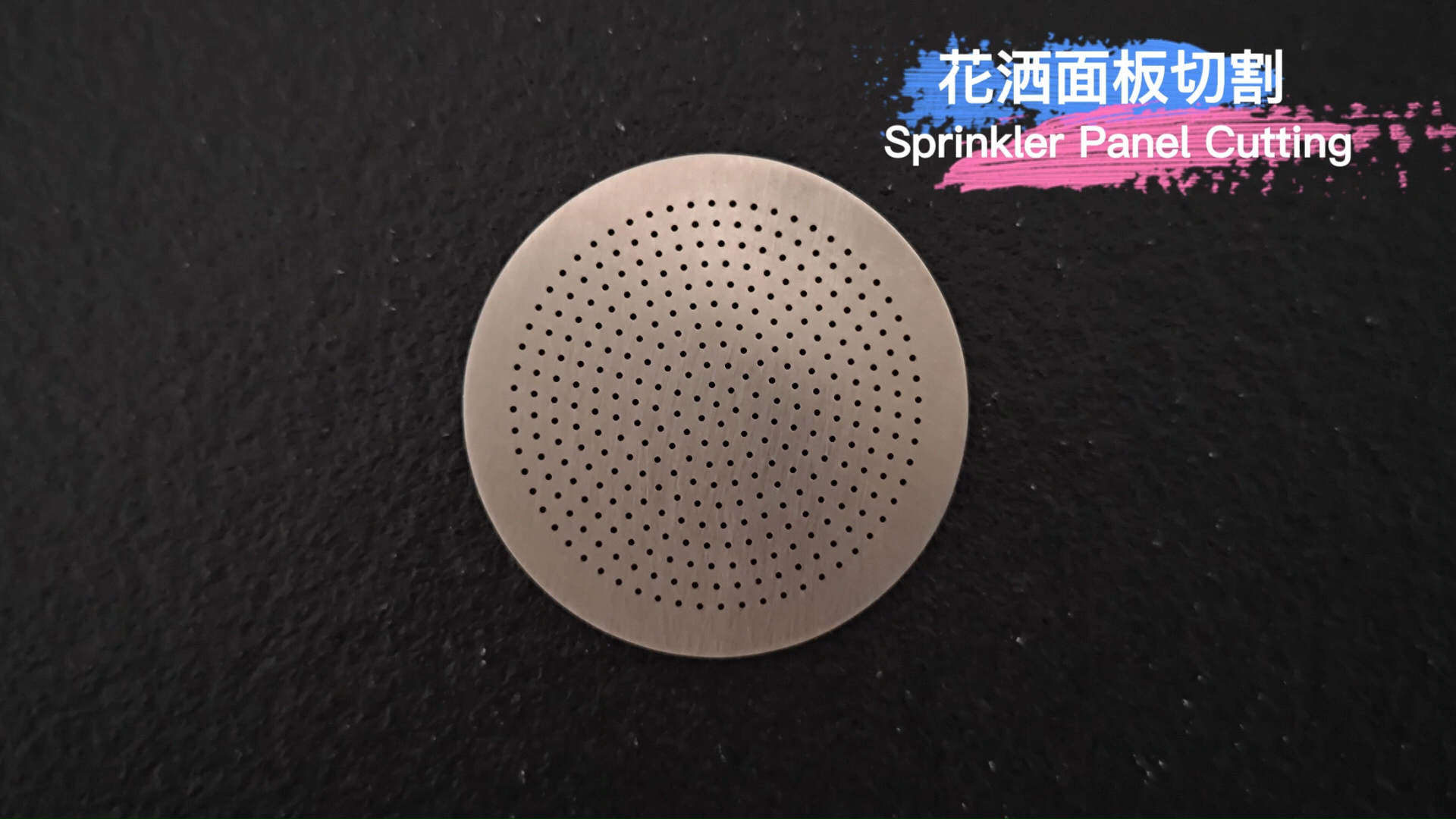

sprinkler panel cutting


Can cut jewellery parts including complex graphic cutting, fine pattern cutting, regular pattern cutting, necklace cutting, mesh pattern cutting, rhombic psychedelic pattern cutting, earrings cutting, decorative design cutting, reticulated Chinese character cutting, reticulated double heart cutting, company memorial pendant cutting, phoenix or other animal pendant cutting, Chinese name cutting, English name cutting, DIY charm cutting, glasses frame cutting, sprinkler panel cutting, cylinder cutting, bangle symmetrical pattern cutting, no-frame bangle cutting, fancy bangle cutting, coin ring cutting, heart ring cutting...
