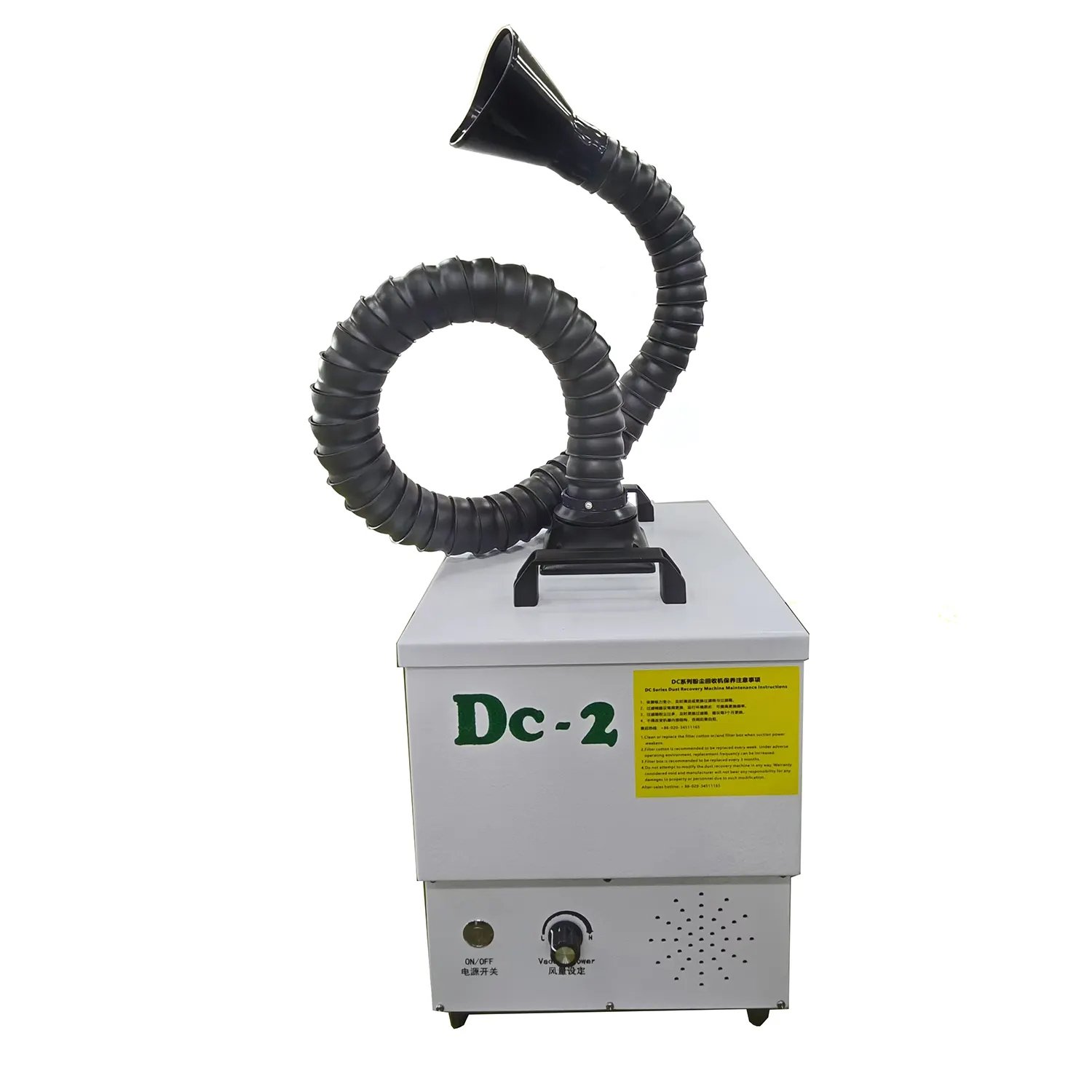

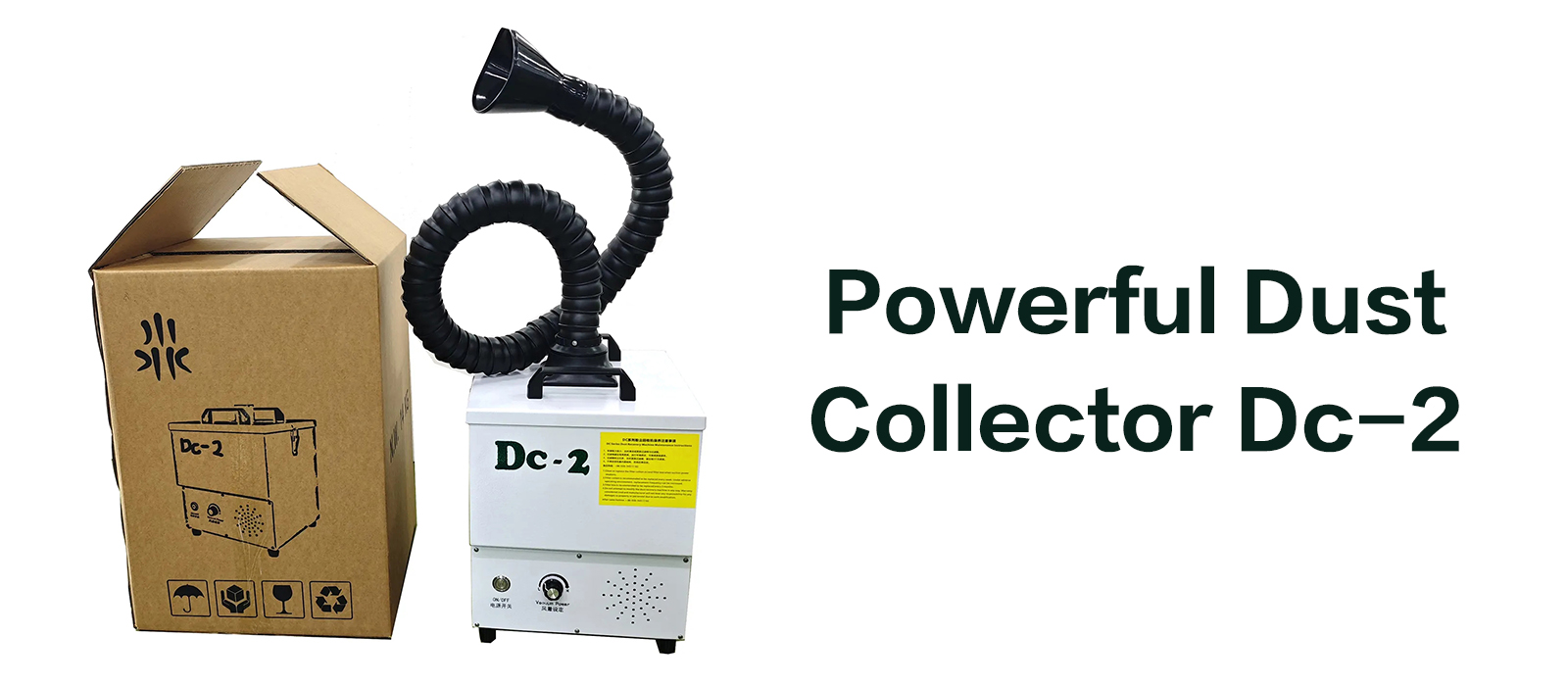

Cosmo Factory Manufacture Powerful Dust Collector Dc-2

Dc-2 is a powerful dust collector with a compact design. It is suitable for the jewellery industry because of its small footprint, low noise, strong suction, simple maintenance, low consumables, and low power consumption. Suction power is adjustable and adopts with a low pressure alarm.

The dust collector is widely used on other industries like denture, electronic, laser marking, wood working, stone carving, etc.

SEND INQUIRY NOW

Technical Specification

Model
Dc-2
Voltage
220V
Power
0.2kW
Noise Level
55dB
Air Pressure
0.3Mpa
Air Volume
350m3/h
Intake Diameter
50mm
Dimension
405mm×325mm×325mm (L×W×H)
Weight
14kg (Net)

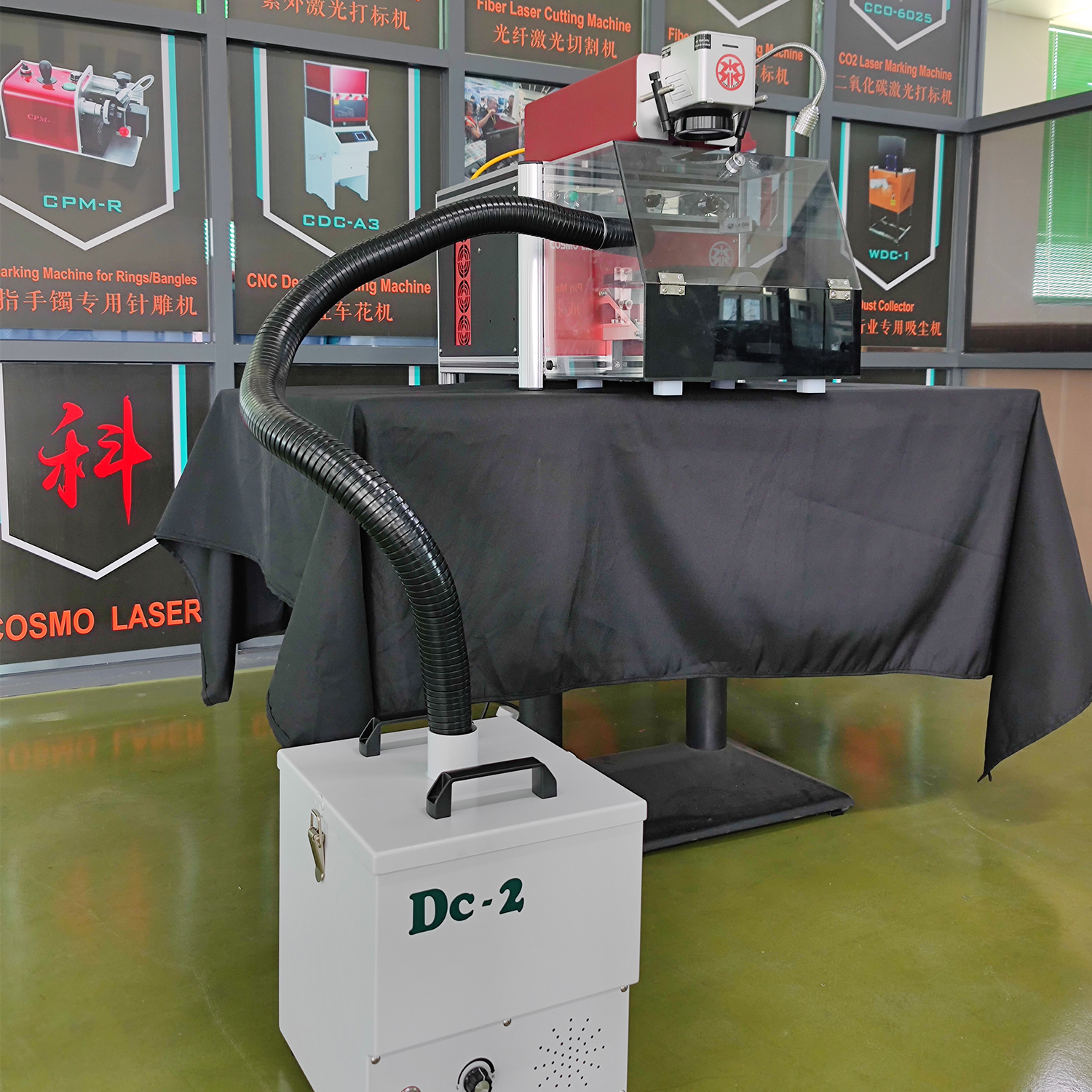

How it works with a laser marking machine?

dust collector with a pipe

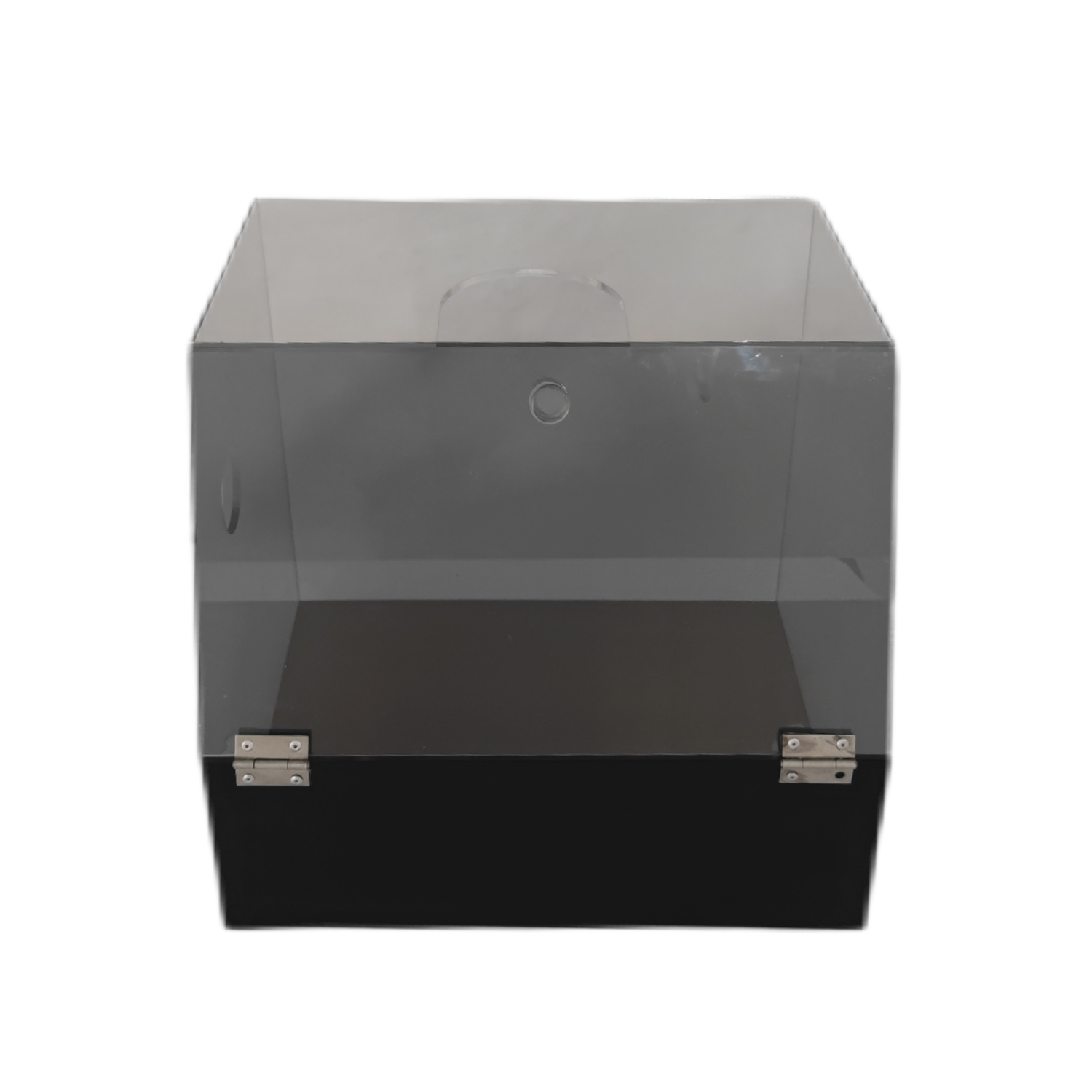

acrylic cover

laser marking machine and dust collector

works together

Why a dust collector is needed when laser working?

Laser processing has 3 characteristics:

1. is using the high energy density of light after passing through a focal lens

2. is by photothermal effect

3. belongs to non-contact processing

During the process, many fine-grained mixtures of dust and gas will be generated.

So during the cutting and marking of precious metals, the dust and gas need to be processed and recycled in time. If it is not processed in time, it will not only cause high gold loss but also have a certain impact on the health of the operator. It will also affect the quality of the workpiece and the workshop environment. It will also damage the costly laser heads.

Whether it is in terms of environmental impact, machine's lifespan, employee's health, and production costs and benefits of the enterprise, laser processing needs to be equipped with a tailored DC-2 environmental friendly vacuum dust collector.
