Fiber Laser Cutting Machine Display | Cosmo Laser

Fiber Laser Cutting Machine Display (Model: CPC-15EV) | Cosmo Laser

Newest Model Enclosed Fiber Laser Cutting Machine Display

High Speed Laser Cutting Machine (Model: CPC-15EV) Manufacture | Cosmo Laser

Replay
The Best Fiber Laser Cutting Machine for Precious Metals Manufacturers

Cosmo laser cutting machine (model: CPC-500) is specially created for cutting precious metals like gold and silver in jewellery making.

It uses a high-quality imported fiber laser which results in high precision cutting with minimum material loss.
Also, It can do the high-speed fine cutting on flat surfaces and circular objects such as bangles, rings, etc., with high efficiency and high return.

Please contact us for more details.

CONTACT US

Company Introduction

PROFILE

Cosmo Laser Equipment Company Limited is a laser equipment manufacturer integrating R&D, production, sales and after-sales service.

Since 2004, Cosmo Laser starts producing high-quality laser equipment for the global jewellery industry, precious metal and gift production fields,

such as watches, eyeglasses, hardware products, and electrical appliances. We have a worldwide sales and service network.

Certifications and Patents

QUALIFICATION

CE certification; SGS certification; two copyright of the software for machine; three patents for utility model; three patents for industrial design

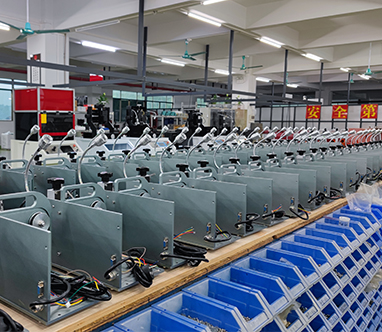

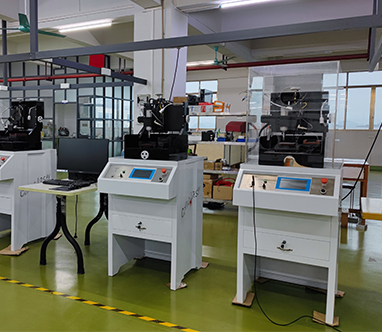

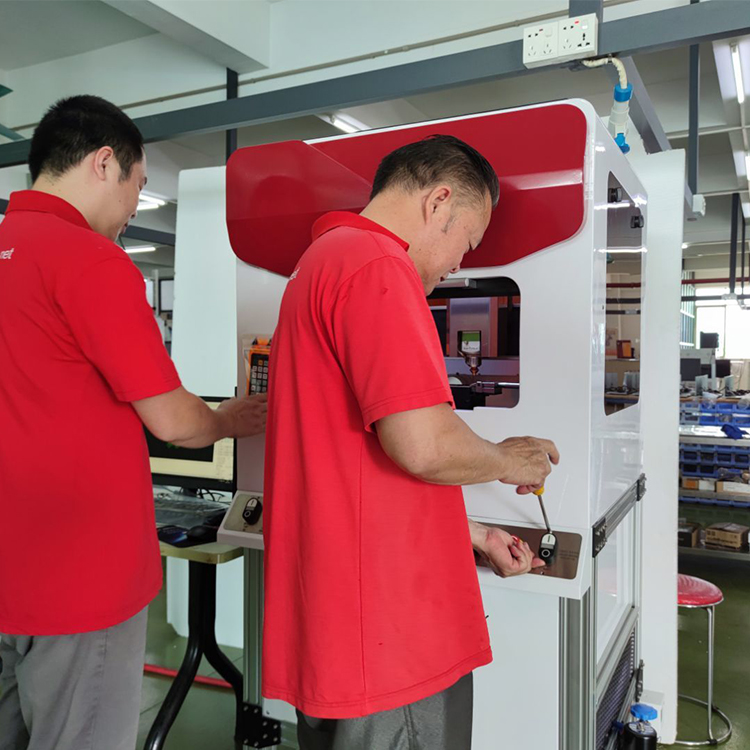

Production Line Display

WORKSHOP

Pin Marking Machine Production Line

Laser Welding Machine Production Line

Laser Cutting Machine Production Line

CNC Design Cutting Machine Line

Attend Fairs at Home and Abroad

COMMUNICATION

Product Advantages

BENEFITS

01. High quality Imported fiber laser and cutting head

02. Stable laser output.
03. Customized software. Automatically optimized the cutting paths to minimize the cutting time.
04. Uses high-quality servo motor for high accuracy cutting.
05. Auto-tracking focusing. When cutting of uneven workpiece, the system is able to track and auto-focus the laser for accurate and even cutting.
06. Auto-feed cutting for roll material.
07. Rotary cutting for bangles.
08. Highly efficient material lost retrieval system design.

Parameter Table

PRODUCT PARAMETER

Model
CPC-500/ CPC-500 Excel
Laser Source
Imported Fiber Laser
Cutting Area
300mm×300mm
Cutting Thickness
Maximum 5.0mm (Depending on material)
Cutting Line Width
0.04~0.12mm
Cutting Speed
300mm~2000mm/min
Cutting Accuracy
0.02mm
Cooling Mode
Air Cooled
Cutting Air Pressure Requirement
6~16bar
Computer Software
Included
Accessories Jip
1. Small Workpiece Jig; 2. Auto Feed Conveyor Jig; 3. Ring/ Bangle Rotary Cutting Jig
1. Air Compressor; 2. Dust Collector
Optional
Maximum Power Consumption
5kW
Power Supply
220V/1P
Machine Dimension(L×W×H)
980mm×960mm×1730mm
Weight
320kg (Net); 400kg (Gross)

Machine Detail Display

DESIGN

Samples Display

CUT BY CPC-500/EXCEL

FAQ

EVERYTHING YOU WANT TO KNOW

What is the warranty for machines?
12 months from the time of shipment on the whole machine, except for consumables parts.
Will installation/training be provided?
Yes, methods include 1. Online: for free, by remote control, voice/ video chat, and other methods. 2. At our factory: for free, but customers will bear for their transportation and accommodation cost. 3. Door-to-door service: a fee is required and depends on our time and number of personnel.
How is the packing?
Products will be packed in seaworthy wooden boxes.
What kinds of shipping modes are available?
Sea or air transportation. It depends on the customer's choice and type of machines. Due to aviation safety regulations, certain machines can only be transported by sea.
What is the delivery time upon confirmation of the order?
The delivery time is usually between 3 to 5 workings days, depending on the type of machine. When it is at the peak of production, it may be longer. Please contact us for the actual delivery time.
What are the main products of Cosmo Laser?
Products include laser welding machine, laser marking/engraving machine, laser cutting machine, finger ring/bangle pin marking machine, CNC design cutting machine.
What other products Cosmo Laser manufacture?
Products include dust collectors, polishing machines, non-standard customized equipment, etc.
Is the laser safe to operate?
Yes, the laser is completely safe to operate. No special safety gear is required to run the laser.
What services Cosmo Laser provides?
Pre-sales: online consultation (by email, telephone, WeChat, WhatsApp, etc.), test on samples, visit our factory, provide customization project, provide financial services. In-sales: design, manufacture, installation, debugging, transportation logistics. After-sales: training, supply of repair parts, troubleshooting, maintenance, return visits
What are the payment terms?
Full payment upon order confirmation. Payment by bank transfer. If you have other ideas, feel free to contact us.

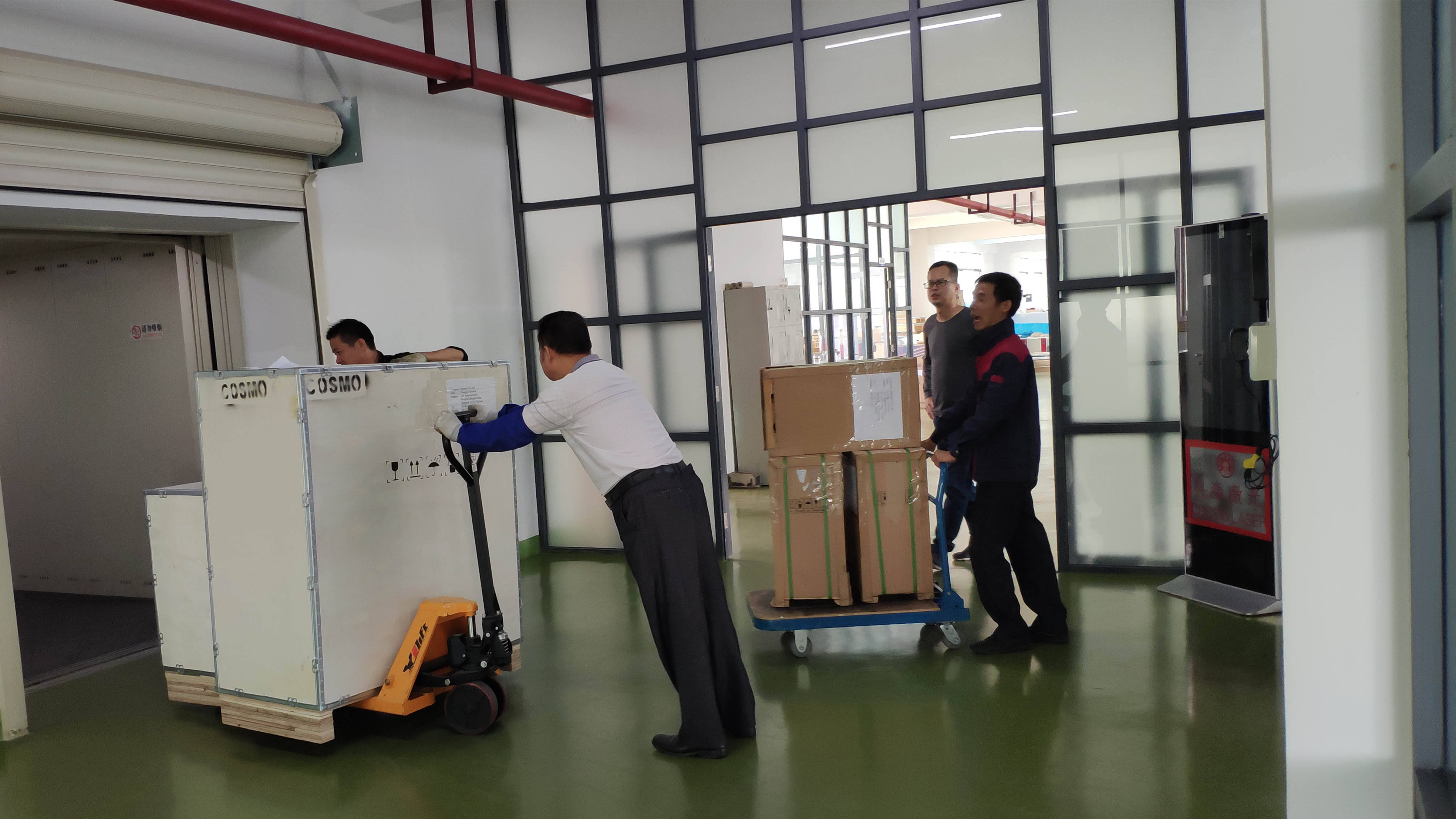

Loading and Shipping

TRANSPORTATION

Contact Us

WAITING FOR YOU

We are committed to producing the best quality products at the most competitive prices.

Therefore, we sincerely invite all interested companies to contact us for more information.

Surname
Shirley Guo
Brand Name
Cosmo Laser
E-mail
cosmolaser@vip.163.com
TEL
+86-20-34511165

Basic Information

Year Established

--
Business Type

--
Country / Region

--
Main Industry

--
Main Products

--
Enterprise Legal Person

--
Total Employees

--
Annual Output Value

--
Export Market

--
Cooperated Customers

--
