Technical Specification
bg
  • Model
    Dc-3
  • Voltage
    220V
  • Power
    0.8kW
  • Noise Level
    72dB
  • Air Pressure
    4000Pa
  • Air Volume
    1100m3/h
  • Intake Diameter
    110mm
  • Volume
    20L
  • Dimension
    965mm×500mm×1220mm (L×W×H)
  • Weight
    85kg (Net)
fiber laser cutting machine with a dust collector



How it works with a Cosmo's laser cutting machine?
bg

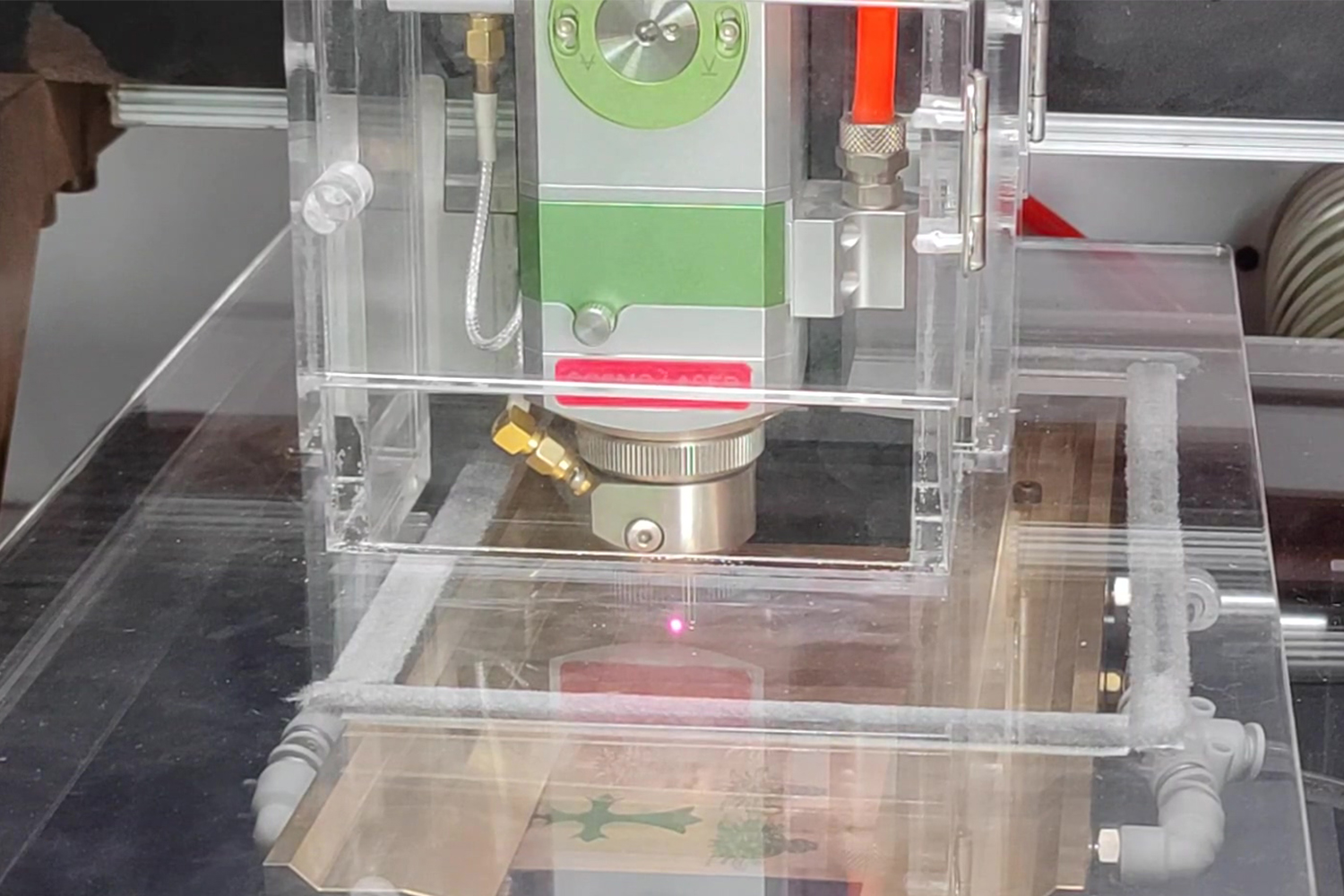

acrylic cover in the cutting machine

acrylic cover in the cutting machine

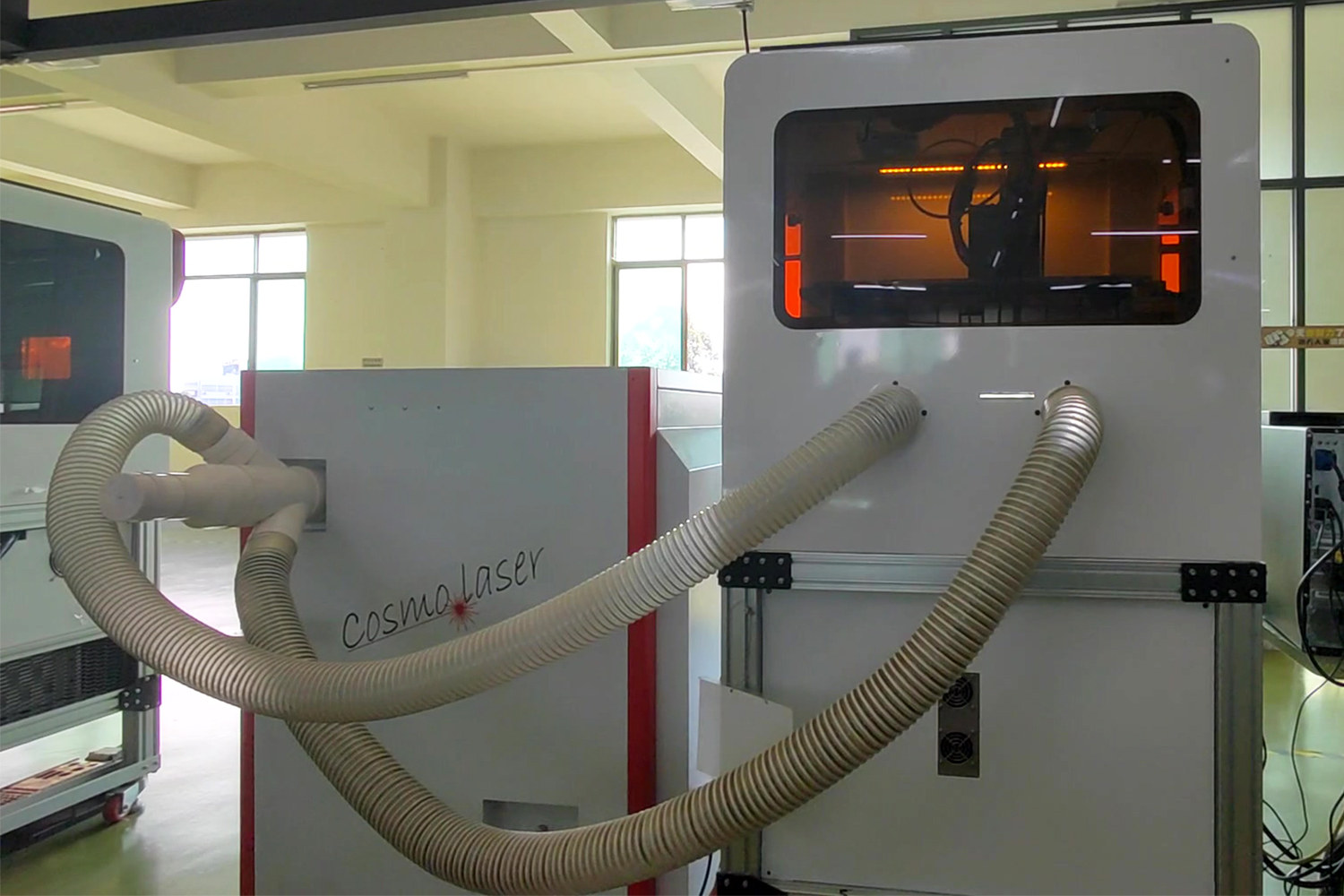

dust collector with pipes

dust collector with pipes

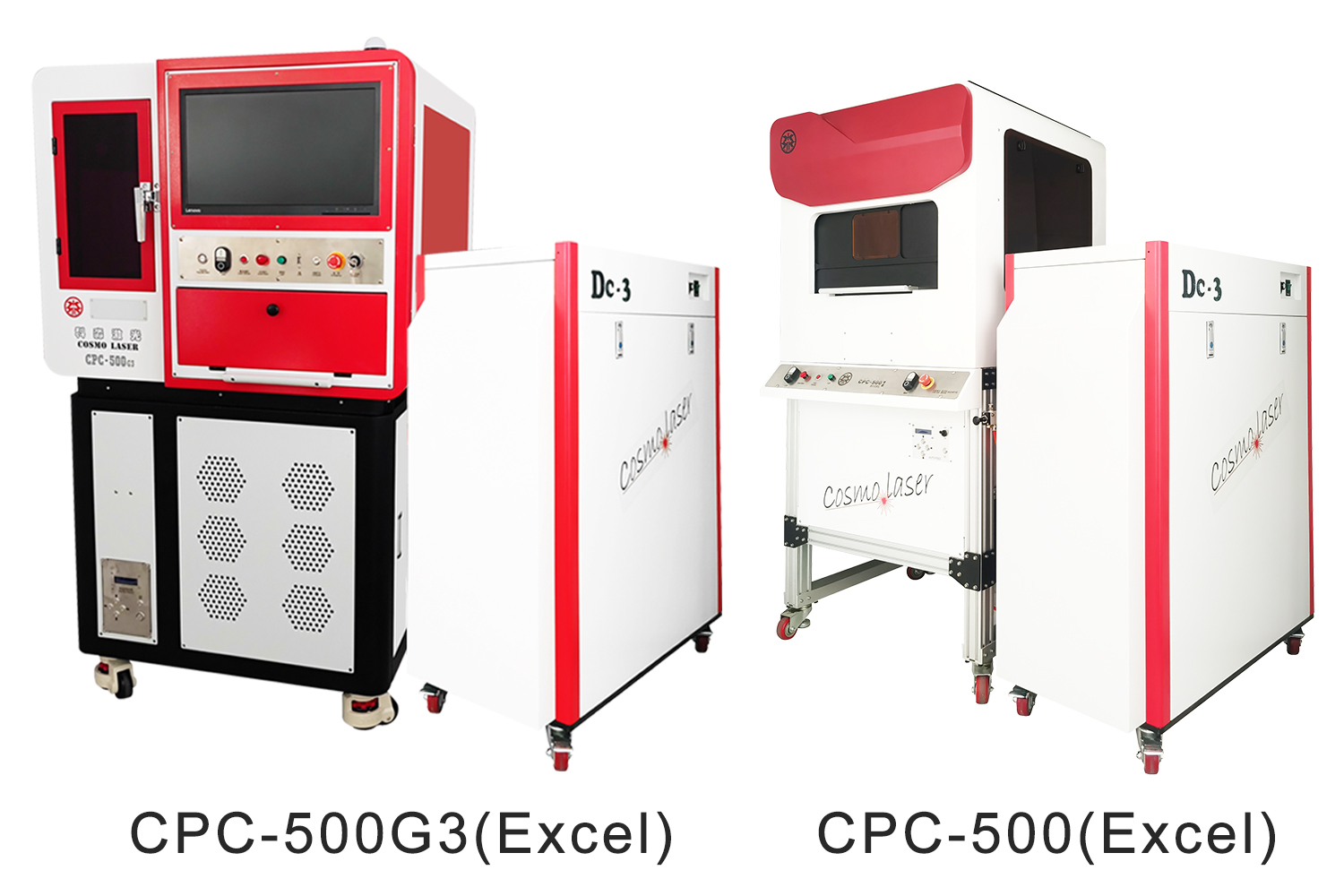

the laser cutting machine and dust collector work together

works together




Why a dust collector is needed when laser cutting?
bg

Three features of laser processing are:

1. utilizes light that has undergone a focused lens and has a high energy density

2. is through the photothermal impact

3. is a non-contact manufacturing method.

Numerous fine-grained dust and gas mixtures will be produced throughout the procedure.


Therefore, the dust and gas generated during the cutting and marking of precious metals must be processed and recycled promptly. If it is not processed in a timely manner, it will not only result in a significant gold loss but also have an effect on the operator's health. The environment of the workshop and the quality of the finished workpieces will also be impacted. Additionally, the pricey laser lens will be harmed.


Whether it is in terms of environmental impact, machine lifespan, employee's health, and production costs and benefits of the enterprise, laser processing needs to be equipped with a tailored DC-3 environmentally friendly vacuum dust collector.
