Computerized Pin Marking Machine For Wedding Ring


The touch screen feature allows for easy and intuitive operation of the machine. Users can input designs, text, or patterns directly on the touch screen interface, which then guides the marking process. The machine uses a controlled impact to create precise and permanent markings on the wedding ring's surface without compromising its integrity. Dot peen marking machines are commonly used in industries that require durable and high-quality marking, such as jewelry manufacturing. They offer advantages like fast marking speeds, versatility, and the ability to create clear and legible marks on various materials, including metals like gold, silver, and platinum.


With a touch screen dot peen marking machine, you can personalize your wedding ring by adding names, dates, special messages, or customized designs to make it truly unique and sentimental.



Specification
  • Model
    CPM-R8
  • Marking Character Size
    0.5-15mm (Alphabets);
    0.7-15mm (Chinese Characters)
  • Outside Mark Diameter
    15-80mm
  • Inside Mark Diameter
    15-60mm
  • Ring Width
    ≤20mm
  • Flat Marking Area
    20mm × 35mm
  • Flat Marking Character Size
    Maximum 20mm
  • Computer
    Included
  • Marking Software
    Cosmark (Developed by Cosmo);
    Compatible with WINDOWS XP/ VISTA/ 7/ 8/ 10
  • Fonts Supported
    All WINDOWS Compatible Fonts
  • Languages Supported
    Multi-Language
  • Picture Format Supported
    Monochrome Bitmap (BMP)
  • Max Power Consumption
    180W
  • Power supply
    220V/1P(Standard);
    110V/1P(Optional)
  • Machine Dimension
    470mm×230mm×380mm (L×W×H)
  • Weight
    15kg(Net)/ 18kg(Gross)

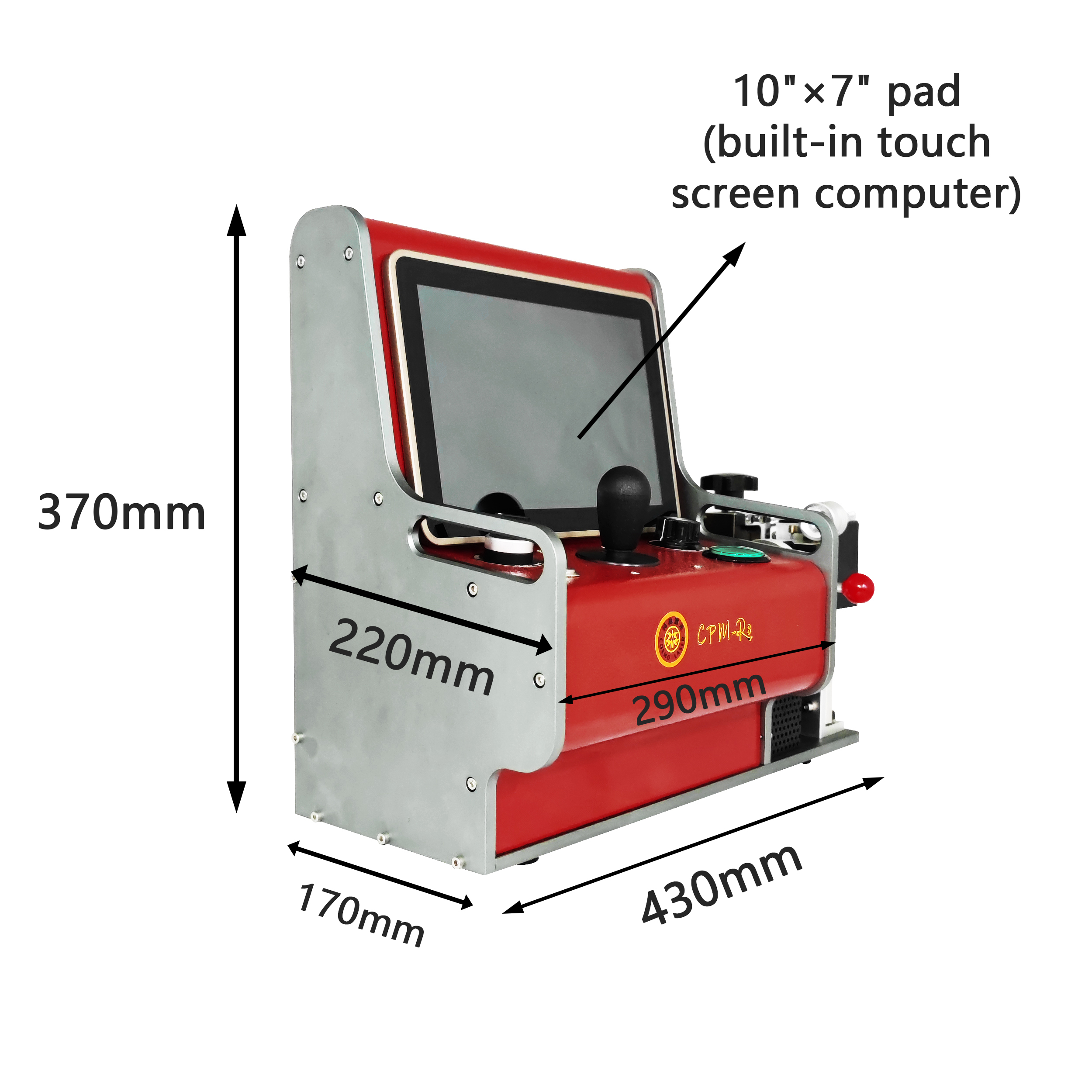

Machine Size

Computer System

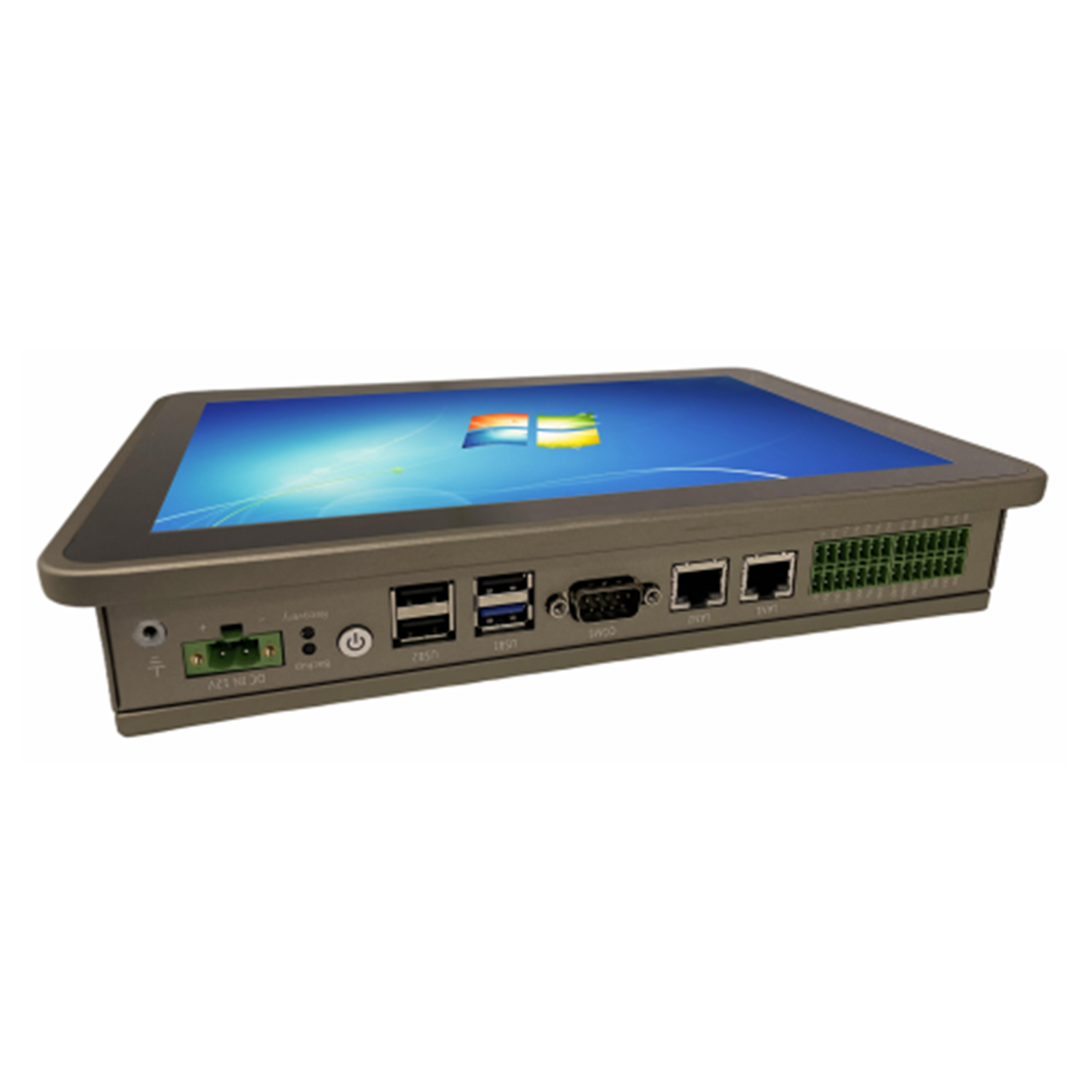

built-in touchscreen computer

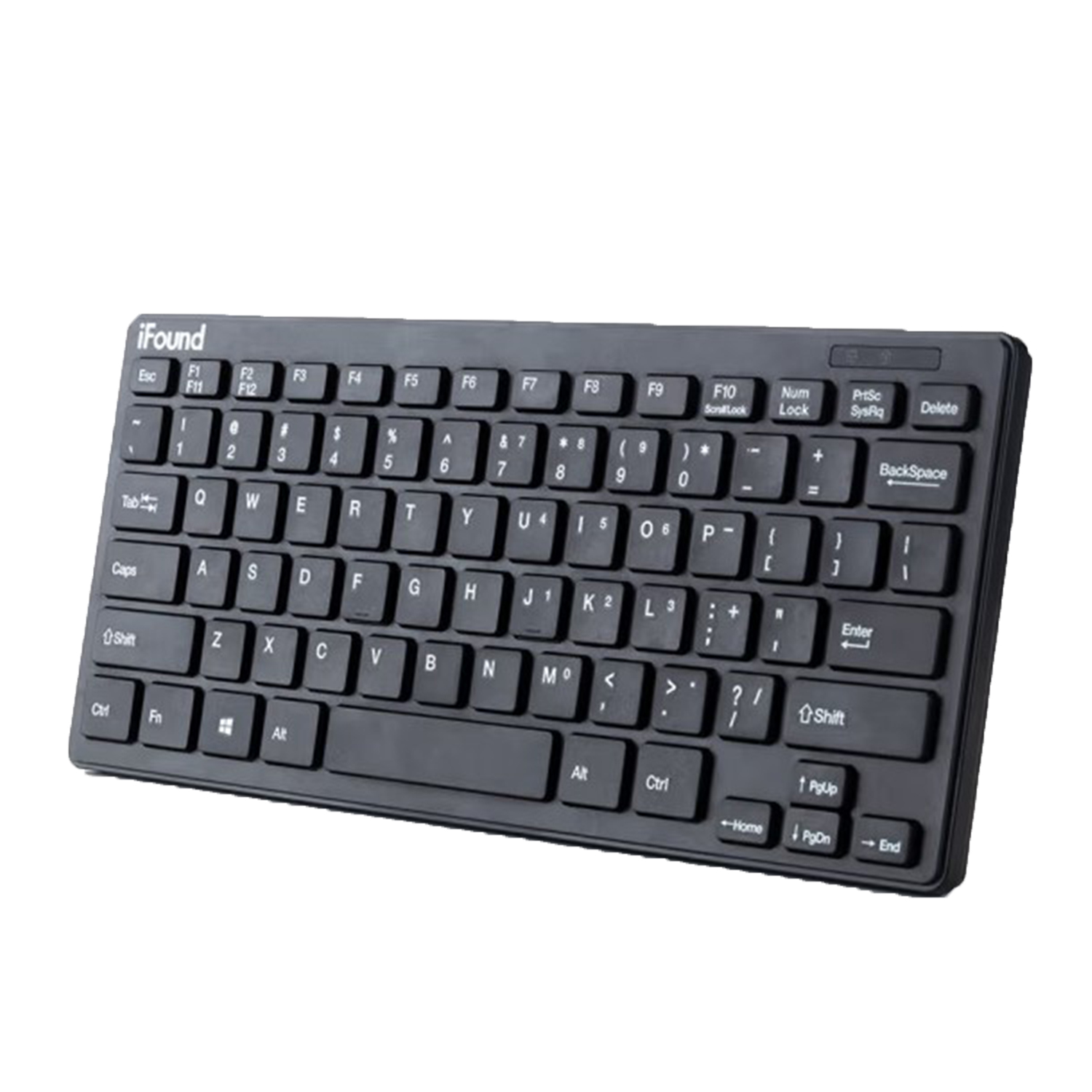

wireless keyboard

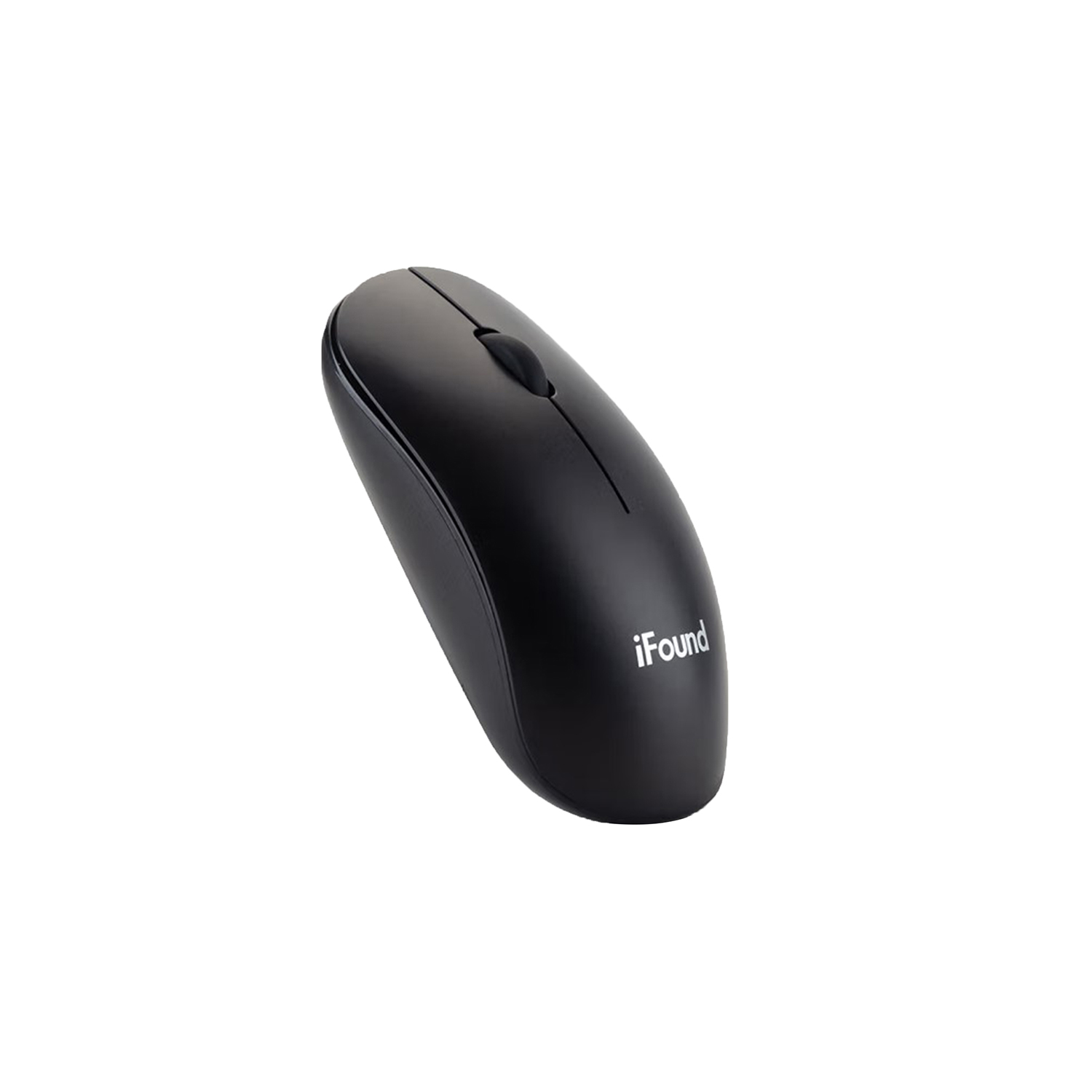

wireless mouse

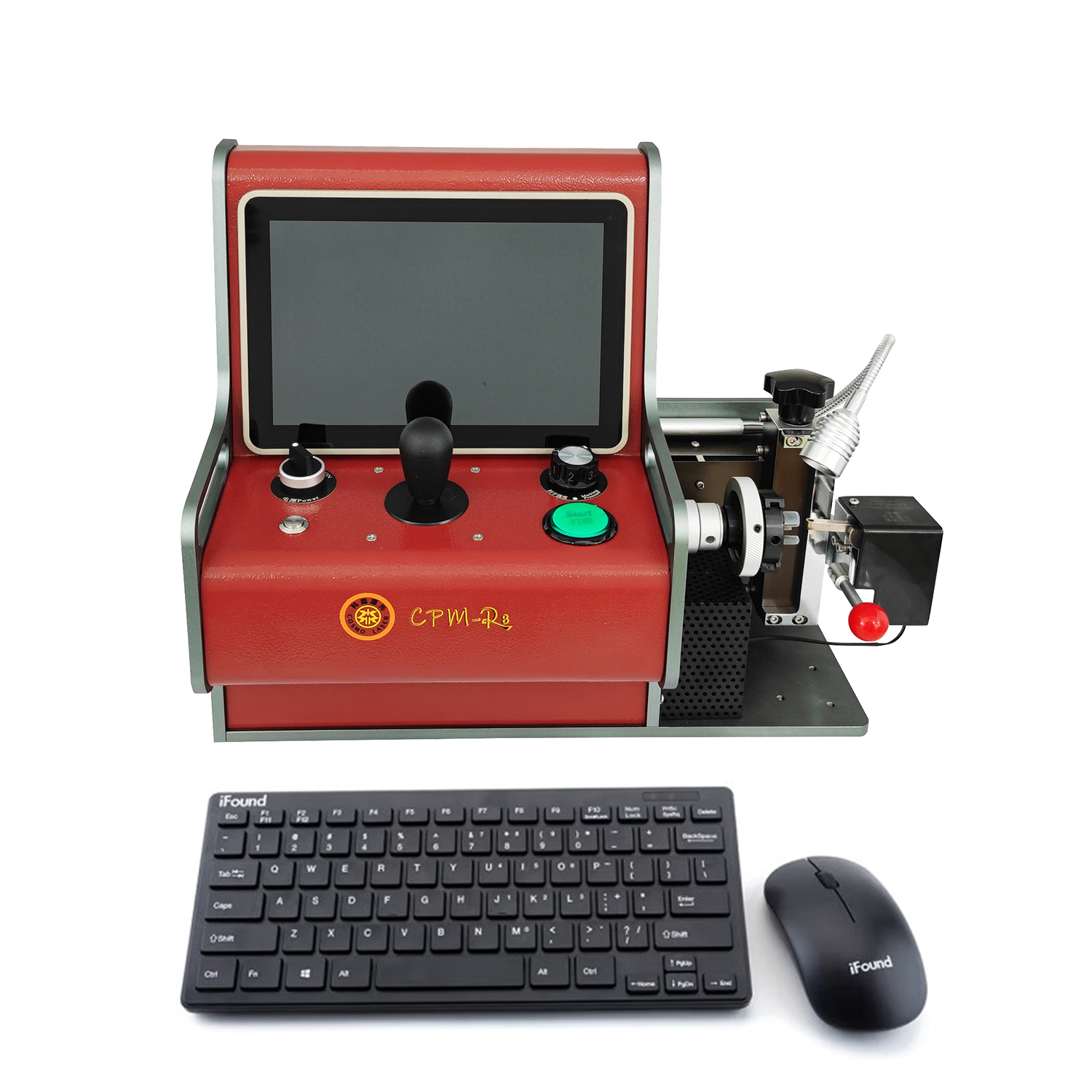

the machine set will come with a wireless keyboard and a wireless mouse

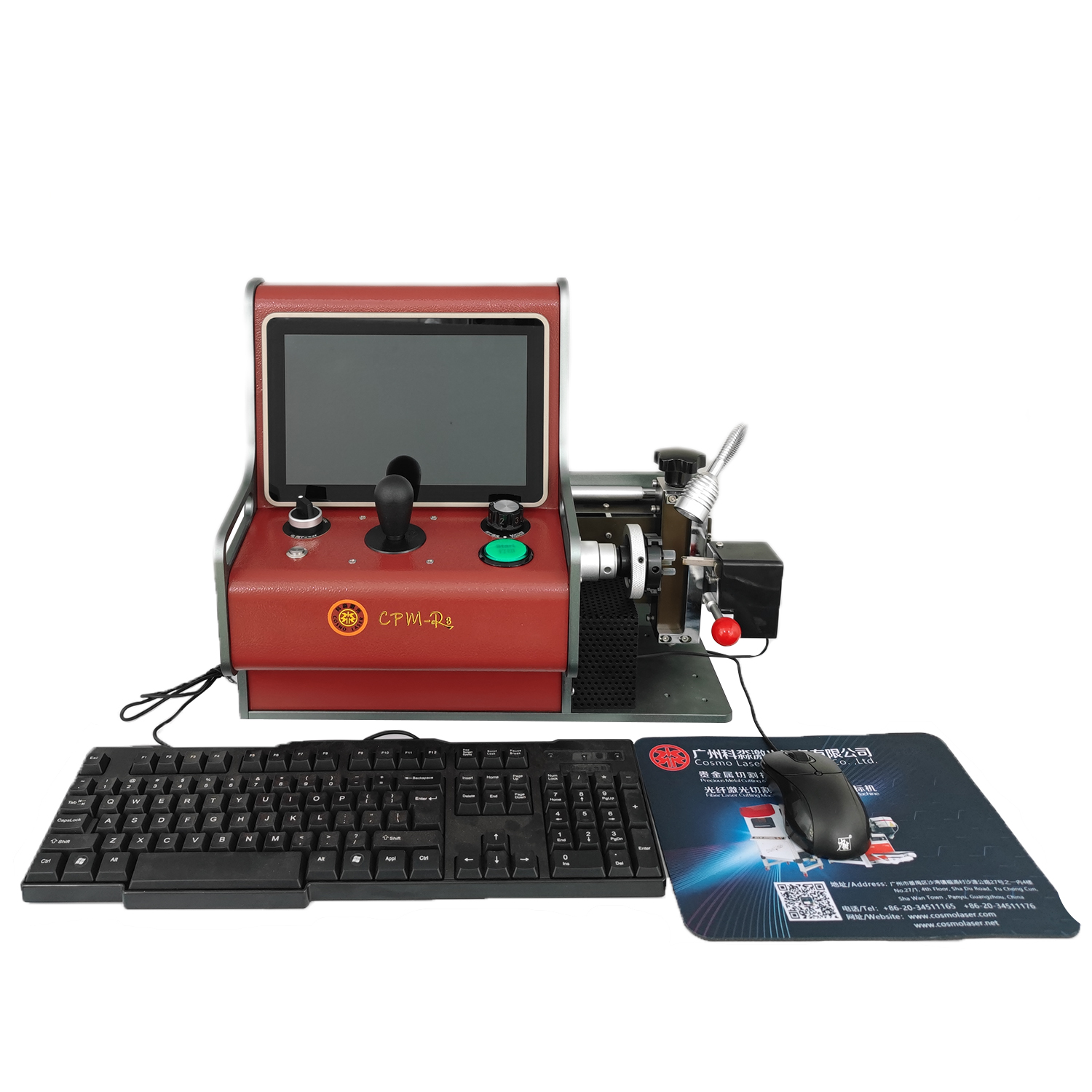

also, you can use a wire mouse and keyboard if you like


Two Different Accessories Set

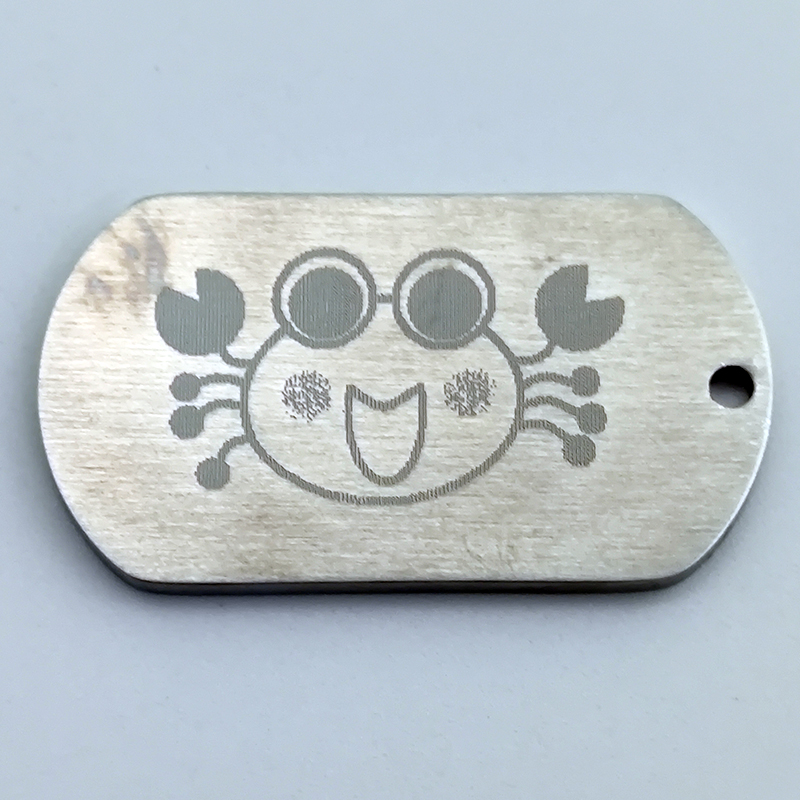

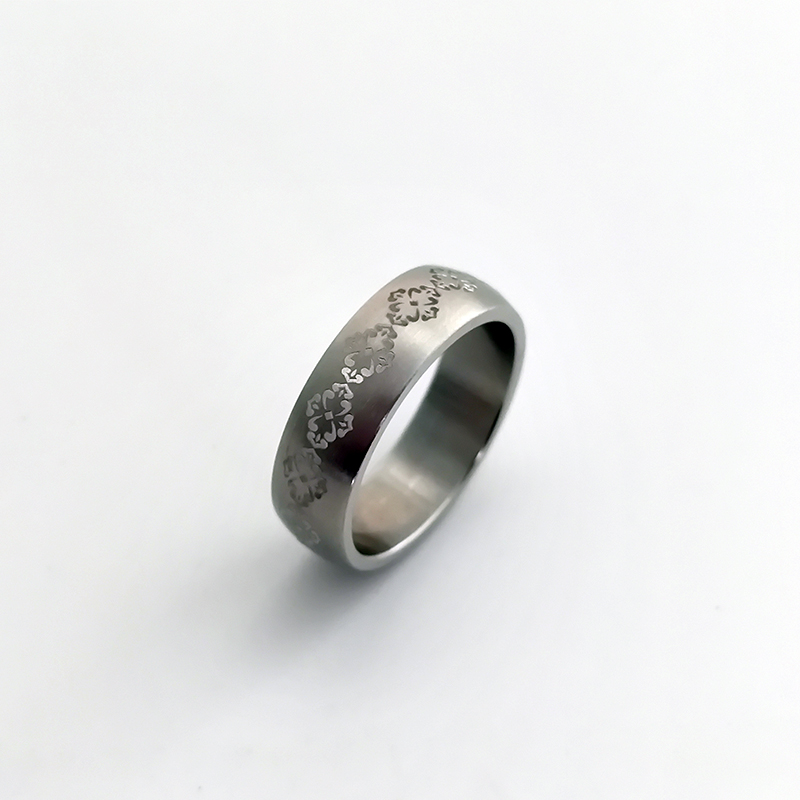

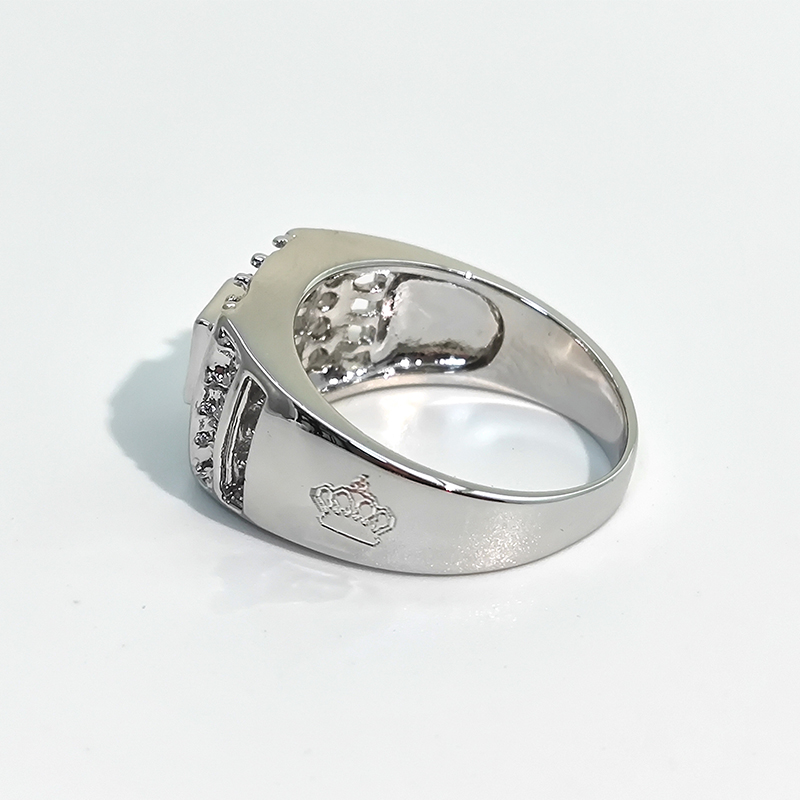

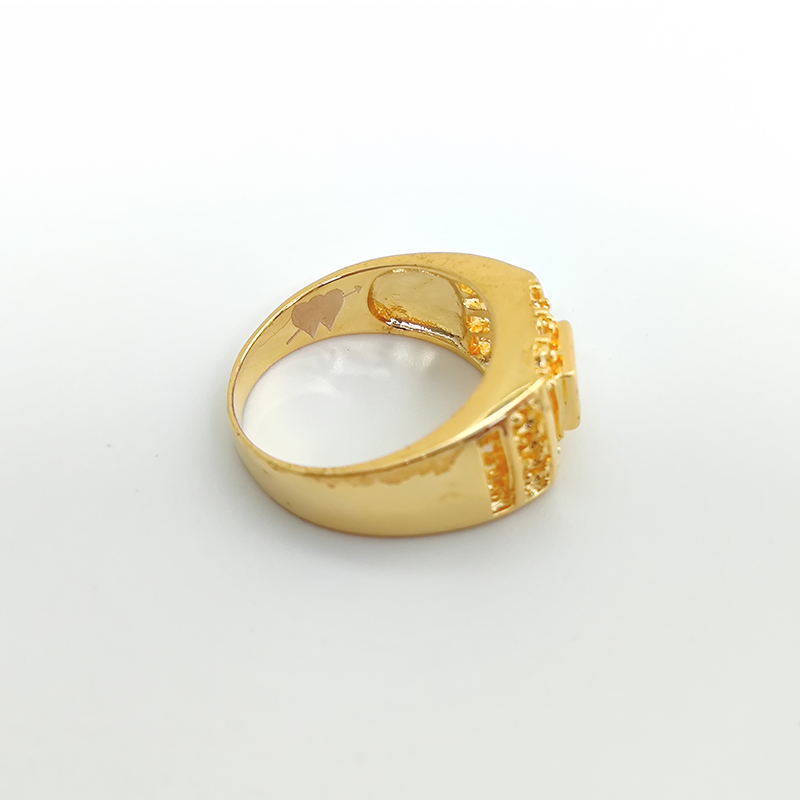

Samples Display
