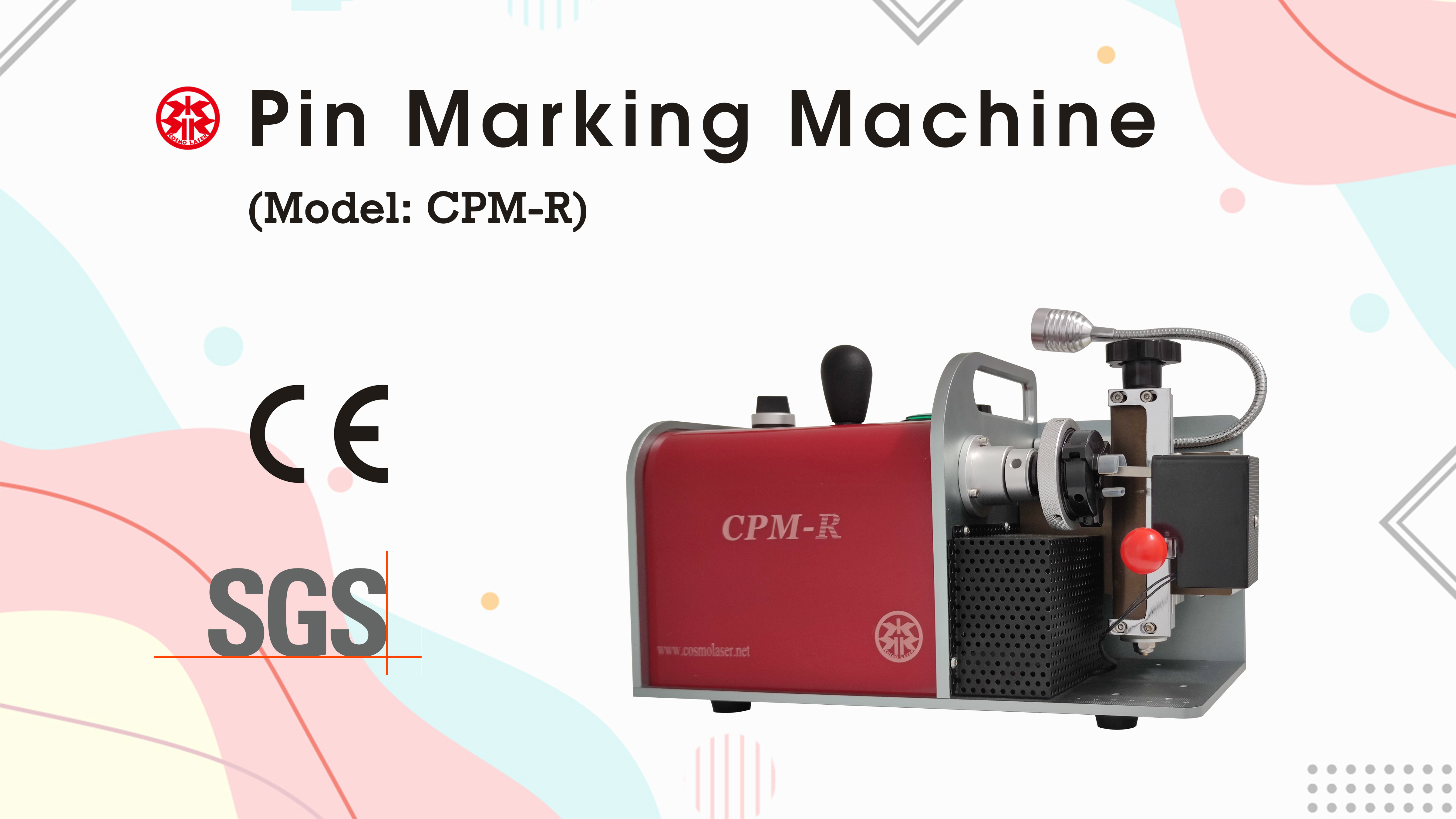

This video introduces the pin marking machine (model: CPM-R).


It is specially created to mark the inside and outside of rings and bangles and also on flat surfaces.

It results in shiny marking without any material loss and no need for additional polishing.

Controlled by our own in-house software, one can learn to use the machine in the shortest possible time. Its small size, ease of use, and low cost make it the ideal choice in space-constrained retail shops to provide customers with instant customization.


Please contact us for more details.

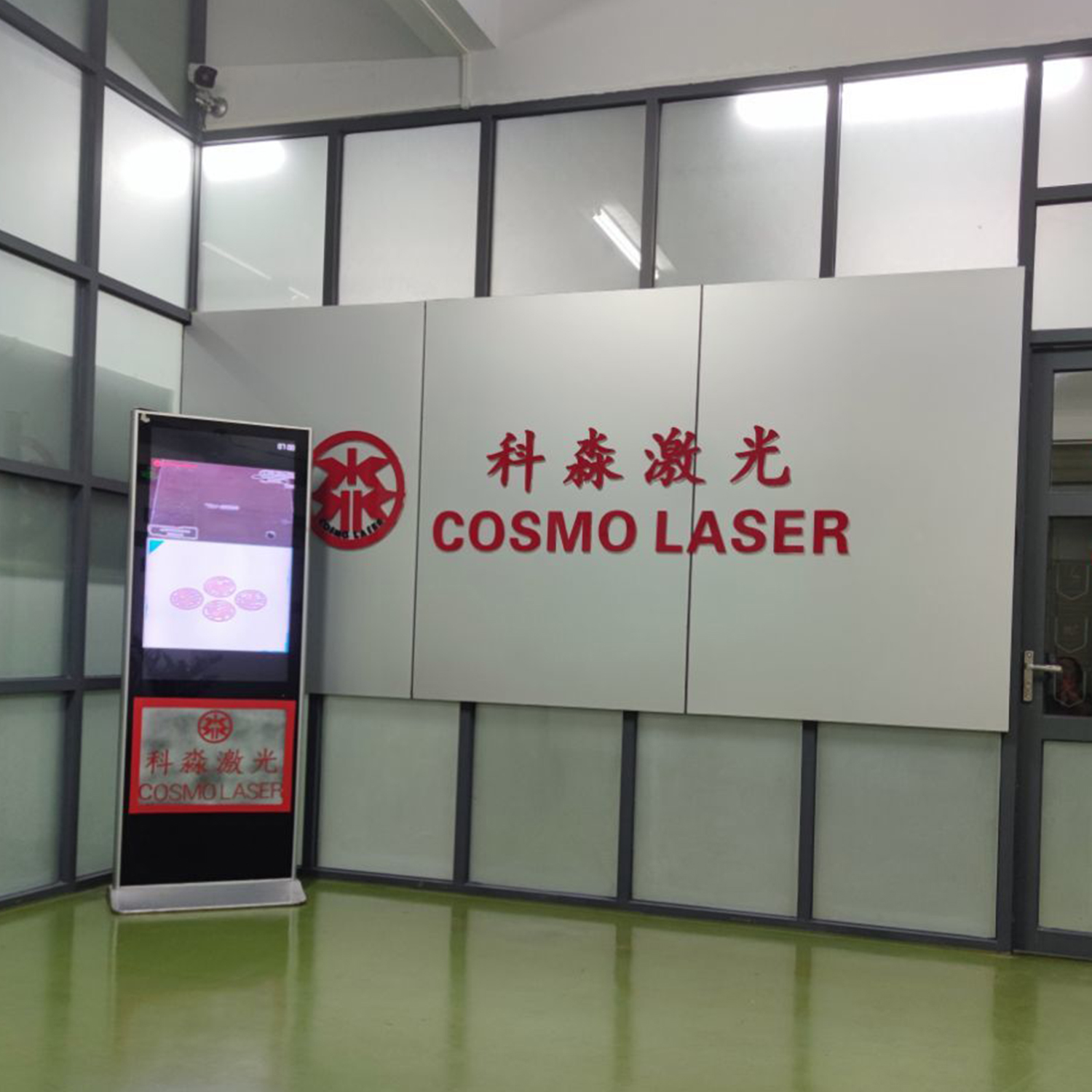

/ COMPANY PROFILE /

Cosmo Laser Equipment Company Limited is a laser equipment manufacturer integrating R&D, production, sales and after-sales service. Since 2004, Cosmo Laser starts producing high-quality laser equipment for the global jewellery industry, precious metal and gift production fields, such as watches, eyeglasses, hardware products, and electrical appliances. We have a worldwide sales and service network.


Our company pays attention to the transformation of high-tech innovations and the development of the laser industry, adopts new design concepts, and uses software to optimize the combination, which greatly extends the service life of equipment's components and the precision of the equipment.




/ Patents and Certifications /

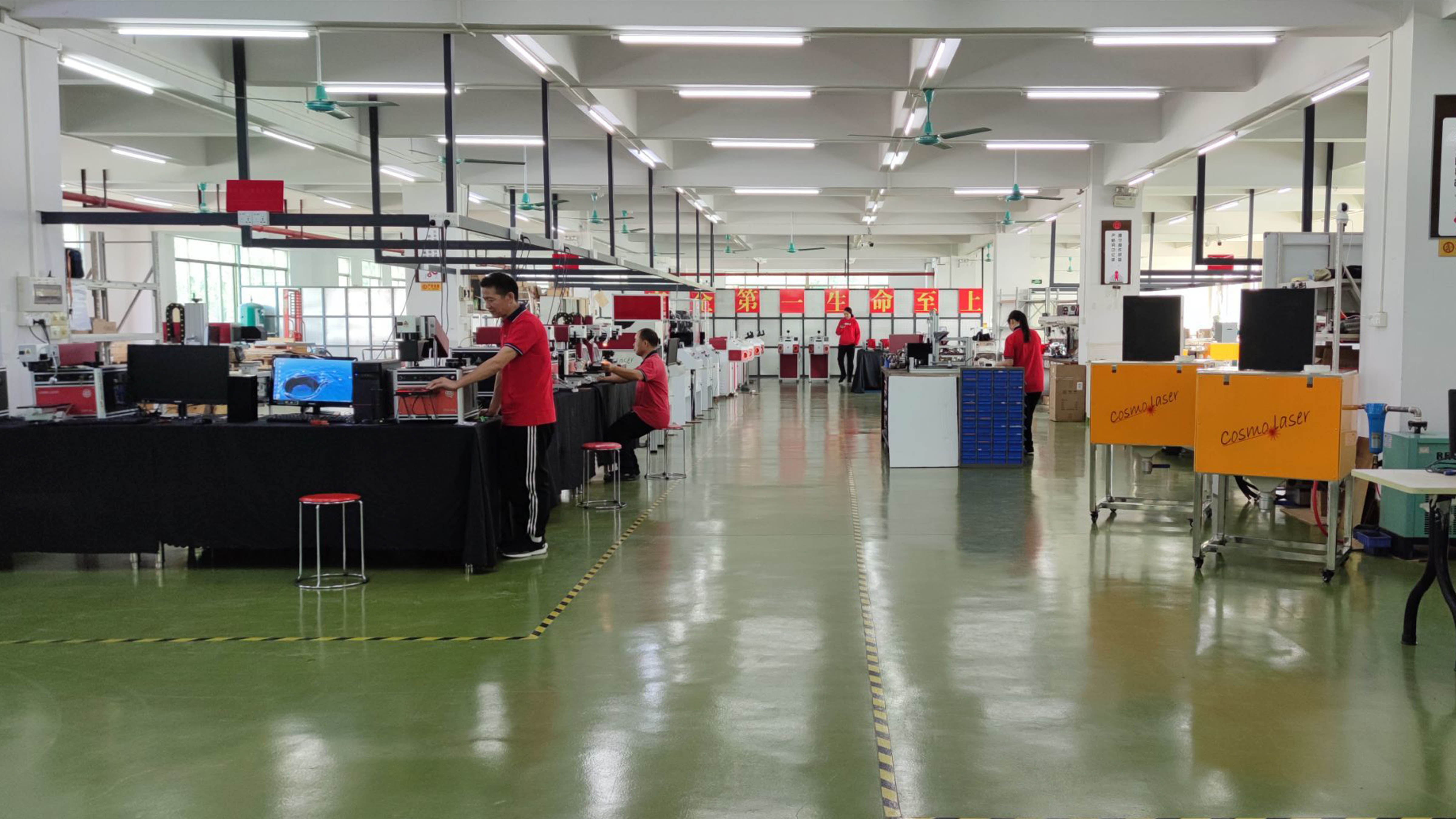

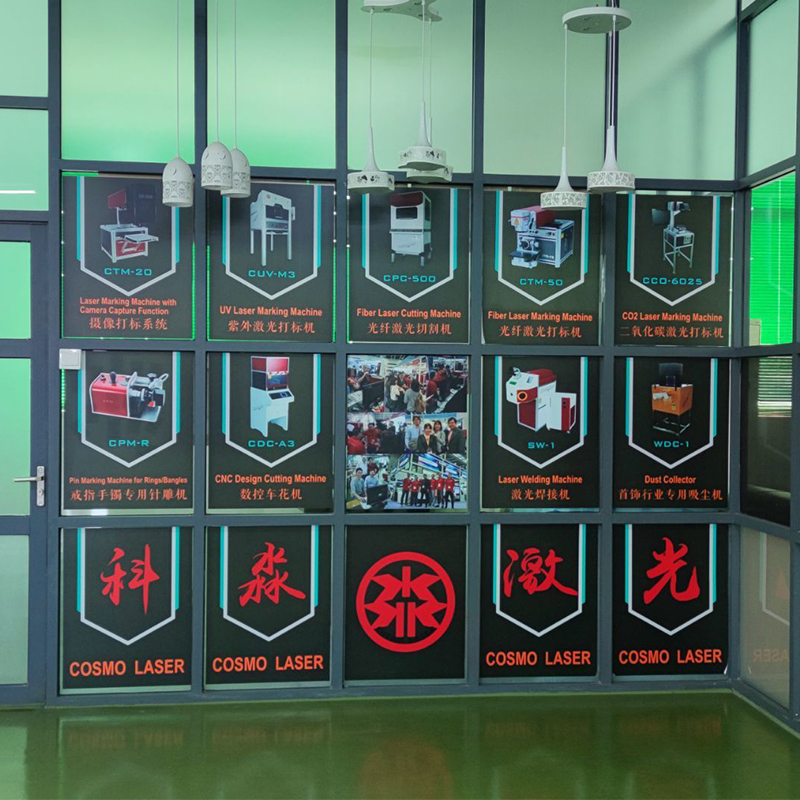

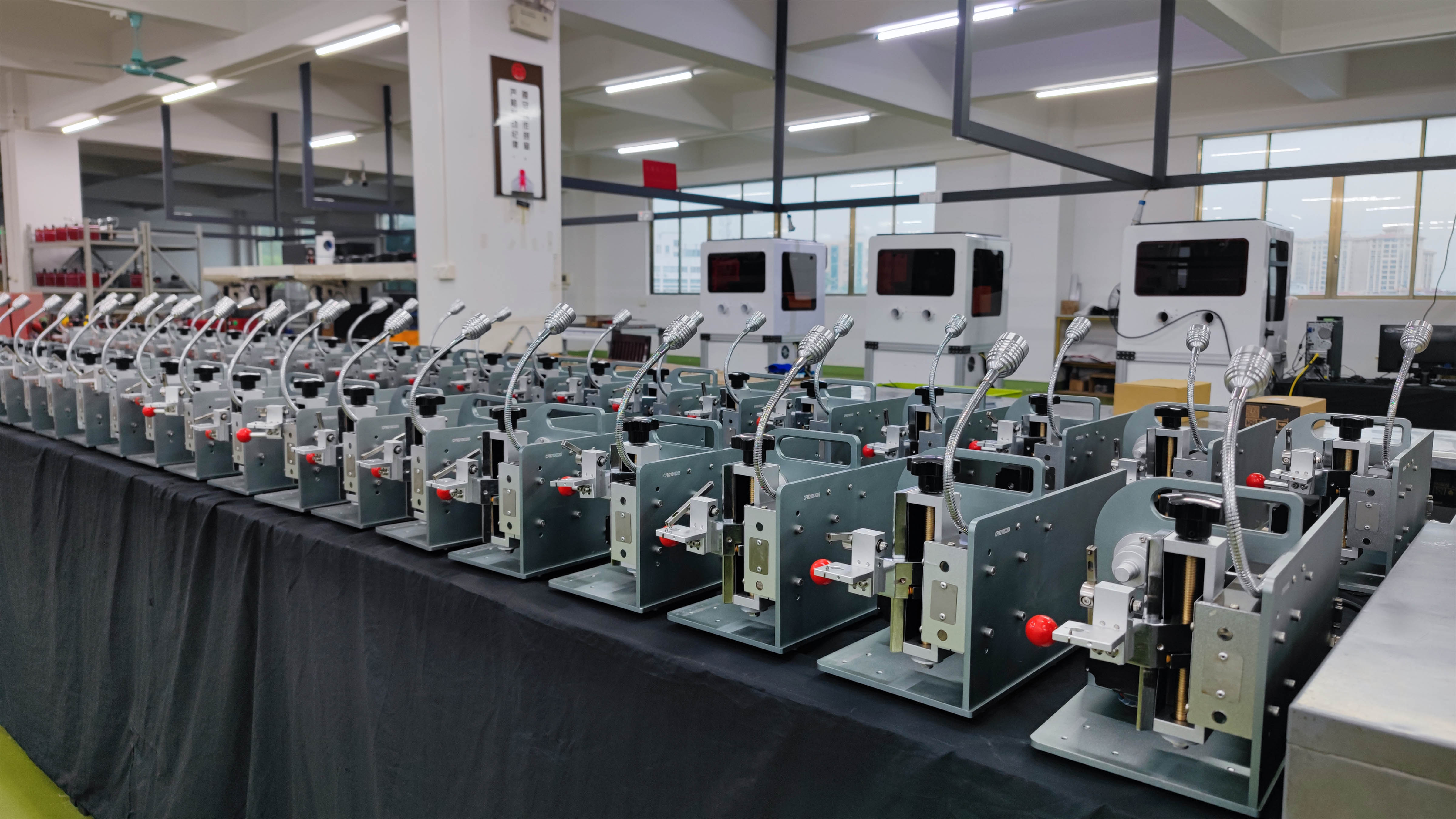

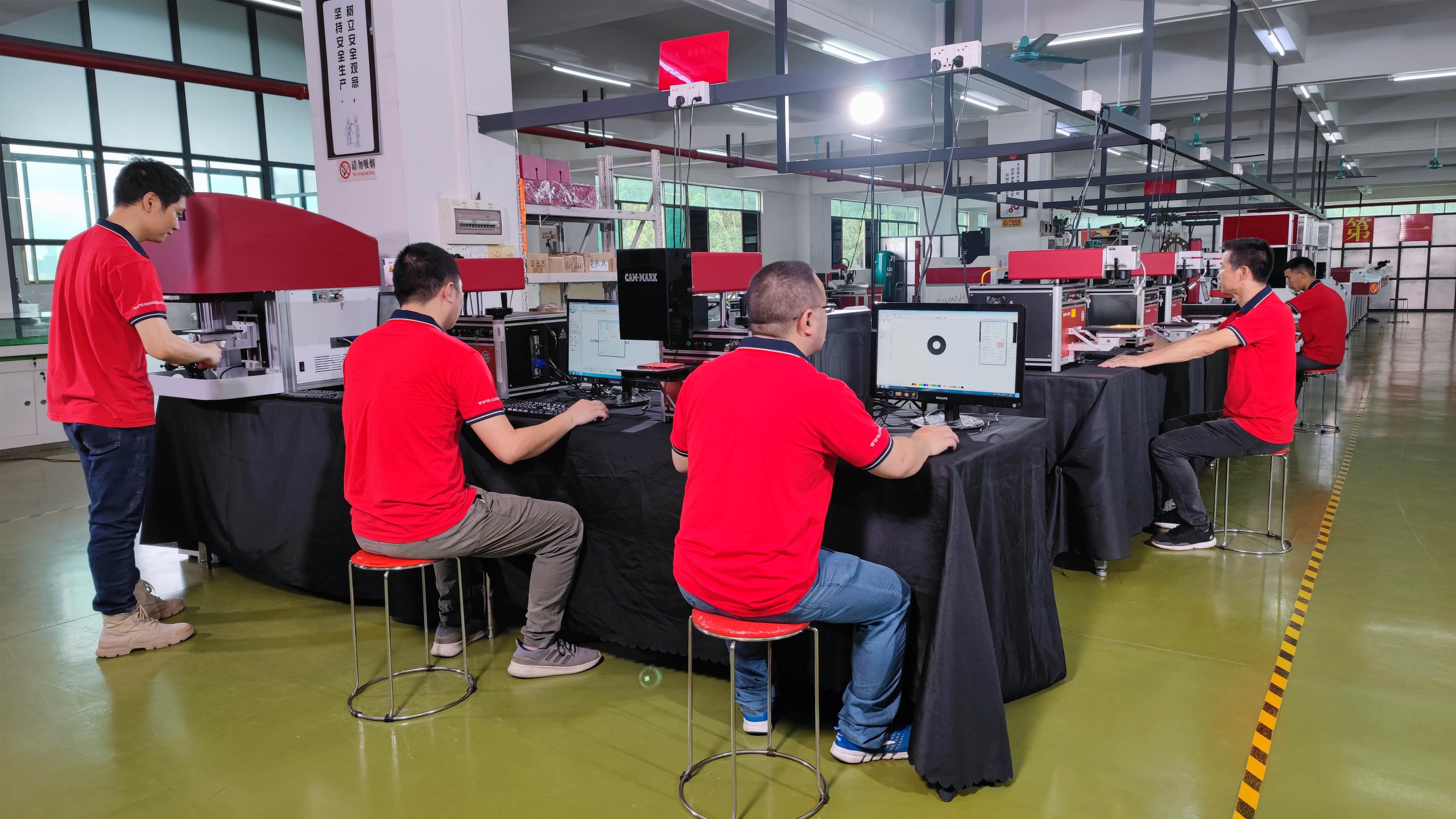

/ Workshop Display /

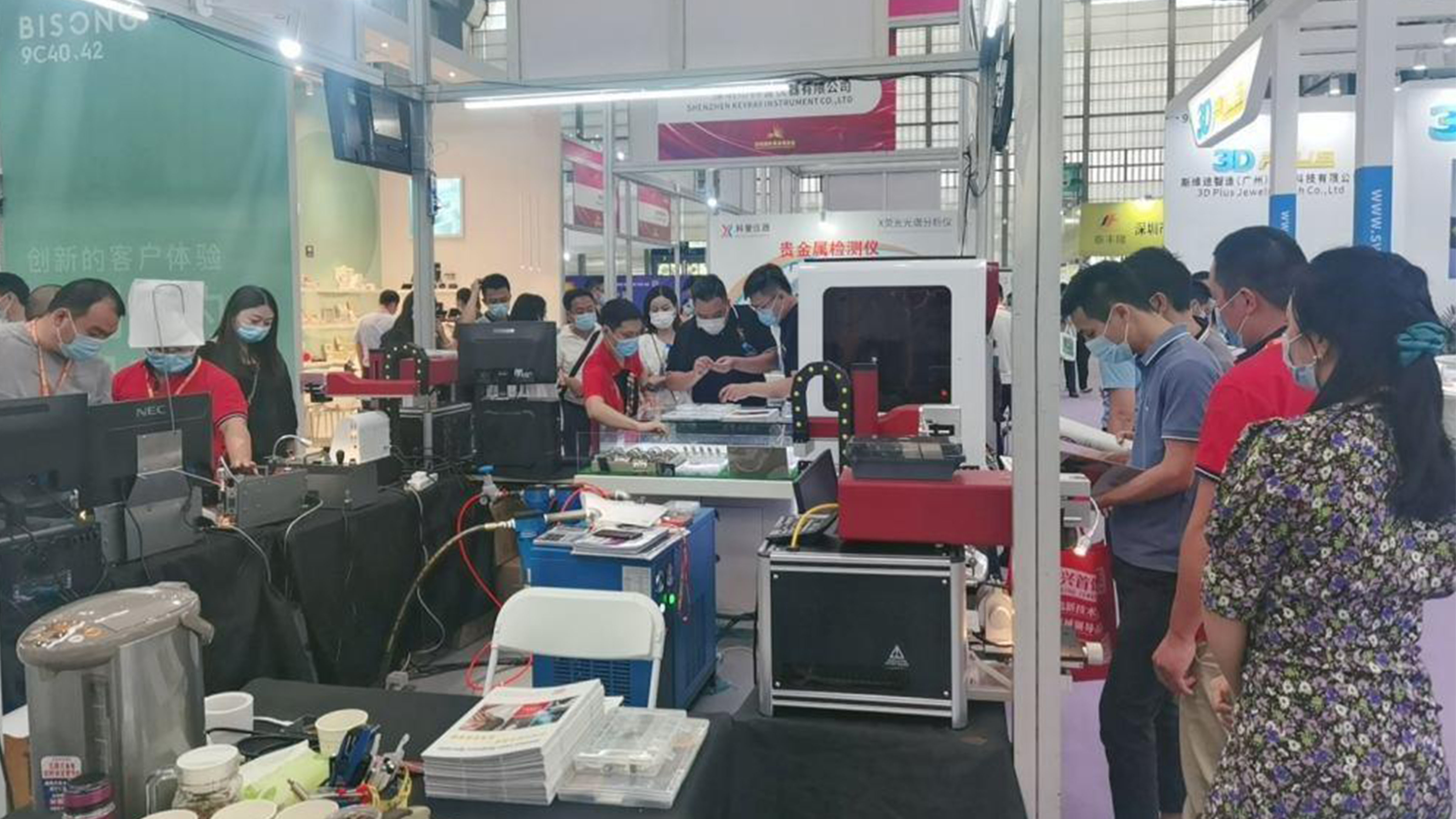

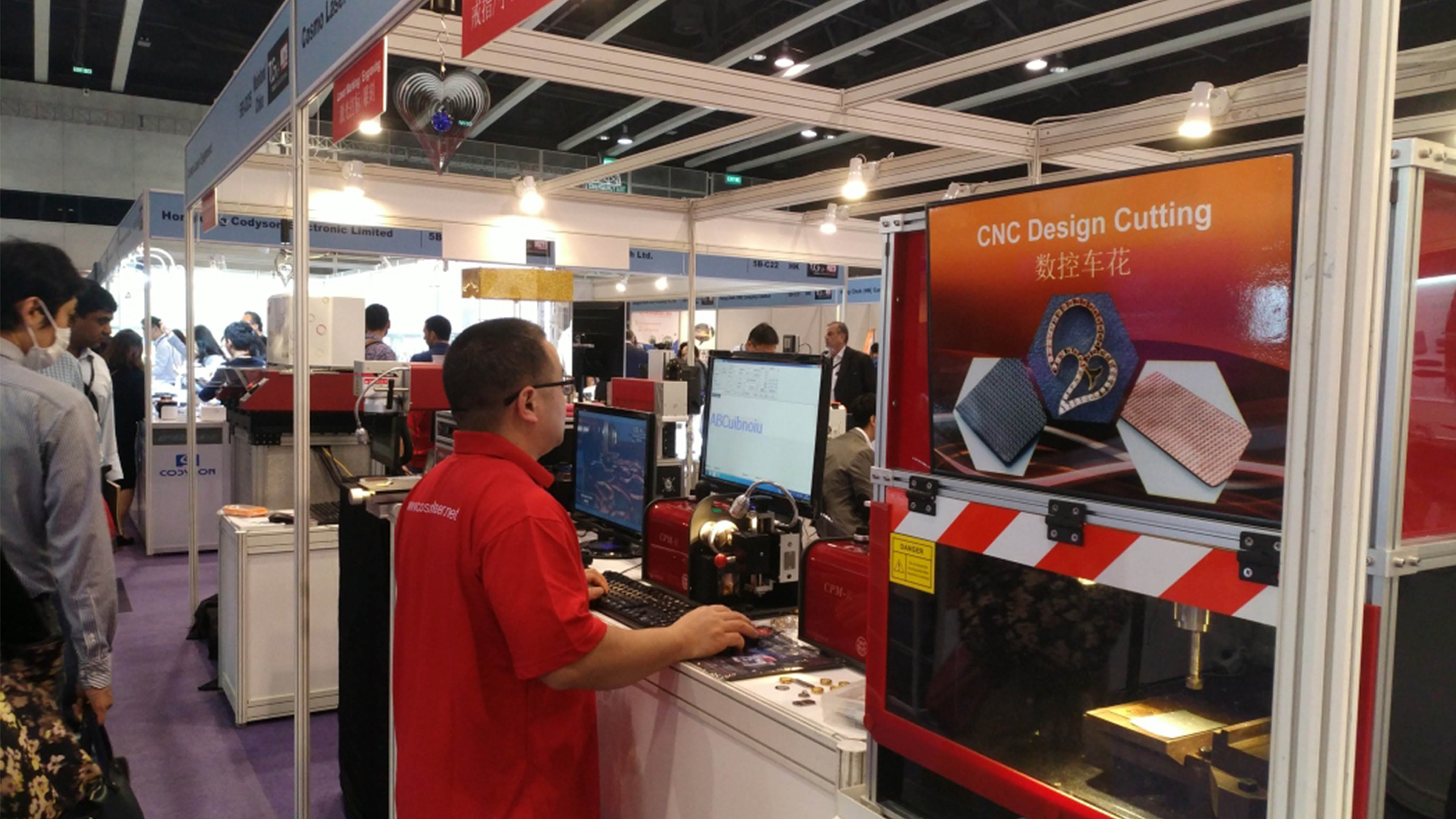

/ Cosmo Laser in Domestic and Foreign Fairs /

2020 Shenzhen International Jewelry Fair



2019 Hong Kong Jewellery & Watch Fair


2014 Turkey Jewellery & Gem Fair


/ Product Features /

  01. It is specially designed for the marking of the inner/outer surface of the finger ring/bracelet and flat surface marking.
  02. The marking software is in-house-developed and provides an easy to learn and use interface.
  03. Compact design takes up minimum working space.
  04. Ultra-low power consumption of 75W.
  05. Able to mark all WINDOWS compatible fonts, languages, and monochrome bitmap pictures.
  06. Able to mark a minimum height of 0.5mm for English characters, 1mm for Chinese characters.
  07. Nine azimuth positioning, to ensure the accuracy of marking position, and adjustable marking depth.
  08. Marking can be repeated with no ghosting effect.
  09. Uses diamond pin for marking to achieve a high brilliance shiny finishing with no additional polishing.
  10. Highly recommended for retail shops for added value service to the customers.
  11. Able to mark on a flat surface with an attachment.


/ Product Parameter /
  • Model
    CPM-R
  • Marking Character Size
    0.5-15mm (Alphabets); 0.7-15mm (Chinese Characters)
  • Outside Mark Diameter
    15-80mm
  • Inside Mark Diameter
    15-60mm
  • Ring Width
    ≤20mm
  • Flat Marking Area
    20mm × 35mm
  • Flat Marking Character Size
    Maximum 20mm
  • Marking Software
    Cosmark (Developed by Cosmo Laser); Compatible with WINDOWS XP/ VISTA/ 7/ 8/ 10
  • Fonts Supported
    All WINDOWS Compatible Fonts
  • Languages Supported
    Multi-Language
  • Picture Format Supported
    Monochrome Bitmap (BMP)
  • Max Power Consumption
    75W
  • Power supply
    220V/1P(Standard); 110V/1P(Optional)
  • Dimension(L×W×H)
    380mm×180mm×230mm
  • Weight
    8.5kg(Net); 9.5kg(Gross)



/ Placement Display of Different Workpieces /

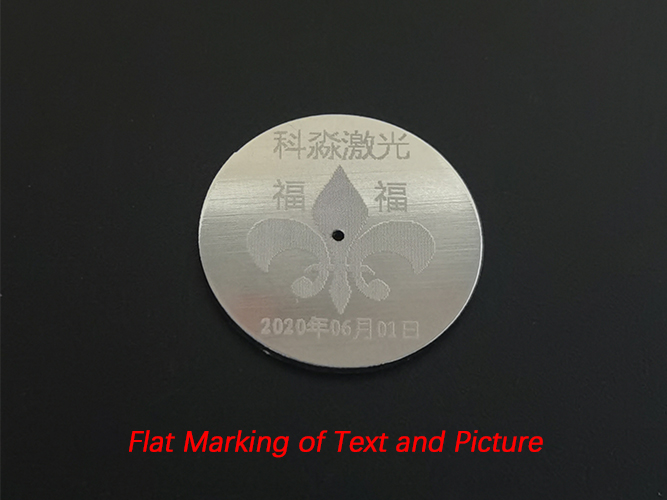

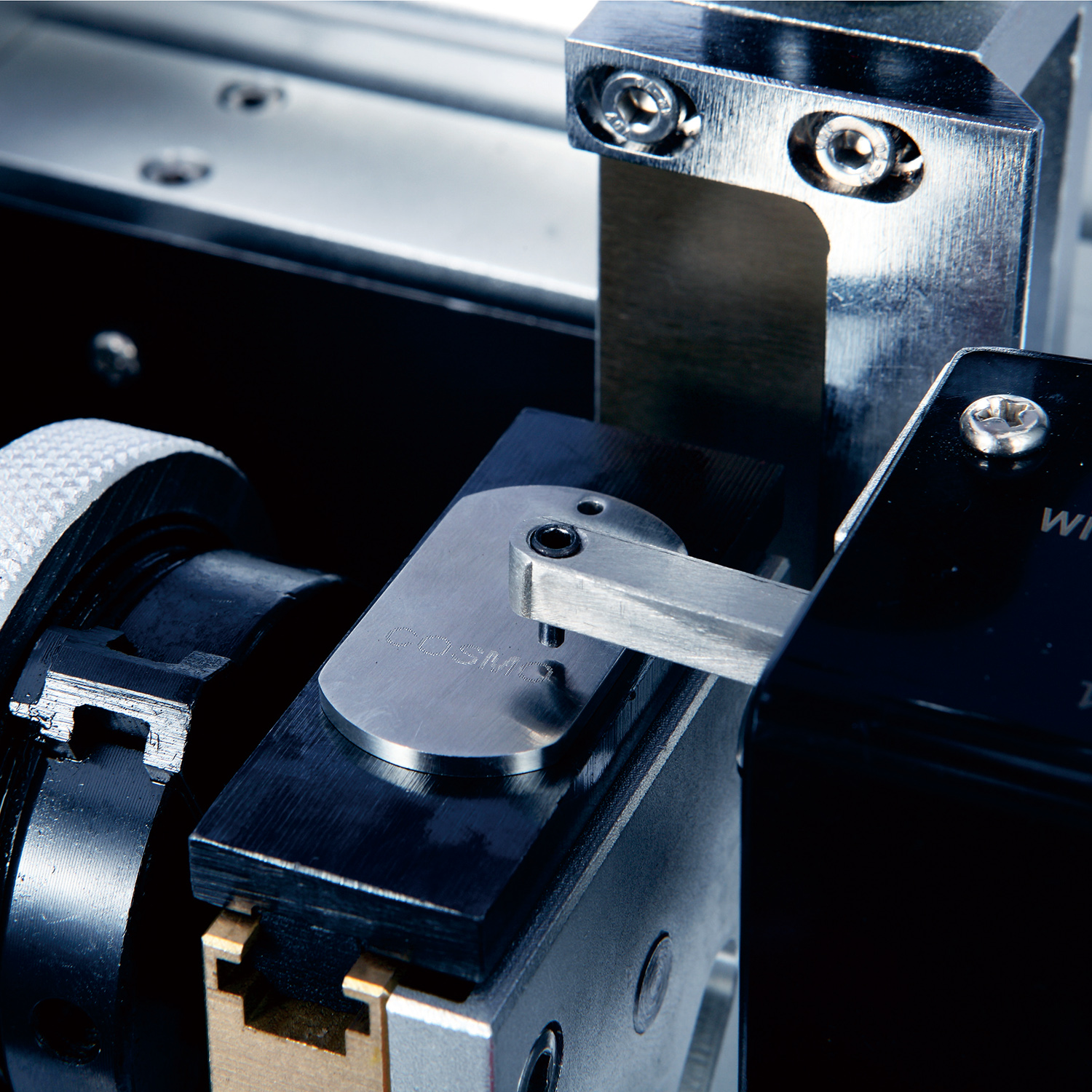

Flat Surface Marking

Outside of Bangle Marking

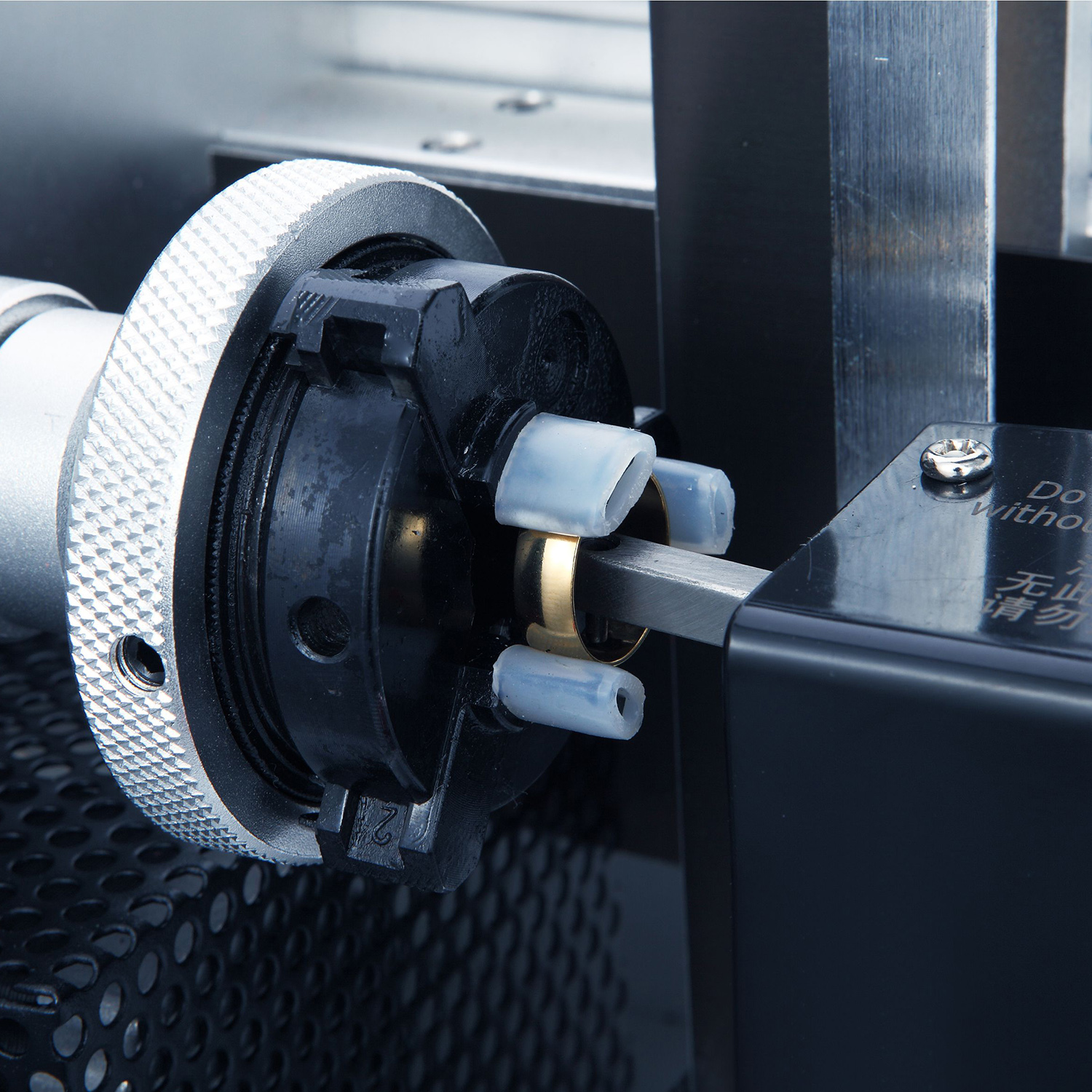

Inside of Ring Marking

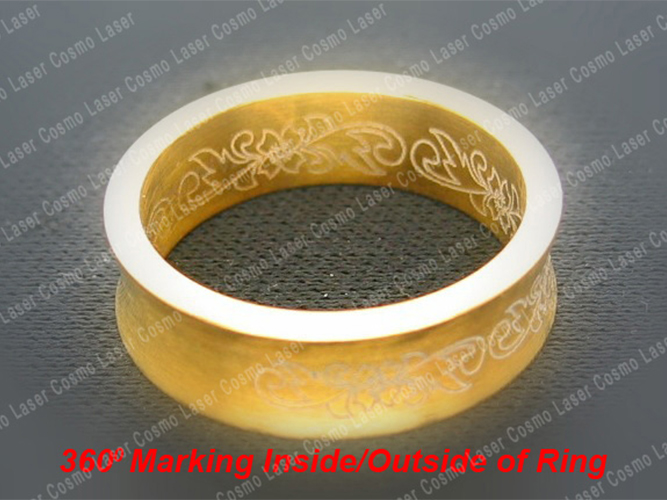

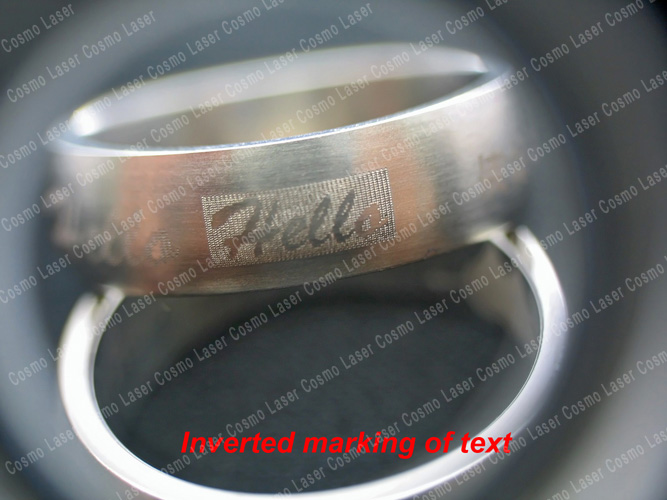

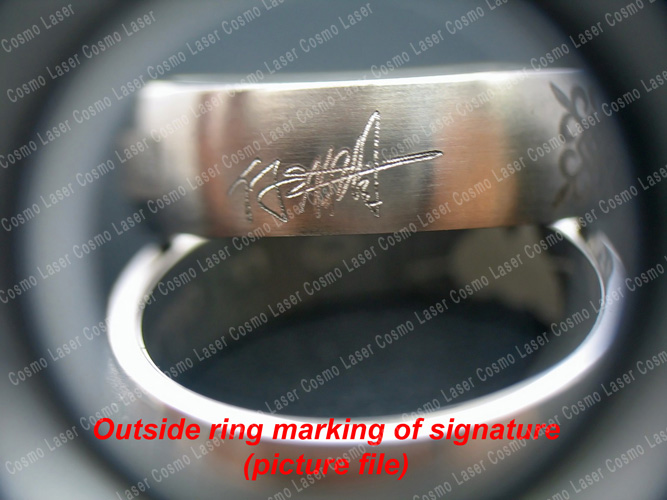

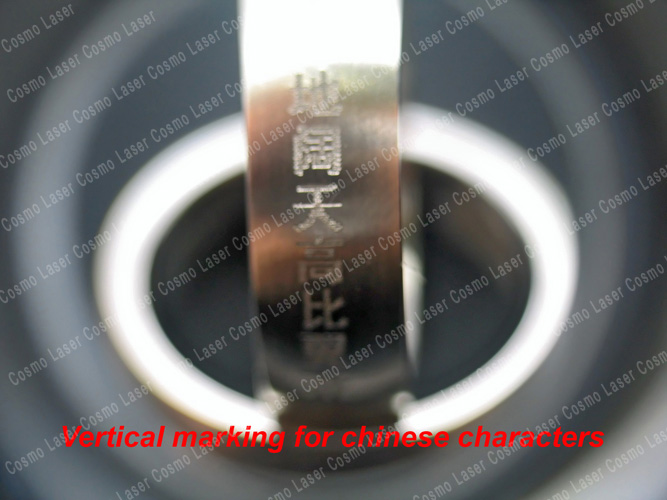

/ Marked Samples Show /








/ FAQ /
  • What is the warranty for machines?
    12 months from the time of shipment on the whole machine, except for consumables parts.
  • Will installation/training be provided?
    Yes, methods include 1. Online: for free, by remote control, voice/ video chat, and other methods. 2. At our factory: for free, but customers will bear for their transportation and accommodation costs. 3. Door-to-door service: a fee is required and depends on our time and number of personnel.
  • How is the packing?
    Products will be packed in seaworthy wooden boxes.
  • What kinds of shipping modes are available?
    Sea or air transportation. It depends on the customer's choice and type of machines. Due to aviation safety regulations, certain machines can only be transported by sea.
  • What is the delivery time upon confirmation of the order?
    The delivery time is usually between 3 to 5 workings days, depending on the type of machine. When it is at the peak of production, it may be longer. Please contact us for the actual delivery time.
  • What are the main products of Cosmo Laser?
    Products include laser welding machine, laser marking/engraving machine, laser cutting machine, finger ring/bangle pin marking machine, CNC design cutting machine.
  • What other products Cosmo Laser manufacture?
    Products include dust collectors, polishing machines, non-standard customized equipment, etc.
  • Is the laser safe to operate?
    Yes, the laser is completely safe to operate. No special safety gear is required to run the laser.
  • What services Cosmo Laser provides?
    Pre-sales: online consultation (by email, telephone, WeChat, WhatsApp, etc.), test on samples, visit our factory, provide customization project, provide financial services. In-sales: design, manufacture, installation, debugging, transportation logistics. After-sales: training, supply of repair parts, troubleshooting, maintenance, return visits
  • What are the payment terms?
    Full payment upon order confirmation. Payment by bank transfer. If you have other ideas, feel free to contact us.

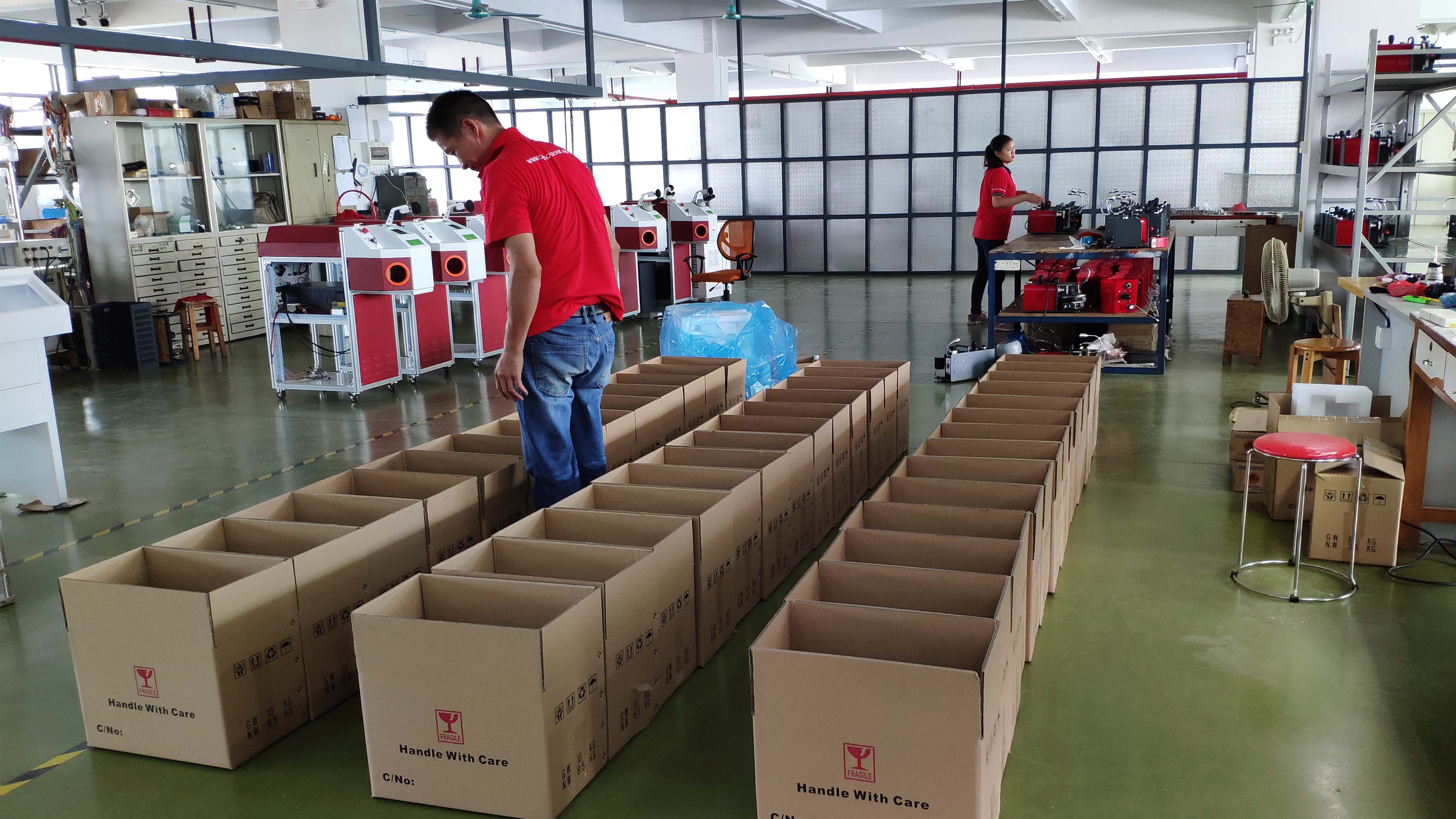

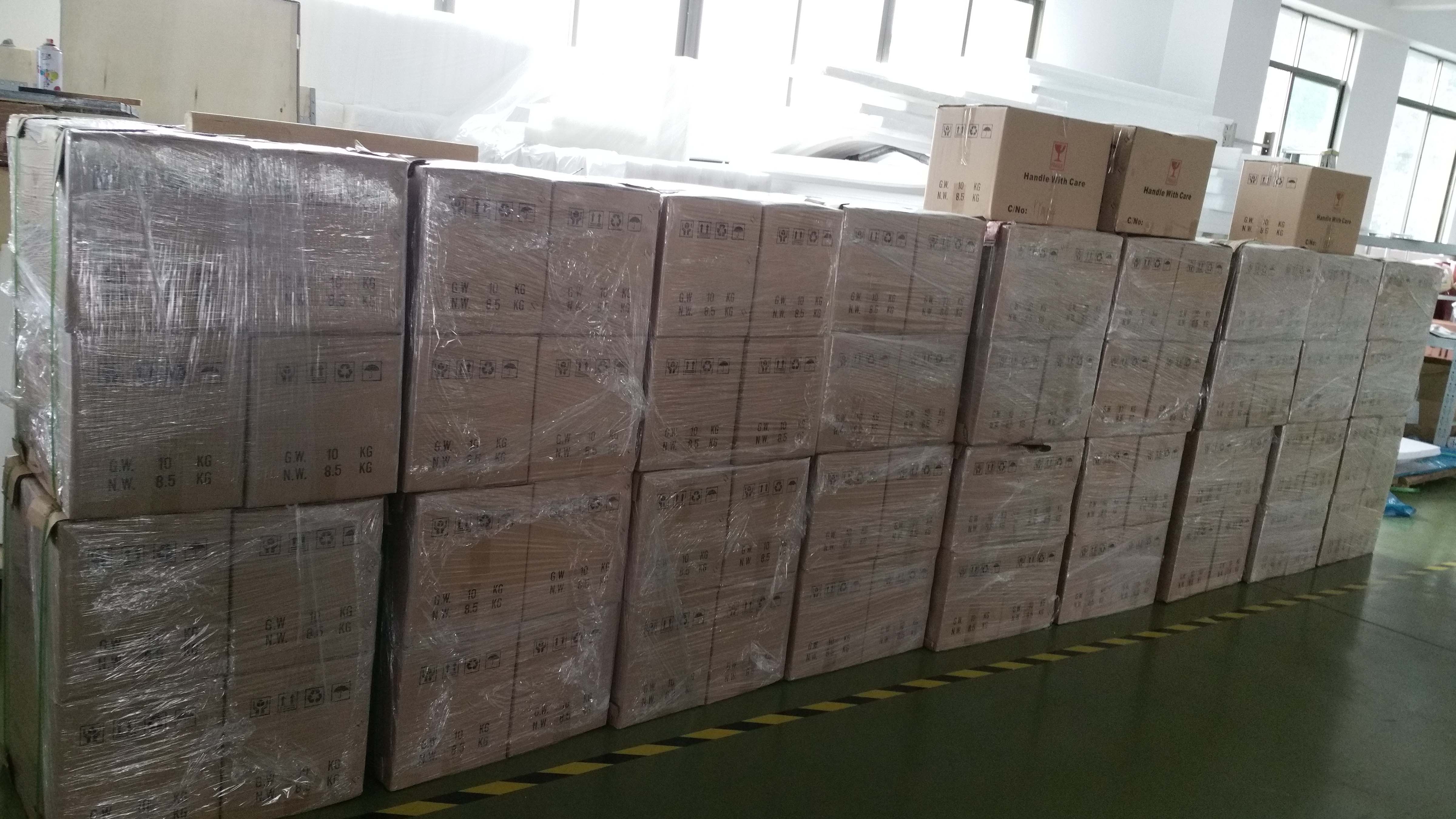

/ Loading and Transportation /
