Tutorial Video | How to Mark Text or Image on the Flat Surfaces with a CTM-L or CTM-m Series

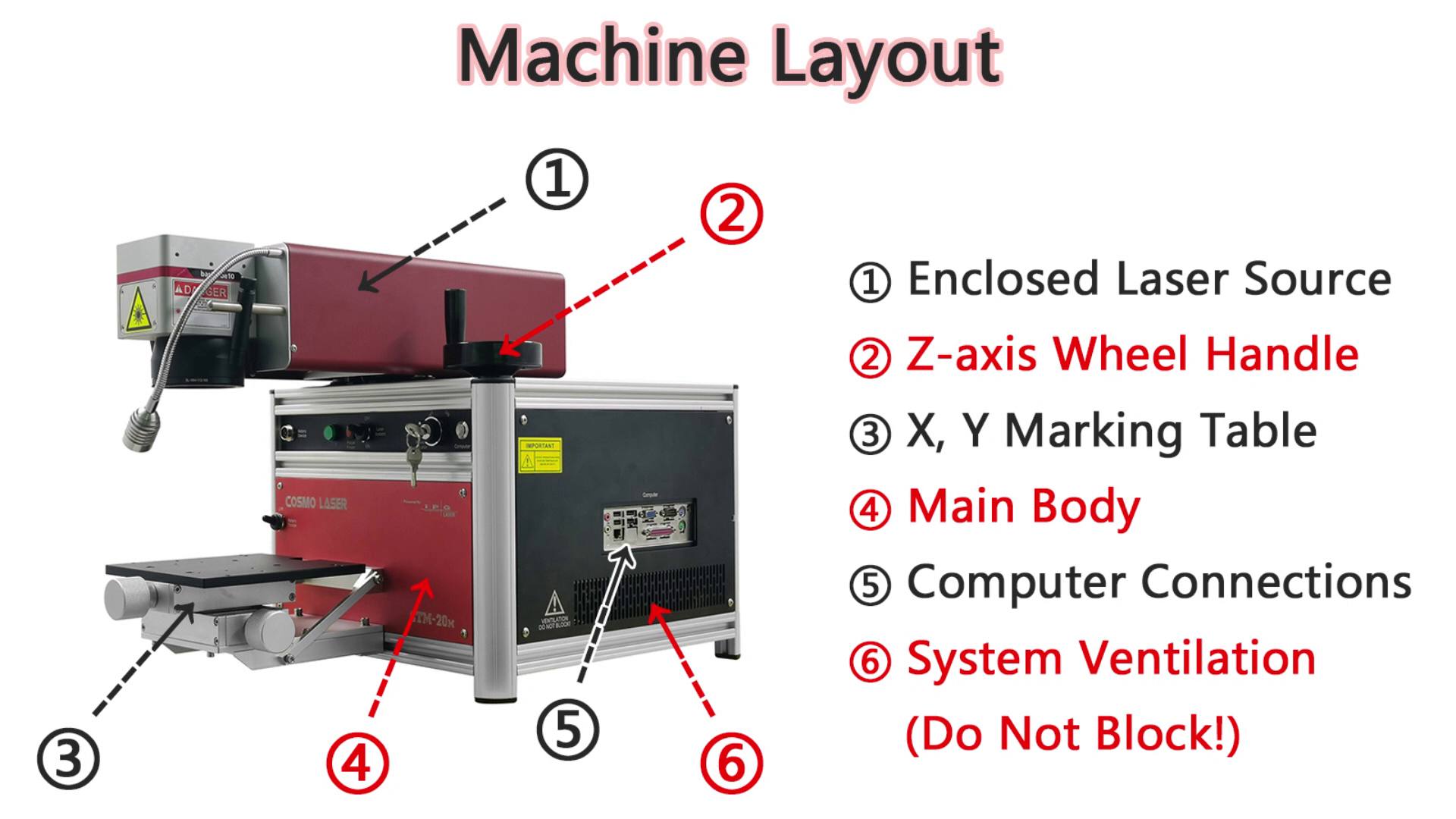

Machine Layout:

①Enclosed laser source

②Z-axis wheel handle

③X, Y marking table

④main body

⑤computer connections

⑥system ventilation (do not block)

Front of the System (Control Panel):

①Connector for rotary device

②Illuminating light switch

③Focusing light ON/OFF

④Laser source ON/OFF

⑤System power indicator

⑥System ON/OFF key switch

⑦Computer ON button

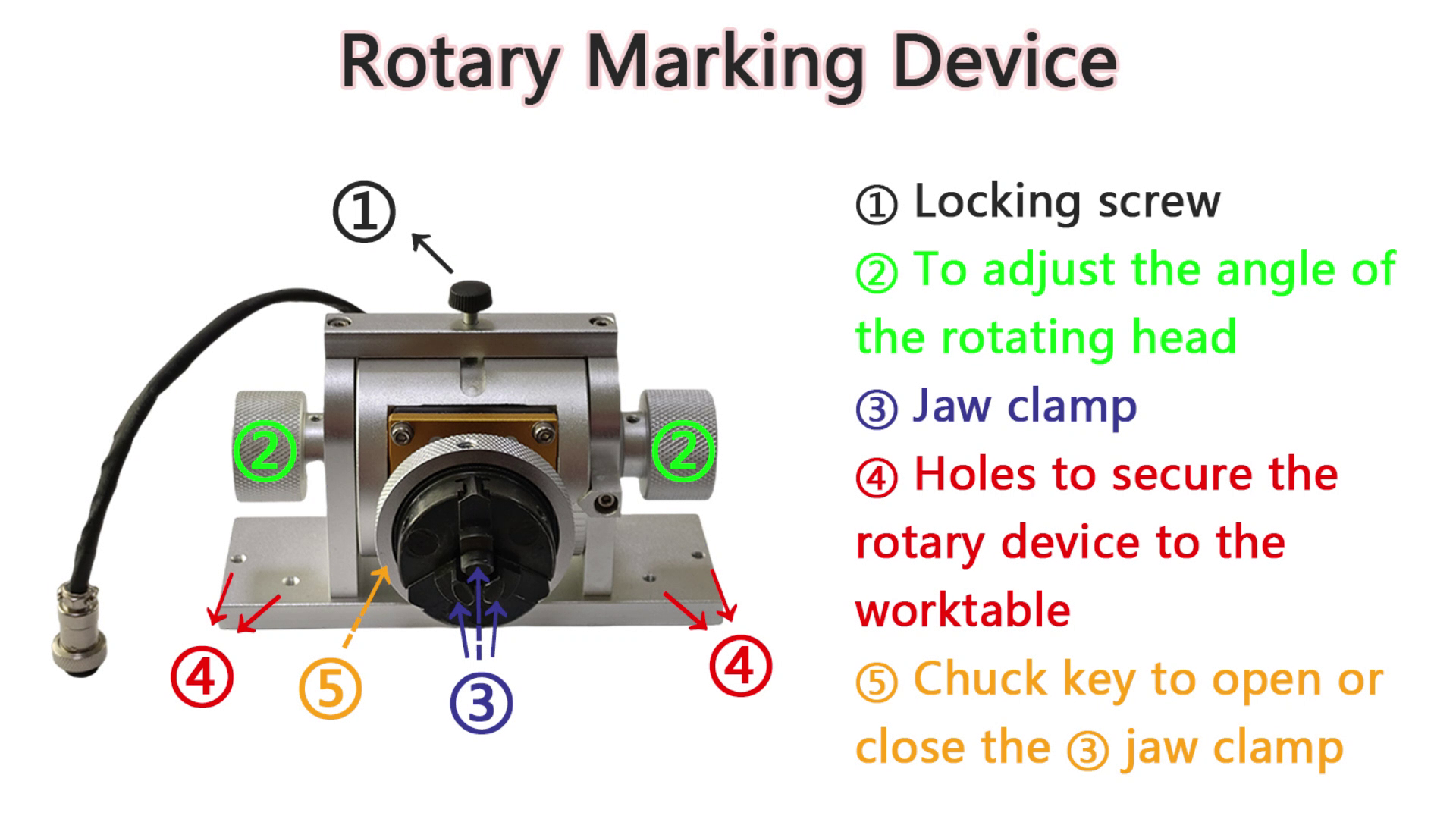

Rotary Marking Device:

①Locking screw

②To adjust the angle of the rotating head

③Jaw clamp

④Holes to secure to the worktable

⑤Chuck key to open or close the ③Jaw clamp

open the software

enter what you want to mark,

such as "COSMOLASER"

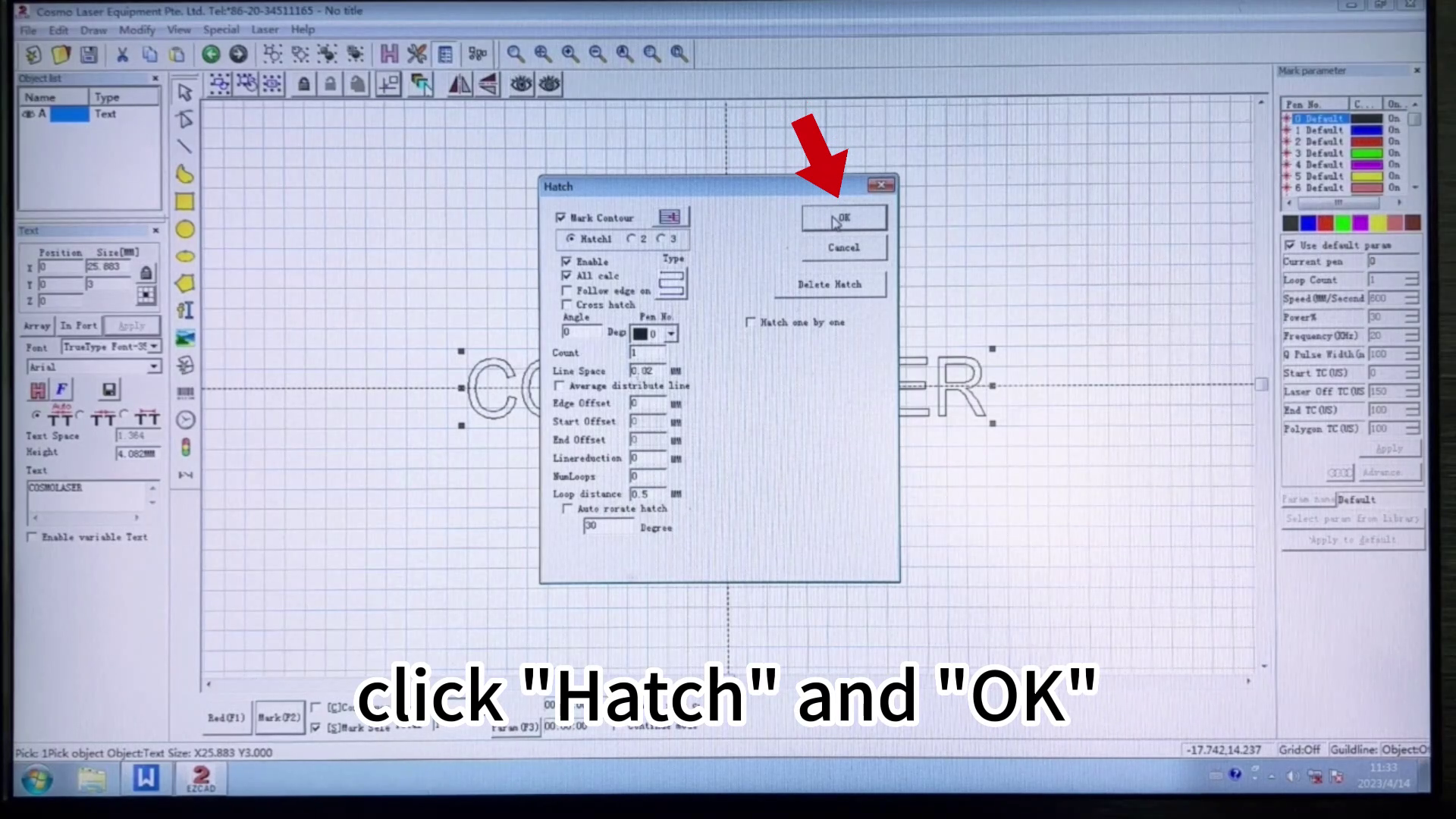

click "Hatch" and "OK"

① open the software

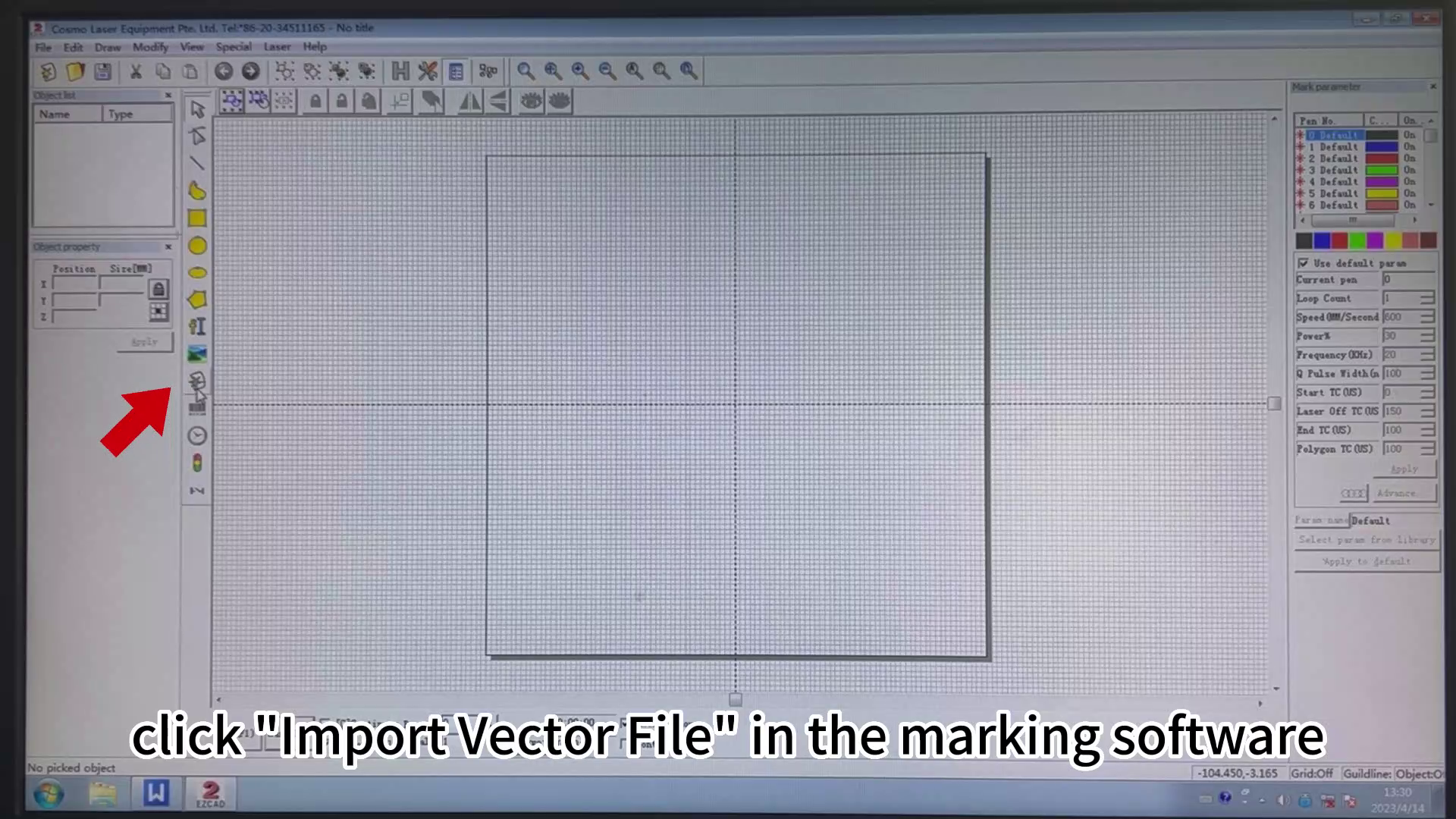

②_A: click "Import Vector File" in the marking software

③_A: select the vector file you want to mark (supported formats including .ai, .plt, .dxf, .dst, .svg, .nc, .g)

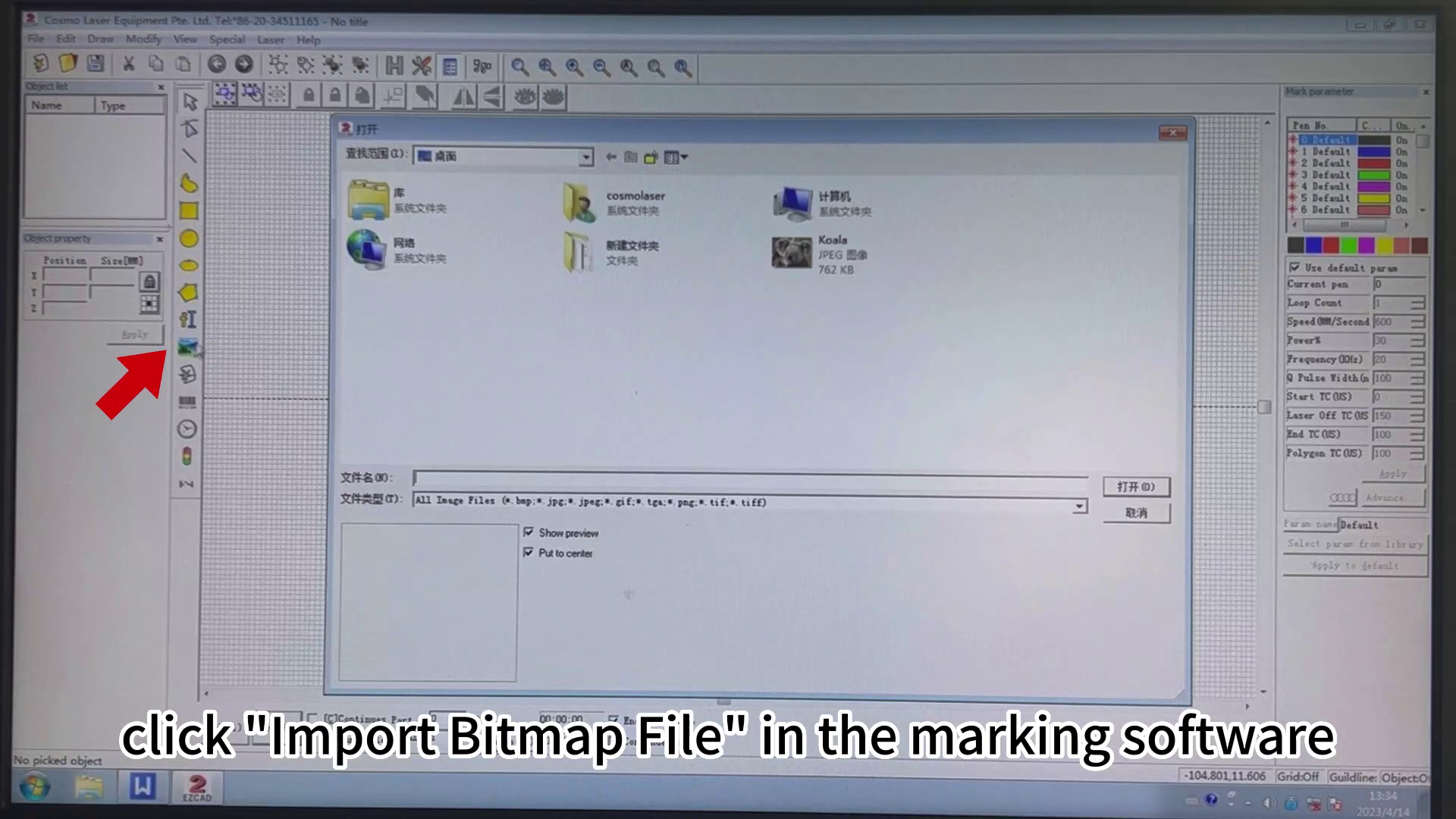

②_B: click "Import Bitmap File" in the marking software

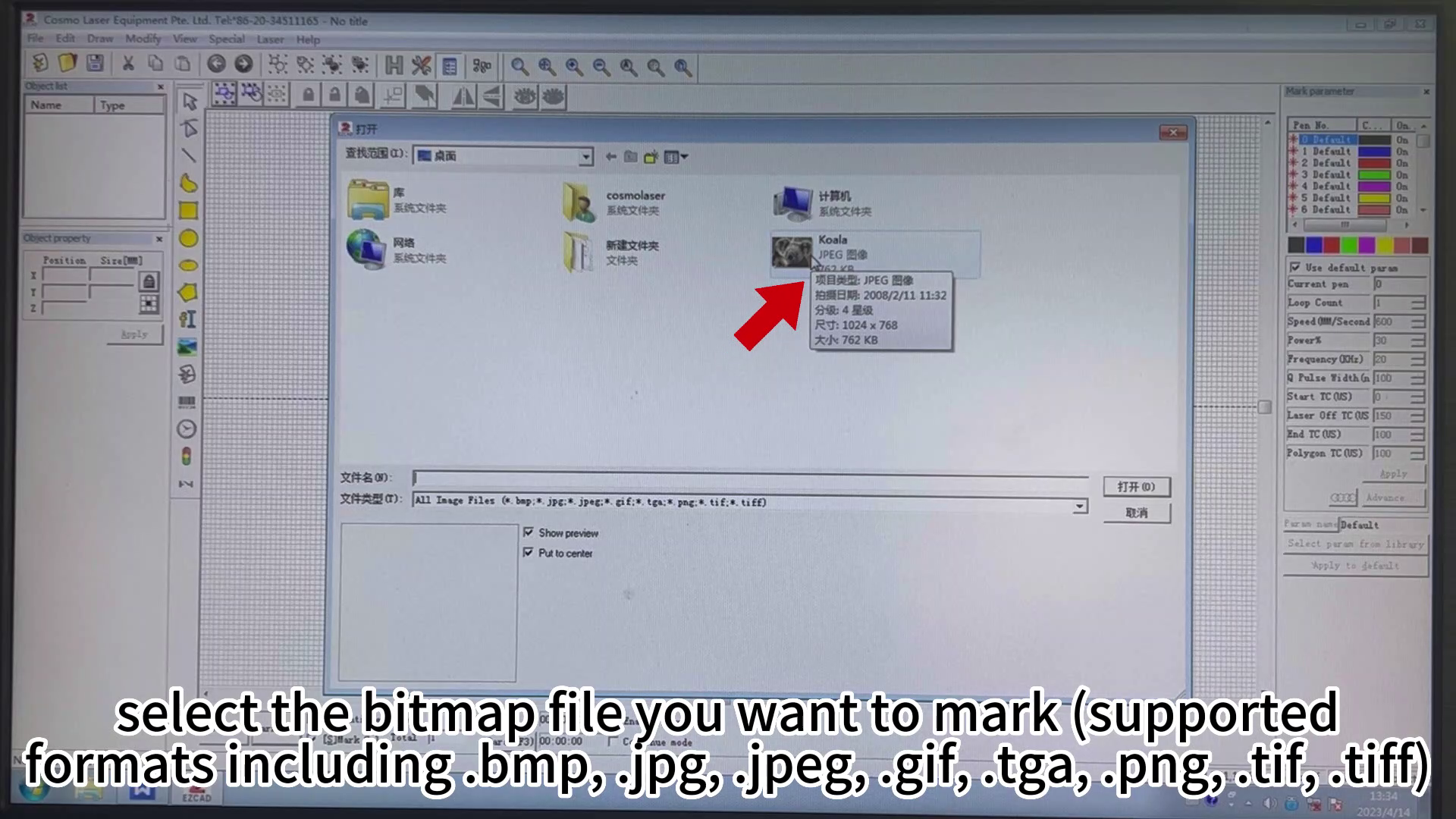

③_B: select the bitmap file (supported formats including .bmp, .jpg, .jpeg, .gif, .tga, .png, .tif, .tiff)

②_C: click "File" and "Open...(Ctrl+O)"

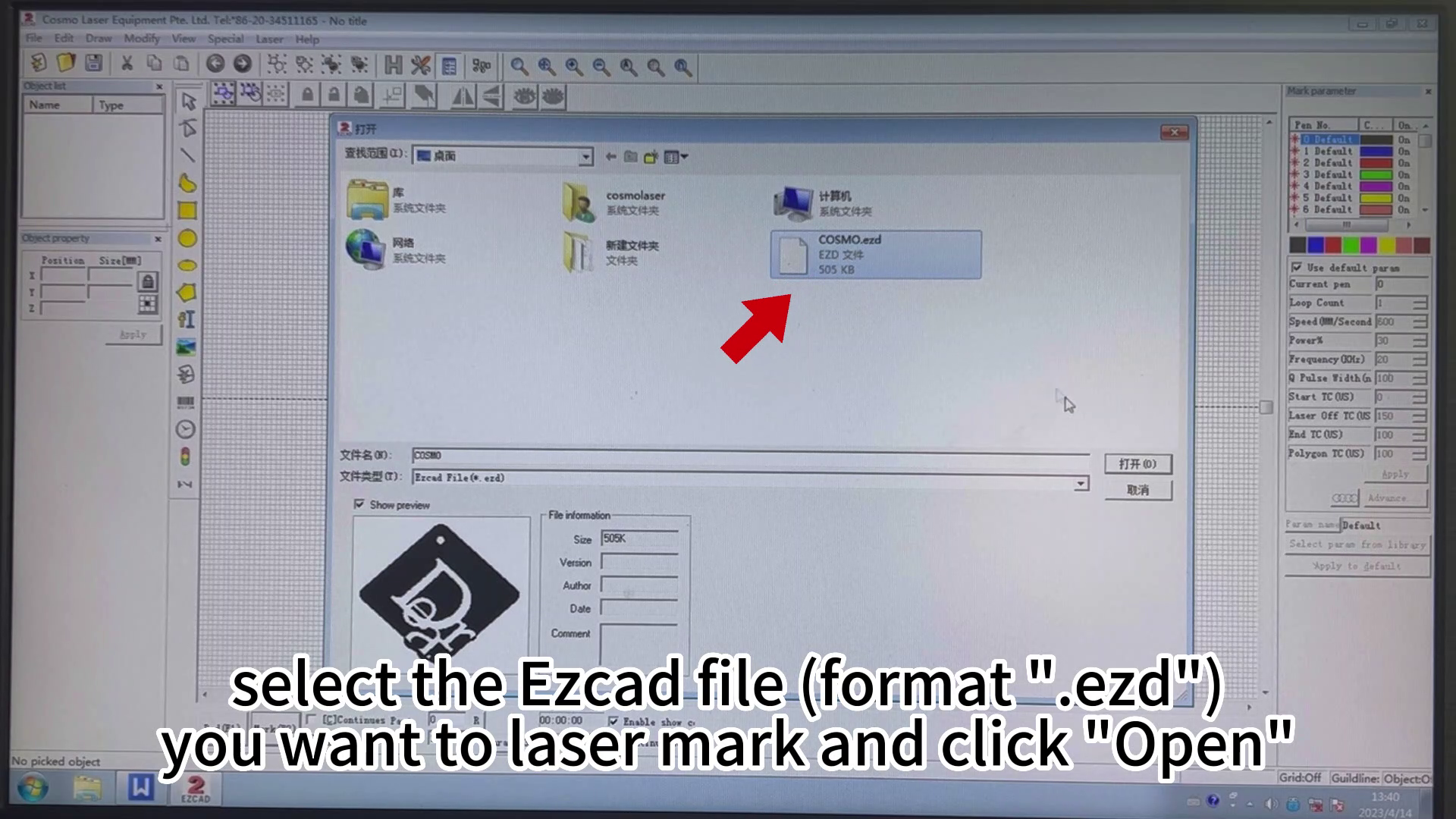

③_C: select the Ezcad file (format ".ezd") you want to laser mark and click "Open"

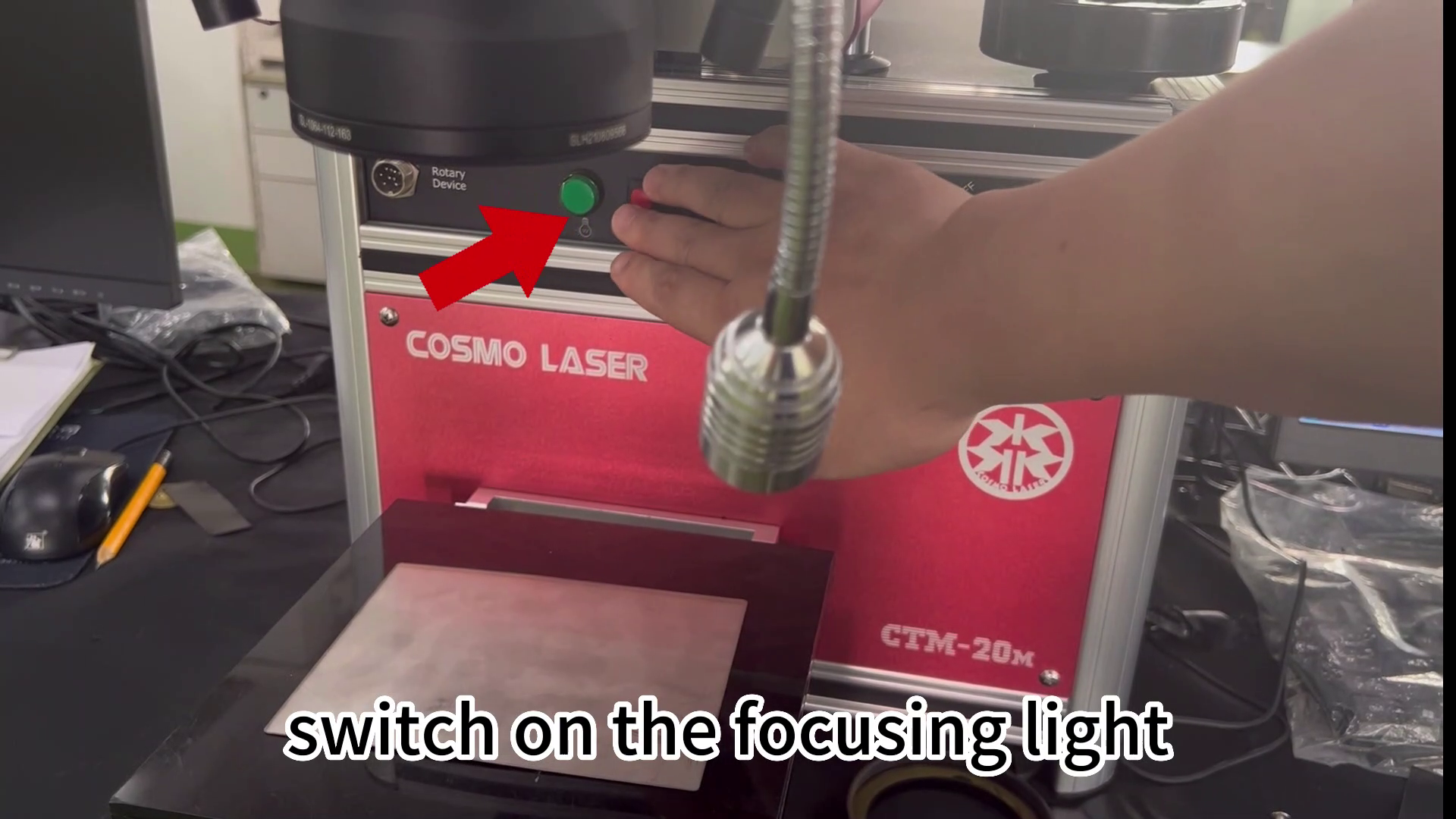

④ switch on the focusing light

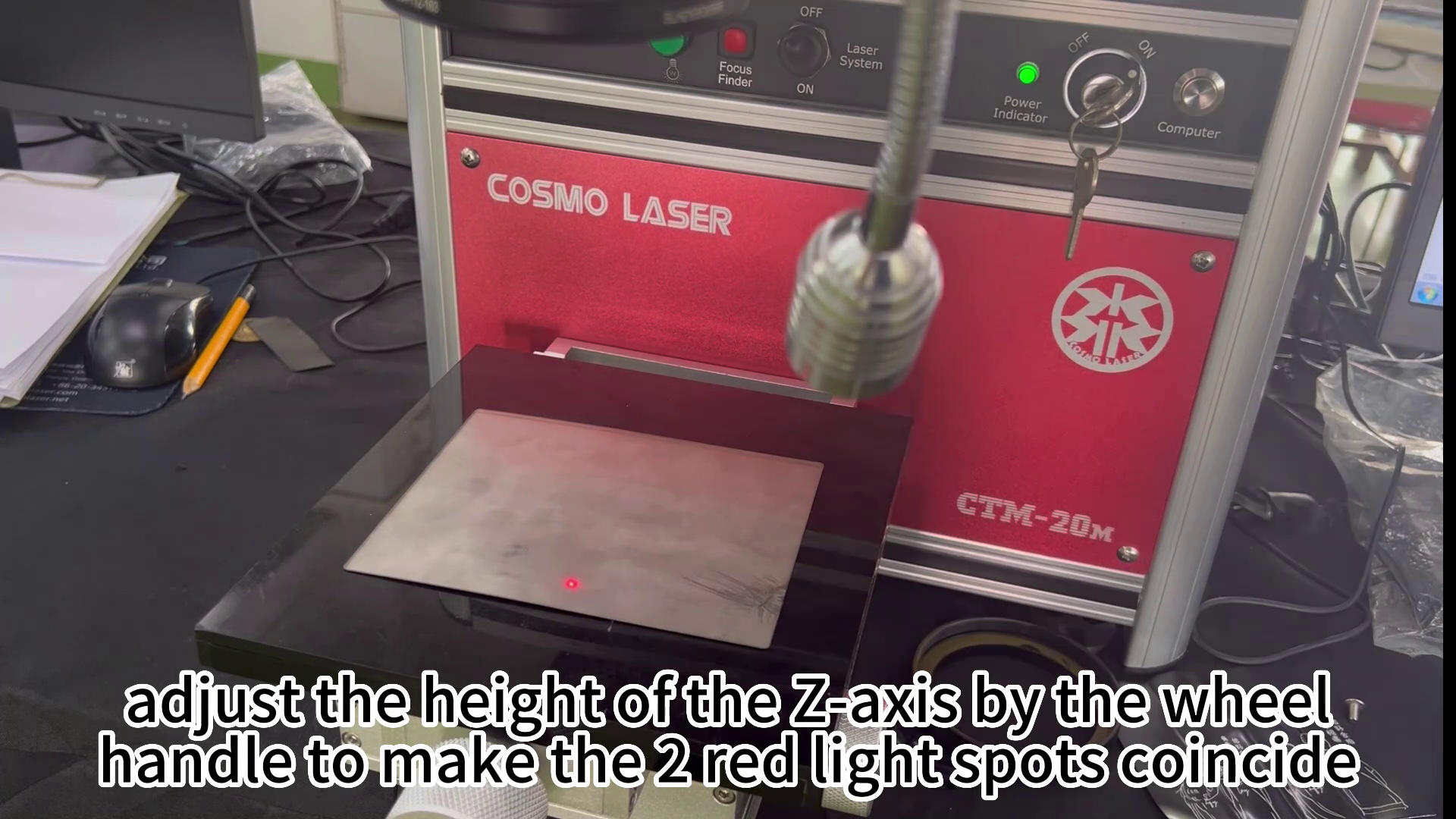

⑤ adjust the height of the Z-axis by the wheel handle to make the 2 red light spots coincide

⑥ switch on the laser

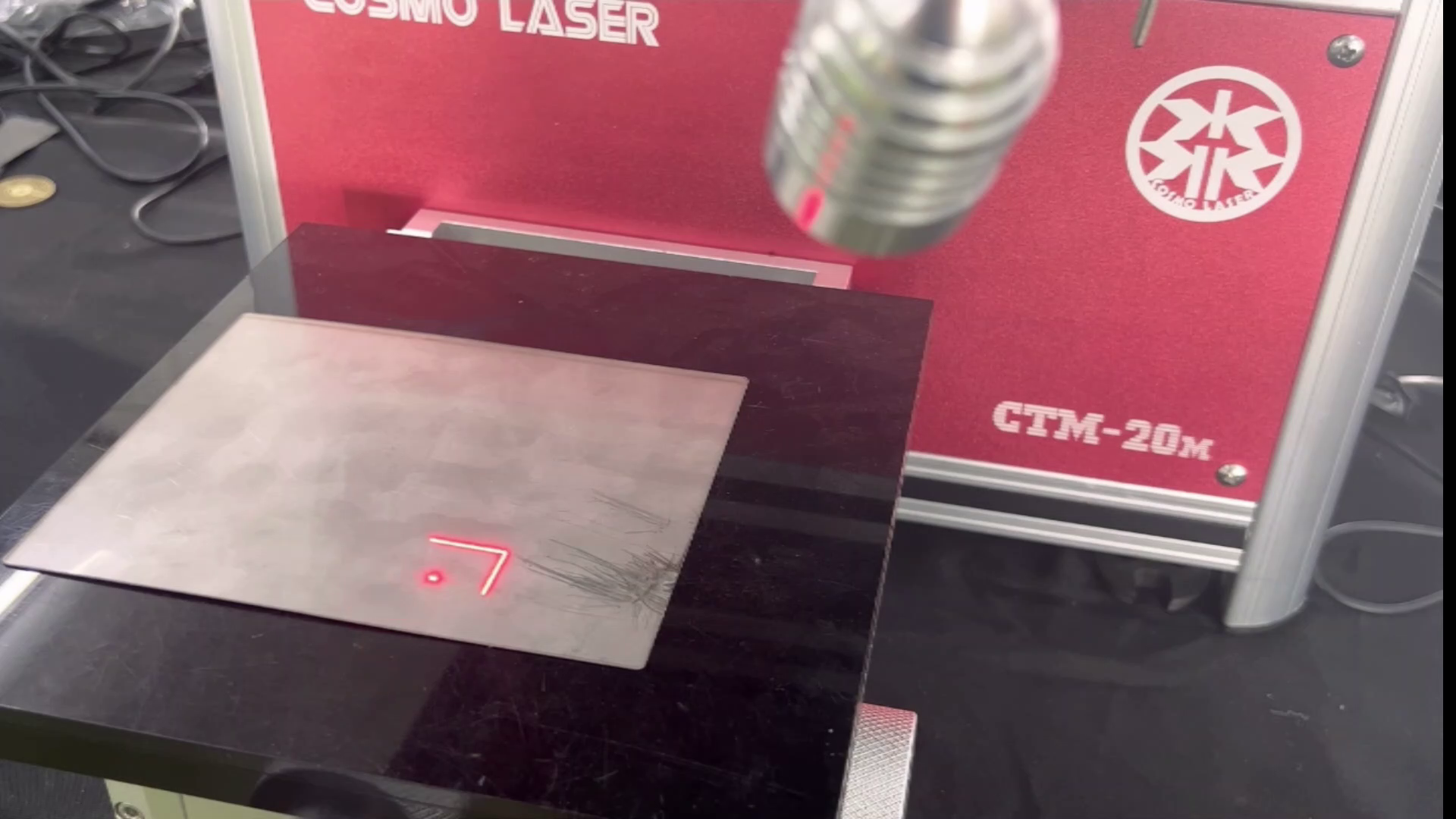

⑦ red light preview

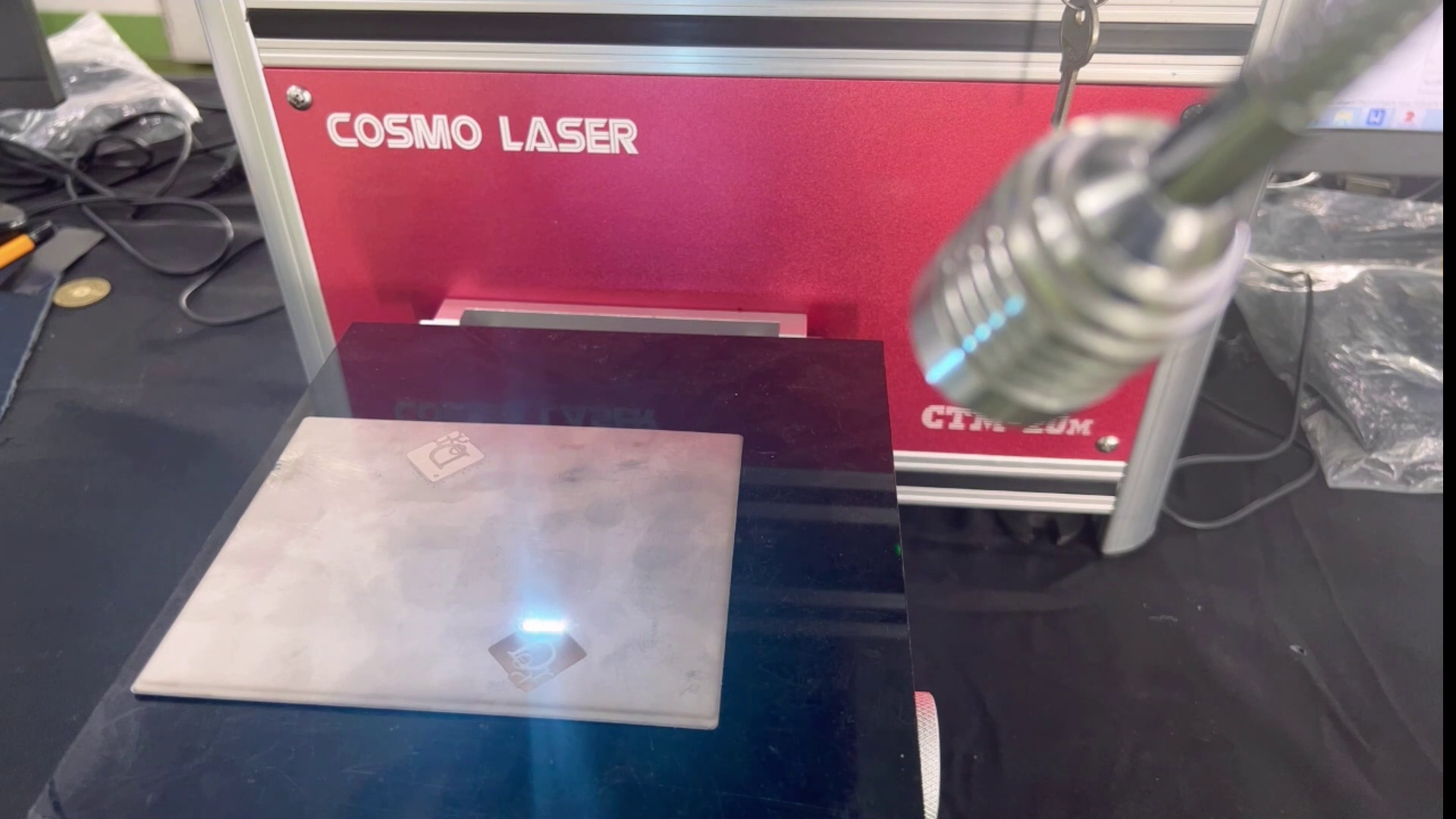

⑧ laser marking

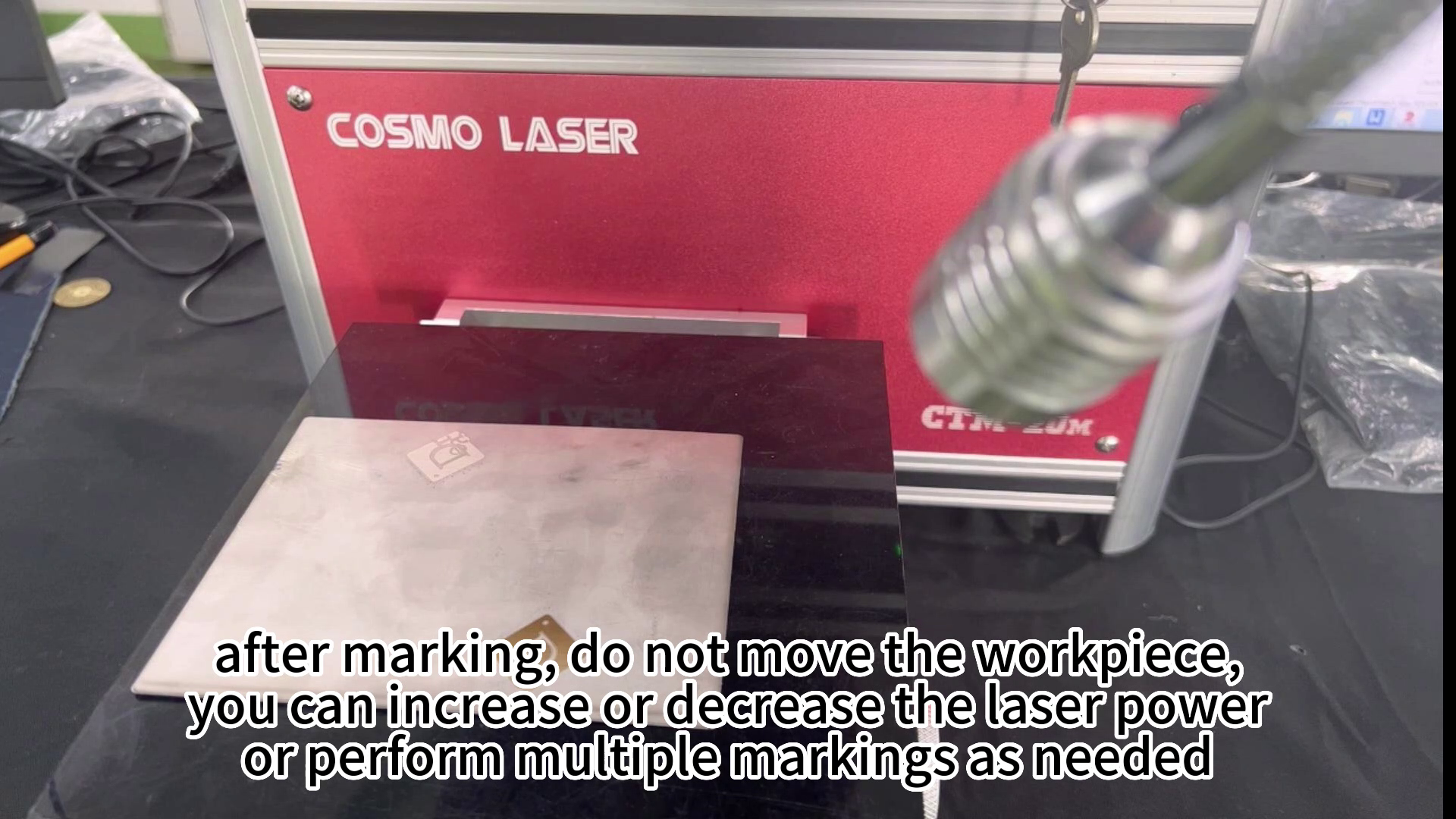

⑨ more markings if needed
