Pure Gold Laser Spot Welding Machine (Model: SW-BR1) Introduction and Parameters

The SW-BR1 is a recombination laser welding machine specifically designed for pure gold jewellery welding and repairing. The machine equipped with a dual-wavelength-combined laser system, which effectively overcomes the high reflectivity challenges of traditional laser welding for gold. It enables direct welding without auxiliary materials or surface treatment. It is a must-have machine for the pure gold products factory.

SEND INQUIRY NOW

Machine Parameters

Model
SW-BR1
Laser Source Type
Recombination Laser
Laser Power
160W
Pulse Duration
1 - 20ms
Pulse Frequency
1 - 30Hz
Spot Diameter
0.2 - 0.8mm
Focusing Optics
Microscope
Cooling Mode
Built-in Water Cooled
Max Power Consumption
600W
Water tank capacity
8L
Power Supply
AC 220V
Machine Dimension
440*1212*886mm
Weight
110kg(Net)

Advantages

1. Simplified Process: No auxiliary materials, surface blackening and acid washing required, reducing costs and time.

2. High-Quality Welding: Consistent weld spots, minimizing material loss; welded surfaces are free from defects such as sparking, fake welding, holes, blackening, or noticeable oxidation, ensuring smooth, strong, and well-formed seams.

3. Precision Processing: Best on electroforming and 3D printing super thin pure gold welding and repair.

4. Energy Efficiency: The entire machine consumes less than 600W, saving 80% of energy compared to a traditional laser welding machine. These give you the flexibility of all places with electric power, especially repair shop in the shopping mall.

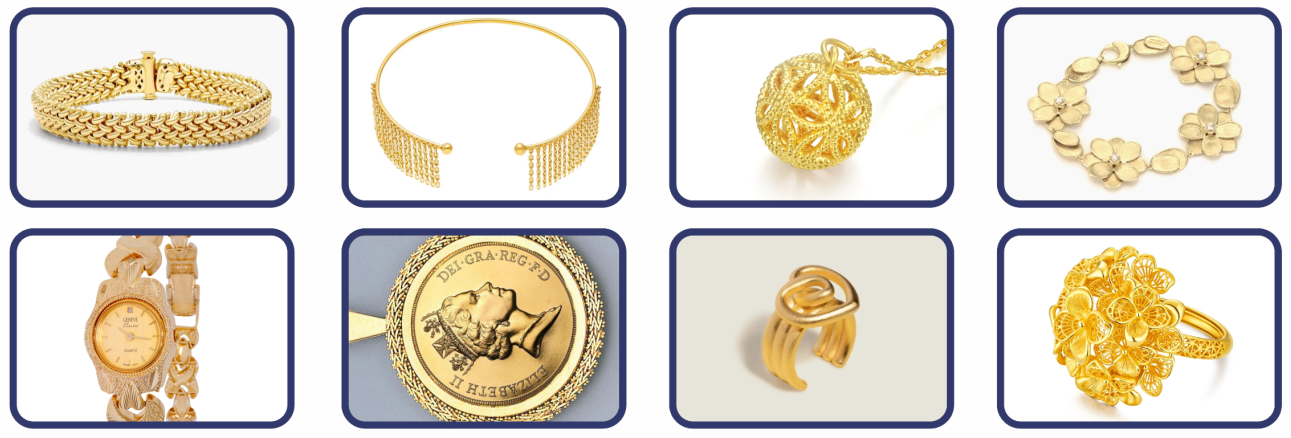

Gold Samples

gold laser welding samples
