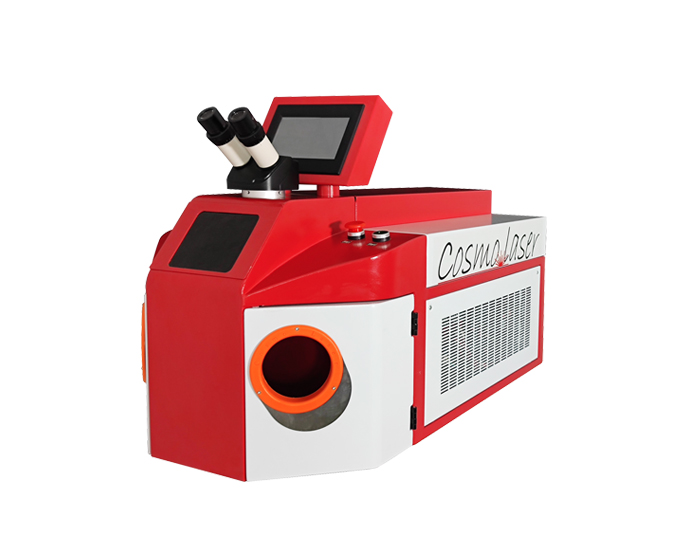

DT-100 is a desktop laser welding machine that is suitable for all metal materials including 18K, 24K gold, platinum and 925 silver. Energy, pulse width, frequency, spot size and so on can be adjusted in a large range to achieve various welding effects. The parameters are adjusted by the closed chamber control lever, simple and efficient.
Application: Gold and silver jewellery, electronic components, denture hole and spot welding trachoma, watches and clocks gossamer, integrated circuits and other welding
Materials: 925 silver, K gold, copper, aluminium, stainless steel and other metal, alloys
1. Integrated vibration-free water cooling.

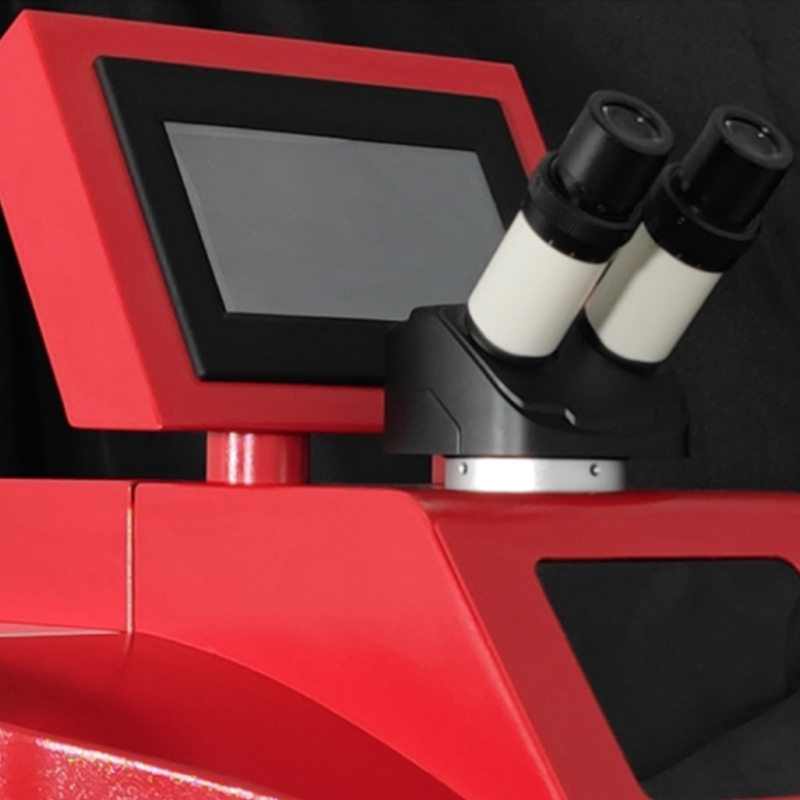

2. Included: Micro eyepiece, Optional: electronic CCD camera dual display.
3. 7-inch color real-time monitoring and touch screen operation in one.
4. Equipped with rocker value and material collection tray.

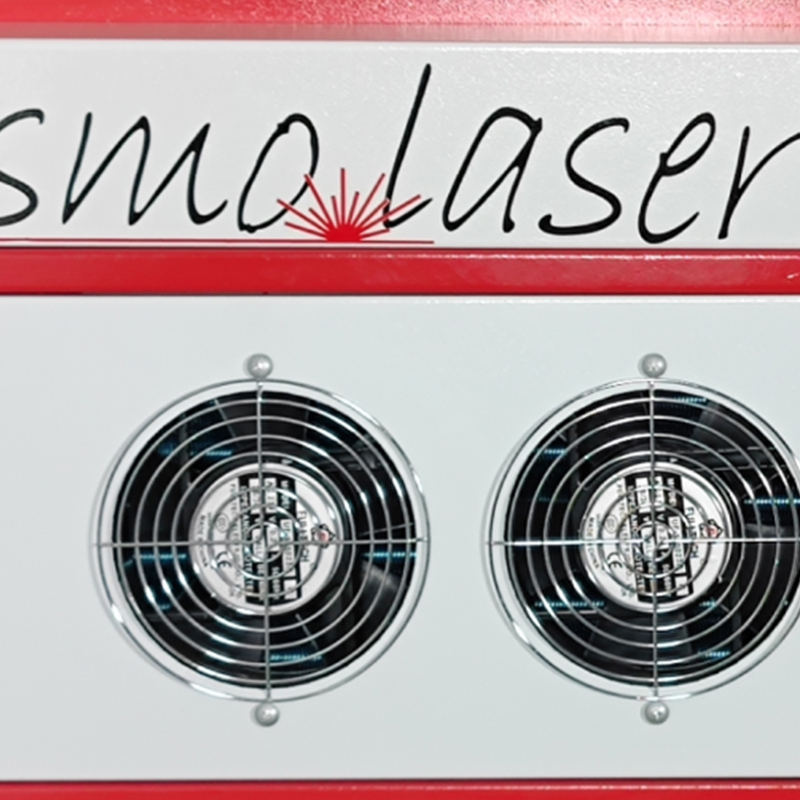

5. Automatic temperature control/speed regulation for heat dissipation.

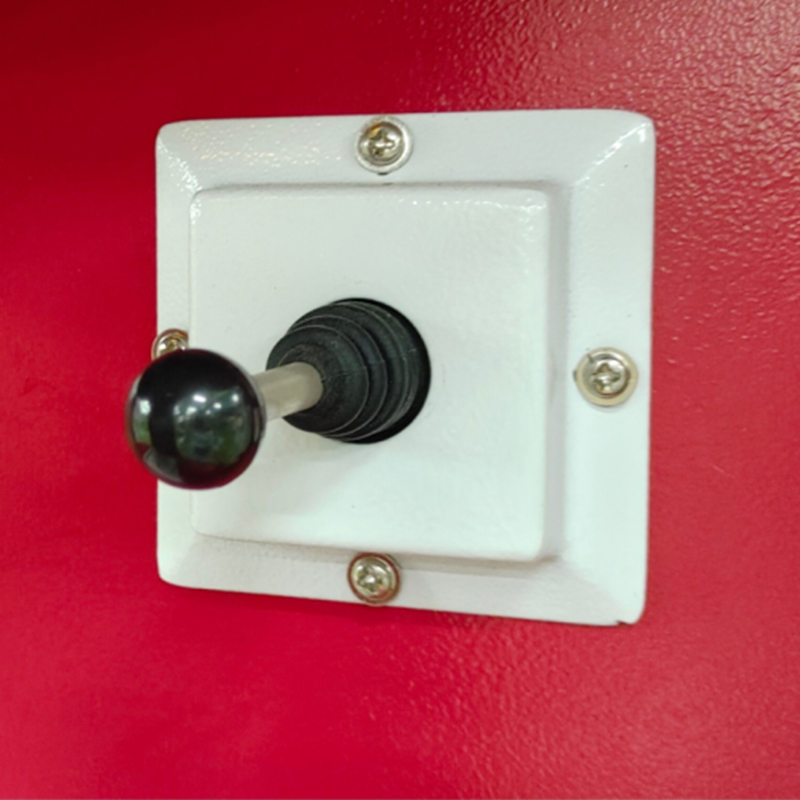

6. Parameter adjustment touch input, buttons, and joystick options.
7. Packaging length 980mm × width 630mm × height780mm
8. Machine weight 80kg, including packaging weight: 100kg
