Laser Marking Machine
How does it work?
This combines a 60W laser machine with an auto feed conveyor device (a long workpiece is clamped) and a dust collector.

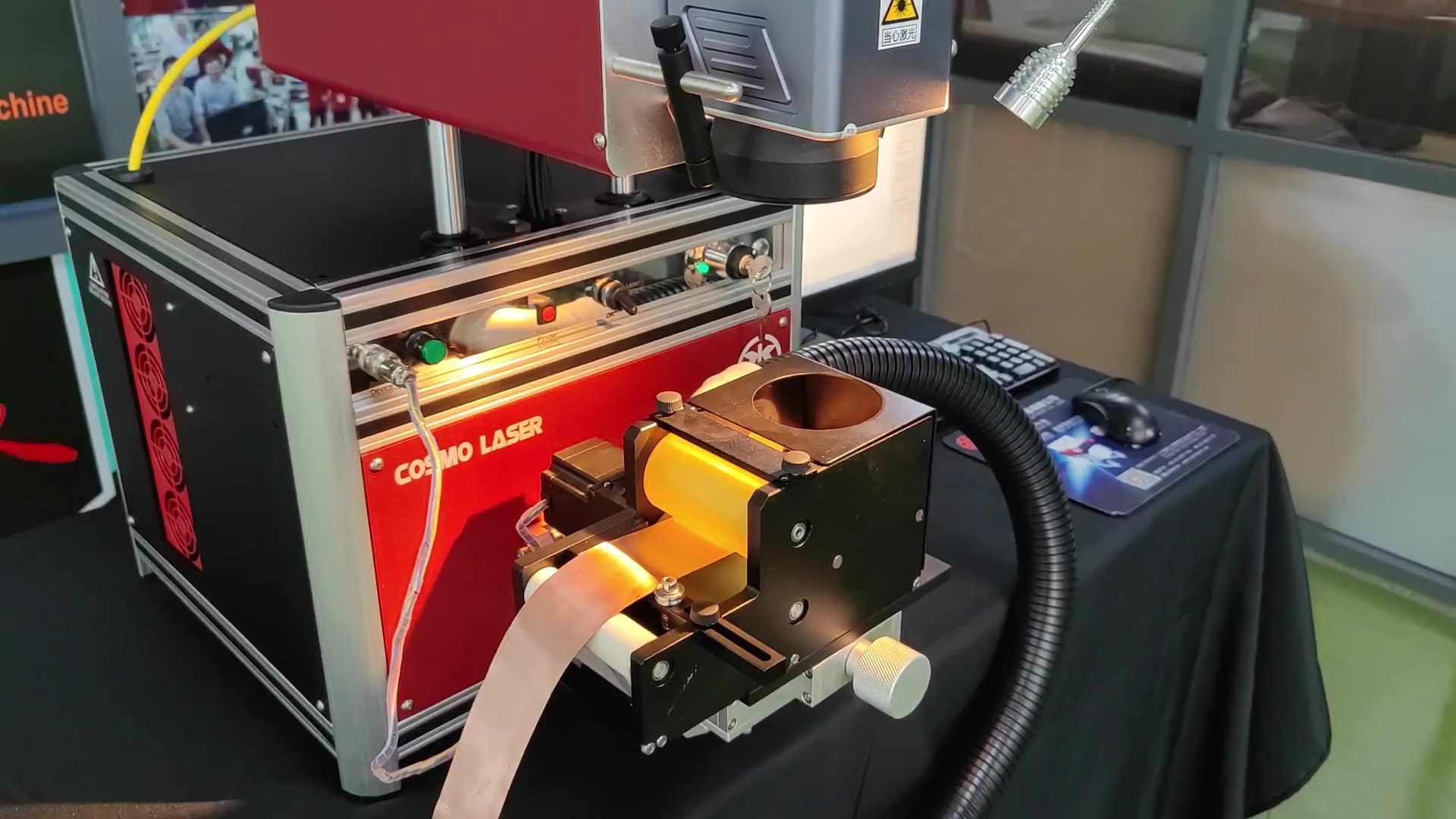

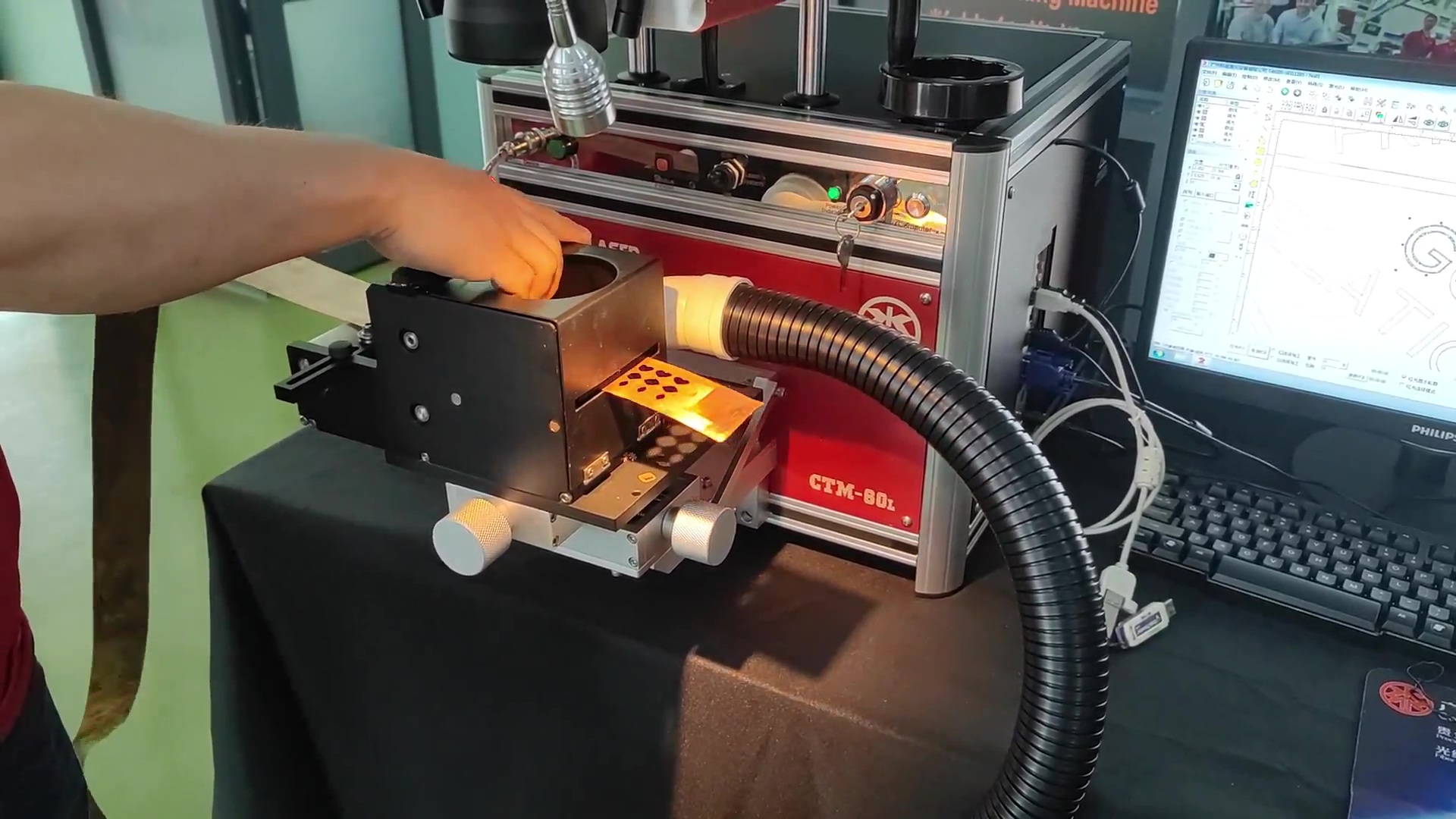

side view of the machine set

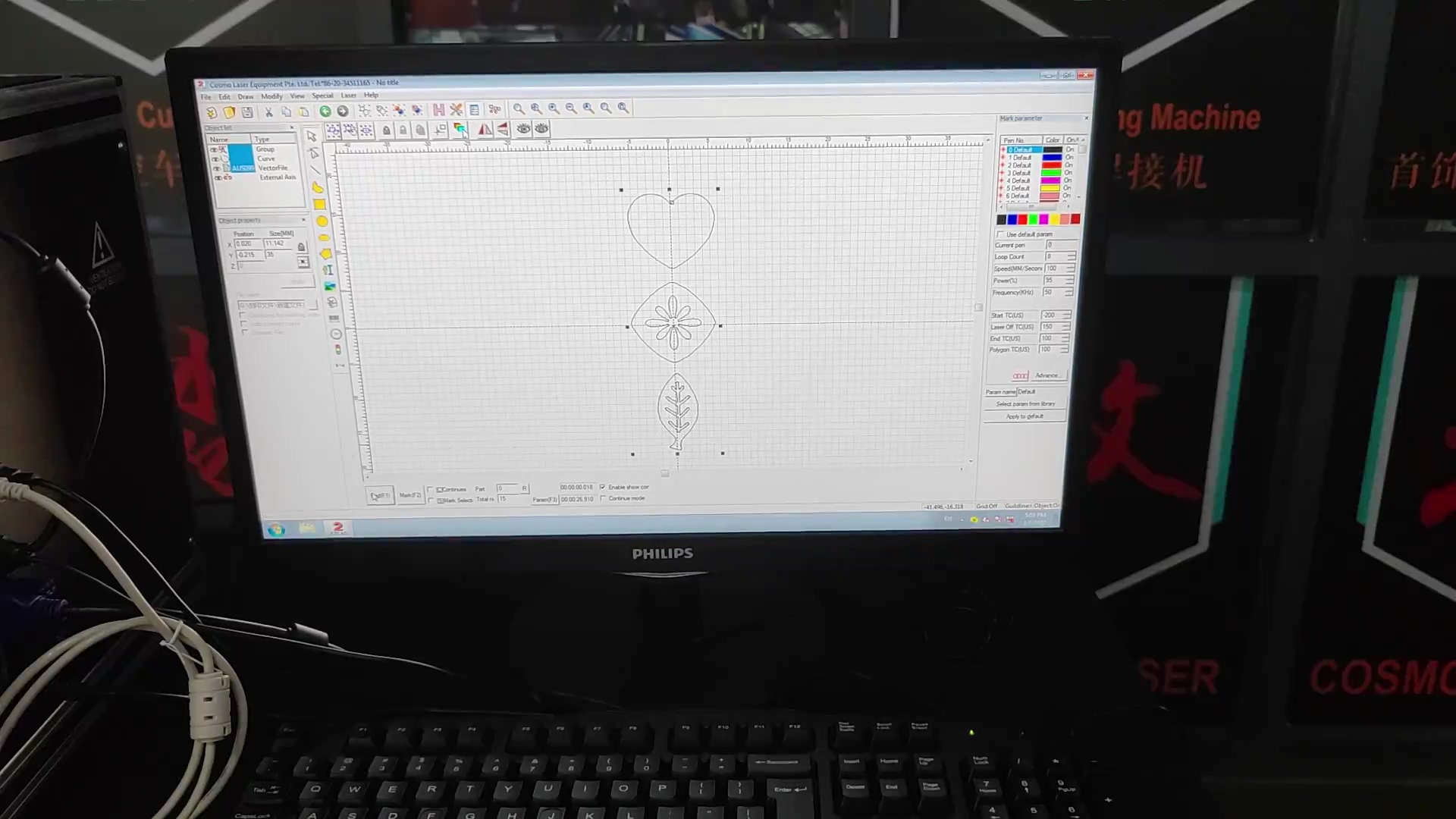

marking software display

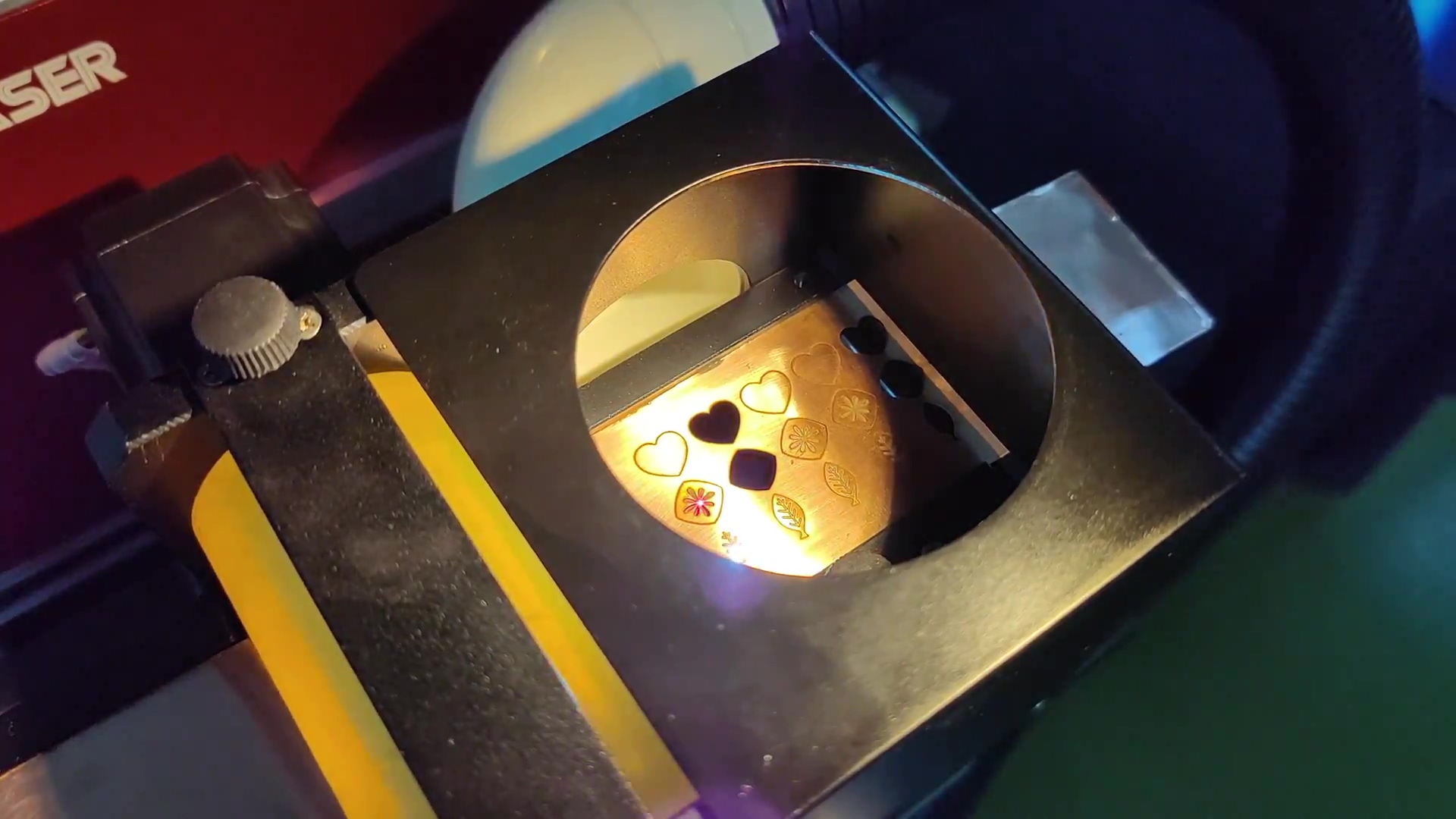

start marking

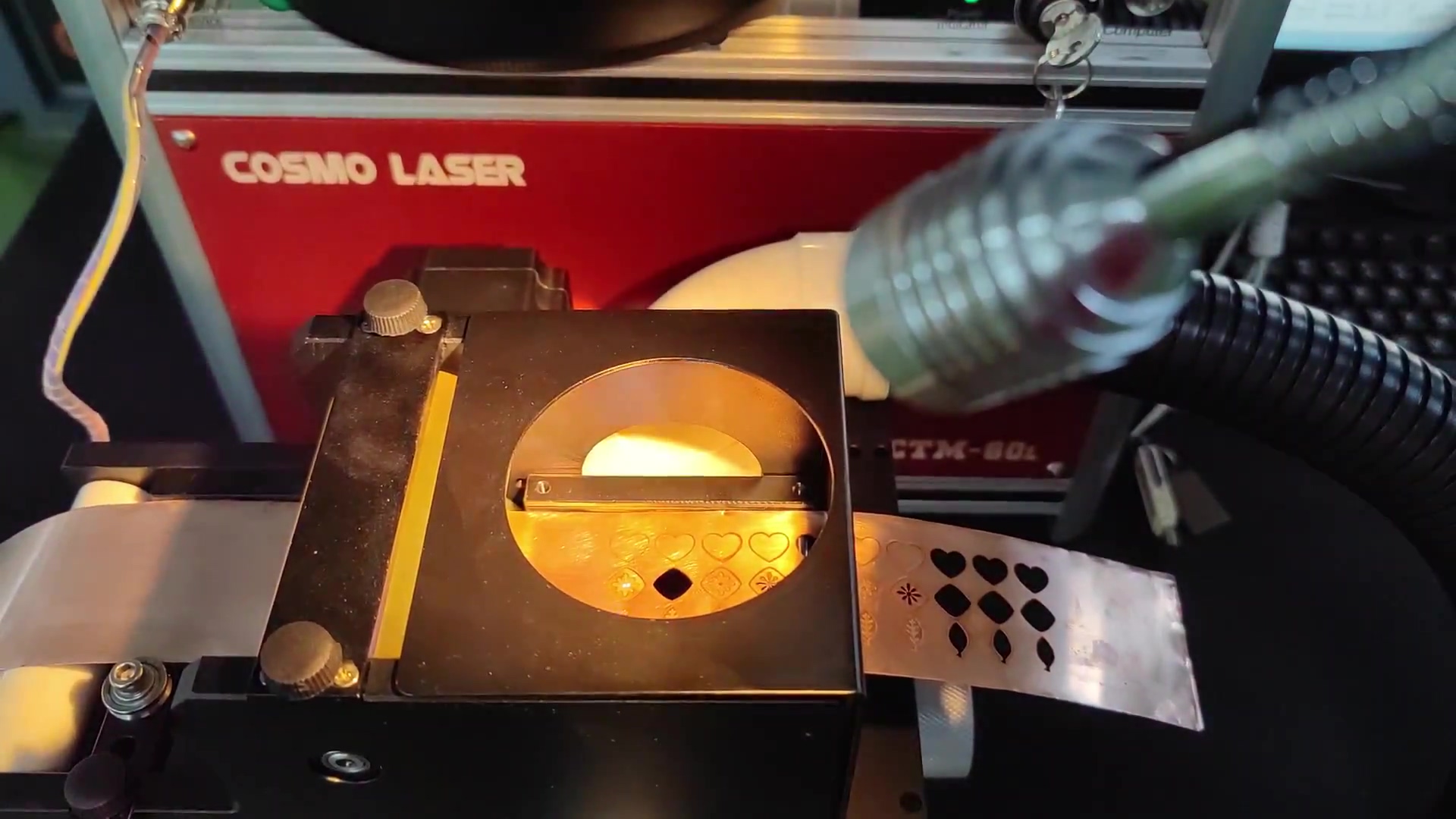

the long workpiece is automatically transported
finished, take the long workpiece out

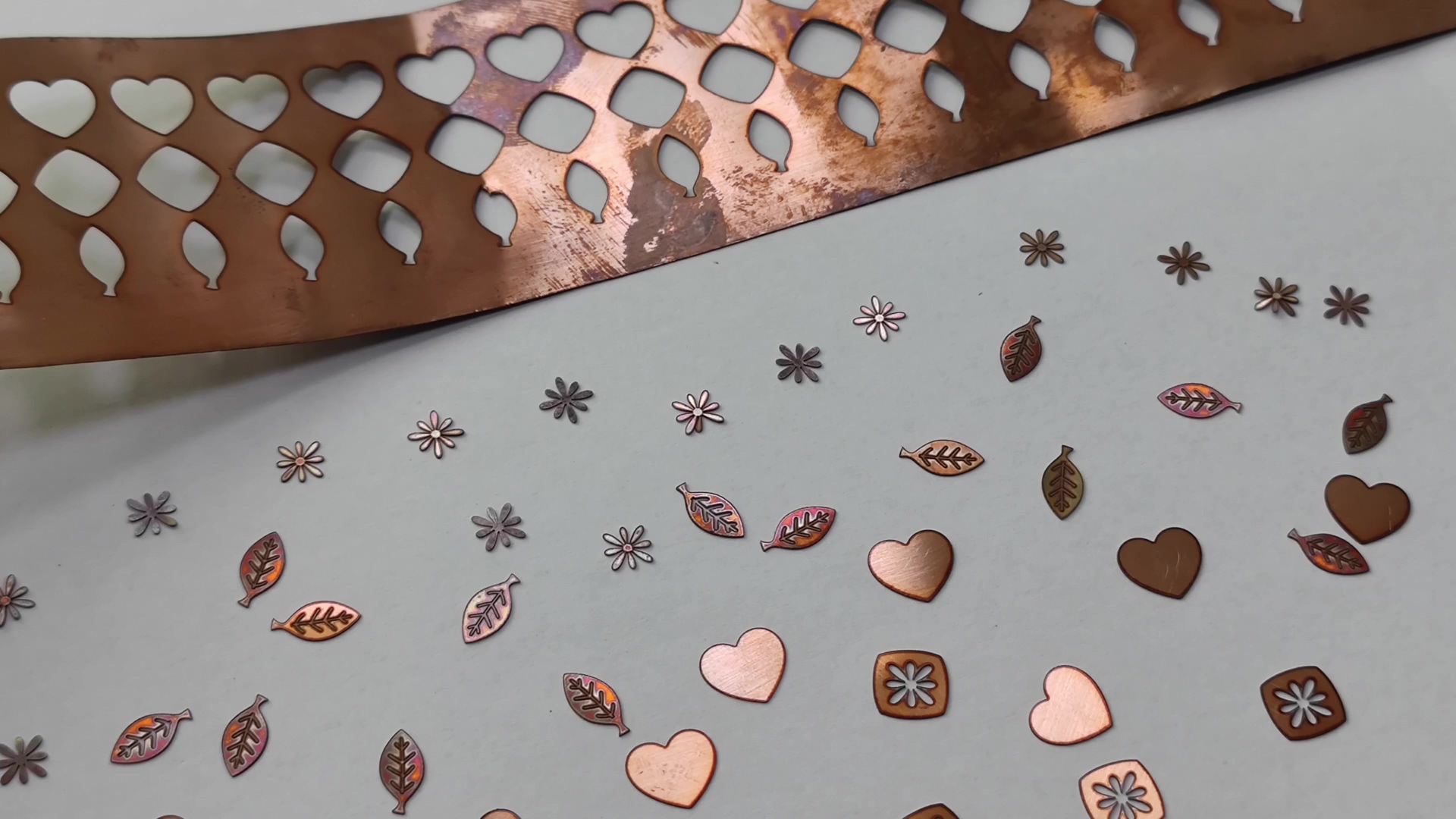

samples display



Machine Specification
  • Model
    CTM-60L
  • Laser Source
    Fiber Laser
  • Laser Power
    60W
  • Min Character Height
    0.2mm
  • Marking Area
    100mm×100mm(Standard); 50mm×50mm, 150mm×150mm(Optional)
  • Min Line Width
    0.02mm
  • Marking Table
    X, Y and Z Axis Work Table
  • Marking Depth
    up to 1.0mm
  • Cooling Mode
    Air Cooled
  • Computer
    Included
  • Marking Software
    Included
  • Rotary Marking Device
    Included
  • Max Power Consumption
    800W
  • Power Supply
    220V / 1P (Standard); 110V / 1P (Optional)
  • Machine Dimension
    380mm*700mm*500mm
  • Weight
    35kg(Net); 50kg(Gross)



Accessories you May Need

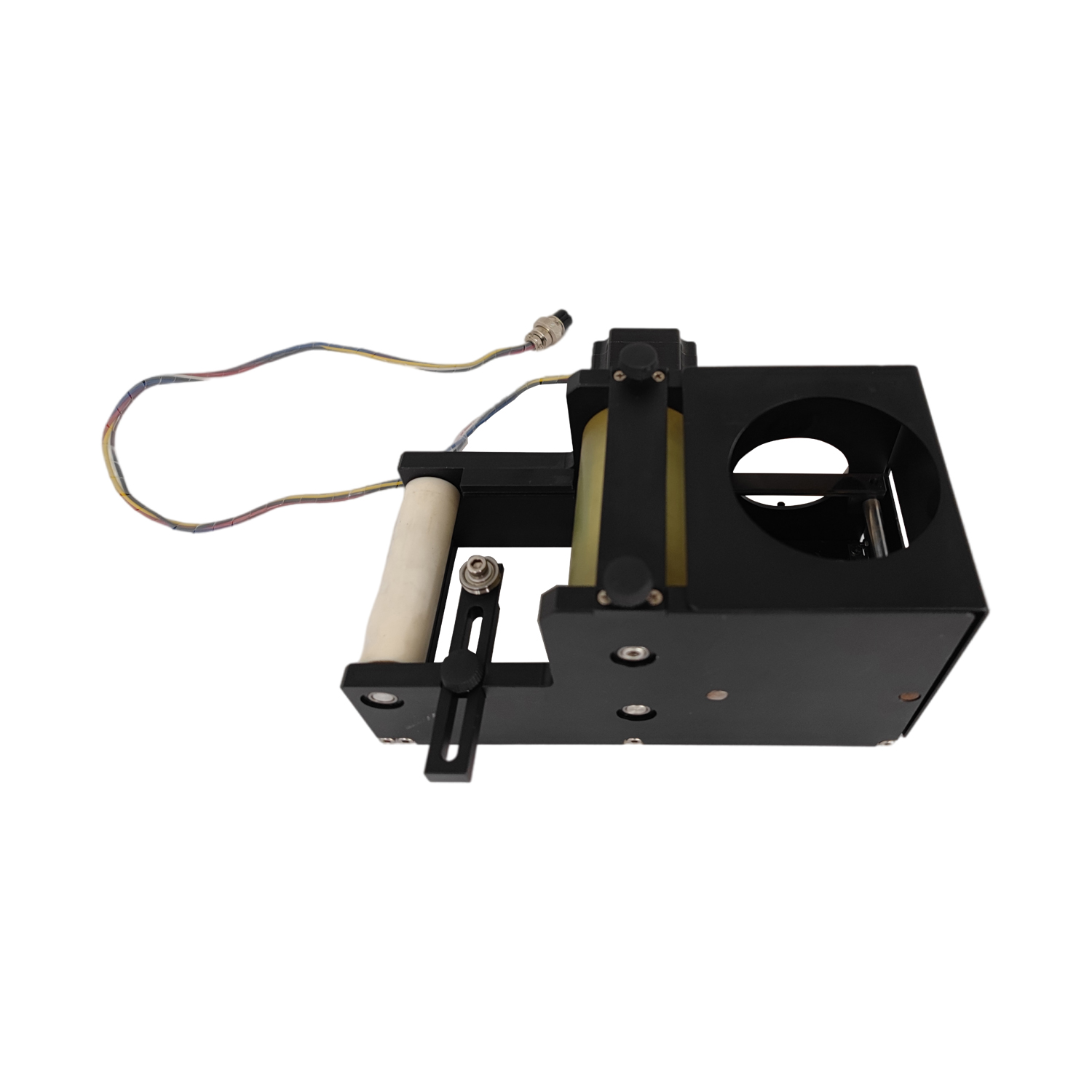

Auto Feed Conveyor Device

for long workpieces clamping

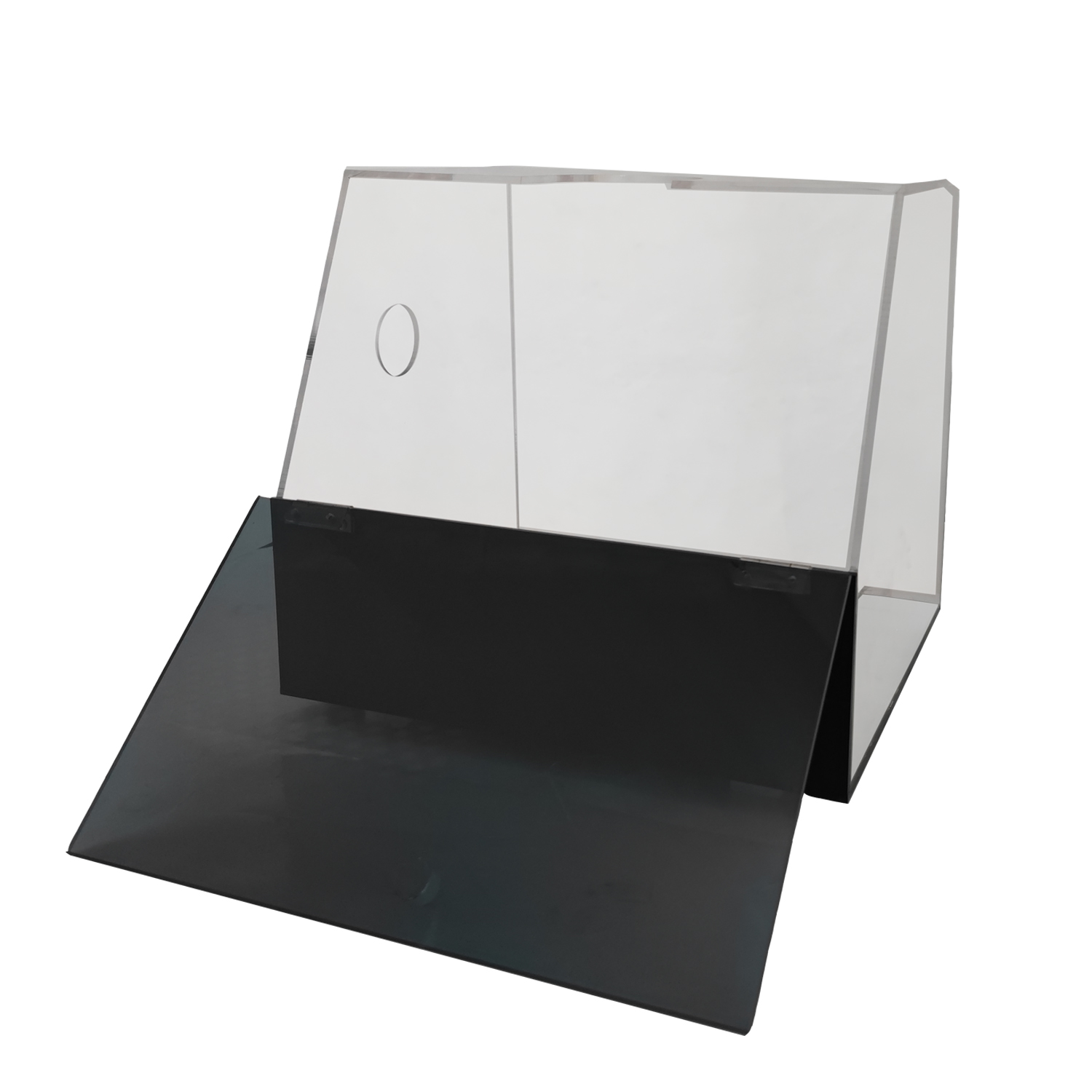

Acrylic Cover

for collecting your precious metal
