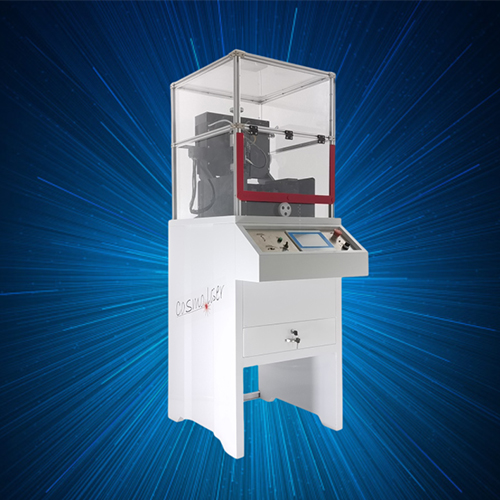

This video introduces the CNC design cutting machine (model: CDC-A3).


This machine is specially designed for the jewellery industry.

It is to create unlimited shining pattern effect on the flat metal surfaces, such as pendants/ornaments.


Please contact us for more details.



Why Choose Cosmo Laser?



1
1
World Brand - Cosmo Laser has cooperated with lots of outstanding brands in different industries all around the world.
1
1
International Standards - Cosmo Laser's products comply with international standards, such as CE, SGS and other certifications.
1
1
Manufacture First-rate Equipment - Cosmo Laser uses good quality key components to ensure the equipment is of superb quality and superior performance.
1
1
Comprehensive Customer Service - We contribute pre-sale, in-sale, and after-sale all-inclusive services. Also, agents in various countries/regions can provide prompt service.
1
1
Autonomous R&D Capability - Cosmo Laser is committed to continuous innovation and development. Some of our major products have been patented.
1
1
Solve problems for Customers - We provide useful and reliable equipment application solutions in many industries, including customization for unique businesses.

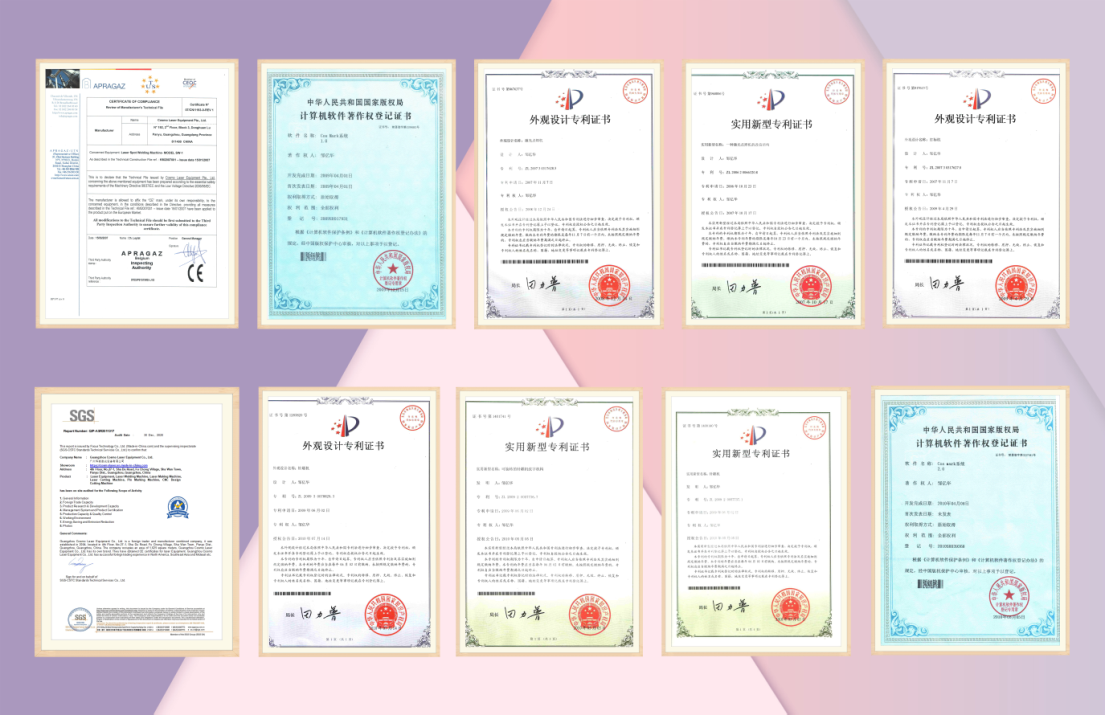

 Certifications and Patents




 Know More About Us





Competent R&D Team

The R&D team adopts new design concepts and uses software to optimize the combination, which extends the life and accuracy of the equipment.

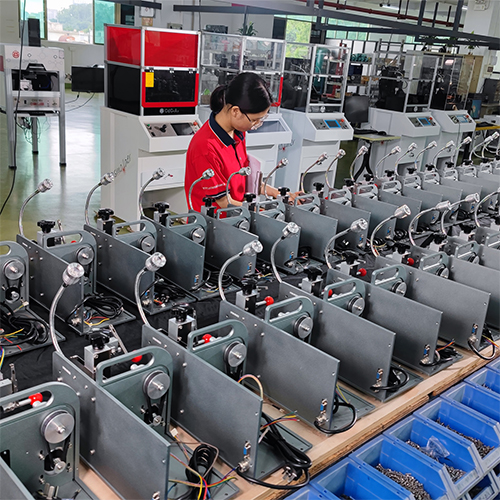

Skilled Manufacturing Team

Every production position in the company has undergone strict skill training, and every assembly process has rigorous and process specifications.




Complete Quality Assurance System

We strictly control the quality. From the production of parts to the assembly of the whole machine are under strict quality management.




Strong After-sales Service Support

We have agents worldwide, supplying prompt service. Spare parts that exceed the warranty are kept affordable, lowering the cost.



 Product Description



  •   Two cutting positions: vertical & horizontal


      Changeable cutters for different designs


      Minimum thickness of workpiece up to 0.1mm


      Maximum material loss recovery


      Low maintenance and long lifetime


      Easy programming


      Quick loading worktable system



 Product Specification


  • Model
    CDC-A3
  • Working Area
    X-axis Cutting: 60mm × 160mm; Y-axis Cutting: 100mm × 150mm
  • Work Piece Thickness
    0.1-5mm
  • Axis
    3 Axis
  • Control System
    Windows Base Control Software
  • Language
    English/Chinese
  • Accuracy
    0.02mm
  • Spindle Motor Max Speed
    Up to 60,000rpm
  • Power Supply
    220V/1P(Standard); 110V/1P(Optional)
  • Max Power Consumption
    1kW
  • Machine Dimension
    620mm×790mm×1690mm
  • Weight
    145kg(Net); 200kg(Gross)



 Machine Details Display

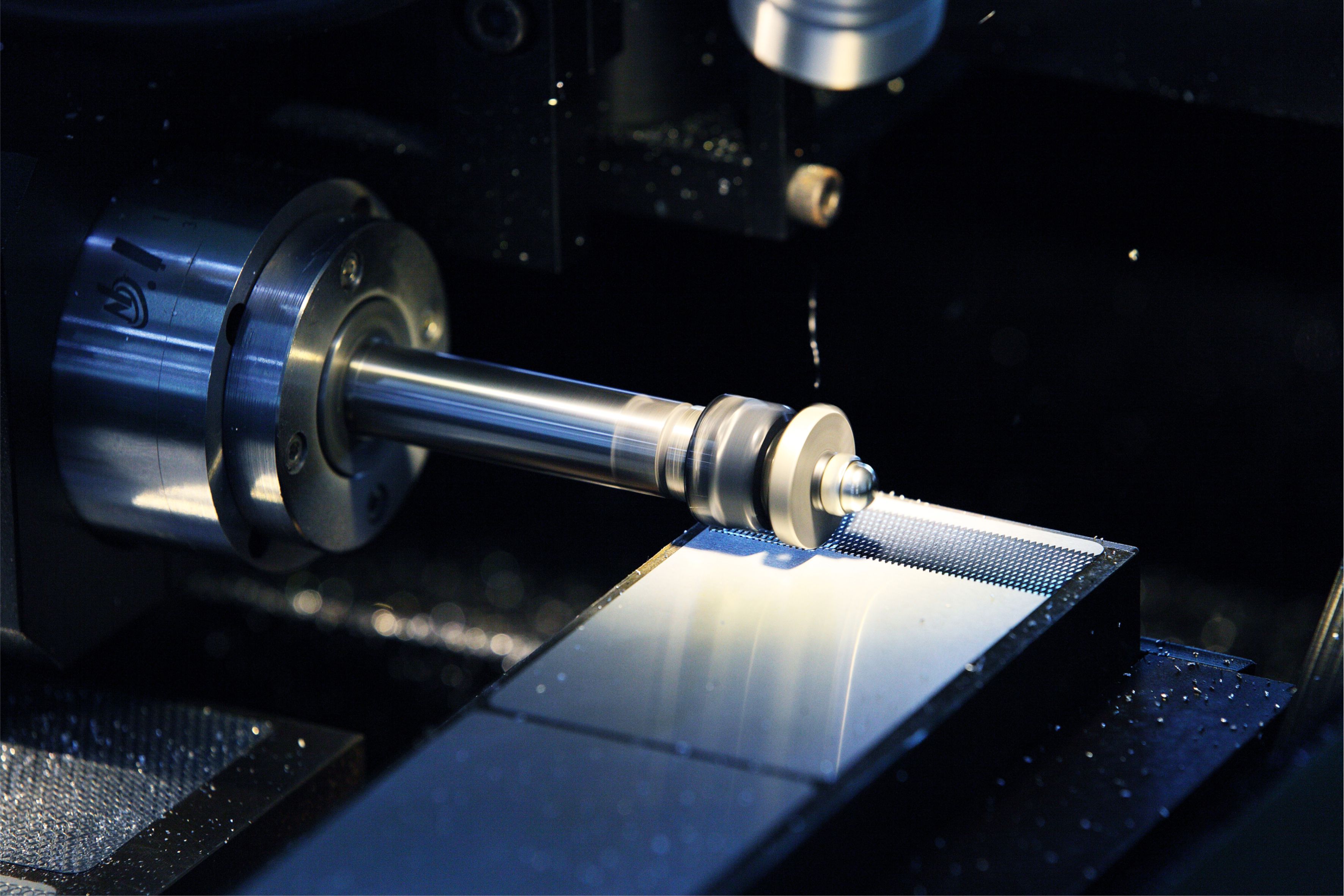

Horizontal Cutting Position

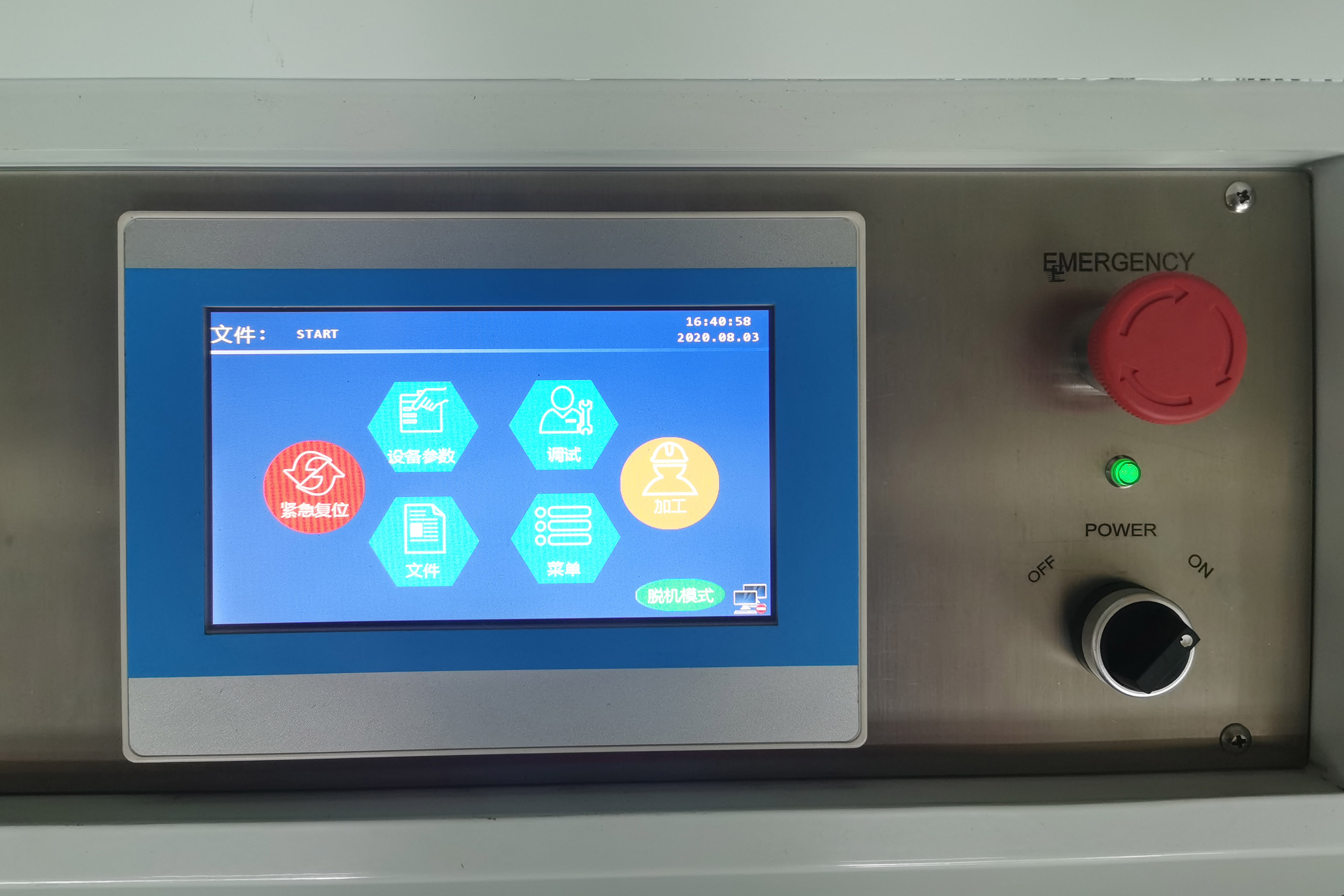

Controller



Vertical Cutting Position

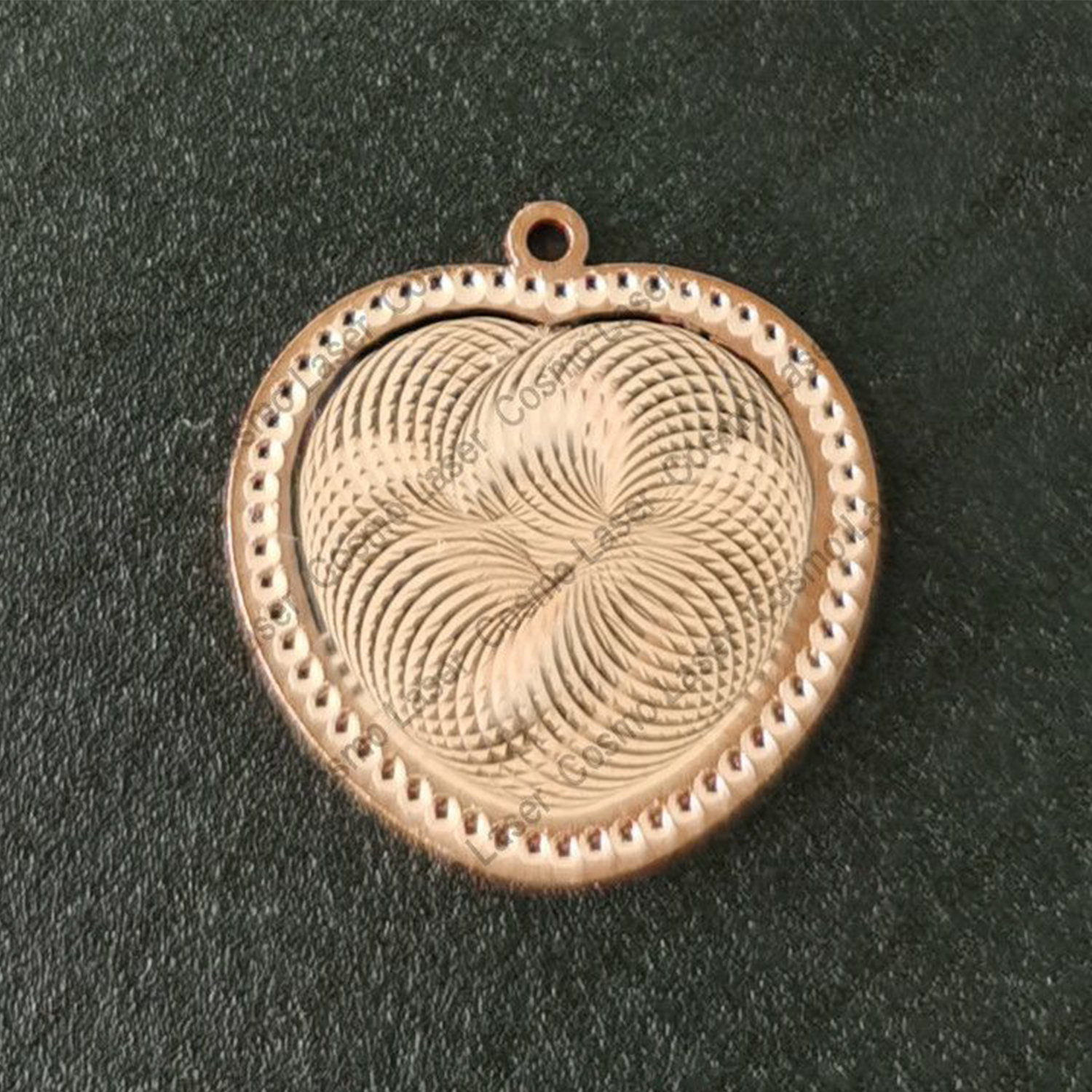

 Samples Display









 FAQ
/ Frequently Asked Questions


  • What is the warranty for machines?
    - 12 months from the time of shipment on the whole machine, except for consumables parts.
  • Will installation/training be provided?
    - Yes, methods include 1. Online: for free, by remote control, voice/ video chat, and other methods. 2. At our factory: for free, but customers will bear for their transportation and accommodation costs. 3. Door-to-door service: a fee is required and depends on our time and number of personnel.
  • How is the packing?
    - Products will be packed in seaworthy wooden boxes.
  • What kinds of shipping modes are available?
    - Sea or air transportation. It depends on the customer's choice and type of machines. Due to aviation safety regulations, certain machines can only be transported by sea.
  • What is the delivery time upon confirmation of the order?
    - The delivery time is usually between 3 to 5 workings days, depending on the type of machine. When it is at the peak of production, it may be longer. Please contact us for the actual delivery time.
  • What are the main products of Cosmo Laser?
    - Products include laser welding machine, laser marking/engraving machine, laser cutting machine, finger ring/bangle pin marking machine, CNC design cutting machine.
  • What other products Cosmo Laser manufacture?
    - Products include dust collectors, polishing machines, non-standard customized equipment, etc.
  • Is the laser safe to operate?
    - Yes, the laser is completely safe to operate. No special safety gear is required to run the laser.
  • What services Cosmo Laser provides?
    Pre-sales: online consultation (by email, telephone, WeChat, WhatsApp, etc.), test on samples, visit our factory, provide customization project, provide financial services. In-sales: design, manufacture, installation, debugging, transportation logistics. After-sales: training, supply of repair parts, troubleshooting, maintenance, return visits
  • What are the payment terms?
    - Full payment upon order confirmation. Payment by bank transfer. If you have other ideas, feel free to contact us.

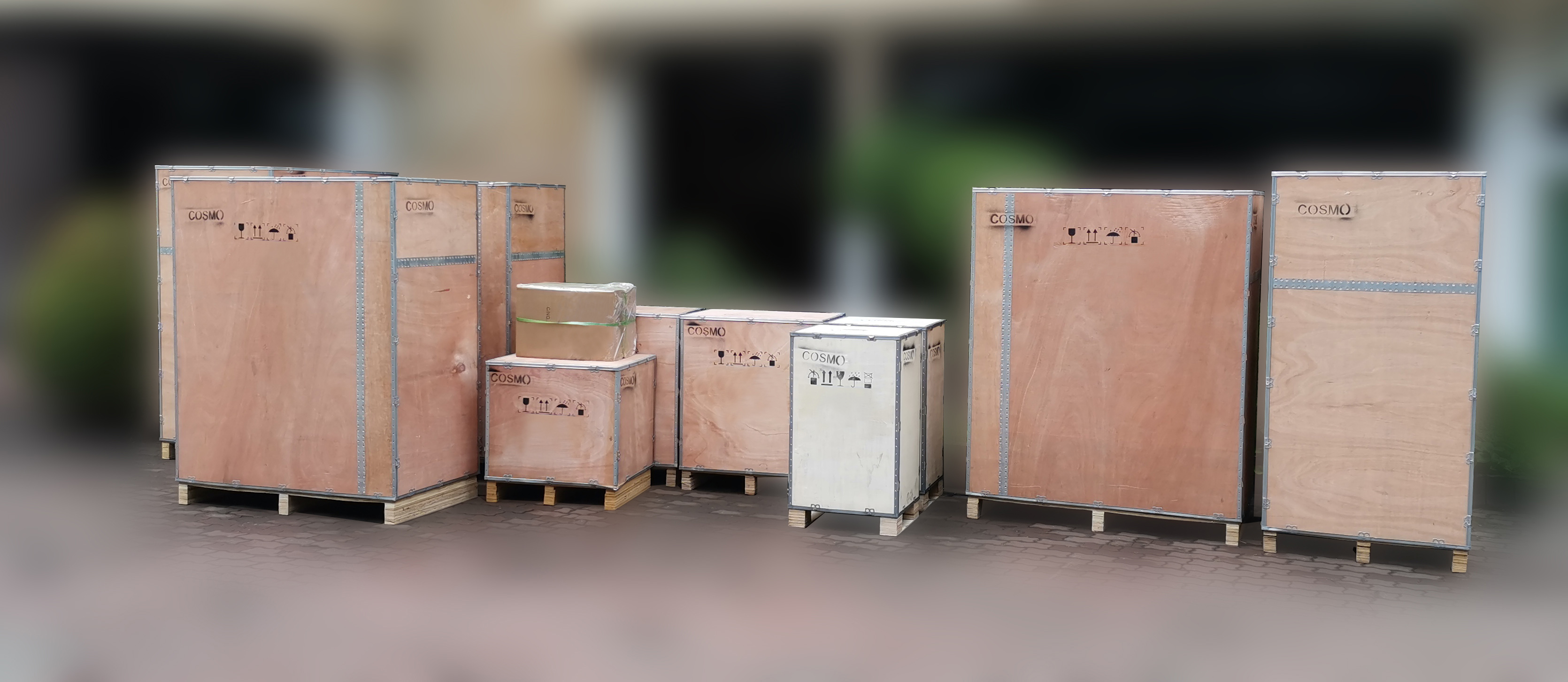

△ Package and Shipment



Package: Products will be packed with seaworthy wooden crates.
