Two Cutting Positions (vertical & horizontal) of Cosmo CNC Design Cutting Machine

CNC Design Cutting Machine Display | Cosmo Laser

CNC Design Cutting Machine Introduction | Cosmo Laser

The Best Fiber Laser Cutting Machine for Precious Metals Manufacturers

Replay
CNC Design Cutting Machine Cutting on Metal Sheet | Cosmo Laser

One of our South Korean customers who work in the jewellery industry need a shining effect, we make the samples for them. The result is satisfying, so they order this CNC cutting machine for self-use.

Applicable Material: Pure Gold, 5G Solid Gold, K Gold, Platinum, Silver, 925 Silver, Brass, Copper, Stainless steel, etc.
Applicable Industry: Jewellery accessories

Please contact us for more details.
CONTACT US

SEND INQUIRY NOW
- Phone:

  +8619974138611
- Email:

  cosmolaser@vip.163.com
- Telephone:

  +86-20-34511165
- WhatsApp:

  +86 19974138611
- Facebook:

  Cosmo Laser Equipment
- Facebook:

  Cosmo Laser
- YouTube:

  Cosmo Laser
- Instagram:

  cosmo_laser_equipment
- WeChat:

  jewellerylaser
- LinkedIn:

  Cosmo Laser Equipment
- Twitter:

  cosmolaser
- Pinterest:

  Cosmo Laser
- Tumblr:

  Cosmo Laser
- Vimeo:

  Cosmo Laser

△ Why Choose Cosmo Laser?

World Brand - Cosmo Laser has cooperated with lots of outstanding brands in different industries all around the world.

International Standards - Cosmo Laser's products comply with international standards, such as CE, SGS and other certifications.

Manufacture First-rate Equipment - Cosmo Laser uses good quality key components to ensure the equipment is of superb quality and superior performance.

Comprehensive Customer Service - We contribute pre-sale, in-sale, and after-sale all-inclusive services. Also, agents in various countries/regions can provide prompt service.

Autonomous R&D Capability - Cosmo Laser is committed to continuous innovation and development. Some of our major products have been patented.

Solve problems for Customers - We provide useful and reliable equipment application solutions in many industries, including customization for unique businesses.

△ Certifications and Patents

△ Know More About Us

Competent R&D Team

The R&D team adopts new design concepts and uses software to optimize the combination, which extends the life and accuracy of the equipment.

Skilled Manufacturing Team

Every production position in the company has undergone strict skill training, and every assembly process has rigorous and process specifications.

Complete Quality Assurance System

We strictly control the quality. From the production of parts to the assembly of the whole machine are under strict quality management.

Strong After-sales Service Support

We have agents worldwide, supplying prompt service. Spare parts that exceed the warranty are kept affordable, lowering the cost.

△ Product Description

① Two cutting positions: vertical & horizontal

② Changeable cutters for different designs

③ Minimum thickness of workpiece up to 0.1mm

④ Maximum material loss recovery

⑤ Low maintenance and long lifetime

⑥ Easy programming

⑦ Quick loading worktable system

△ Product Specification

Model
CDC-A3
Working Area
X-axis Cutting: 60mm × 160mm; Y-axis Cutting: 100mm × 150mm
Work Piece Thickness
0.1-5mm
Axis
3 Axis
Control System
Windows Base Control Software
Language
English/Chinese
Accuracy
0.02mm
Spindle Motor Max Speed
Up to 60,000rpm
Power Supply
220V/1P(Standard); 110V/1P(Optional)
Max Power Consumption
1kW
Machine Dimension
620mm×790mm×1690mm
Weight
145kg(Net); 200kg(Gross)

△ Machine Details Display

Horizontal Cutting Position

Controller

Vertical Cutting Position

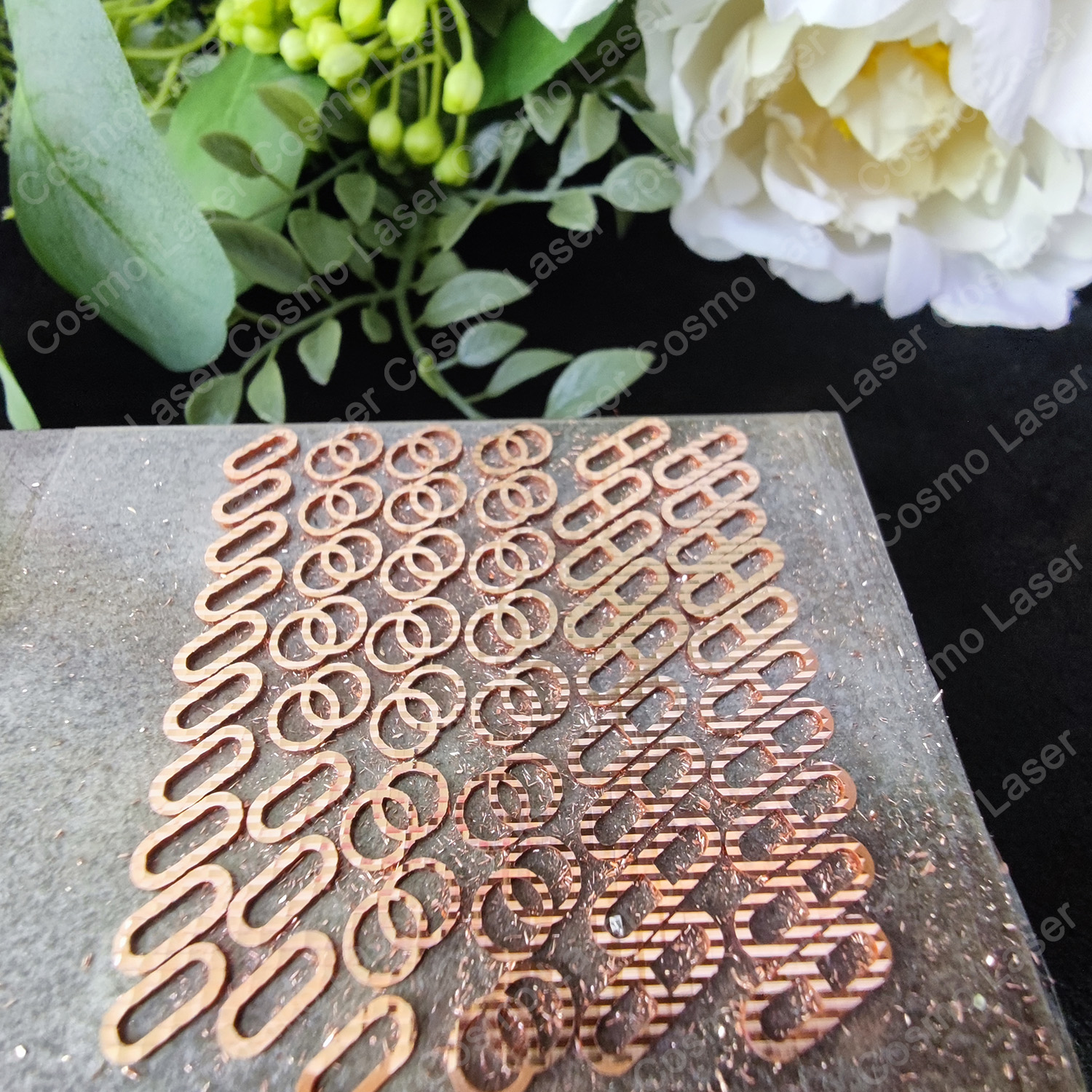

△ South Korean Customer's Samples Display

△ Other Samples Display

△ FAQ

/ Frequently Asked Questions

What is the warranty for machines?
- 12 months from the time of shipment on the whole machine, except for consumables parts.
Will installation/training be provided?
- Yes, methods include 1. Online: for free, by remote control, voice/ video chat, and other methods. 2. At our factory: for free, but customers will bear for their transportation and accommodation costs. 3. Door-to-door service: a fee is required and depends on our time and number of personnel.
How is the packing?
- Products will be packed in seaworthy wooden boxes.
What kinds of shipping modes are available?
- Sea or air transportation. It depends on the customer's choice and type of machines. Due to aviation safety regulations, certain machines can only be transported by sea.
What is the delivery time upon confirmation of the order?
- The delivery time is usually between 3 to 5 workings days, depending on the type of machine. When it is at the peak of production, it may be longer. Please contact us for the actual delivery time.
What are the main products of Cosmo Laser?
- Products include laser welding machine, laser marking/engraving machine, laser cutting machine, finger ring/bangle pin marking machine, CNC design cutting machine.
What other products Cosmo Laser manufacture?
- Products include dust collectors, polishing machines, non-standard customized equipment, etc.
Is the laser safe to operate?
- Yes, the laser is completely safe to operate. No special safety gear is required to run the laser.
What services Cosmo Laser provides?
- Pre-sales: online consultation (by email, telephone, WeChat, WhatsApp, etc.), test on samples, visit our factory, provide customization project, provide financial services. In-sales: design, manufacture, installation, debugging, transportation logistics. After-sales: training, supply of repair parts, troubleshooting, maintenance, return visits
What are the payment terms?
- Full payment upon order confirmation. Payment by bank transfer. If you have other ideas, feel free to contact us.
