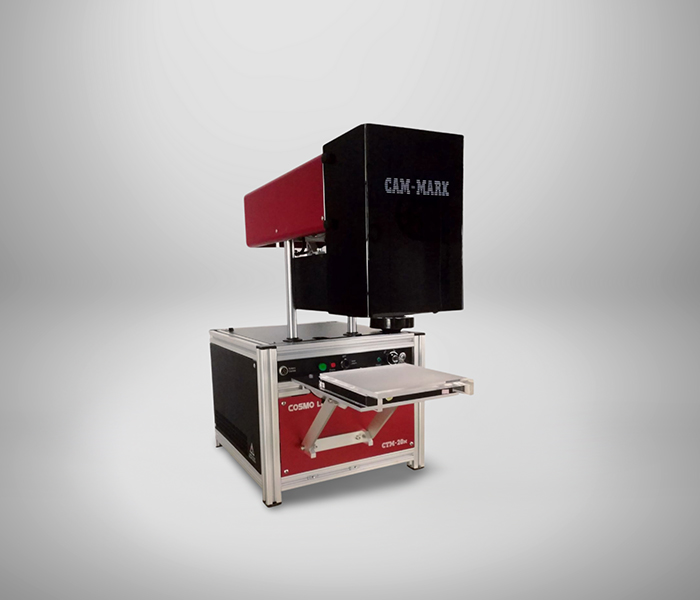

Laser Mark Earrings with a CCD Camera Marking Machine

• Model
  CAM-MARK
• Laser Source

  Fiber Laser
• Laser Power
  20W/50W
• Min Character Height
  0.2mm
• Marking Area
  100mm×70mm
• Workpiece Placement Position
  360 Random Position
• Functions
  Able to capture and mark workpieces of different shapes
• Repeat Capture Marking Accuracy
  ±0.02-±0.05mm (Depend on workpiece size difference)
• Cooling Mode
  Air-cooled
• Marking Depth
  Up to 1.0mm
• Max Power Consumption
  800W
• Power Supply
  220V/1P(Standard); 110V/1P(Optional)
• Machine Dimension
  380mm×690mm×510mm
• Weight
  35kg(Net)/52kg(Gross)

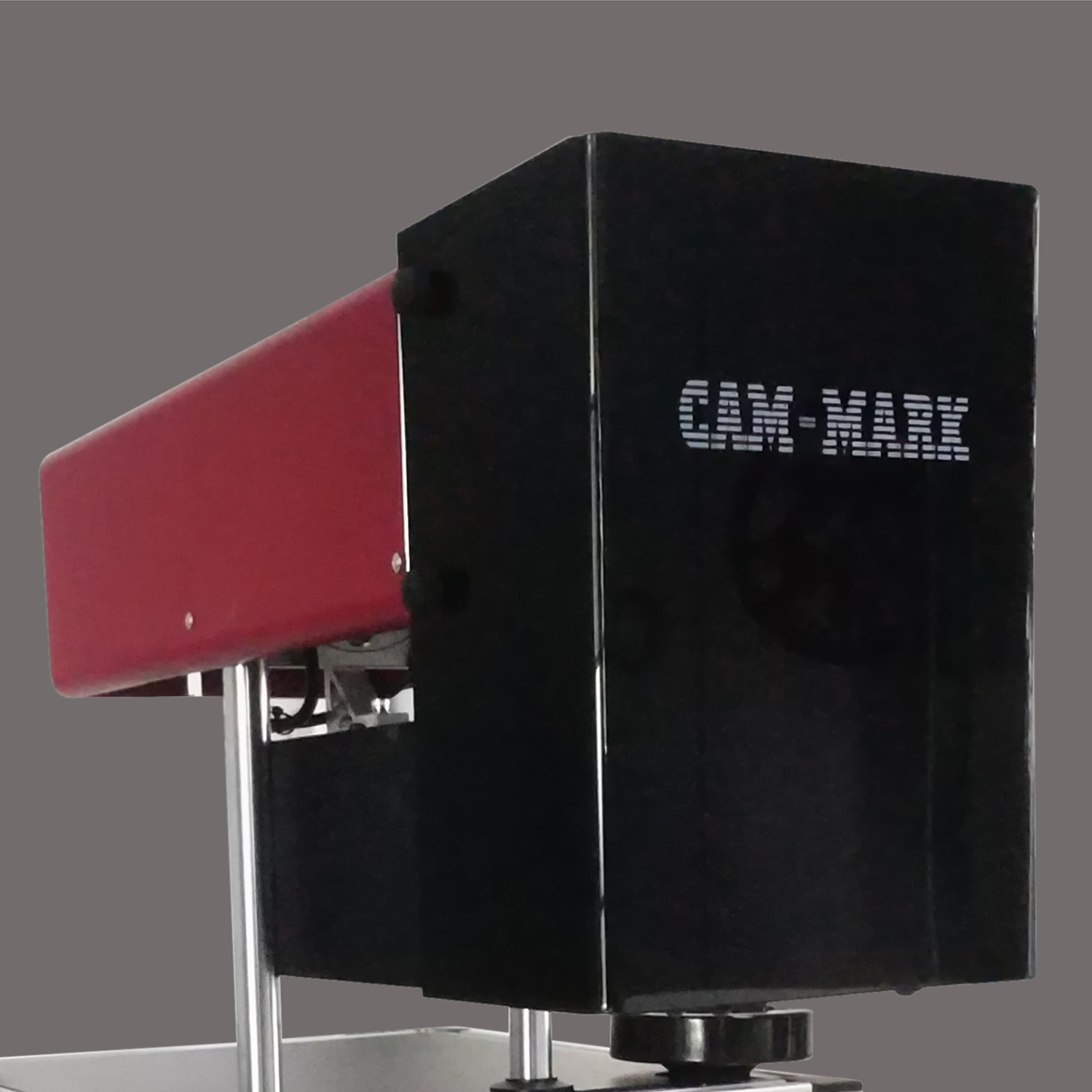

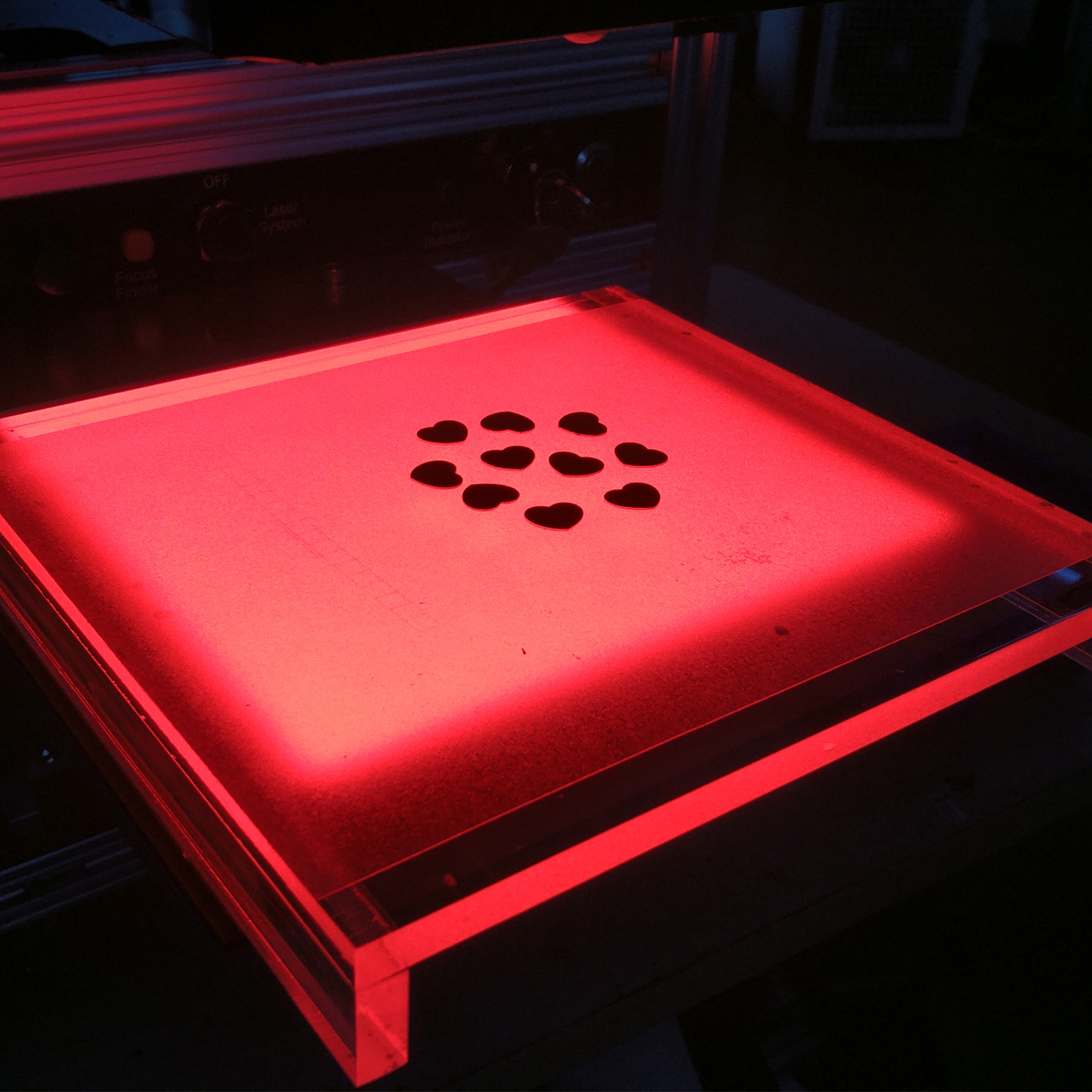

If you are looking for a laser marking machine that can handle various shapes and sizes of jewellery accessories, such as earrings, dog tags, etc., you might want to check out the Cosmo CCD camera capture laser marking machine. This machine uses a high-definition camera to capture the position and orientation of your workpieces and then marks them with high accuracy and speed. You can mark multiple workpieces at once, regardless of how they are placed in the marking area. This eliminates the need for manual positioning and reduces the chance of errors or wastage.

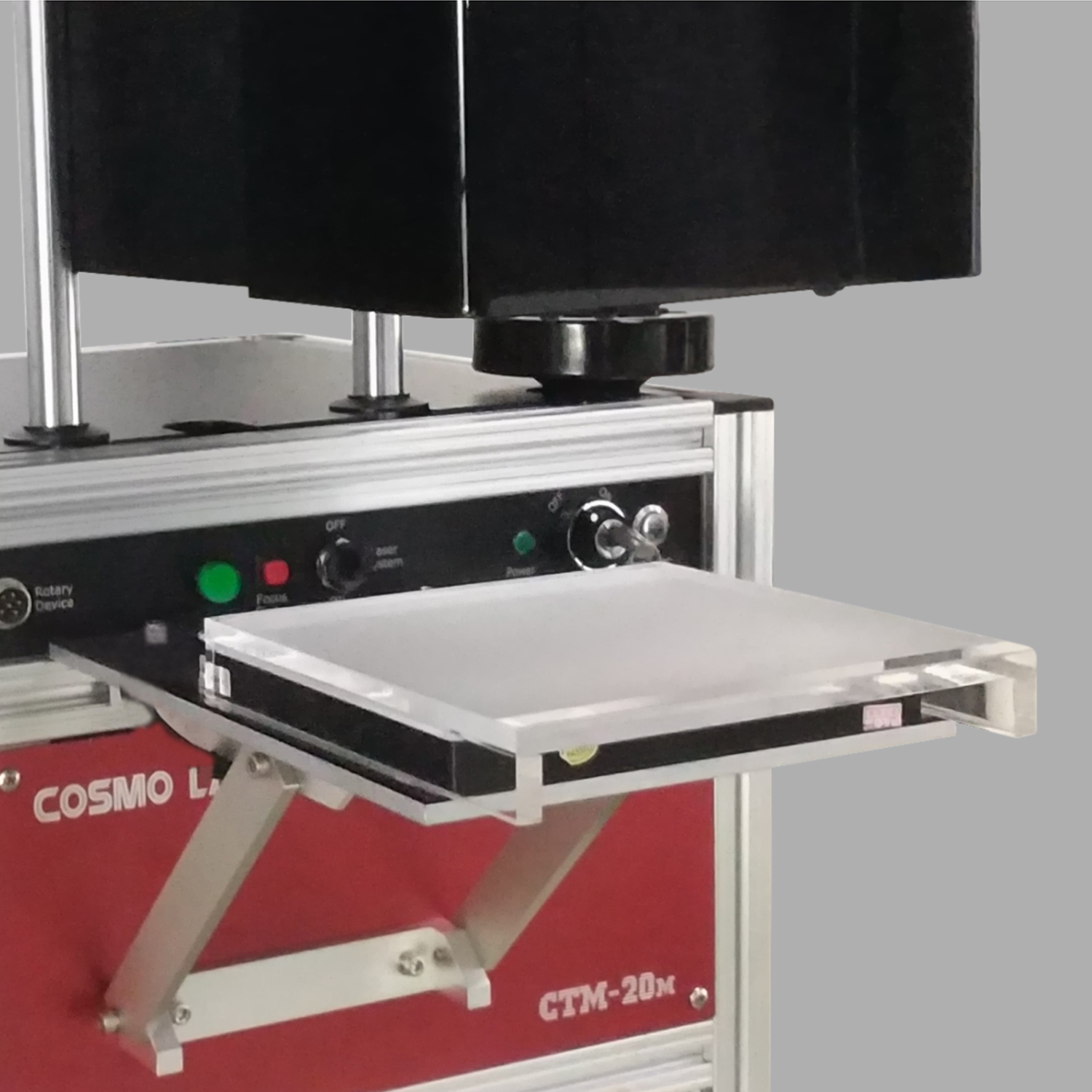

The Cosmo CCD camera capture laser marking machine is based on the Cosmo fibre laser marking machine, which has an optional laser power of 20W or 50W, a marking area of 100mm x 70mm, and a marking depth of up to 1.0mm. The camera capture function adds a layer of precision and efficiency to the marking process, making it ideal for the mass production of jewellery accessories. The machine can also resume the original marking position and repeat the marking accurately, which is useful for repairing or re-marking workpieces.

The Cosmo CCD camera capture laser marking machine is suitable for marking various metals, such as pure gold, solid gold, K gold, silver, 925 silver, platinum, stainless steel, brass, copper, etc. It can mark different patterns on different workpieces according to your needs.
