This video is a tutorial for customers who first get in touch with our laser marking machines(CTM-L or CTM-m Series). It shows how to mark text on the outside of a ring with a rotary fixture. The engraving process is automatic with 360 degrees. The angle of the rotary fixture can also be adjusted.
Application: all metal materials like stainless steel, brass, aluminium and precious metal gold, platinum and silver. If you have any interest in this jewellery laser engraving machine, please feel free to contact us.
Machine Layout:
①Enclosed laser source
②Z-axis wheel handle
③X, Y marking table
④main body
⑤computer connections
⑥system ventilation (do not block)
Front of the System (Control Panel):
①Connector for rotary device
②Illuminating light switch
③Focusing light ON/OFF
④Laser source ON/OFF
⑤System power indicator
⑥System ON/OFF key switch
⑦Computer ON button
Rotary Marking Device:
①Locking screw
②To adjust the angle of the rotating head
③Jaw clamp
④Holes to secure to the worktable
⑤Chuck key to open or close the ③Jaw clamp

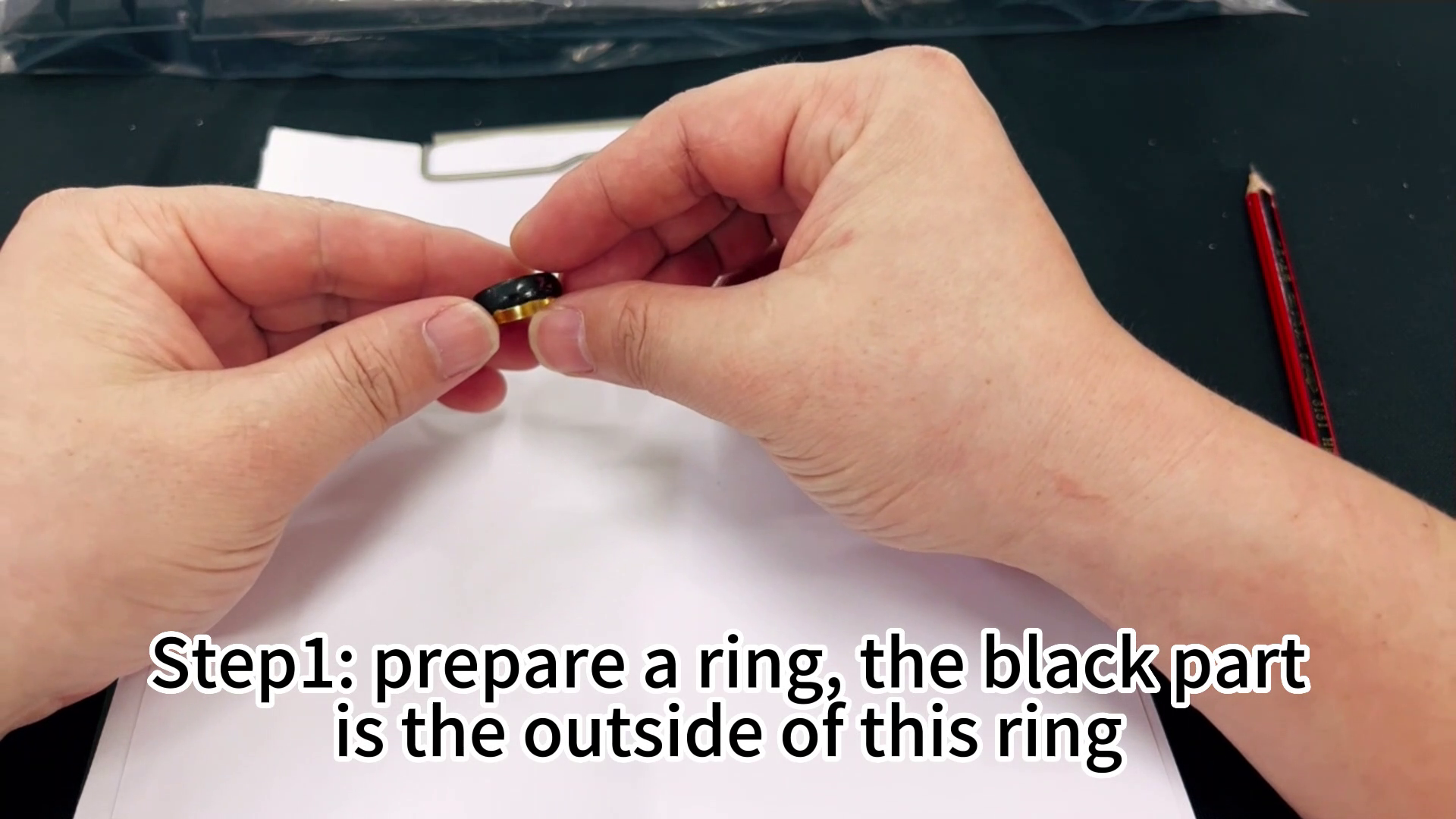

prepare a ring

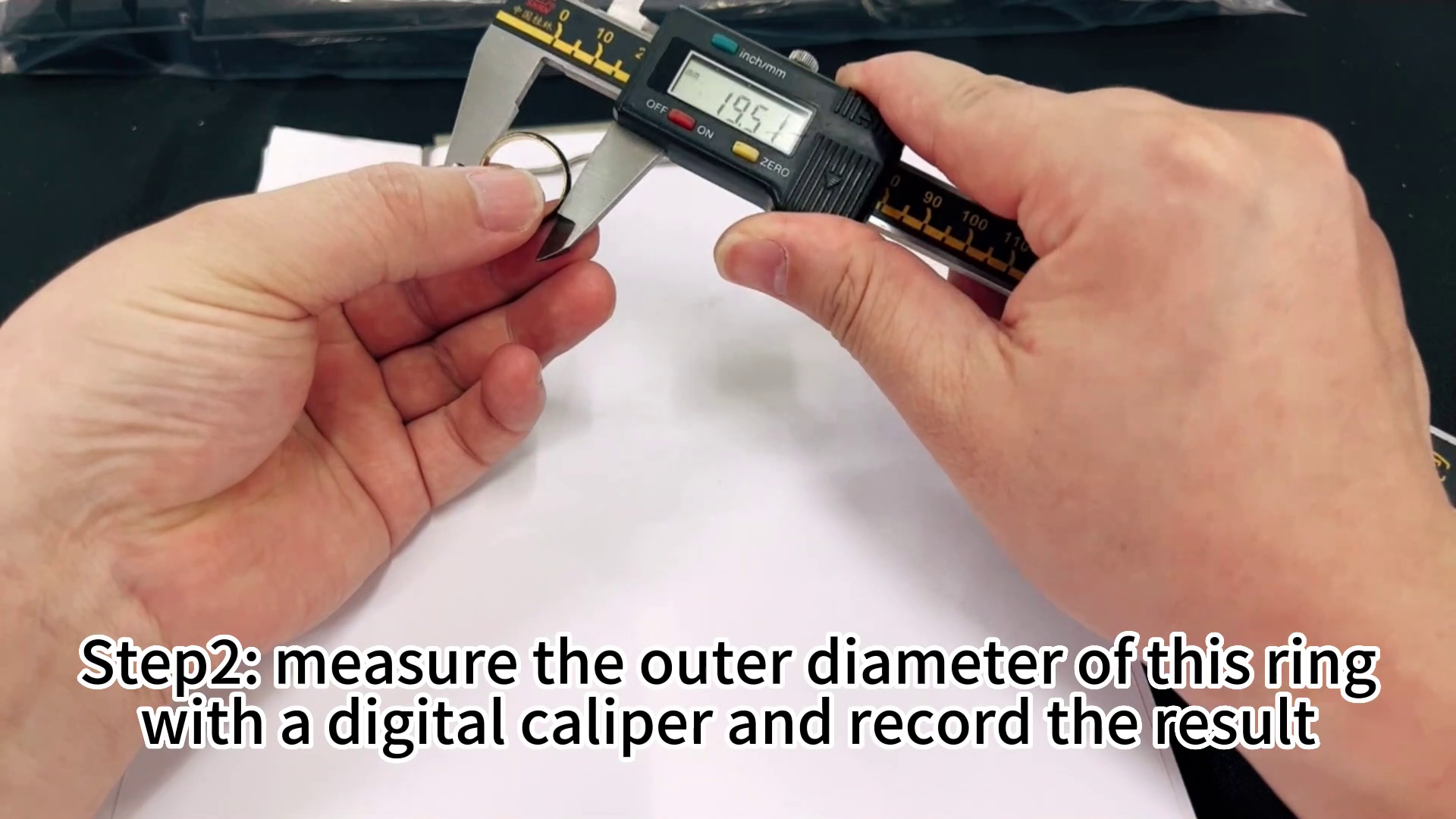

measure the outer diameter of the ring

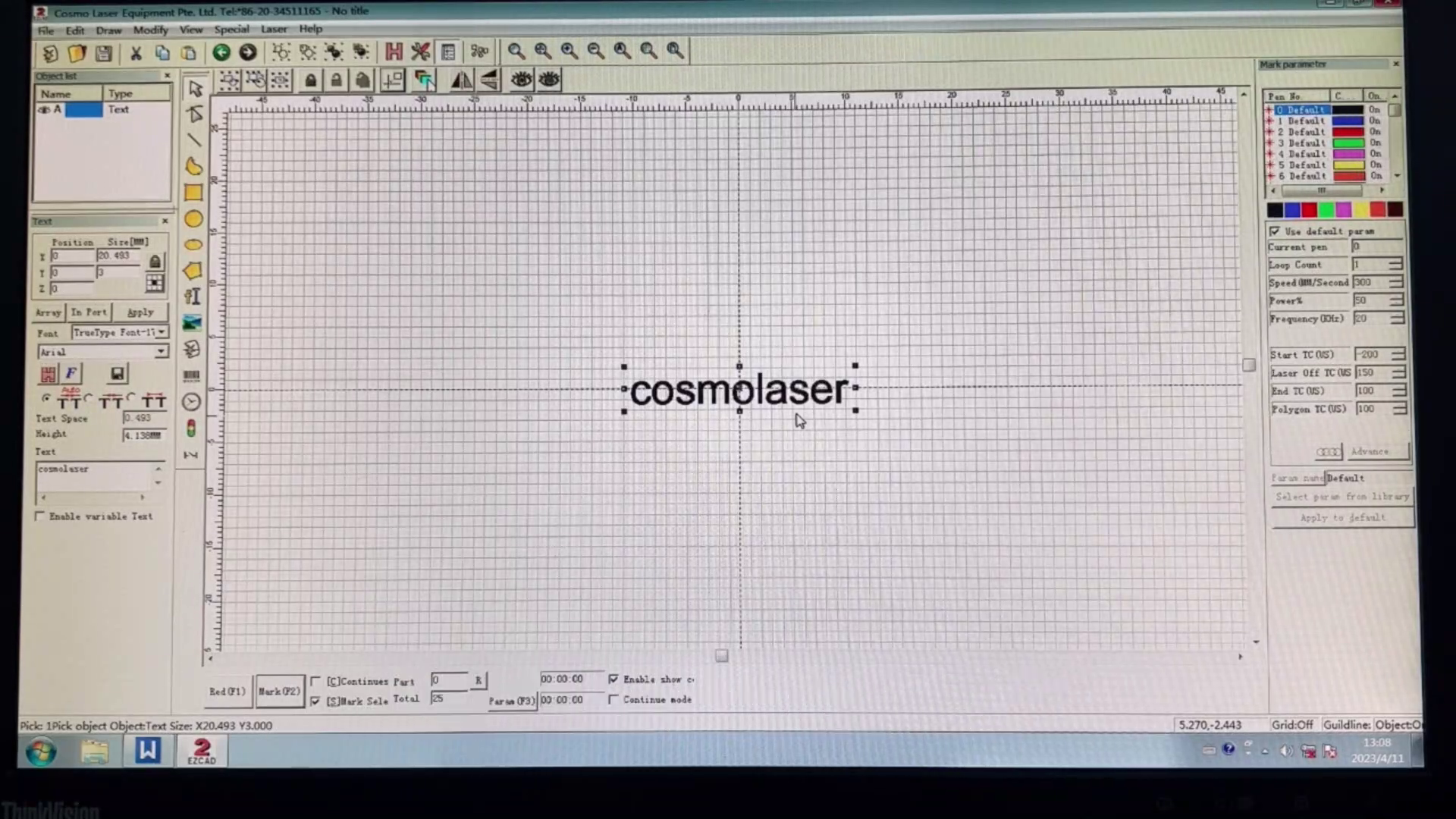

type what you want to laser mark
set parameters in the marking software
install the rotary fixture

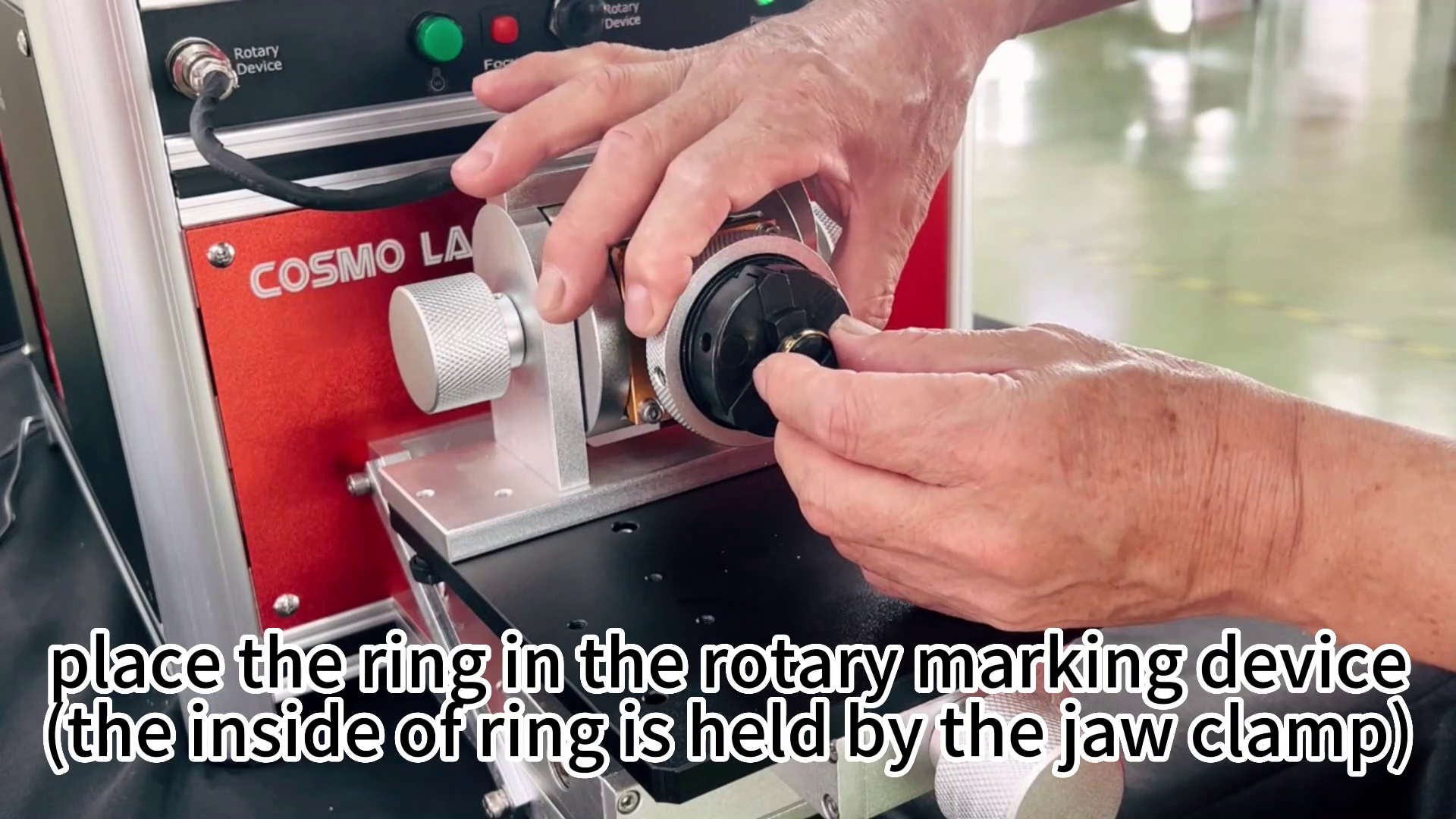

place the ring in the rotary fixture and adjust the angle

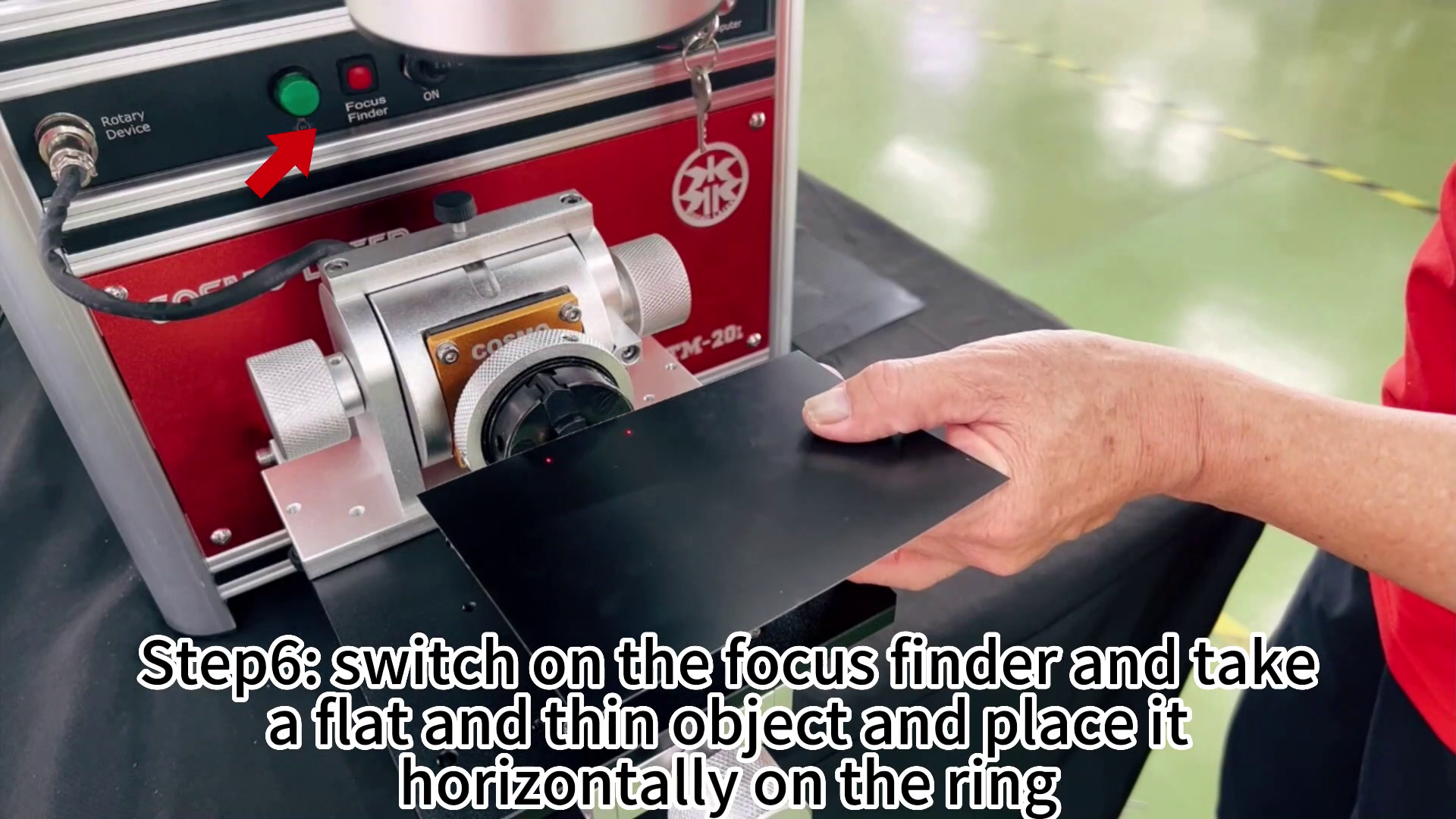

switch on the focus finder

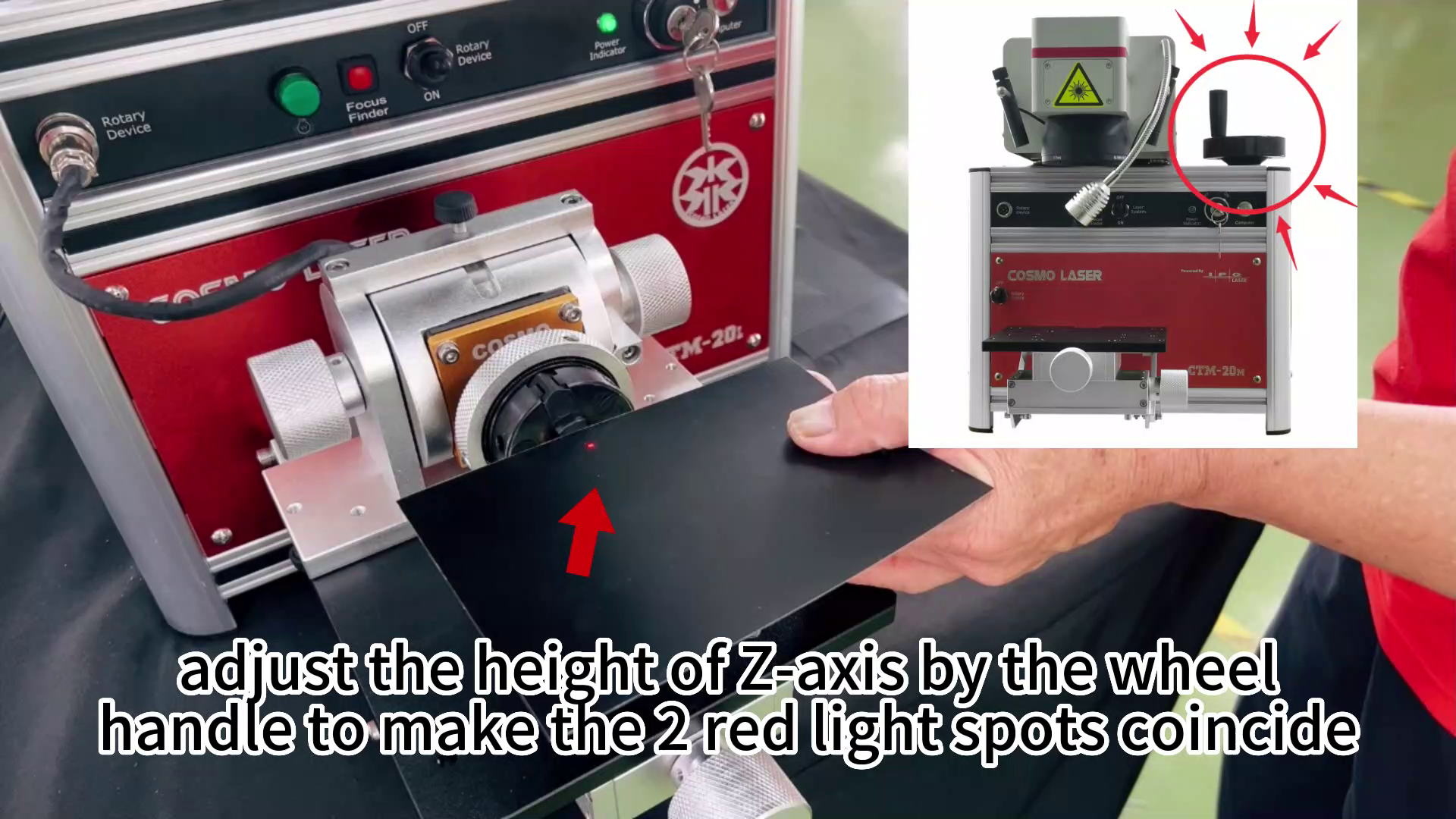

find out the focus point of the laser marking machine

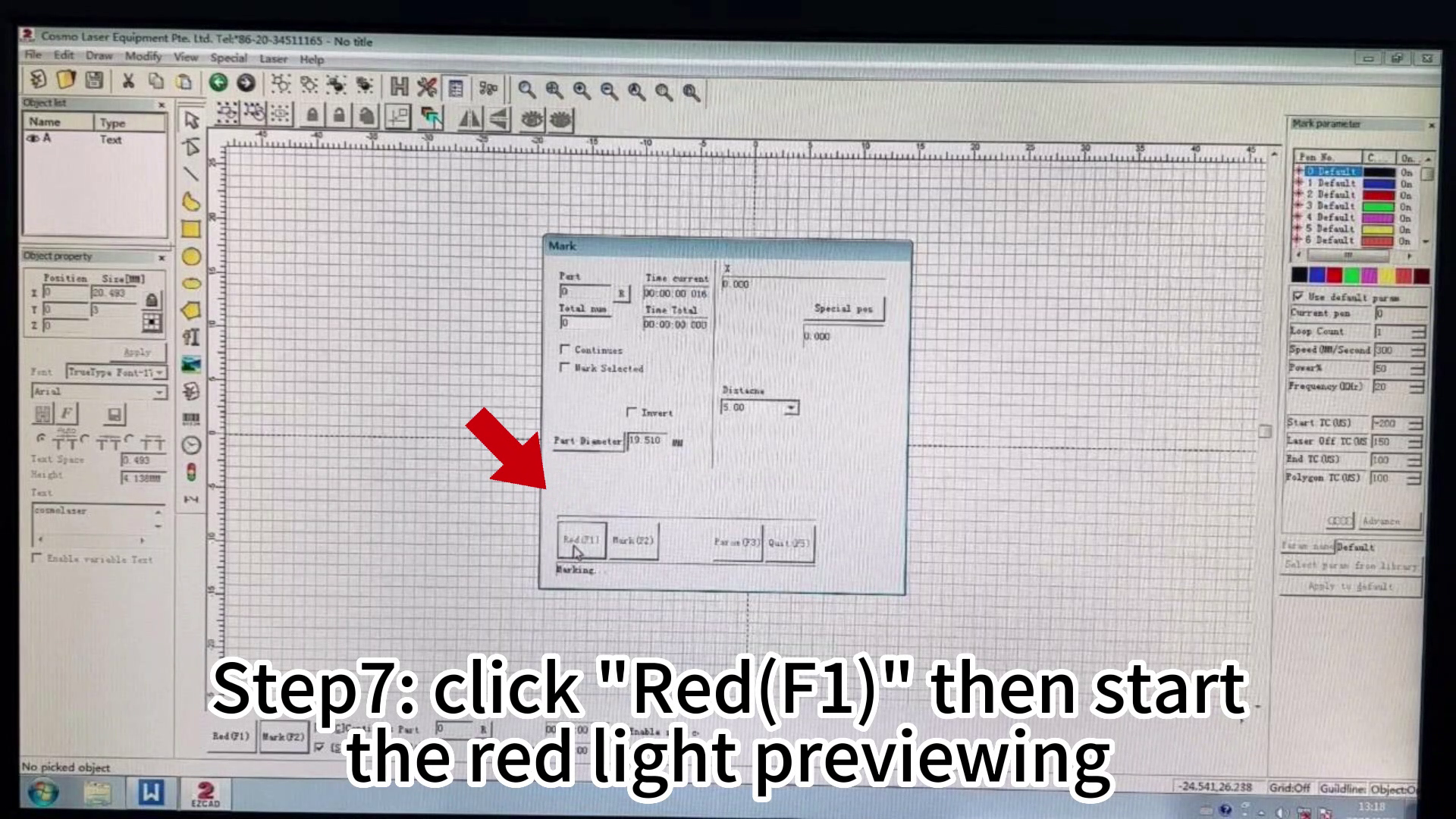

red light preview
adjust the position of the marking table

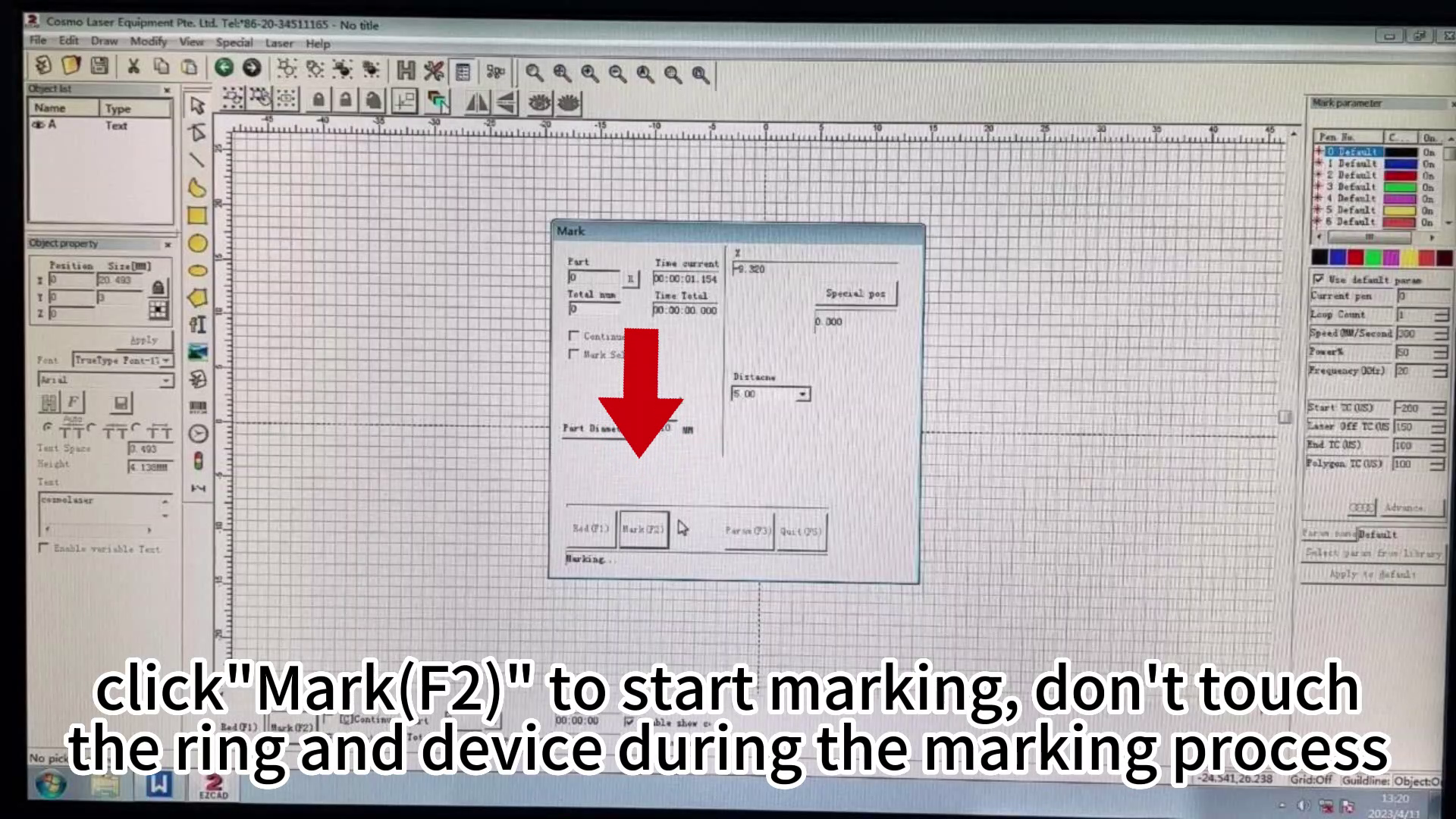

start marking

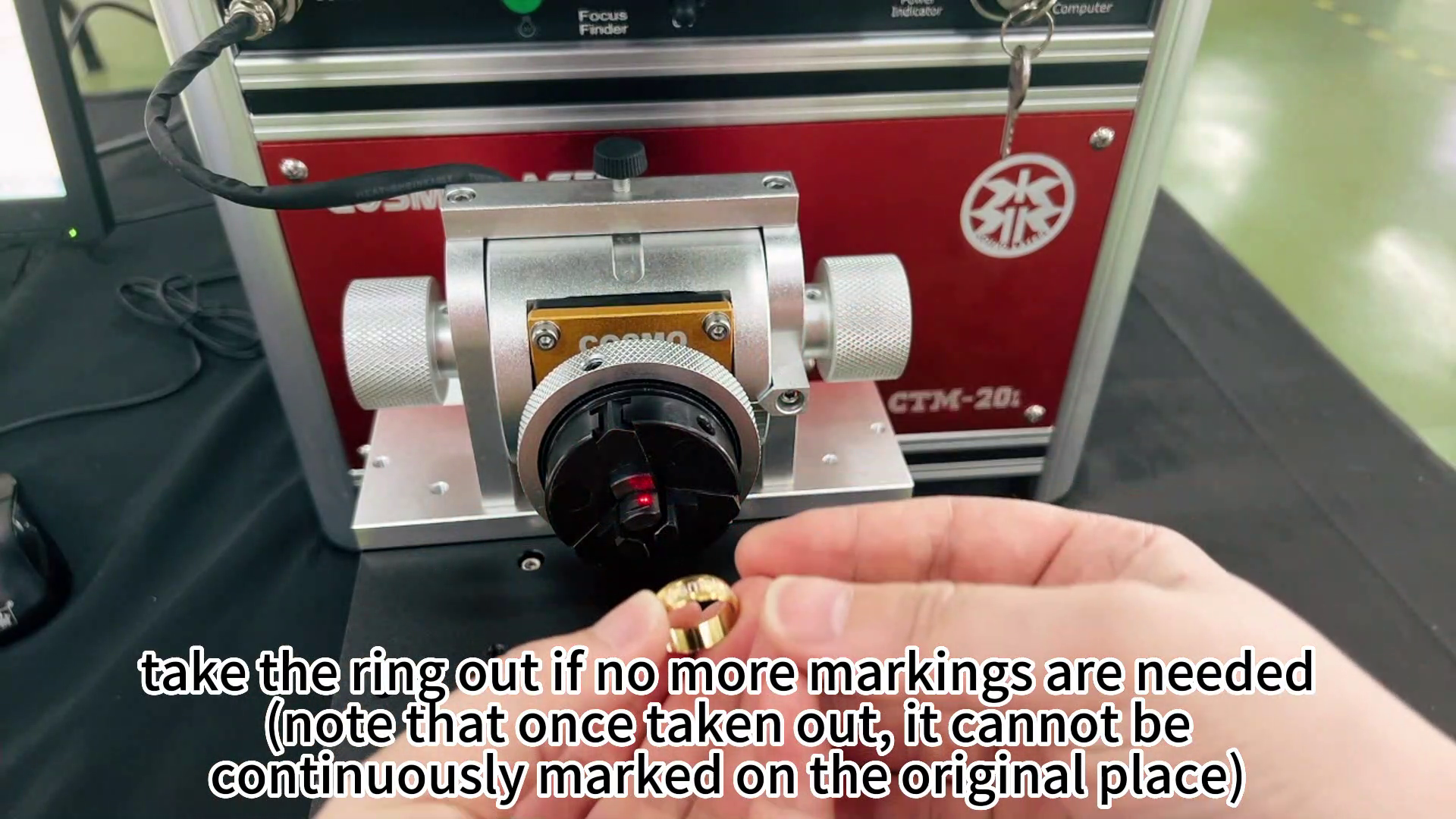

complete
