This video is a tutorial for customers who first get in touch with our laser marking machines (CTM-L or CTM-m Series). It shows how to mark text inside a ring with a rotary fixture. The engraving process is automatic with 360 degrees. The angle of the rotary fixture can also be adjusted. Generally, engraving the inner ring will raise the rotating head by 30-45 degrees. This requires us to decide according to the actual situation.
Application: all metal materials like stainless steel, brass, aluminium and precious metal gold, platinum and silver. If you are interested in this jewellery laser engraving machine, please feel free to contact us.
Machine Layout:
①Enclosed laser source
②Z-axis wheel handle
③X, Y marking table
④main body
⑤computer connections
⑥system ventilation (do not block)
Front of the System (Control Panel):
①Connector for rotary device
②Illuminating light switch
③Focusing light ON/OFF
④Laser source ON/OFF
⑤System power indicator
⑥System ON/OFF key switch
⑦Computer ON button
Rotary Marking Device:
①Locking screw
②To adjust the angle of the rotating head
③Jaw clamp
④Holes to secure to the worktable
⑤Chuck key to open or close the ③Jaw clamp
prepare a ring

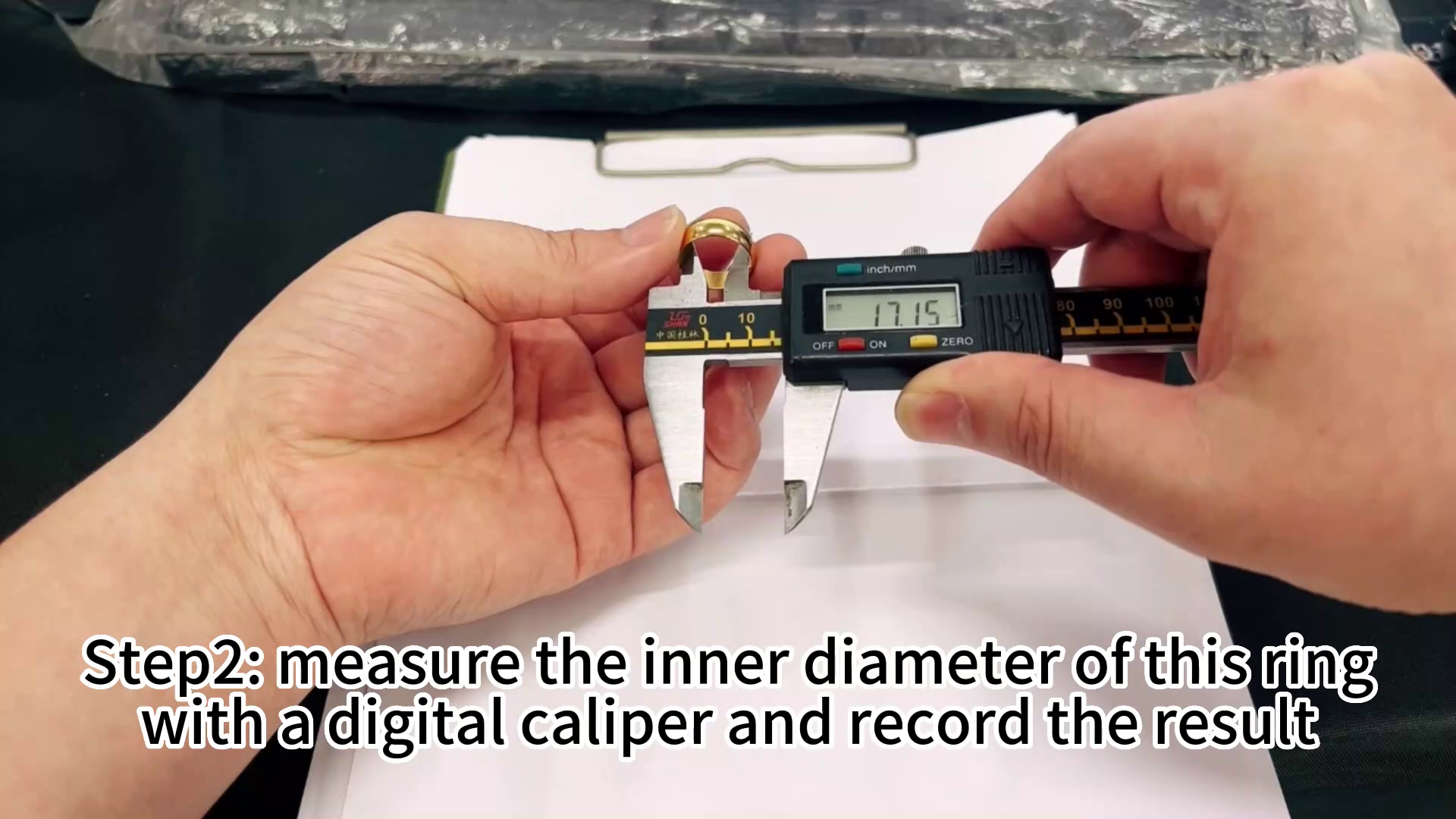

measure the inner diameter of the ring

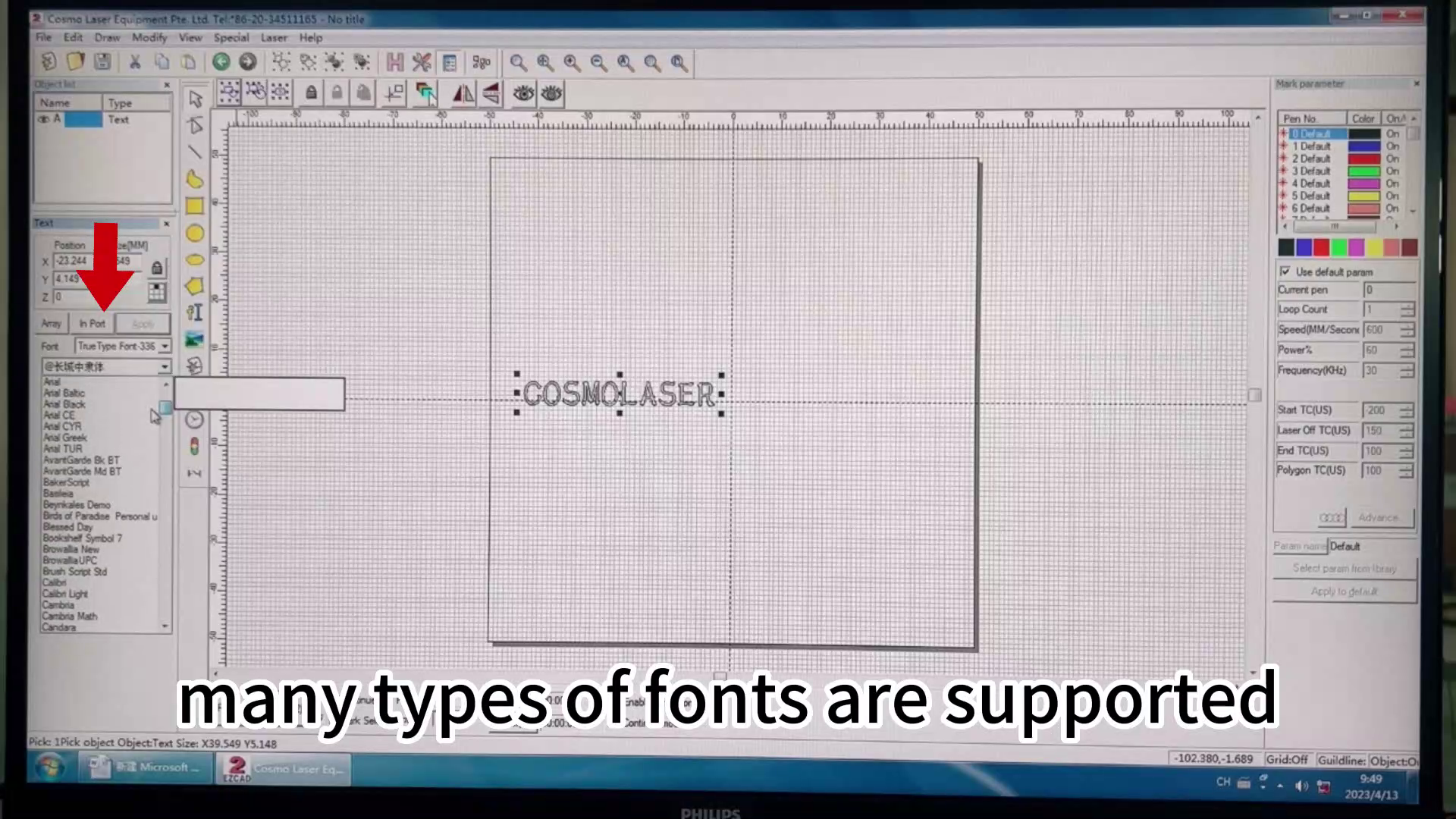

type what you want to laser mark

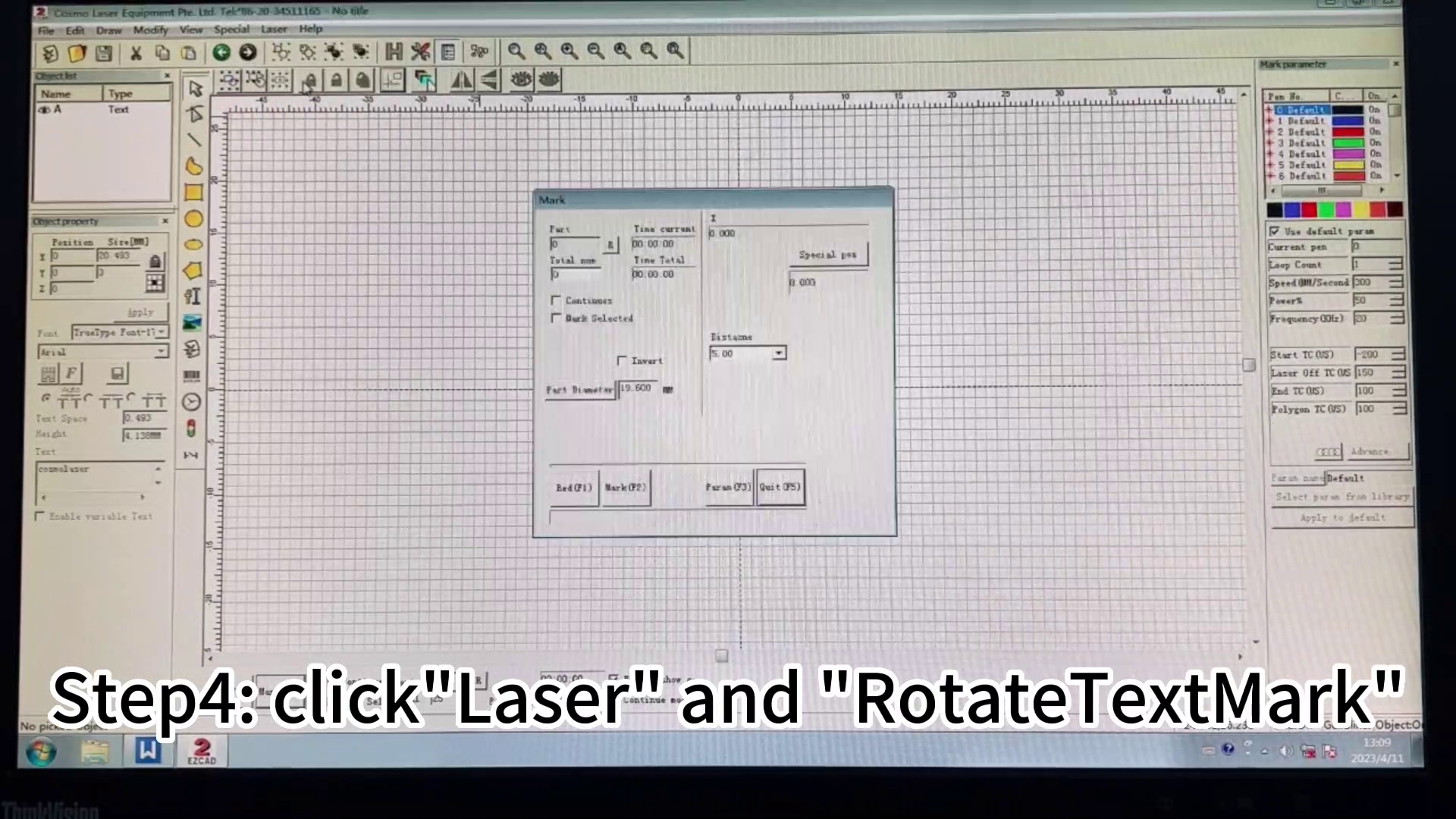

set parameters in the marking software

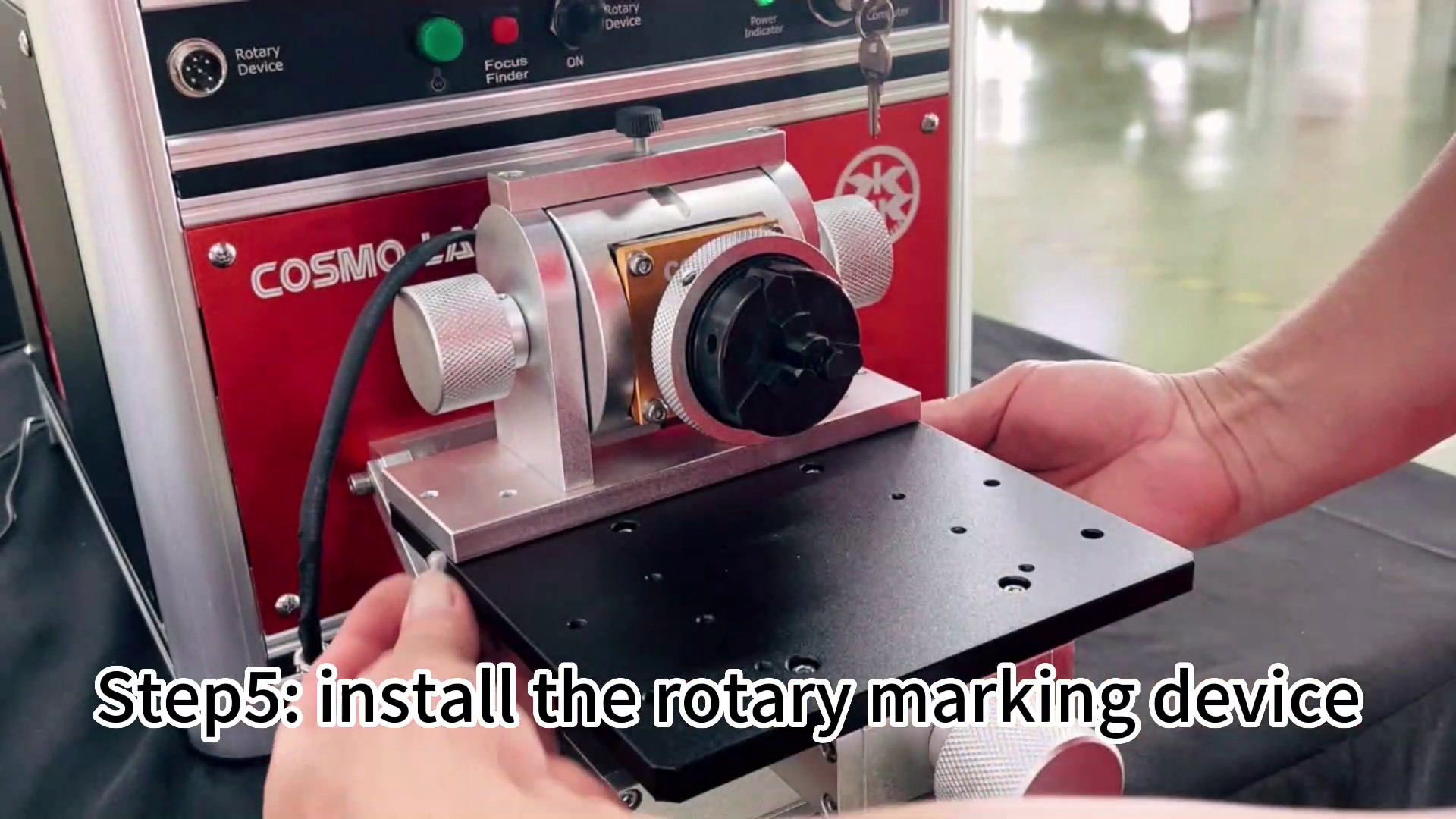

install the rotary fixture

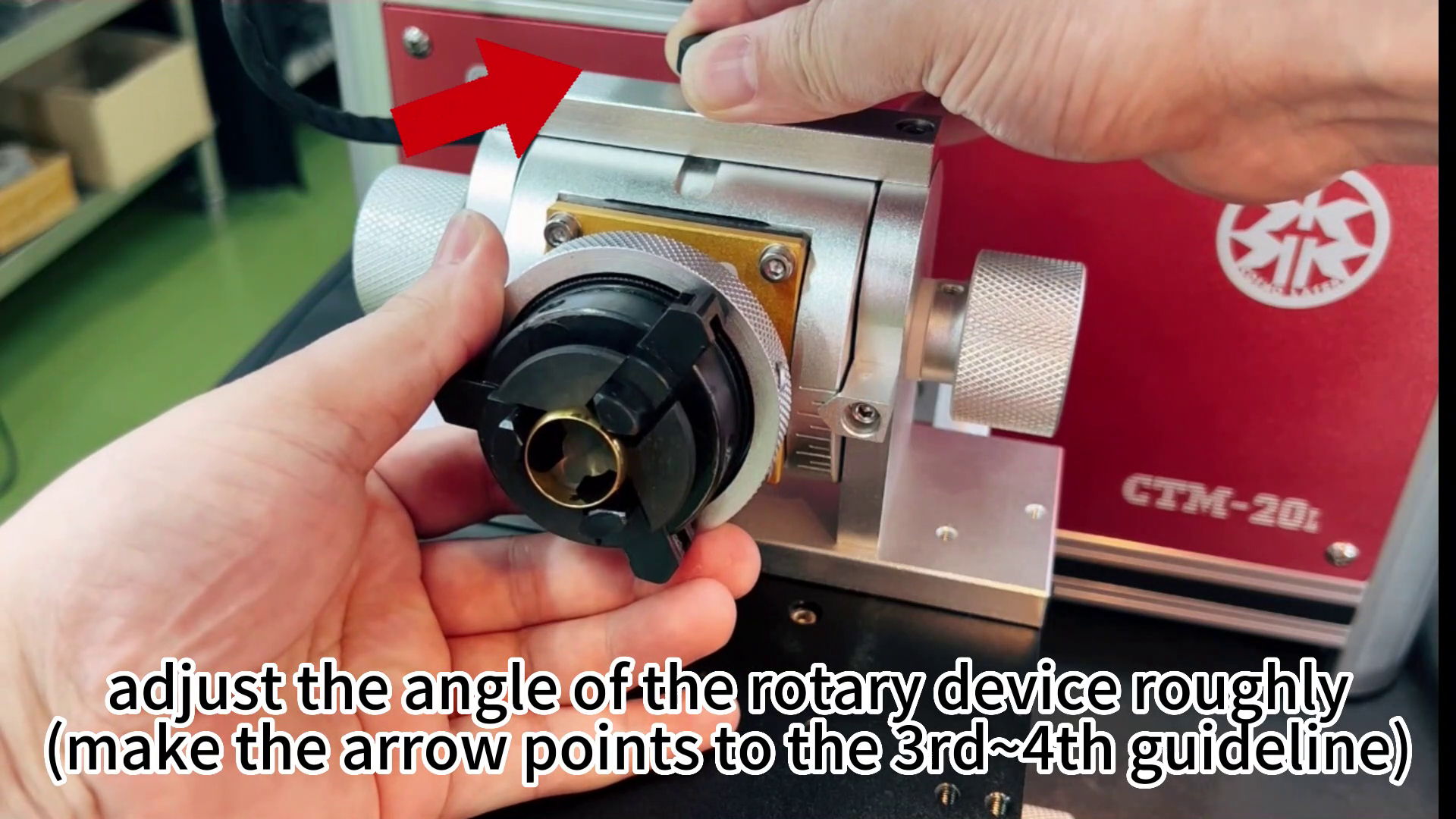

place the ring in the rotary fixture(add an accessory on the 3 jaw clamp) and adjust the angle

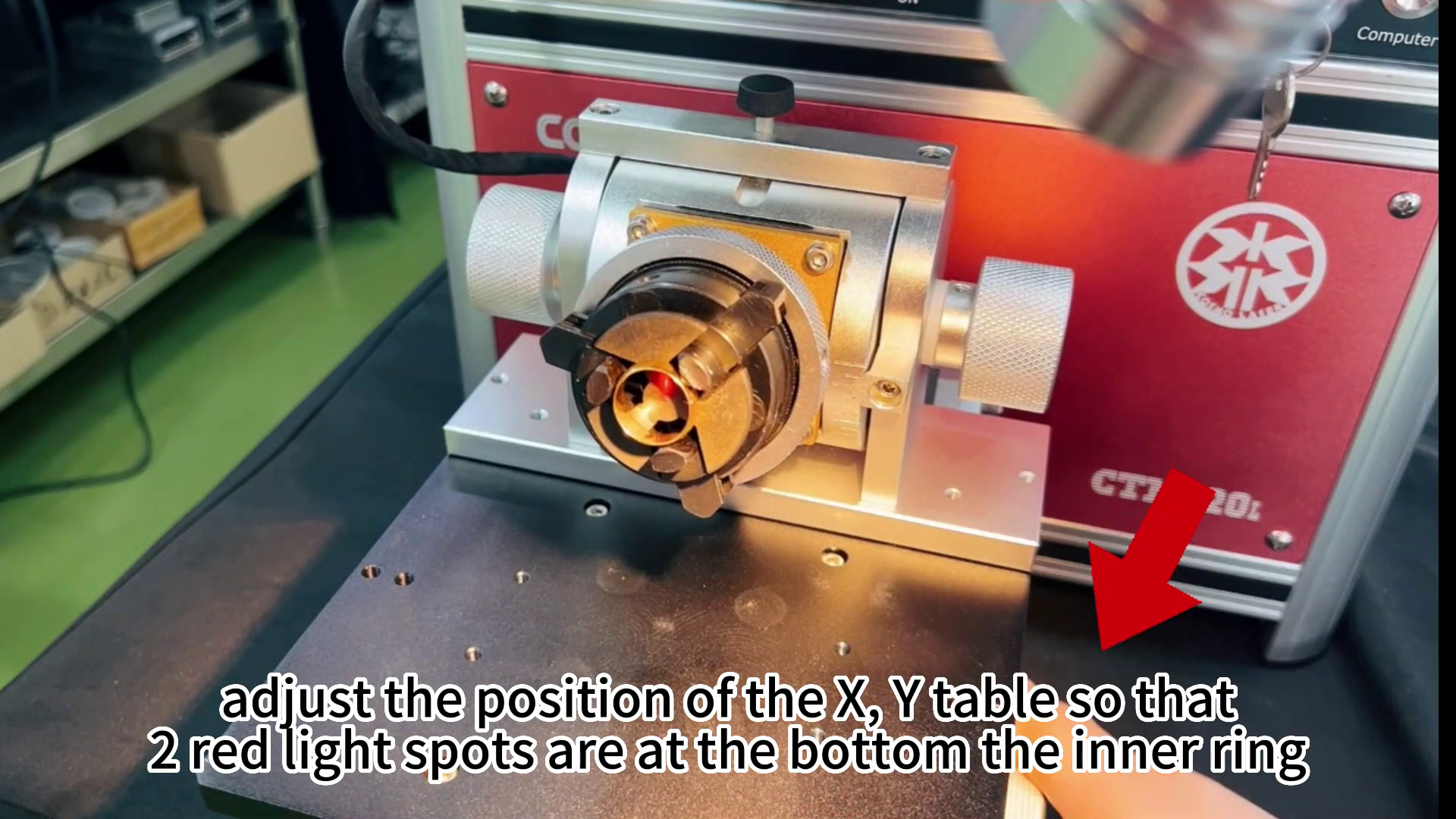

adjust the X, Y and Z axis to make the 2 red light spots at the bottom and central of the inner ring

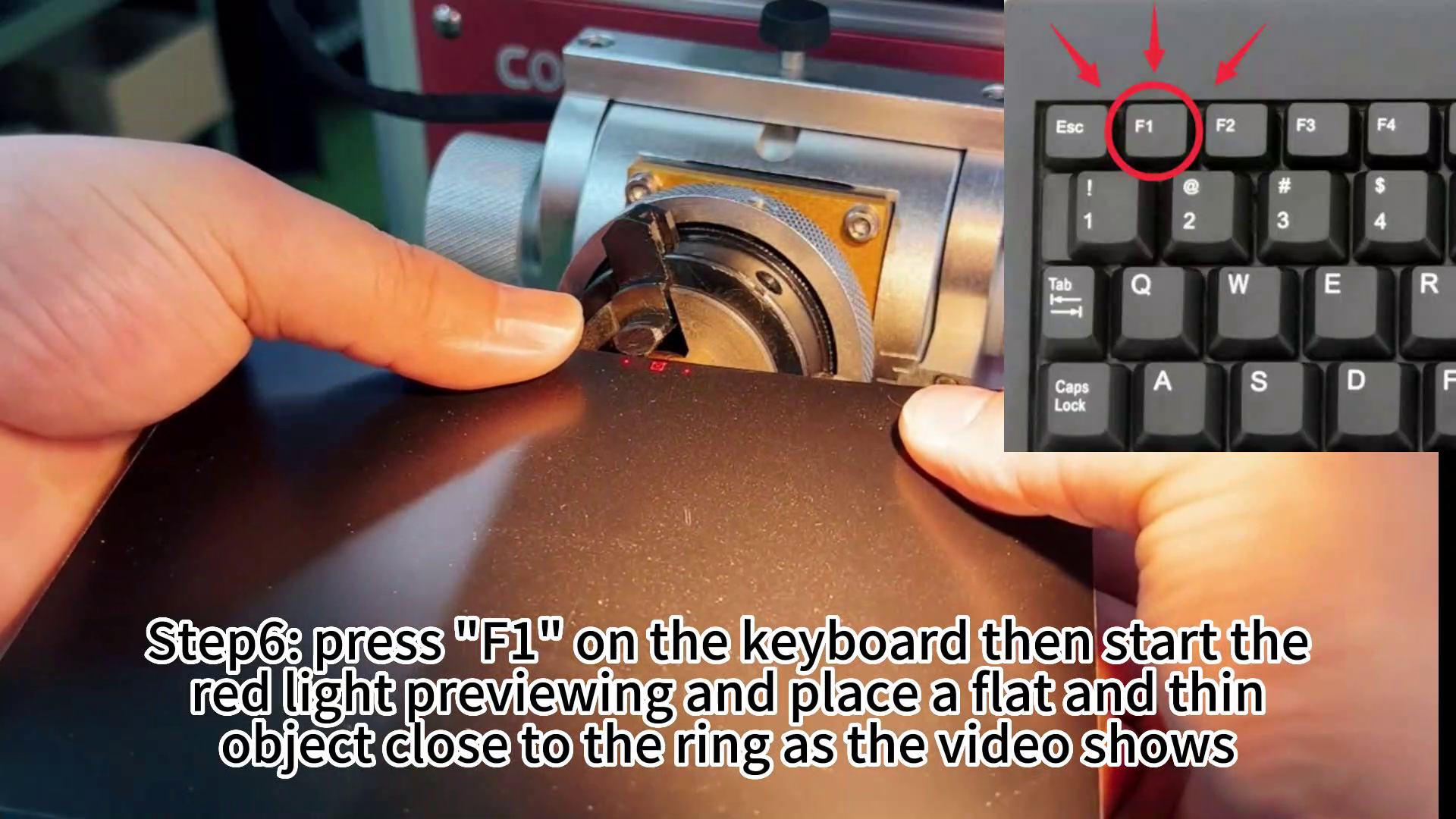

red light preview
adjust the X, Y and Z axis
cancel the preview process

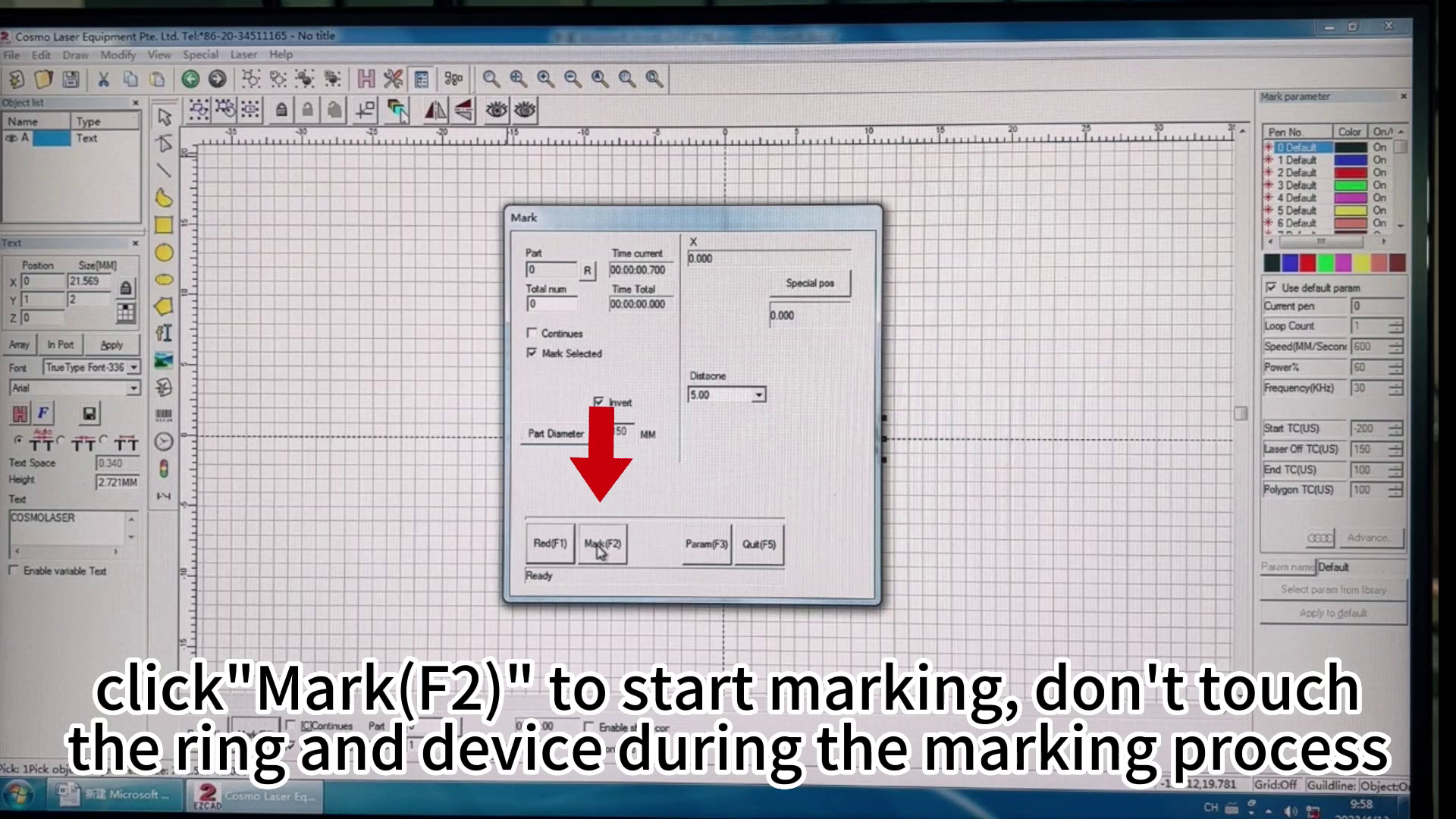

start marking

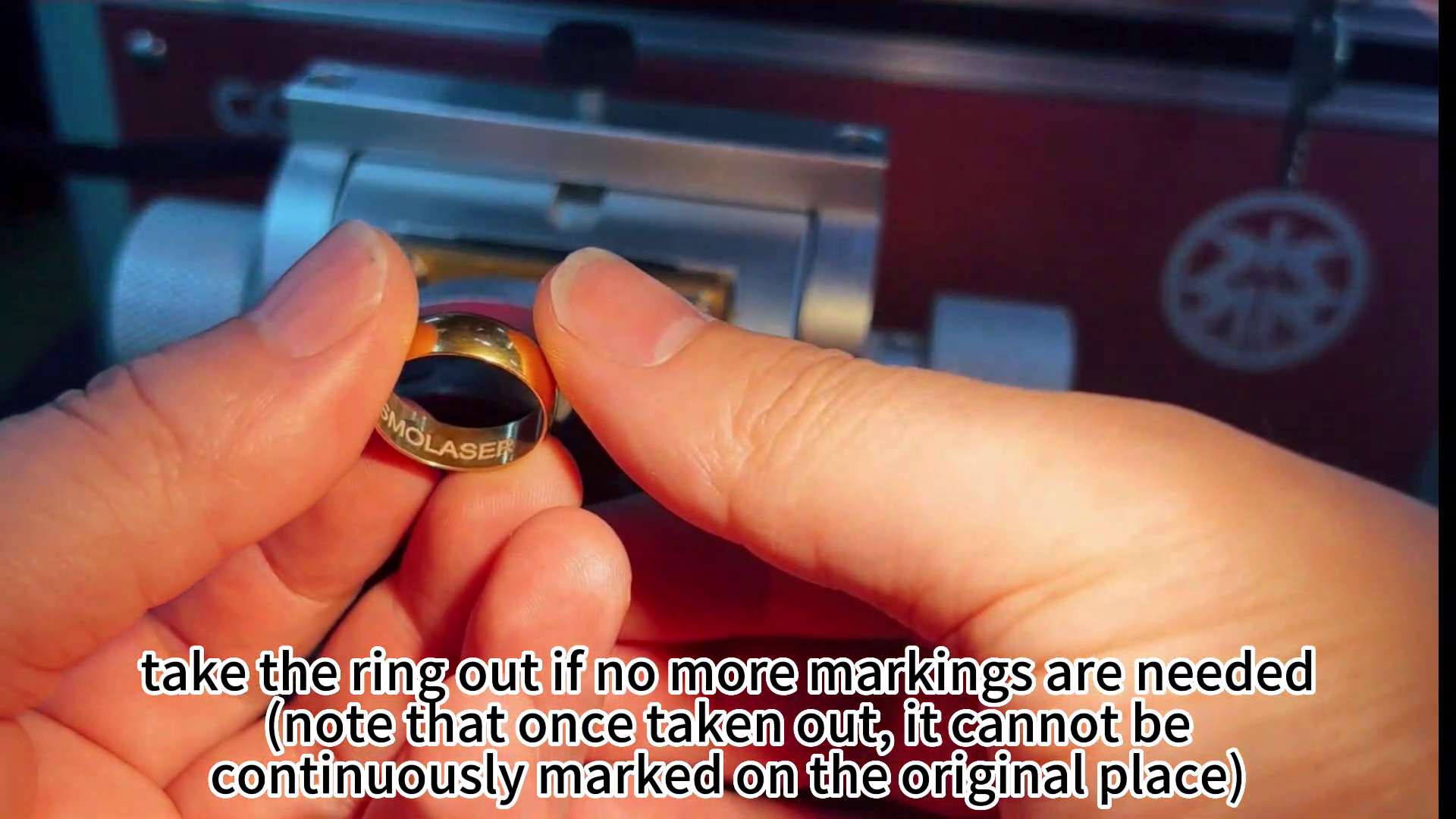

complete
