Front of the Machine
machine size

the machine is with a 10 inch×7 inch built-in touch screen computer

(can also be controlled by keyboard and mouse)

Side of the Machine

machine parts

Machine Parts: 1) mark button

2) focus finder on/off switch

3) laser power on/off switch

4) main power on/off switch

5) computer on/off switch

machine parts2

Machine Parts: 1) rotary marking device connector

2) motorized z-axis to focus(raise&lower) the laser output


            Laser Marking on Inside Ring

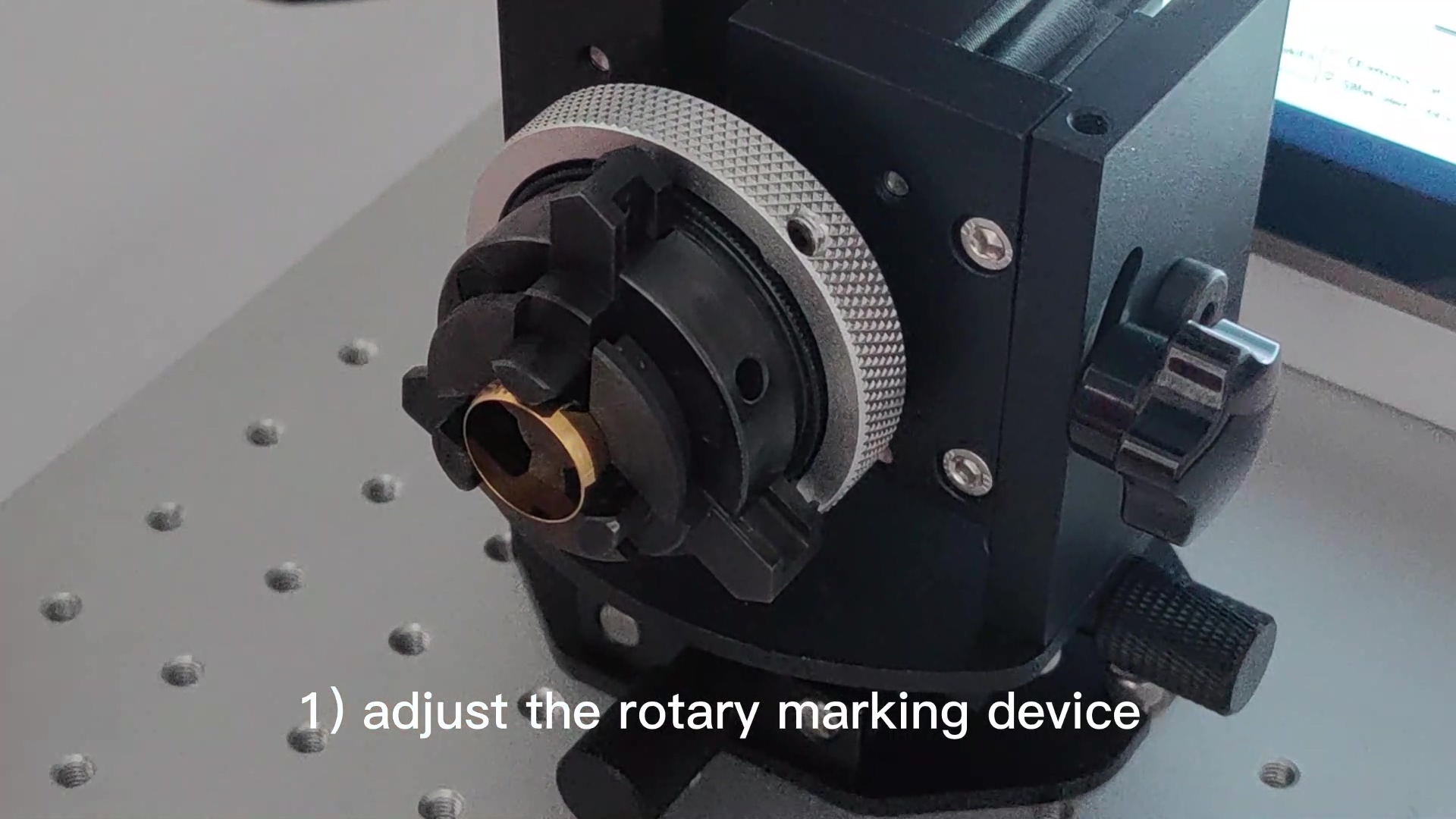

adjust the rotary marking device
1) adjust the rotary marking device

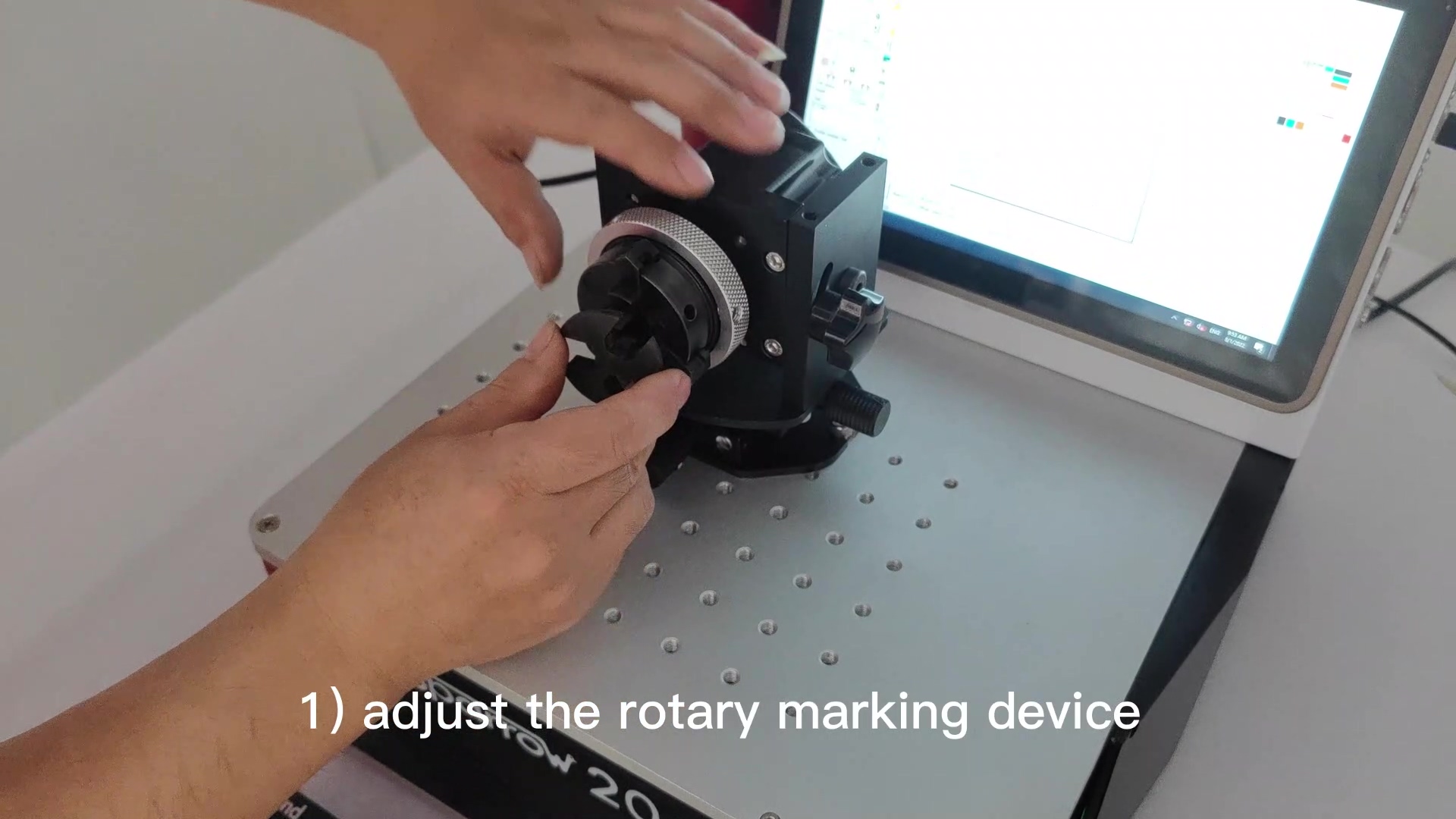

adjust the rotary marking device
1) adjust the rotary marking device

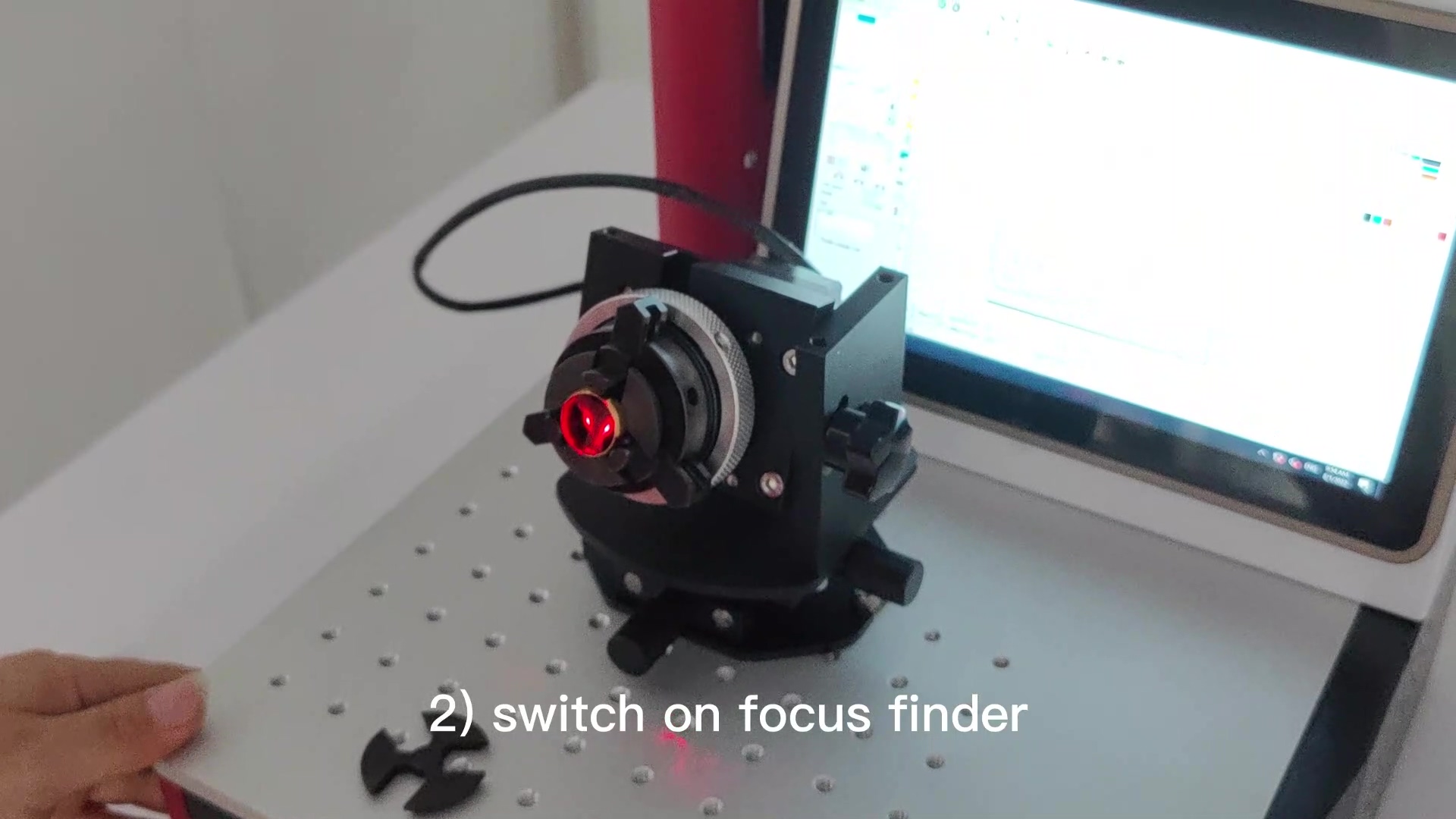

switch on the focus finder
2) switch on the focus finder

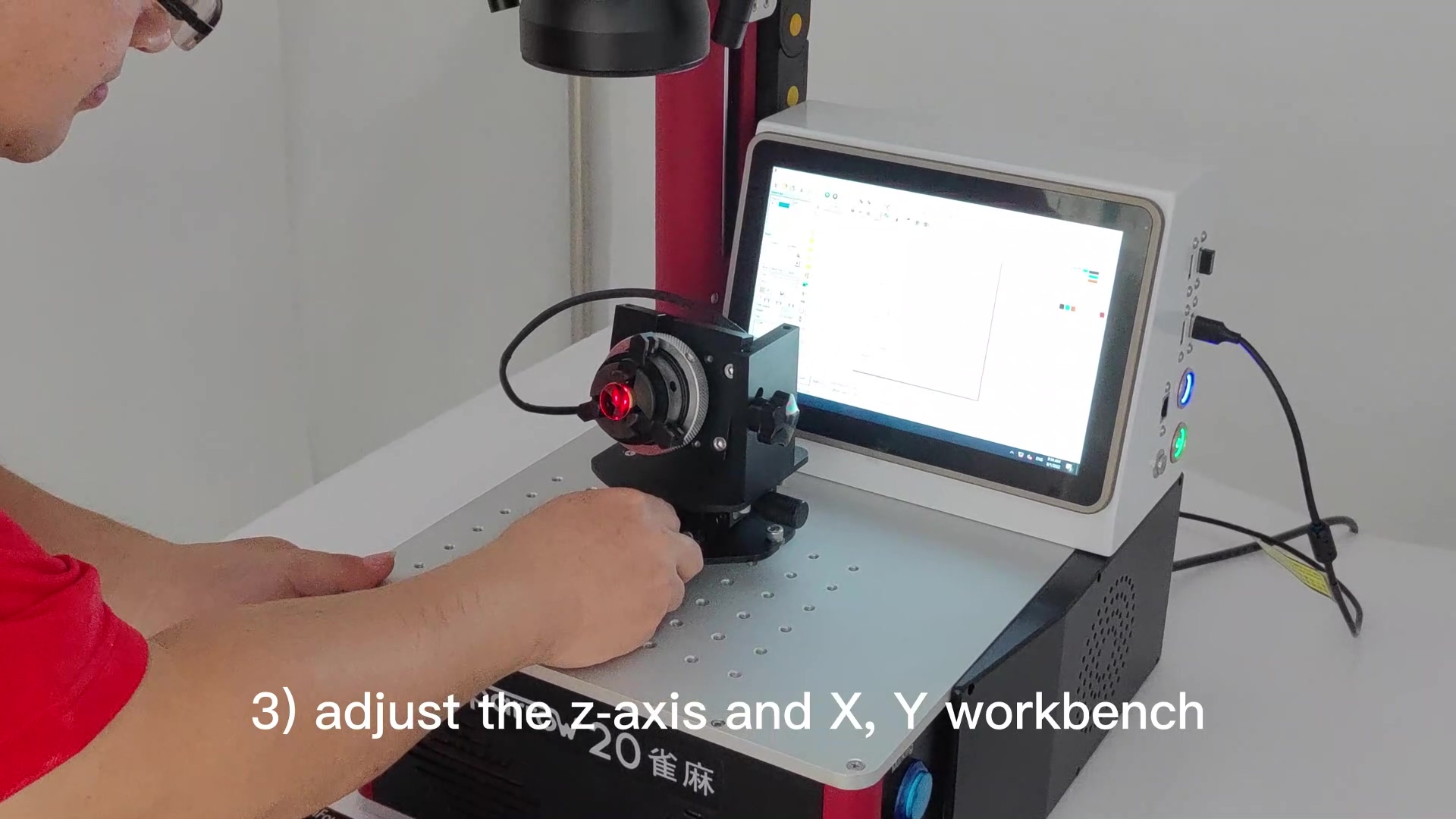

adjust the z-axis and X, Y workbench
3) adjust the z-axis and X, Y workbench

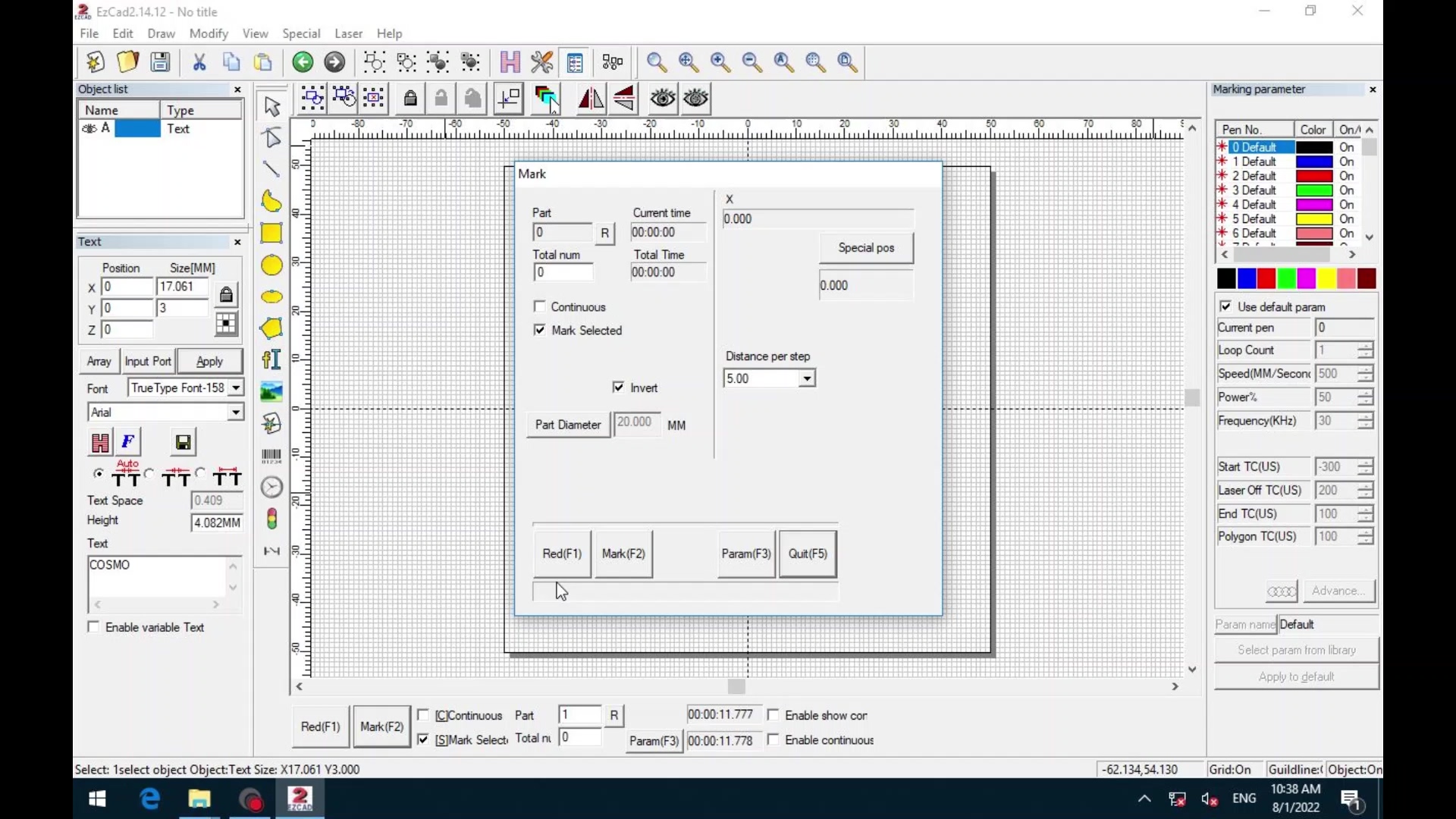

according to the instructions in the video, enter the content to be marked in the marking software

4) according to the instructions in the video, enter the content to be marked in the marking software

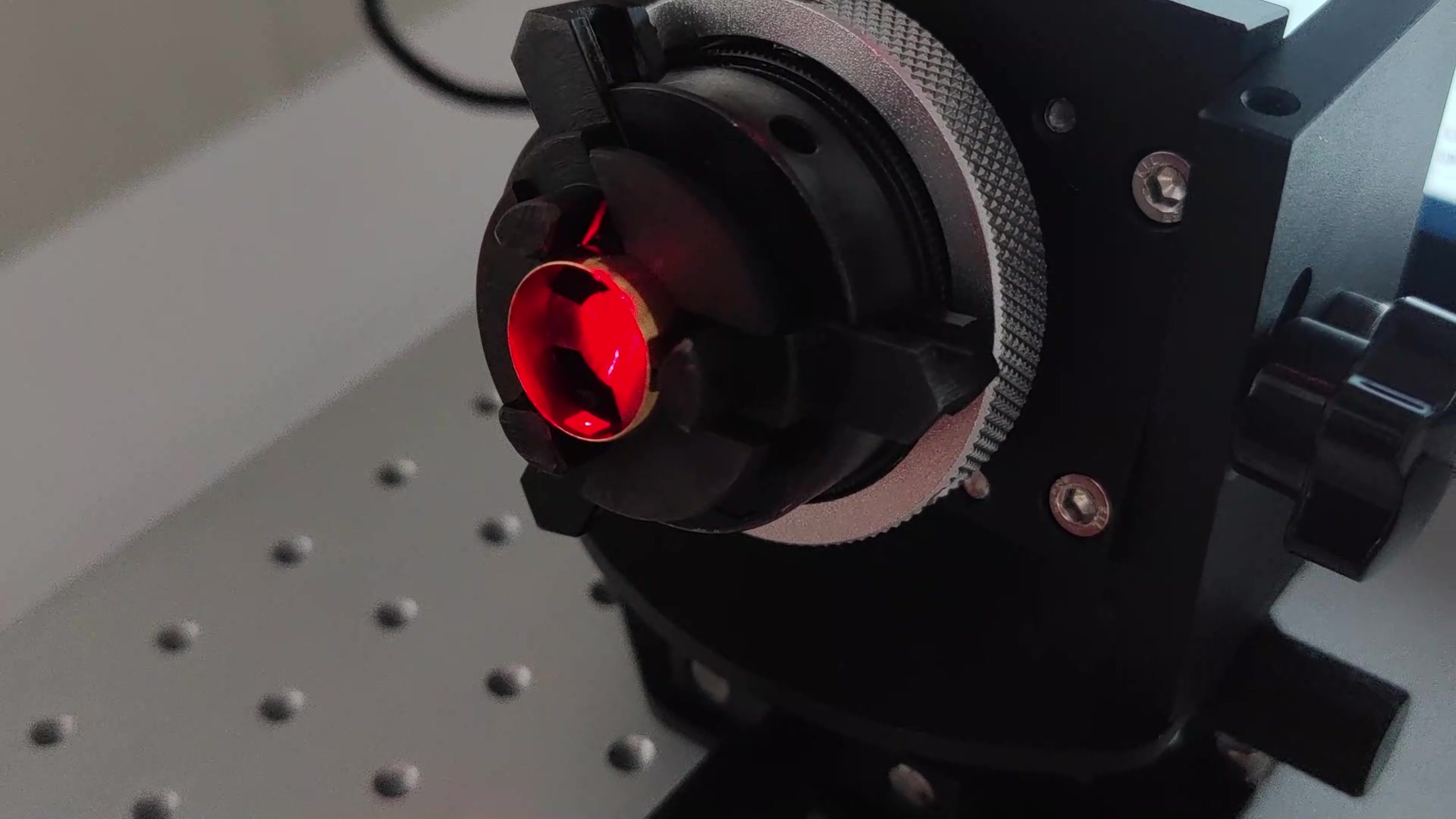

red light preview

5) red light preview

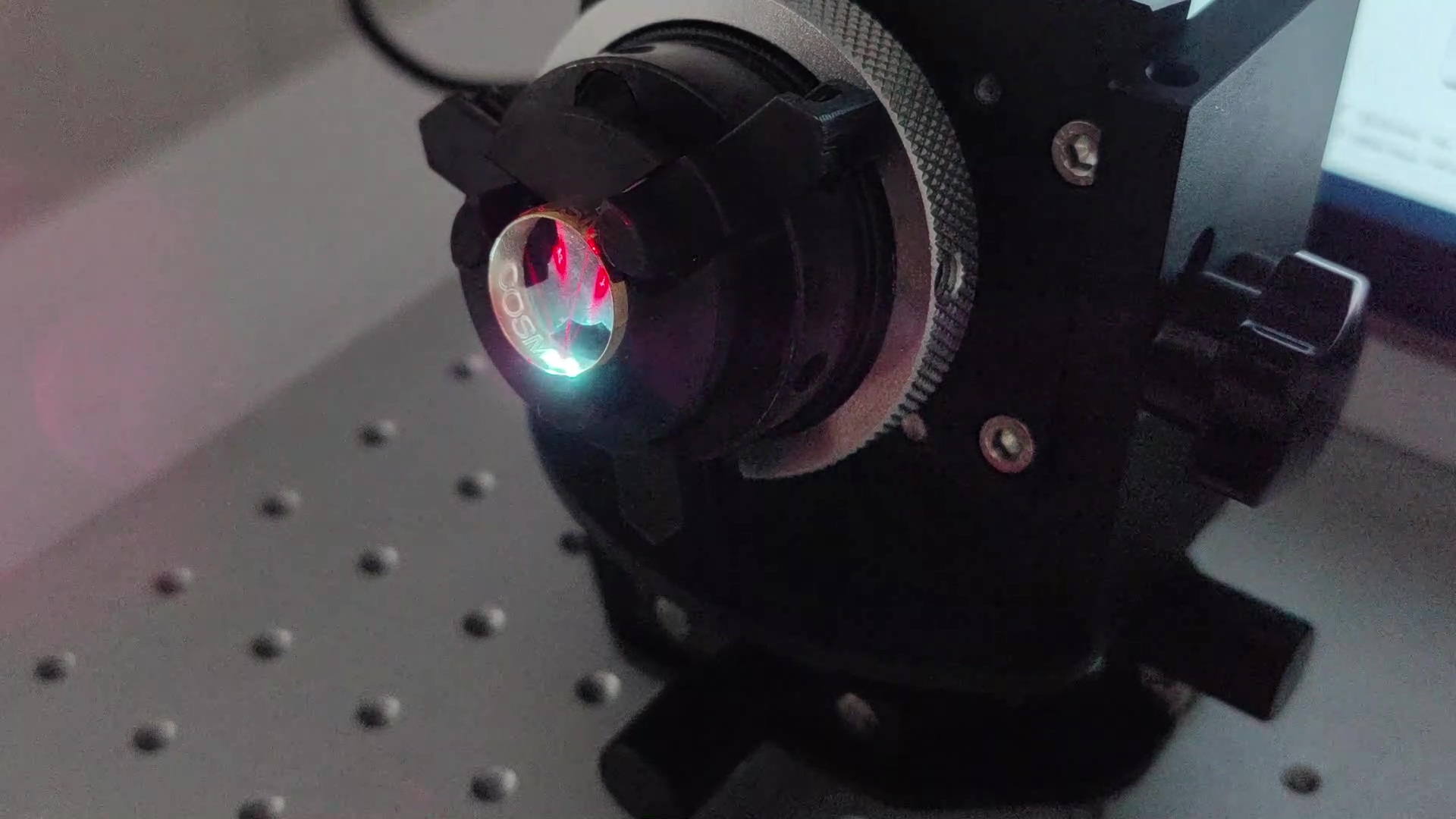

laser marking
6) laser marking
