Laser Marking Machine
            Front of the Machine
machine size

the machine is with a 10 inch×7 inch built-in touch screen computer

(can also be controlled by keyboard and mouse)

Side of the Machine

machine parts

Machine Parts: 1) mark button

2) focus finder on/off switch

3) laser power on/off switch

4) main power on/off switch

5) computer on/off switch

machine parts2

Machine Parts: 1) rotary marking device connector

2) motorized z-axis to focus(raise&lower) the laser output



            The Guide to Mark the Flat Surface of Workpieces

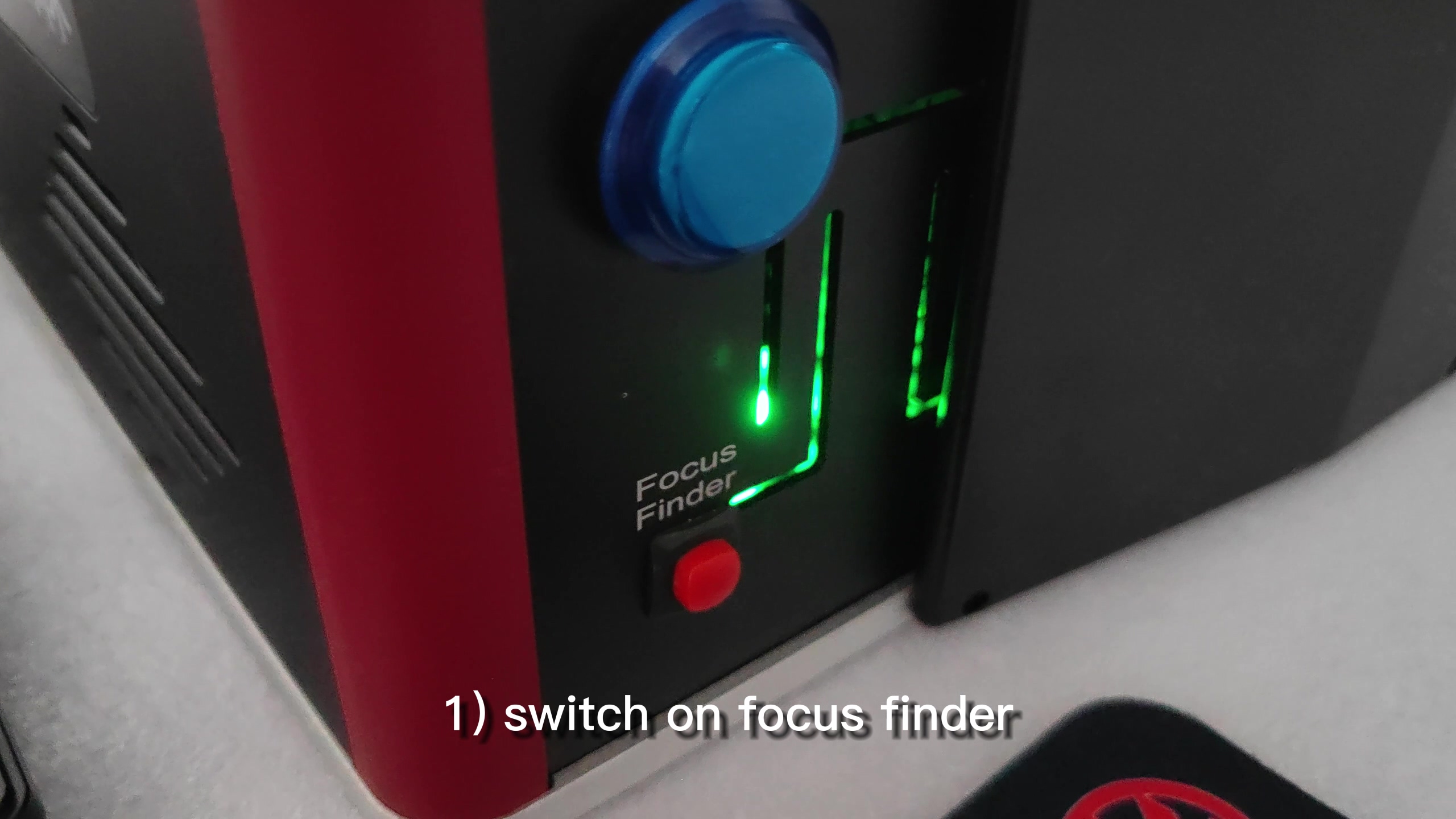

switch on the focus finder
1) switch on the focus finder

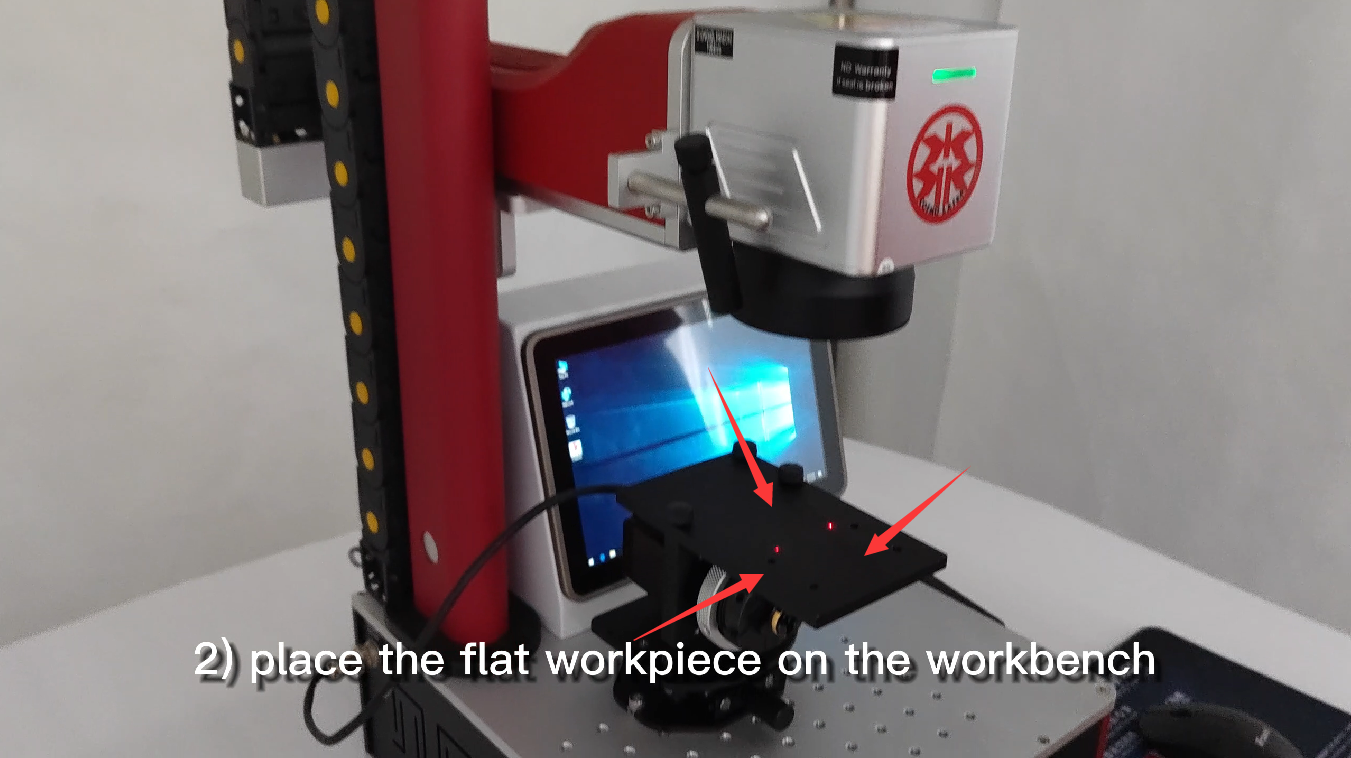

place the flat workpiece on the workbench
2) place the flat workpiece on the workbench

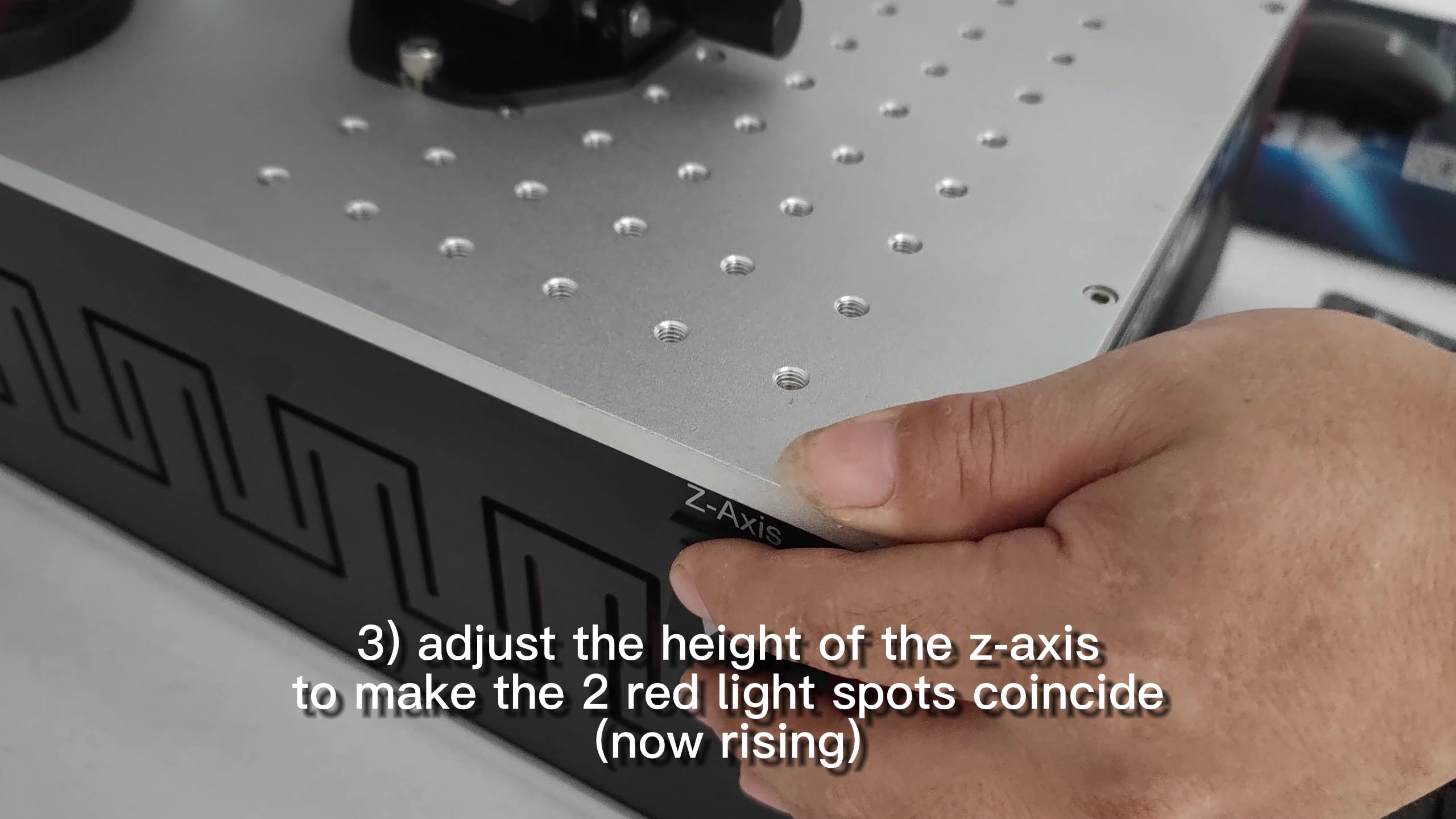

adjust the height of the z-axis to make the 2 red light spots coincide
3) adjust the height of the z-axis to make the 2 red light spots coincide
the 2 red light spots coincide
3) the 2 red light spots coincide

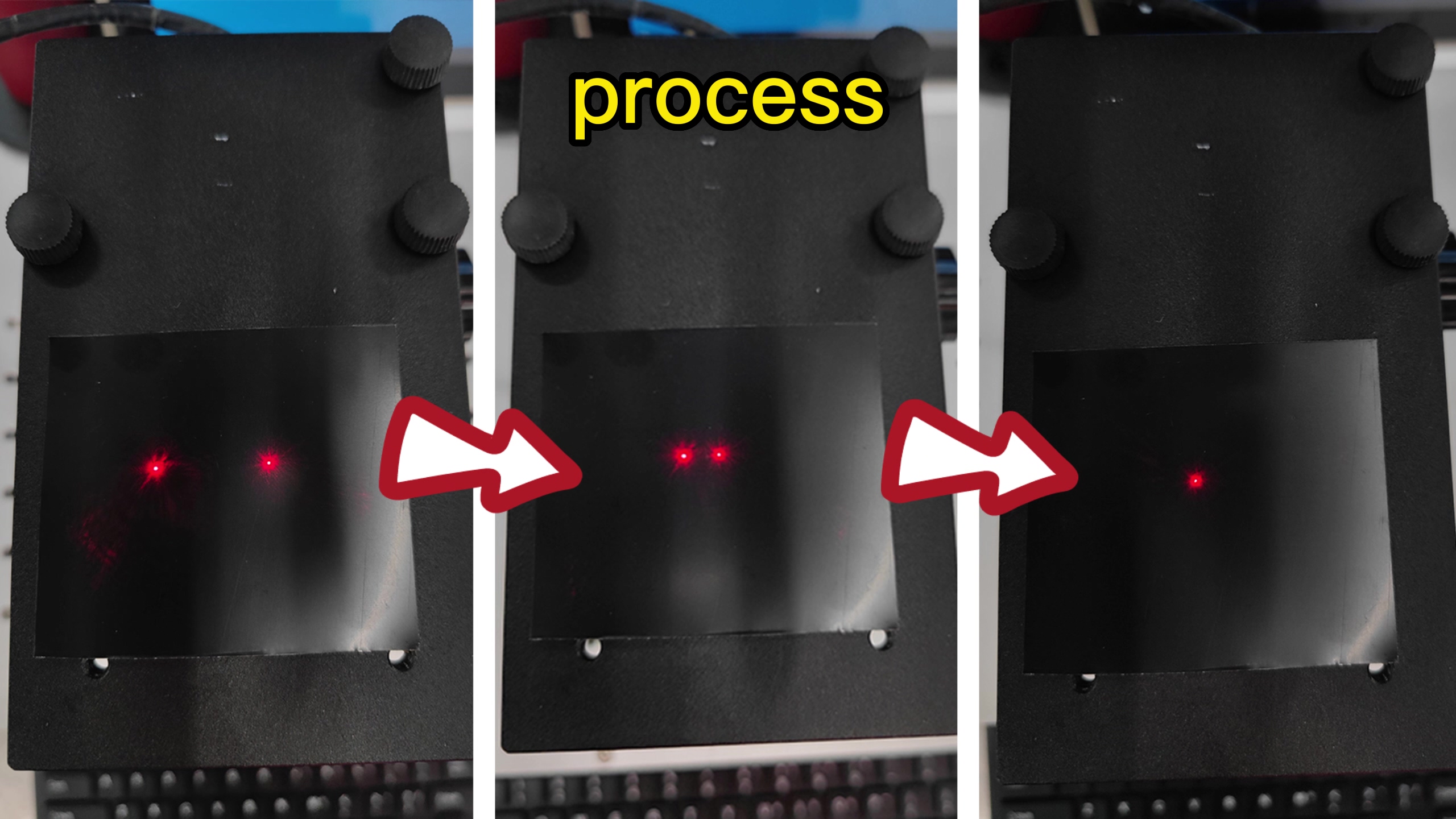

the process of the 2 red light spots coinciding

3) the process of the 2 red light spots coinciding

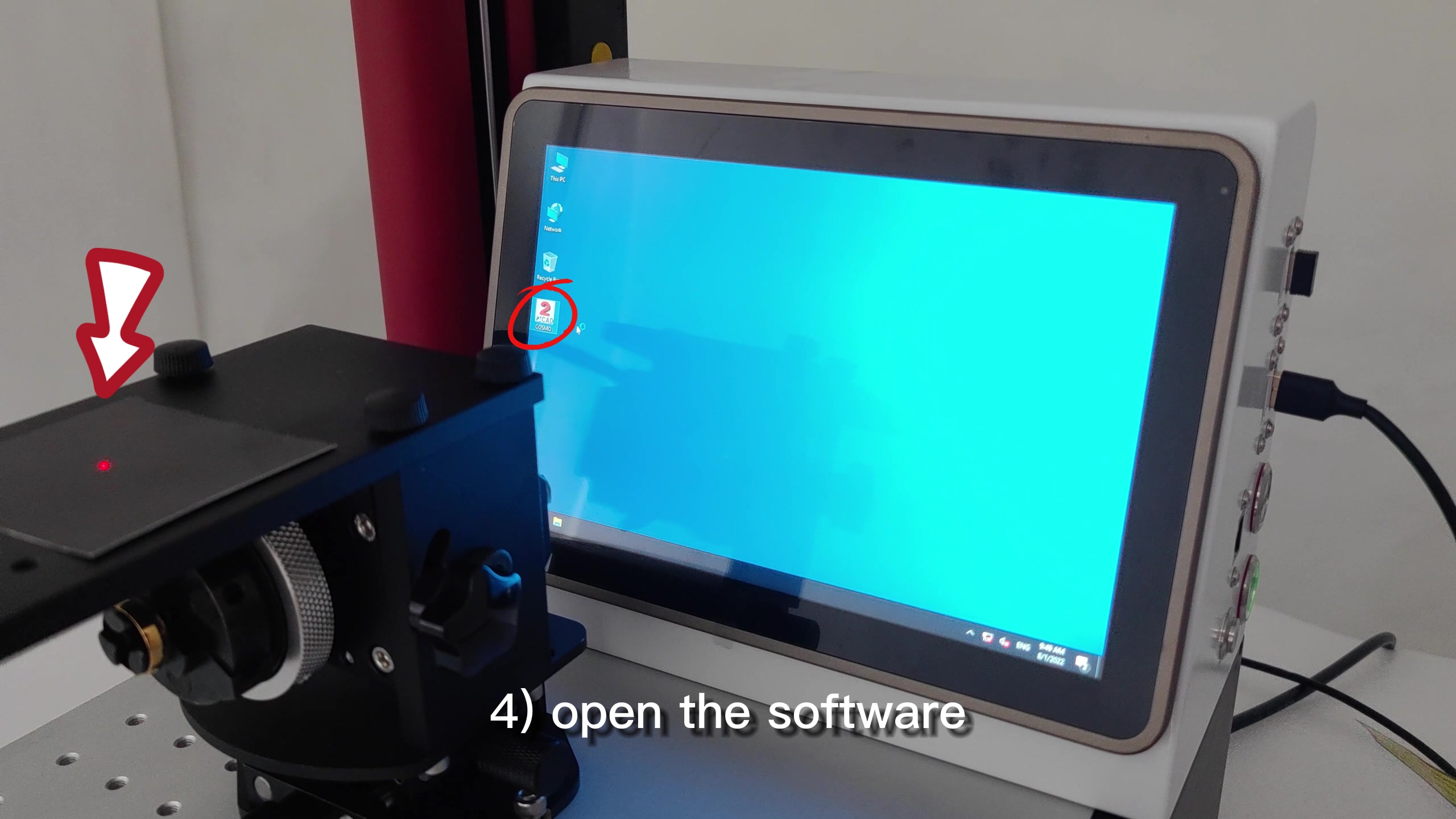

open the software

4) open the software

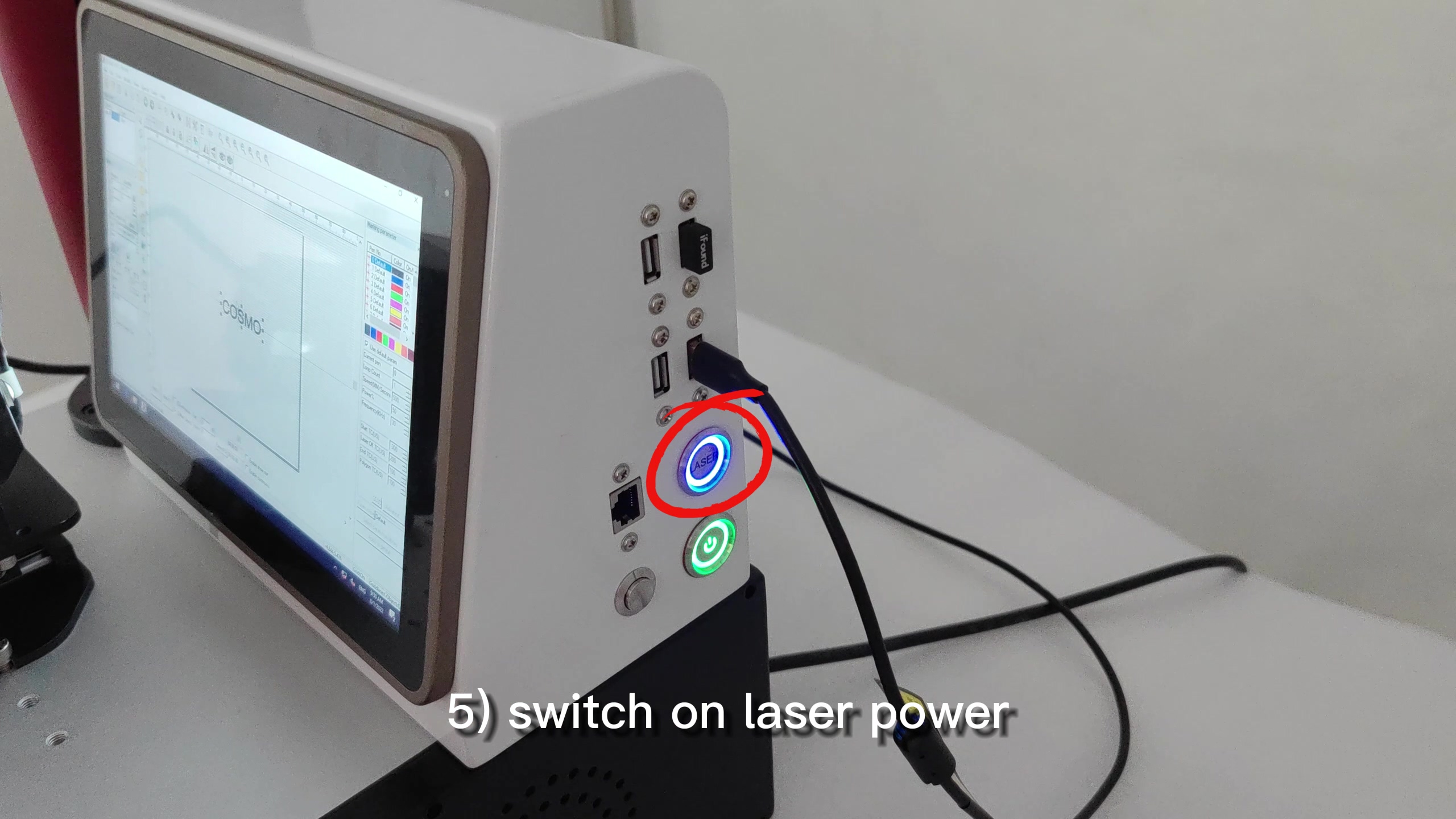

switch on the laser power
5) switch on the laser power

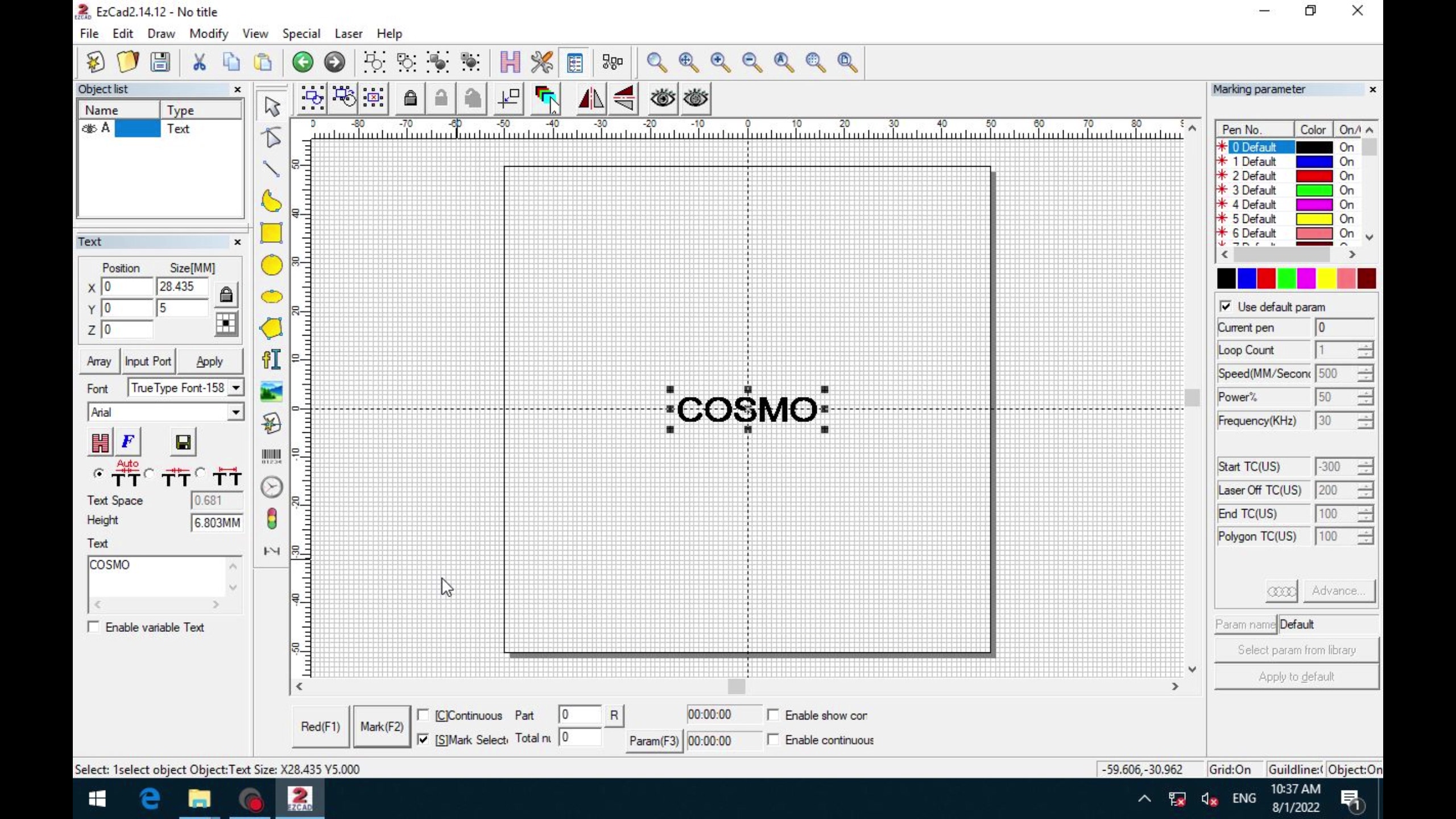

according to the instructions in the video, enter the content to be marked in the marking software

6) according to the instructions in the video,

enter the content to be marked in the marking software

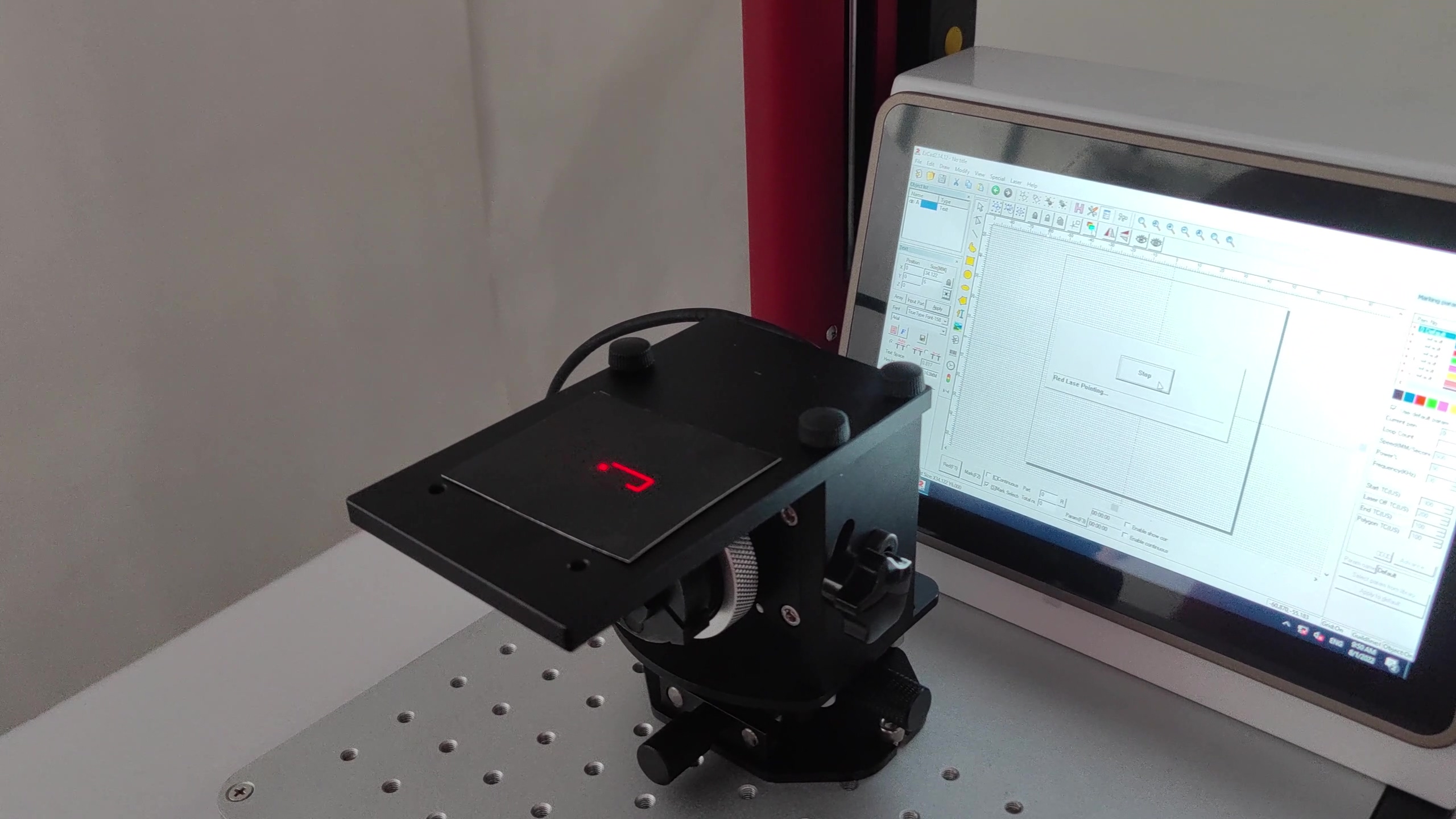

red light preview
7) red light preview

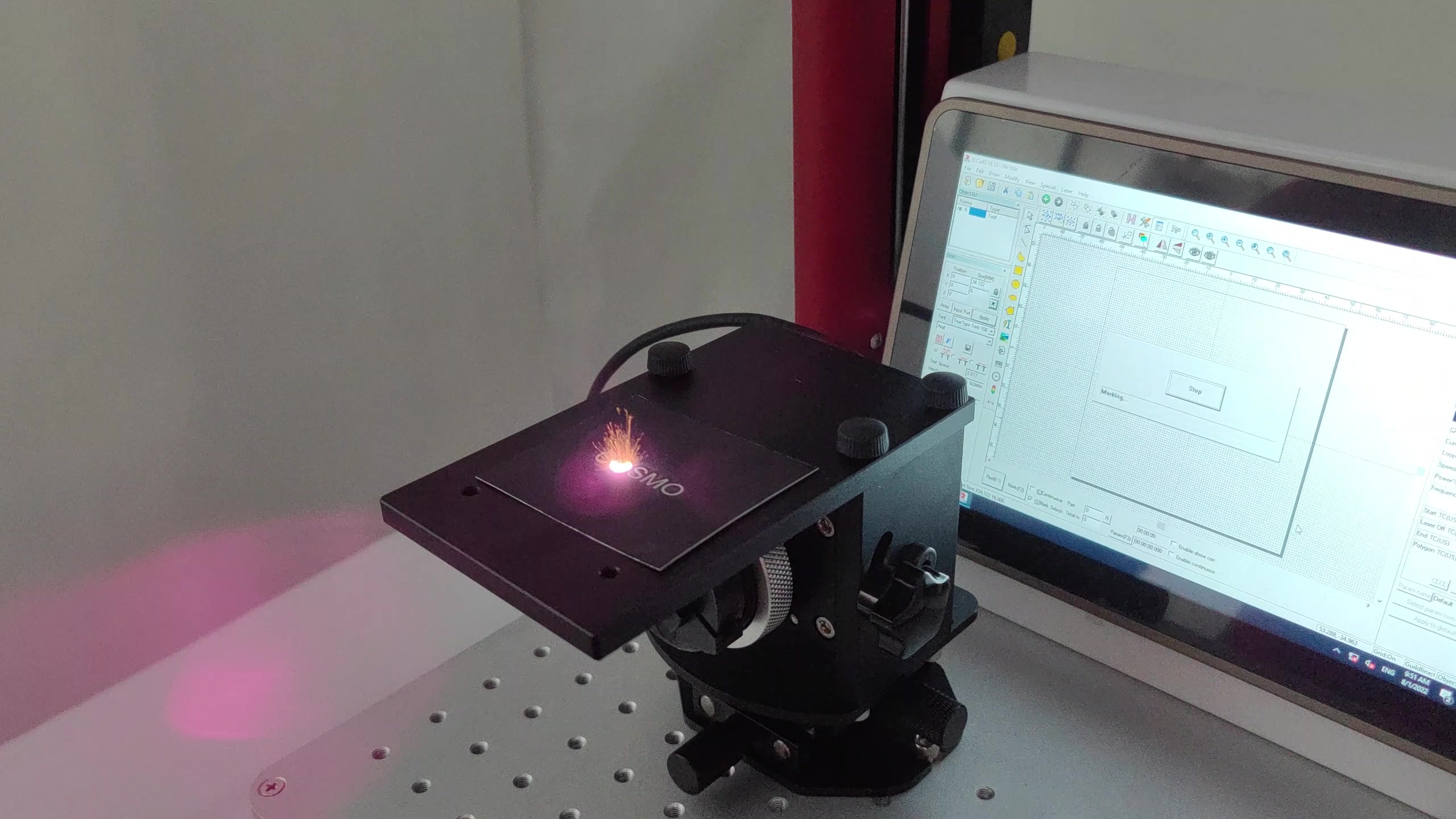

laser marking
8) laser marking
