Cosmo fibre laser cutting machine(model: CPC-500G3) always works together with a high-pressure air compressor. The consumables of the air compressor include a lubricating oil filter, air-oil separator and air intake filter. Remember, proper maintenance of these consumables ensures optimal compressor performance and longevity!
Filter type: Compressed Air-Oil Separation

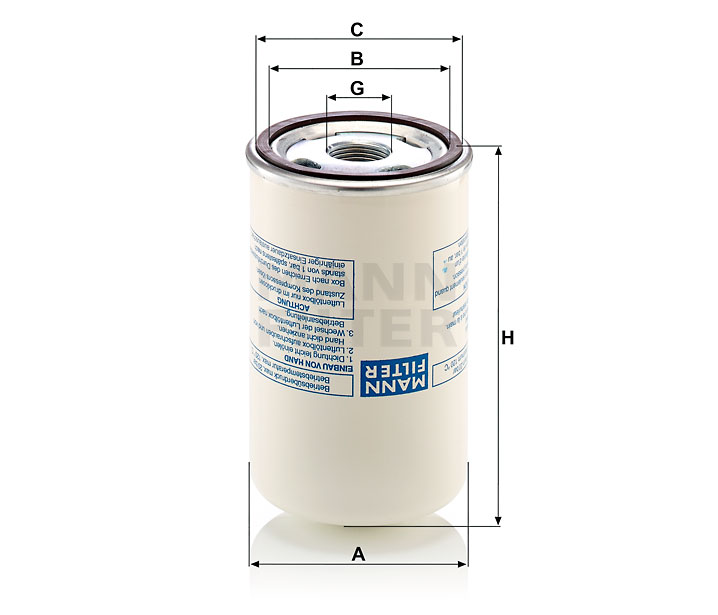

Dimensions (mm):
A-76
B-62
C-71
G-M22x1.5
H-127

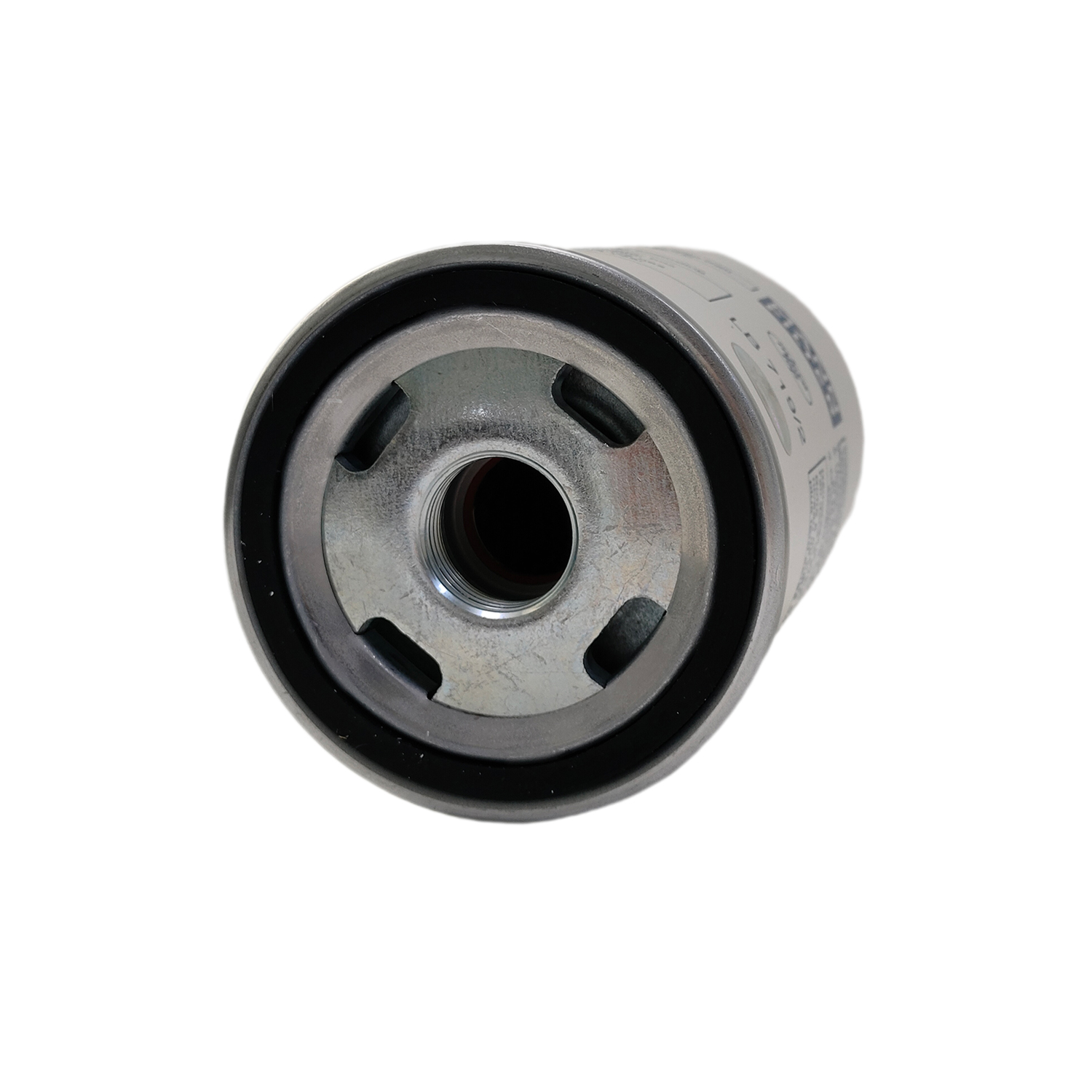

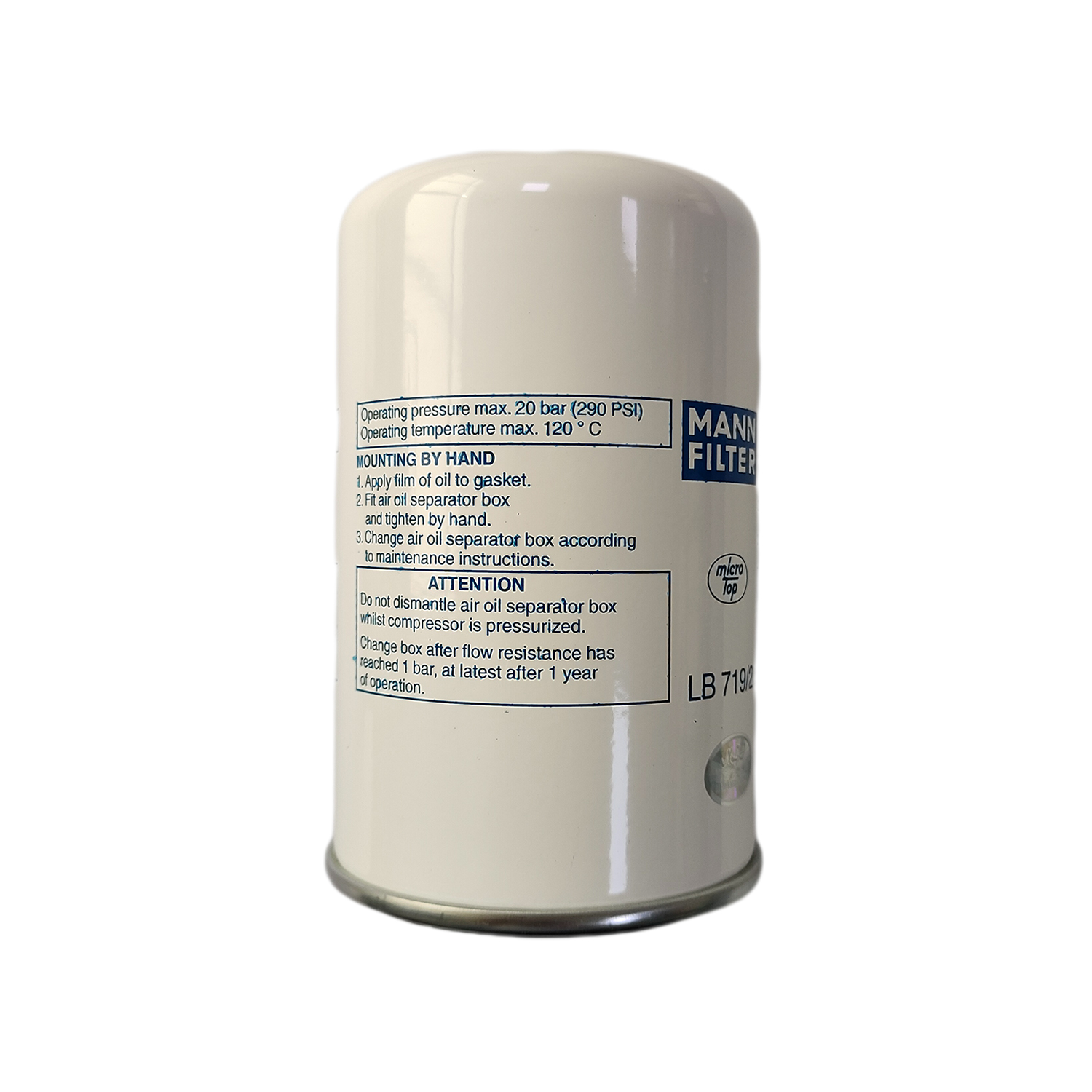

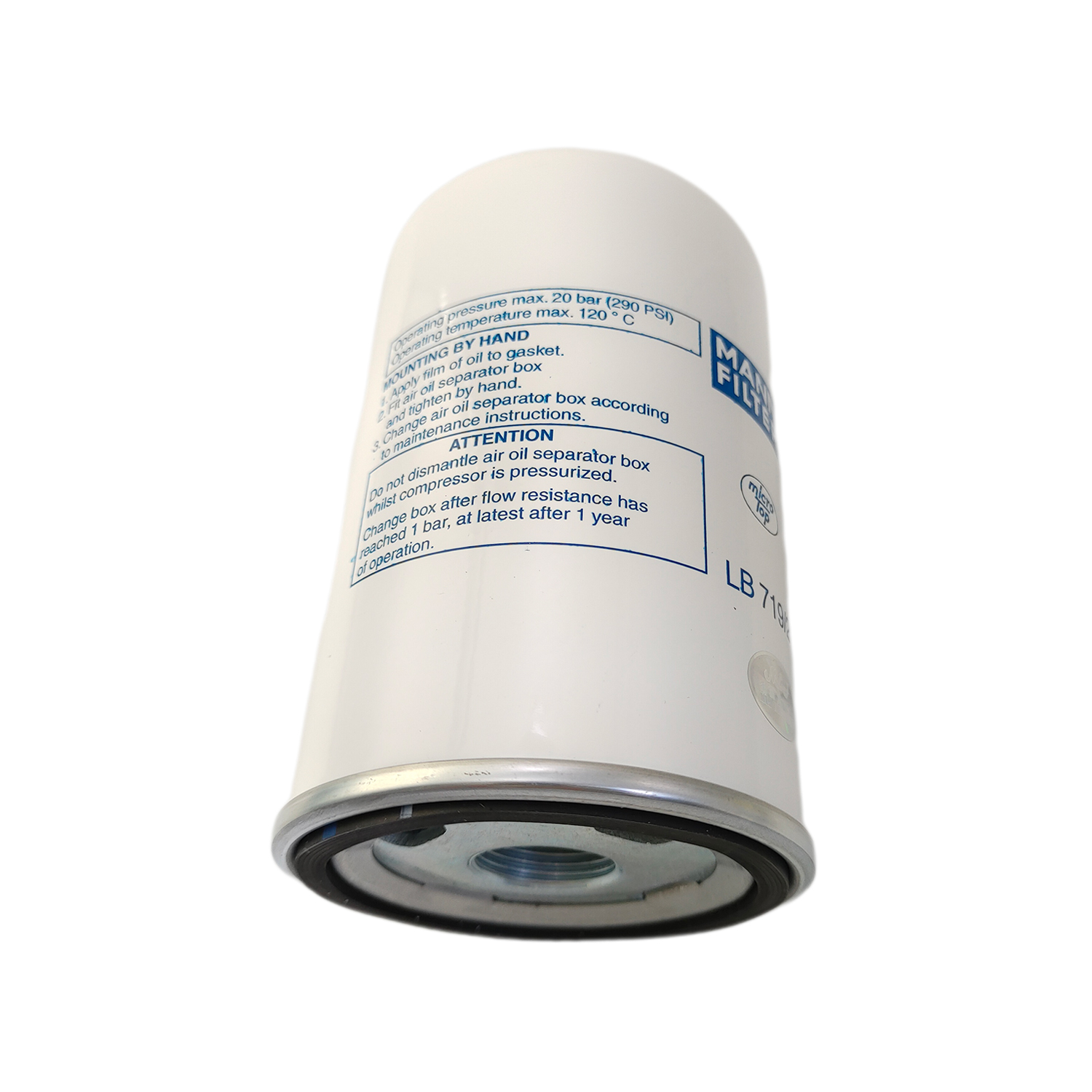

The FILTER LB719/2 filter element replacement is built with the highest quality materials and workmanship. Coalescing filter elements, also known as air/oil separators, are used to remove water, oil vapor and other contaminants from a compressed air line. These coalescing filters provide the highest level of clean compressed air with a minimum loss of pressure. Our coalescing filter elements are tough enough to hold their shape under pressure and maintain even pressure differentials to avoid collapsing of the filter element.
Filter type: Hydraulics
Product Details: for high pressure.

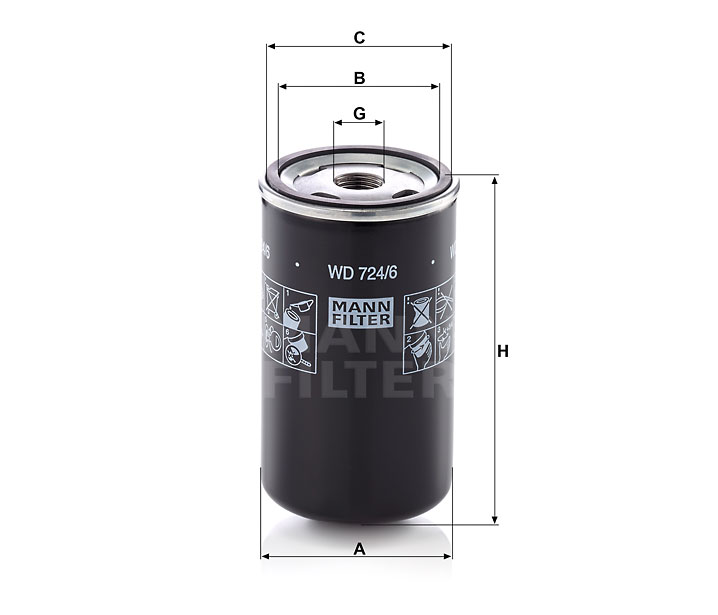

Dimensions (mm):
A-76
B-62
C-71
G-3/4-16 UNF
H-138

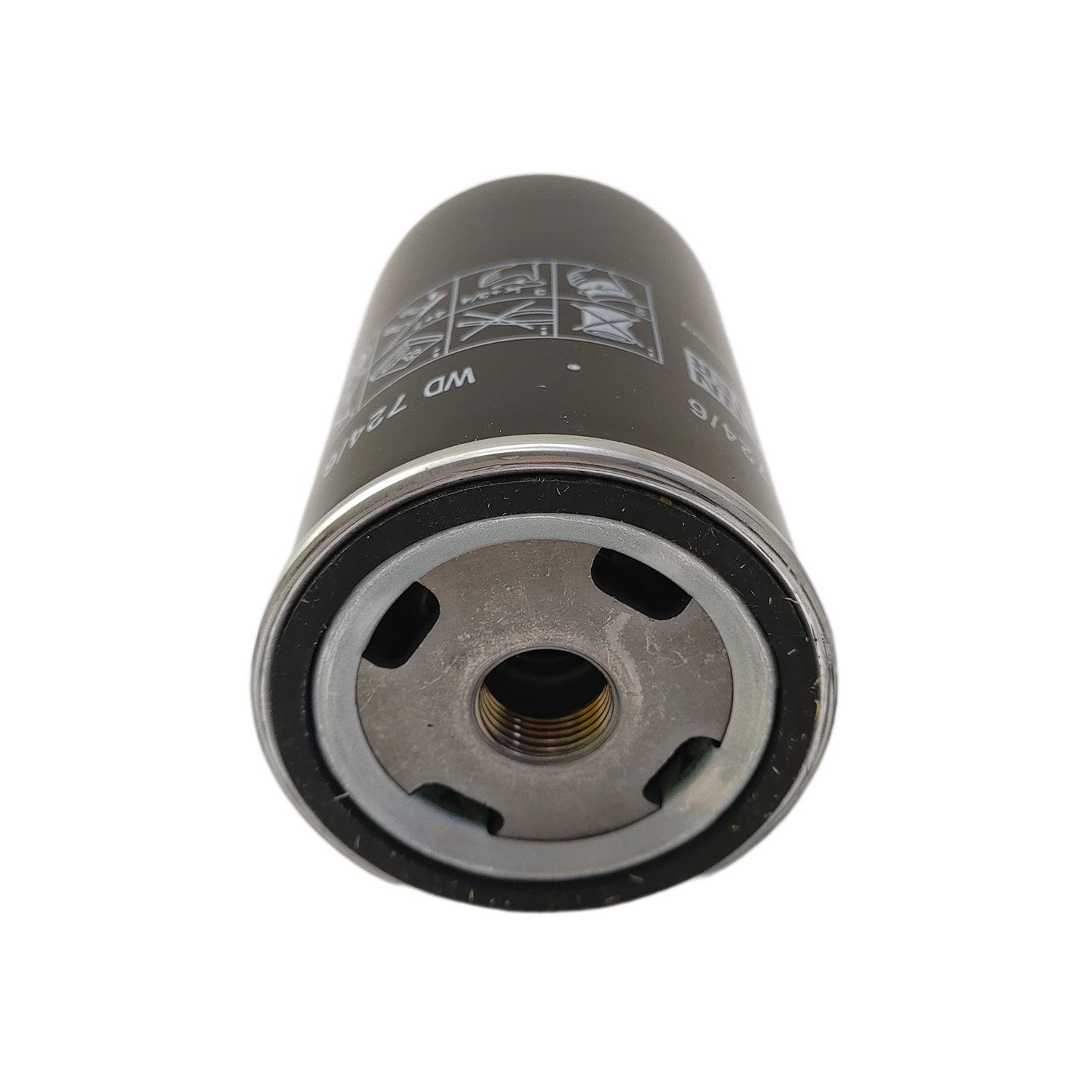

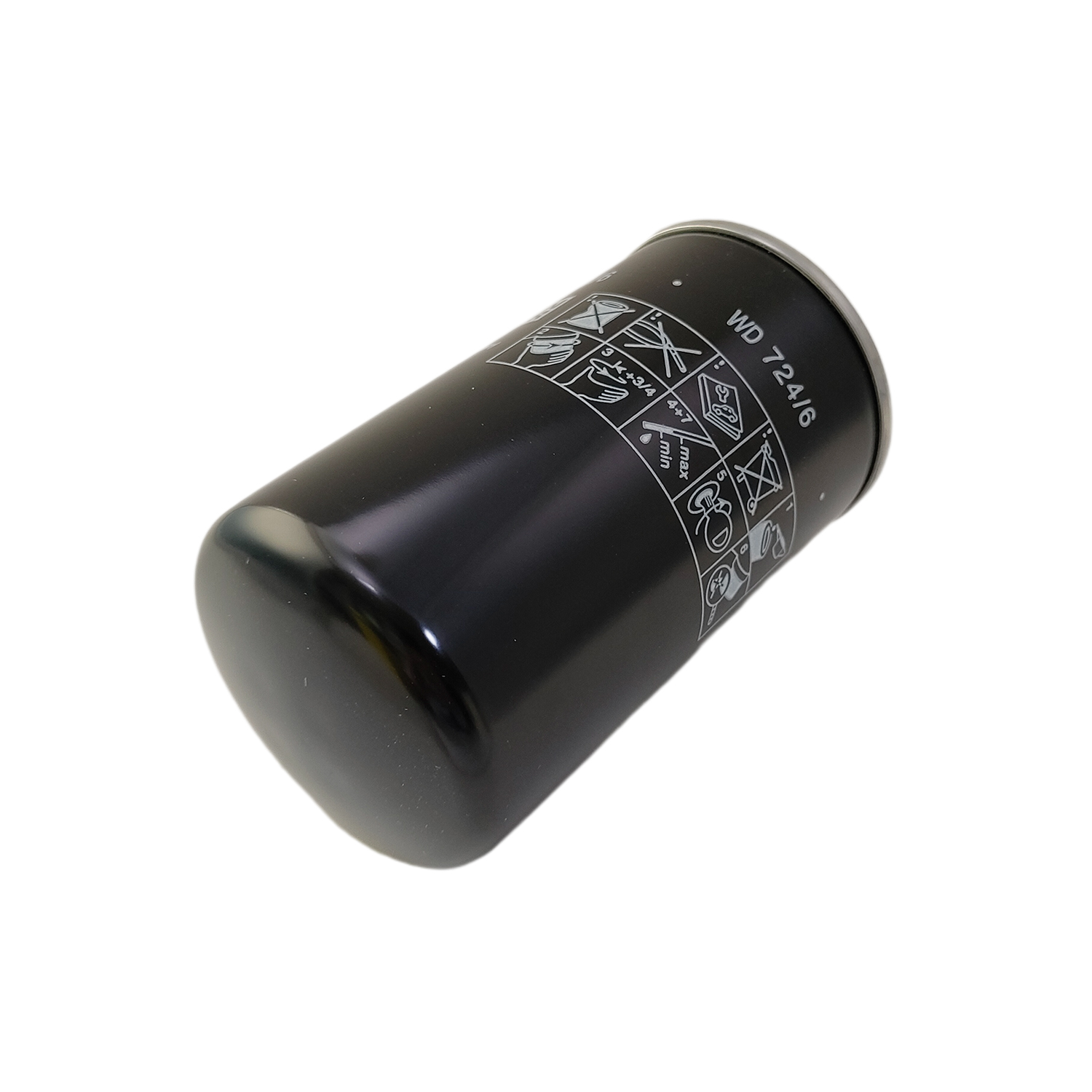

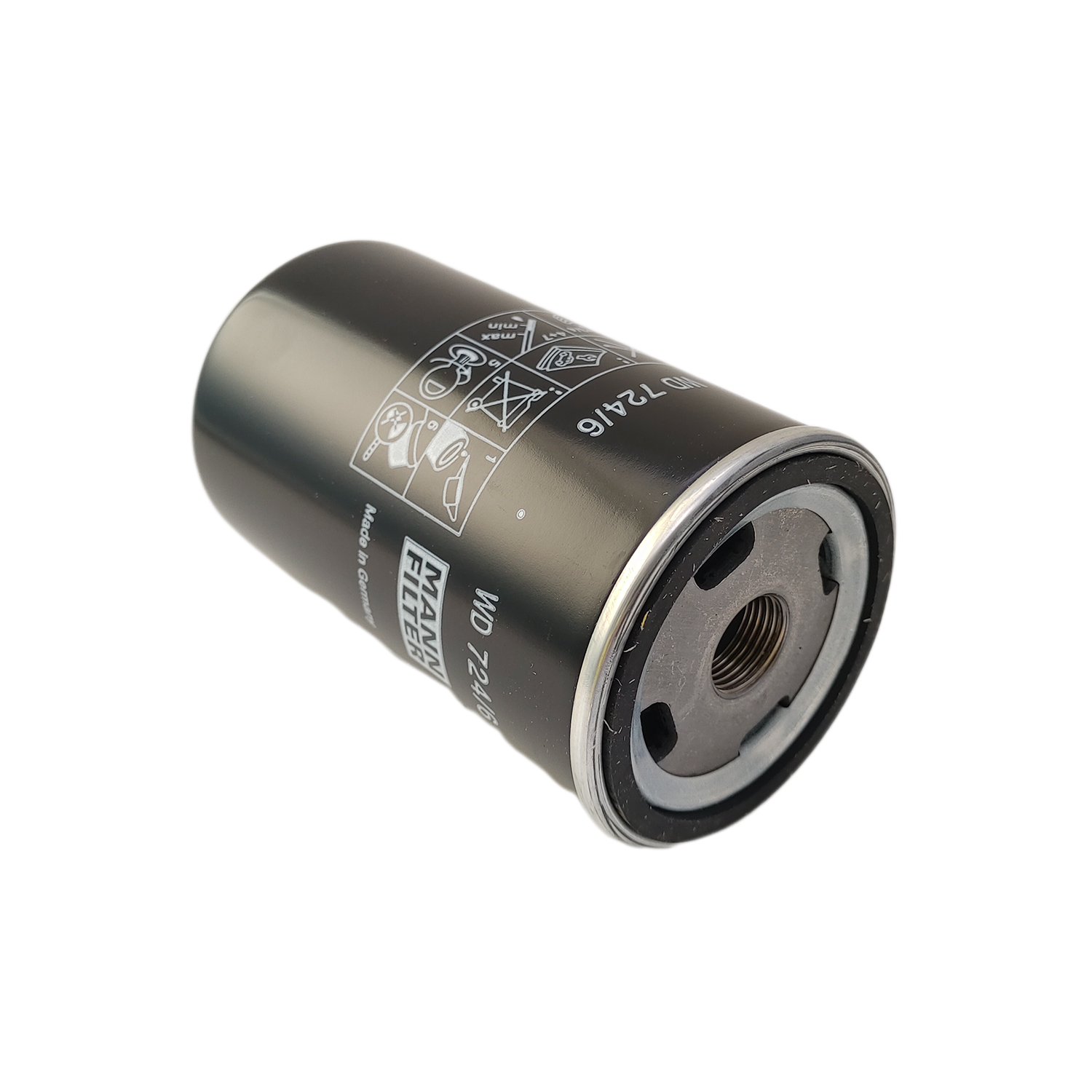

The FILTER WD724/6 filter element replacement is built with the highest quality materials and workmanship. Oil filter elements are used to remove contaminants from oil in a compressor system. Required filtration efficiencies are obtained through the exclusive use of high grade filter media and consistent surface area control, obtained by a strict maintenance of pleat quantity and depth. Oil filter leakages are prevented by the positive seals obtained with both plastisol and epoxy encapsulation. Viton seals are used where applications of synthetic oil are typical.
Improves engine life , processing capacity: 1 Cubic
Old filter elements can cause compressor problems and should be replaced to keep the unit running at its highest level

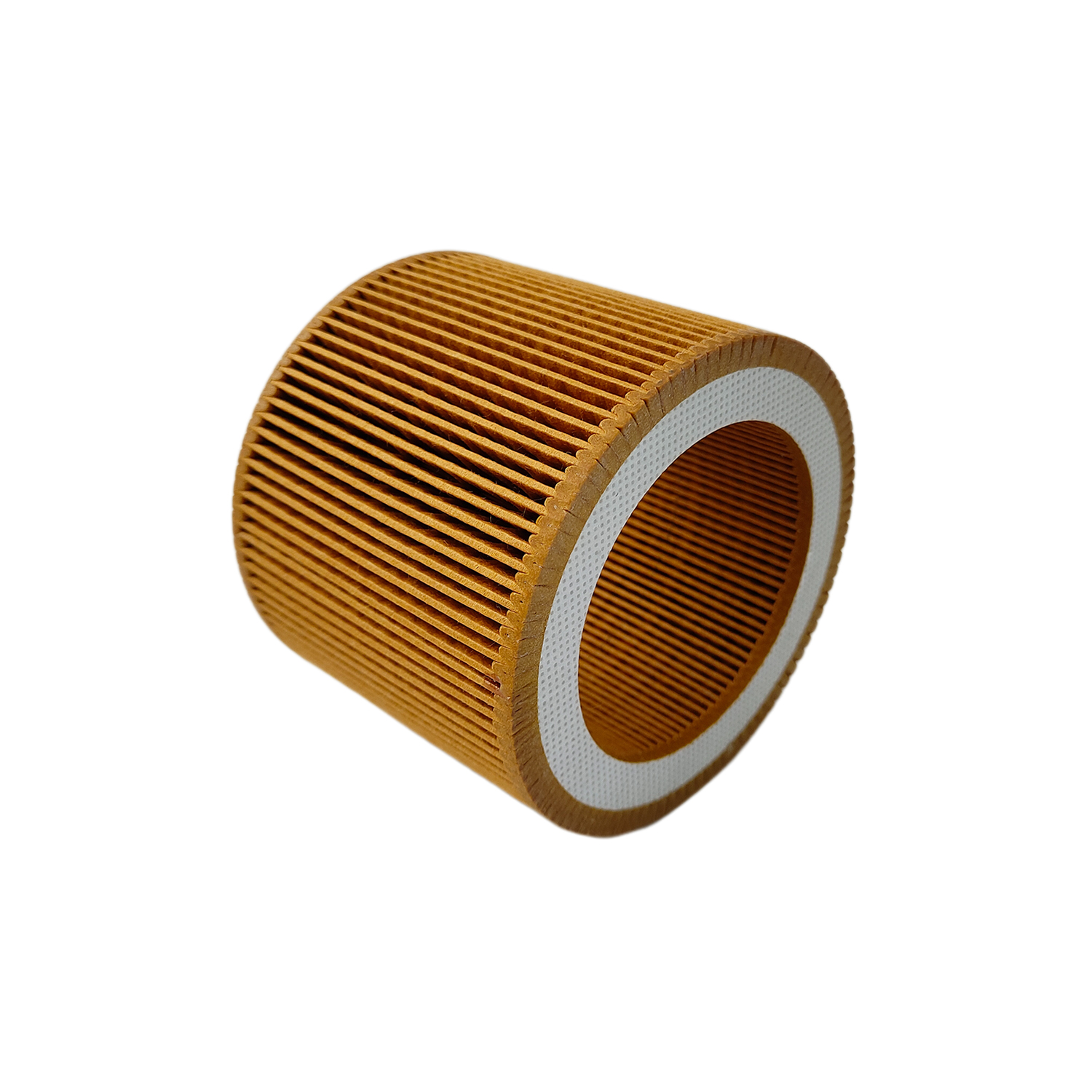

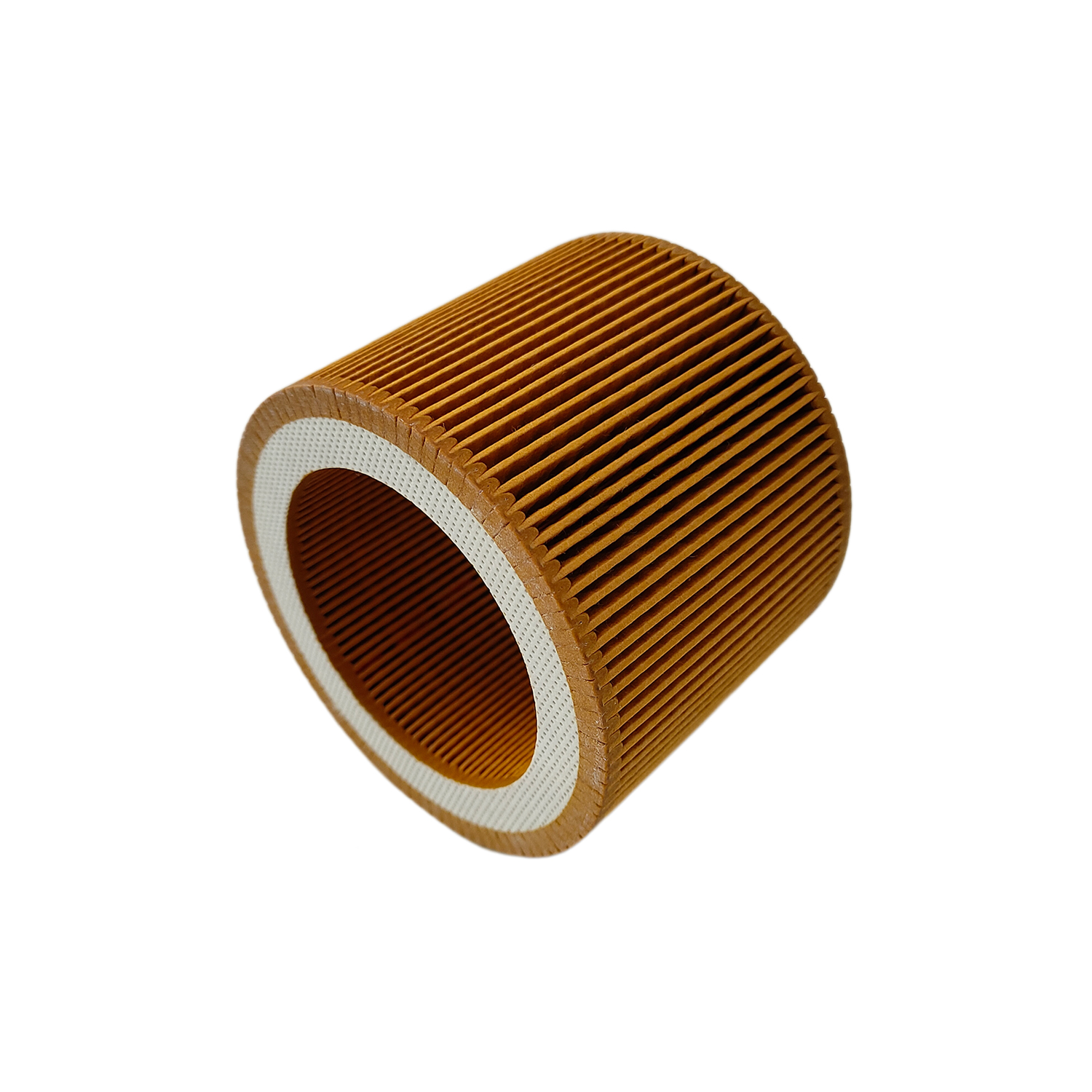

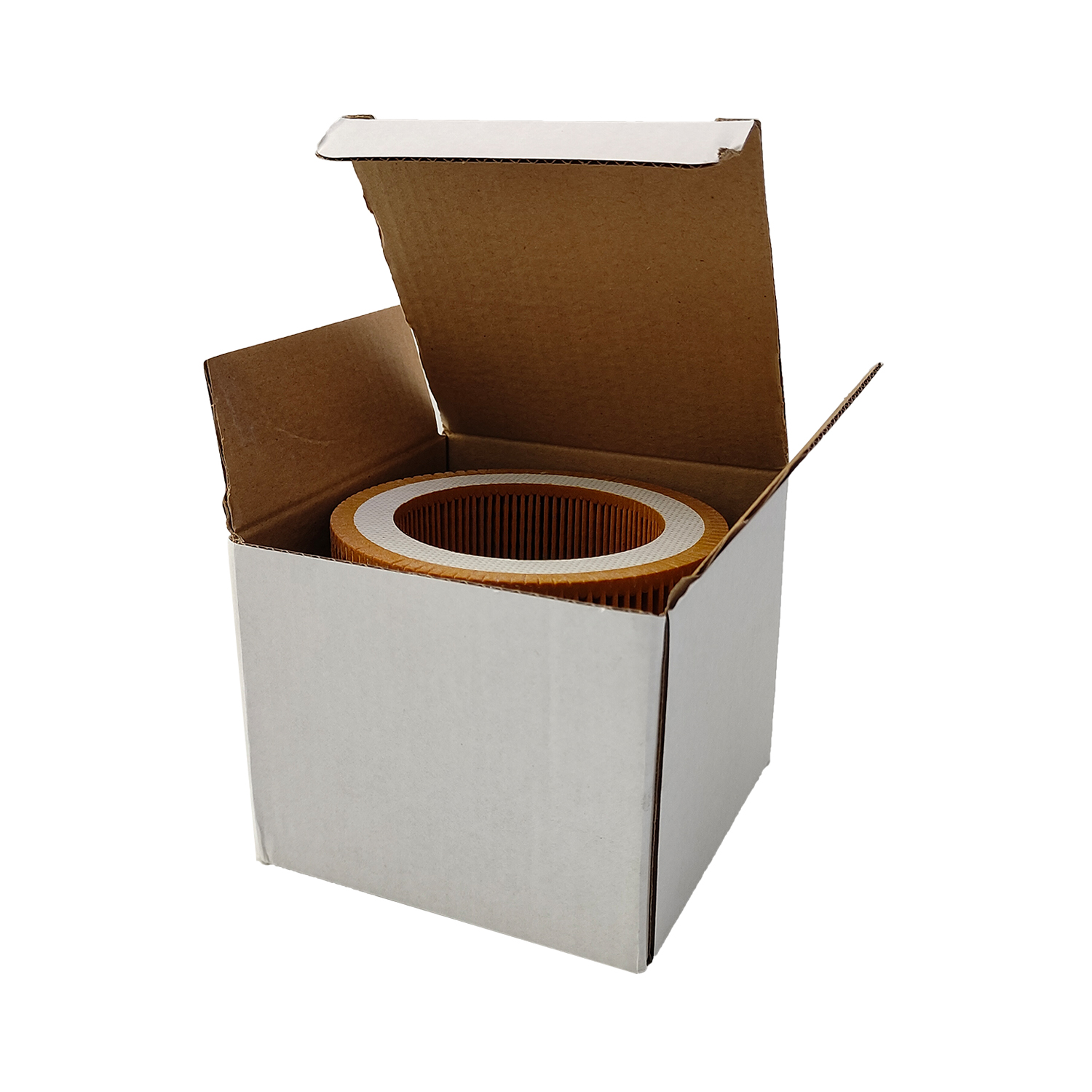

For 5-10HP compressor ; Diameter: 100mm ; Inner diameter: 68mm ; Height: 80mm
Featuring a Proven Durable Design
Designed To Allow Air to Be Pumped Cleanly and Efficiently
