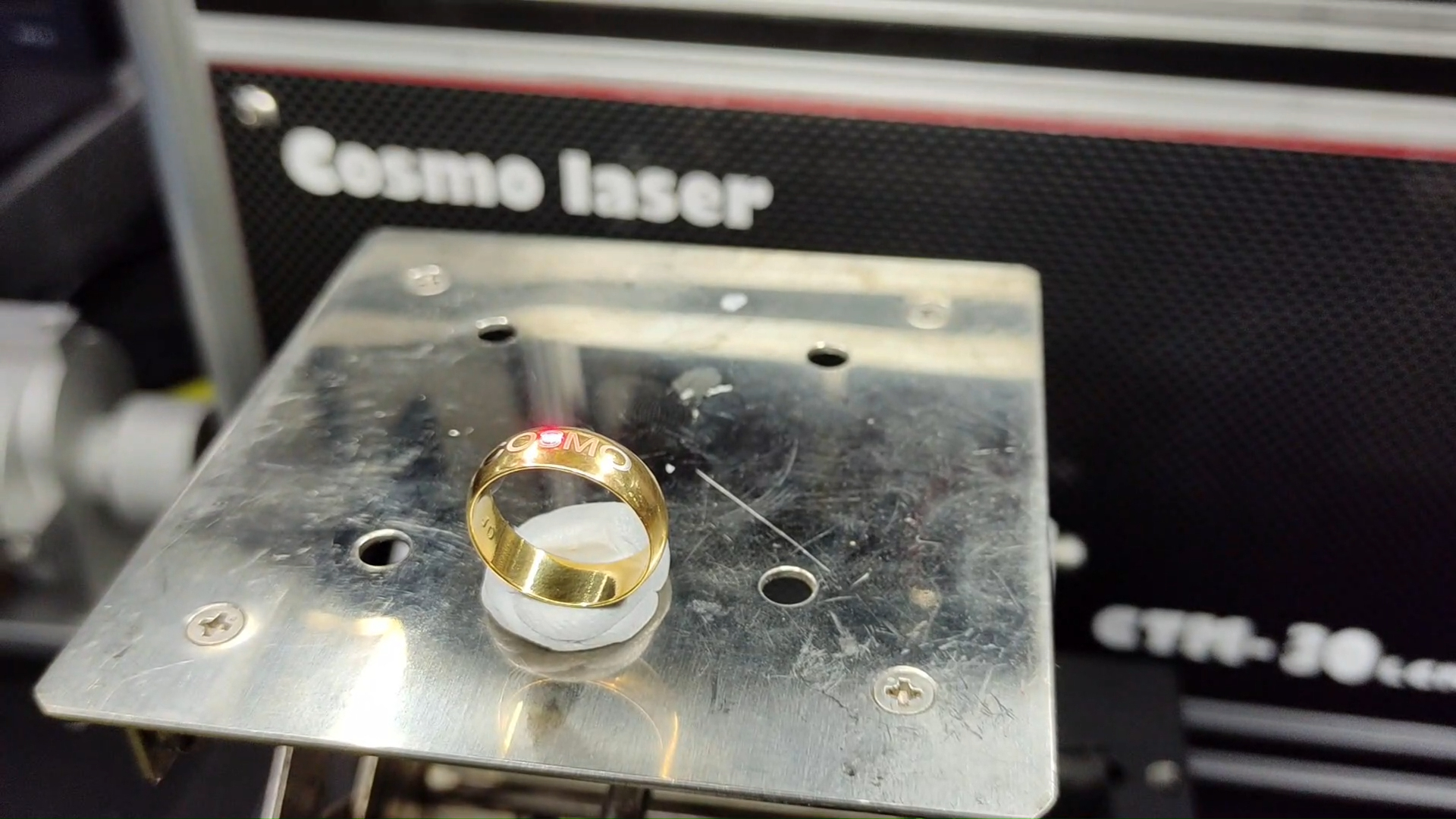

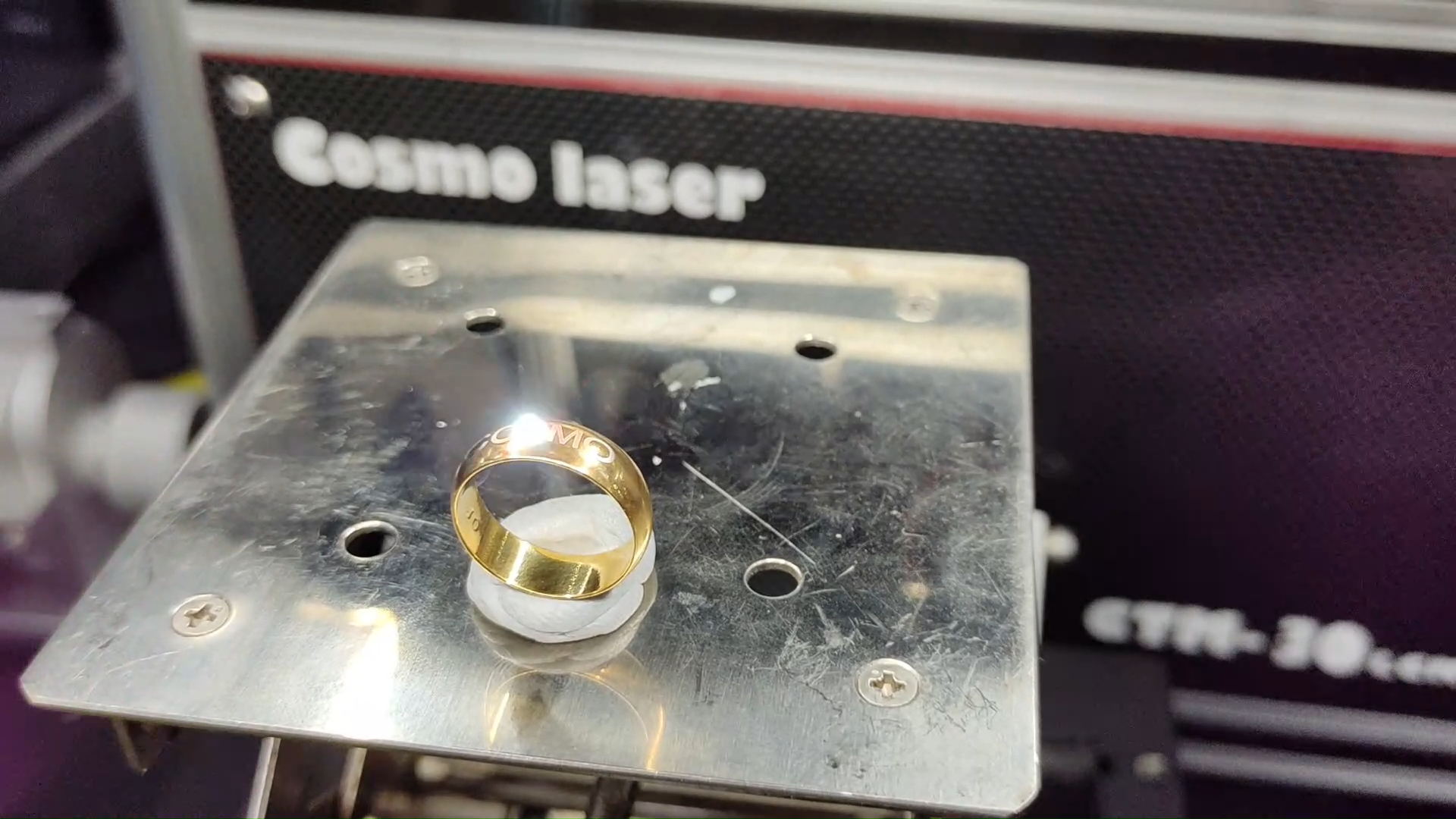

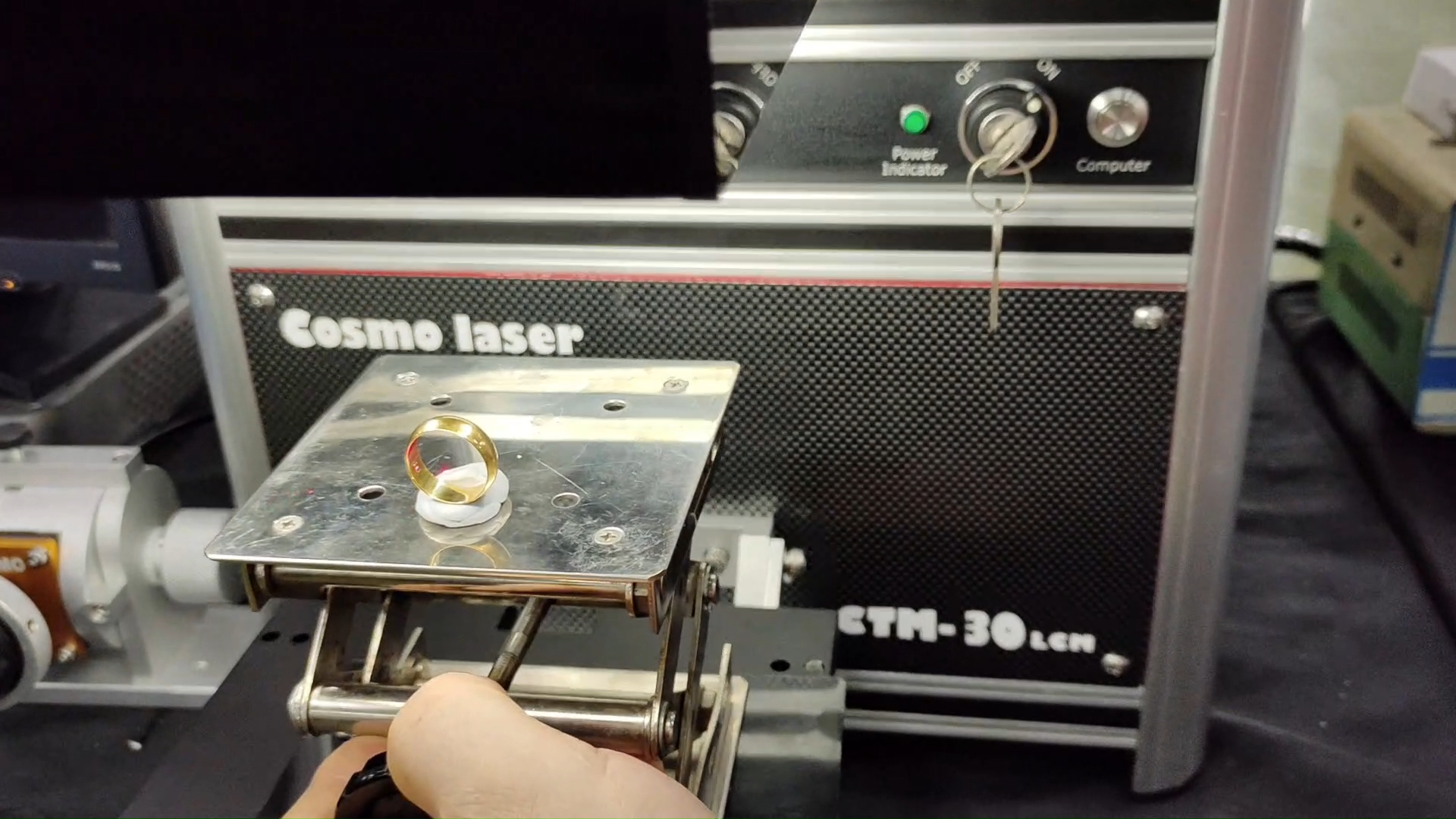

CCD Camera Capture Laser Marking Machine Used in Ring Marking

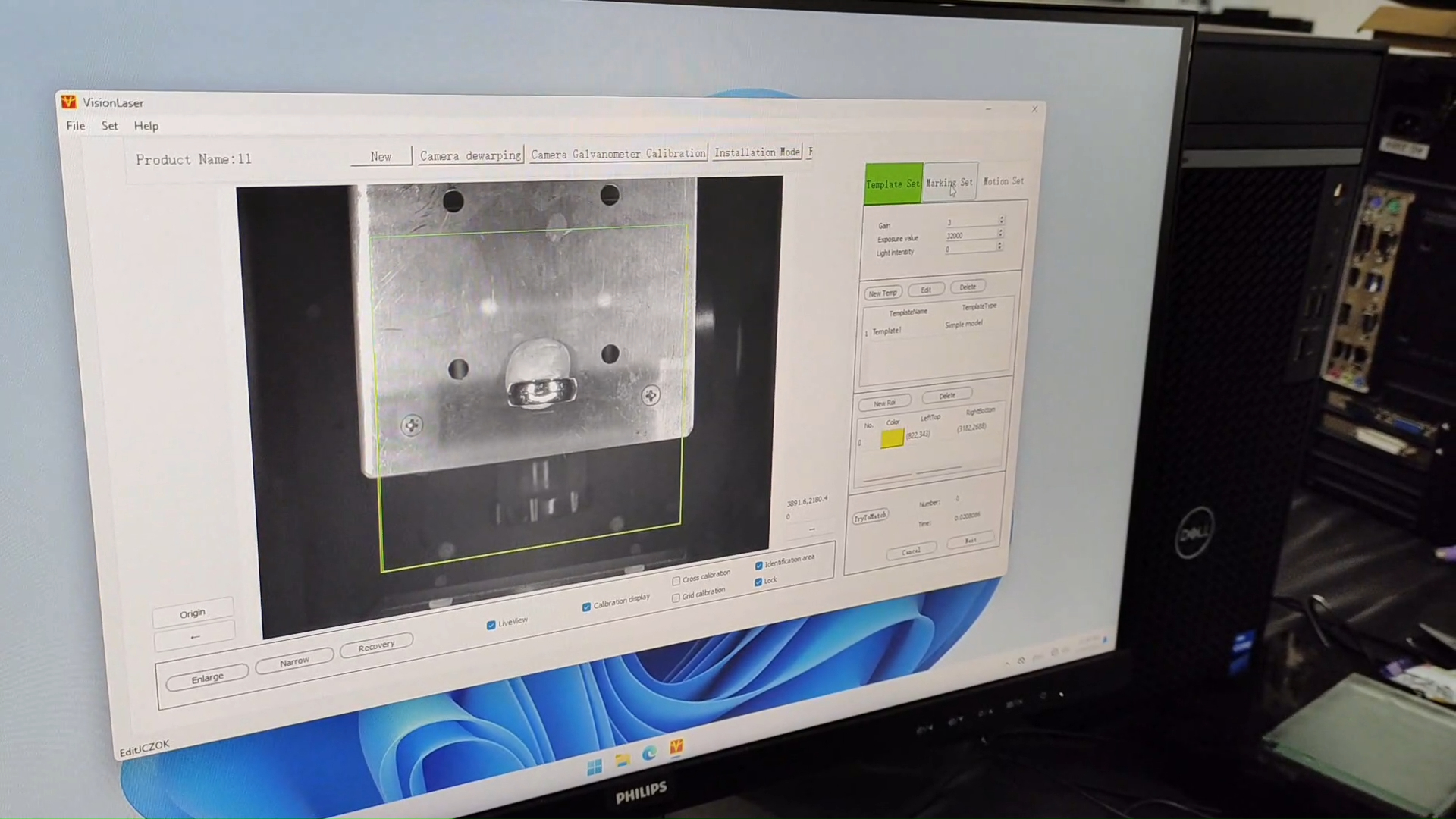

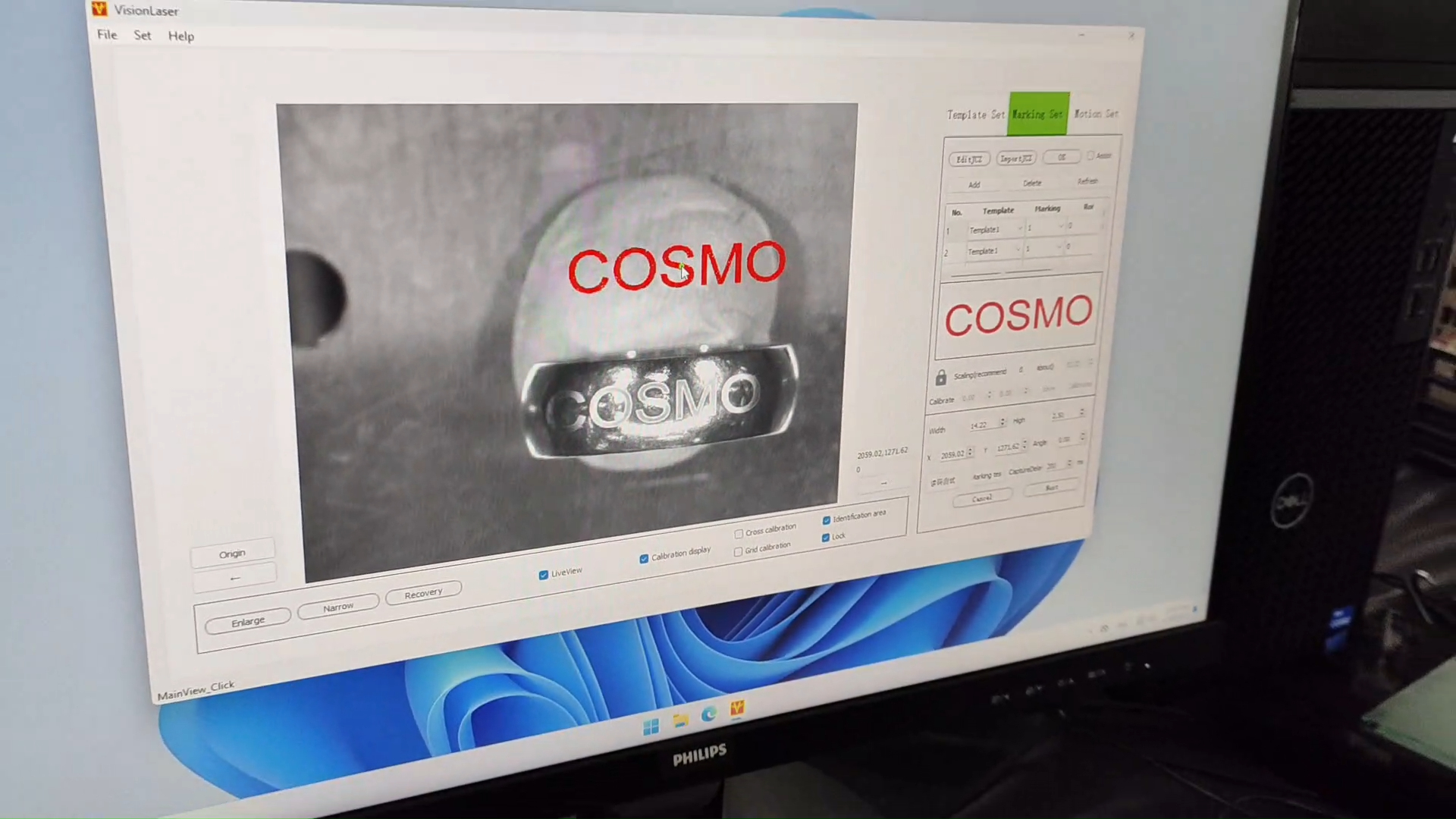

The CCD Camera Capture Laser Marking Machine by Cosmo Laser is designed for precision marking in mass production scenarios. Equipped with a high-definition camera, this machine ensures accurate and speedy marking regardless of the workpiece's position or orientation. It can simultaneously mark workpieces of different shapes and sizes, making it ideal for various industries, including jewellery manufacturing.

CONTACT US

Machine Details

Model
CAM-MARK
Laser Source
Fiber Laser
Laser Power
20/30/50/60/80/100W
Min Character Height
0.2mm
Marking Area
100mm×100mm
Workpiece Placement Position
360 Random Position
Functions
Able to capture and mark workpieces of different shapes
Repeat Capture Marking Accuracy
±0.02-±0.05mm (Depend on workpiece size difference)
Cooling Mode
Air-cooled
Marking Depth
Up to 1.0mm
Repeat Capture Marking Accuracy
±0.02-±0.05mm (Depend on workpiece size difference)
Max Power Consumption
800W
Power Supply
220V/1P(Standard); 110V/1P(Optional)
Machine Dimension
380mm×690mm×510mm
Weight
60kg(Net)/ 65kg(Gross)
Computer and Software
Included
Monitor, Mouse and Keyboard
Optional
