Machine Description

Model CD-35 is a CO2-laser marking machine also known as the CO2-laser engraver. It is used mostly for organic materials such as wood engraving, paper cutting, acrylic bodies, and leather markings. However, the machine can also engrave on non-metal inorganic materials, such as polymers, glass, leather, paper, acrylic, and plastics.



Machine Specification
  • Model
    CD-35
  • Laser Source
    CO2 Laser
  • Min Line Width
    0.05mm
  • Min Character Height
    0.6mm
  • Marking Area
    100mm×100mm(standard);
    50mm×50m or 150mm×150mm(optional)
  • Marking Table
    Manual Z-Axis
  • Cooling Mode
    Air Cooled
  • Marking Depth
    <1.00mm
  • Computer
    Included
  • Marking Software
    Included
  • Max Power Consumption
    1.5kW
  • Power Supply
    220V / 1P(standard); 110V / 1P(optional)
  • Machine Dimension
    700mm×800mm×1400mm(L×W×H)
  • Weight
    80kg(Net); 100kg(Gross)

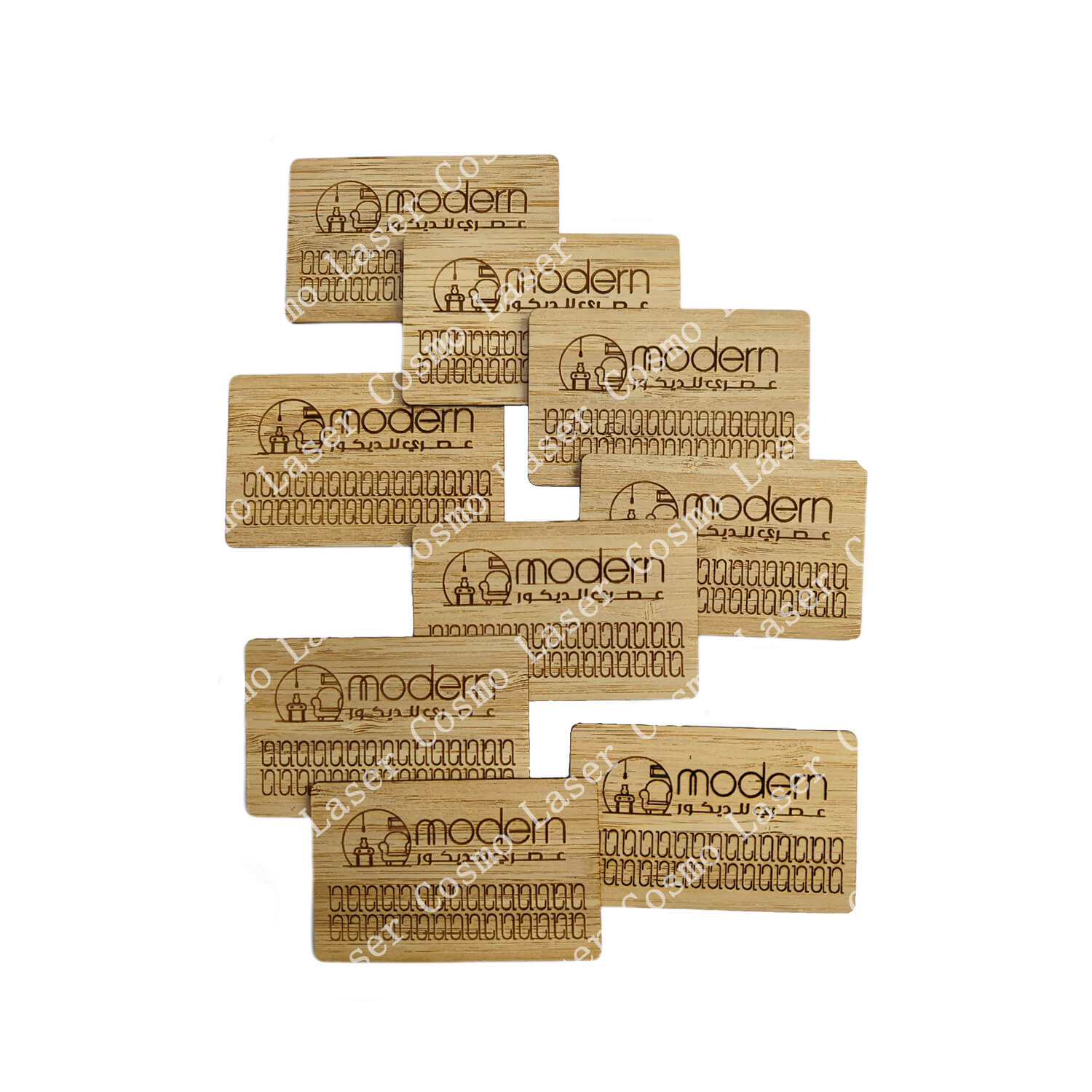

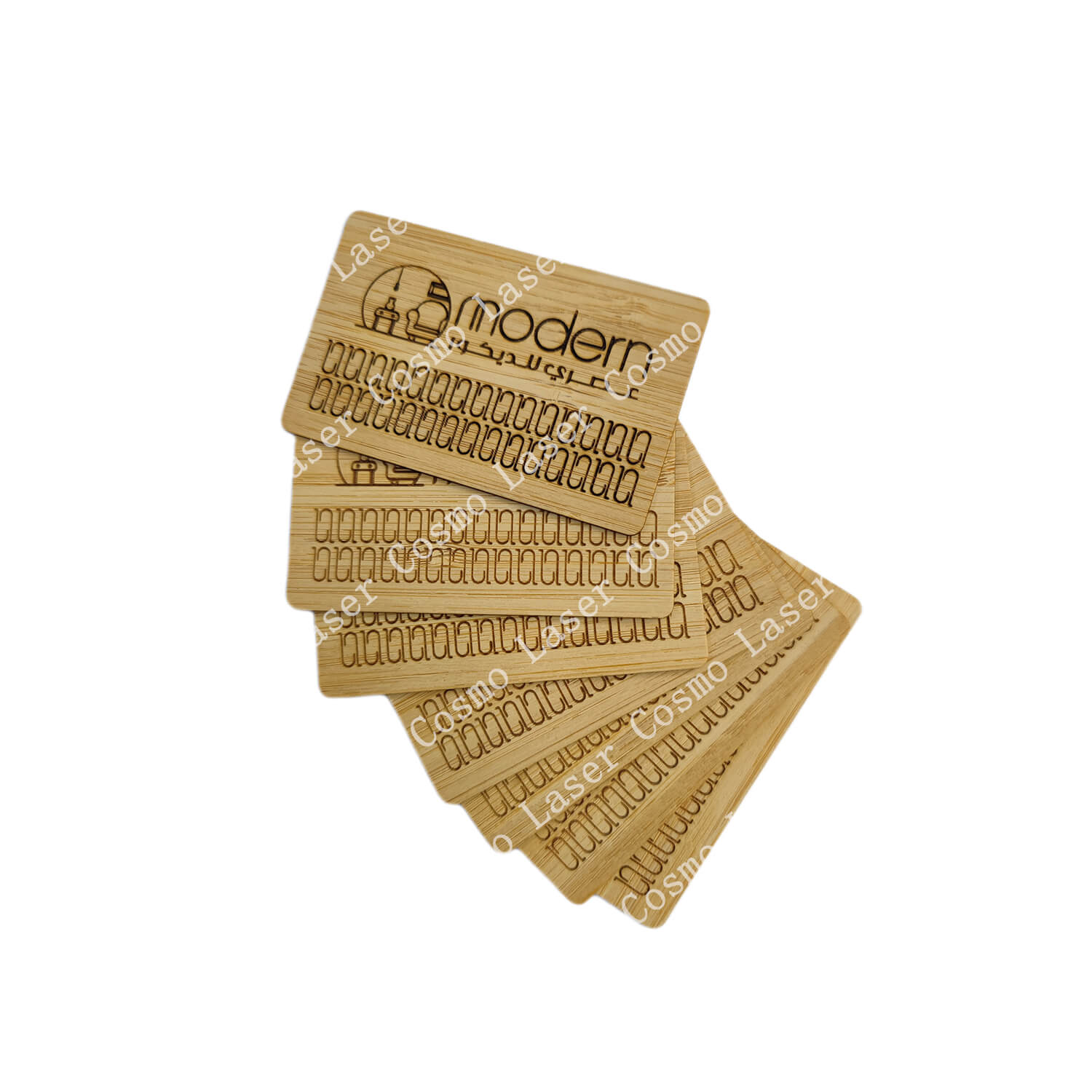

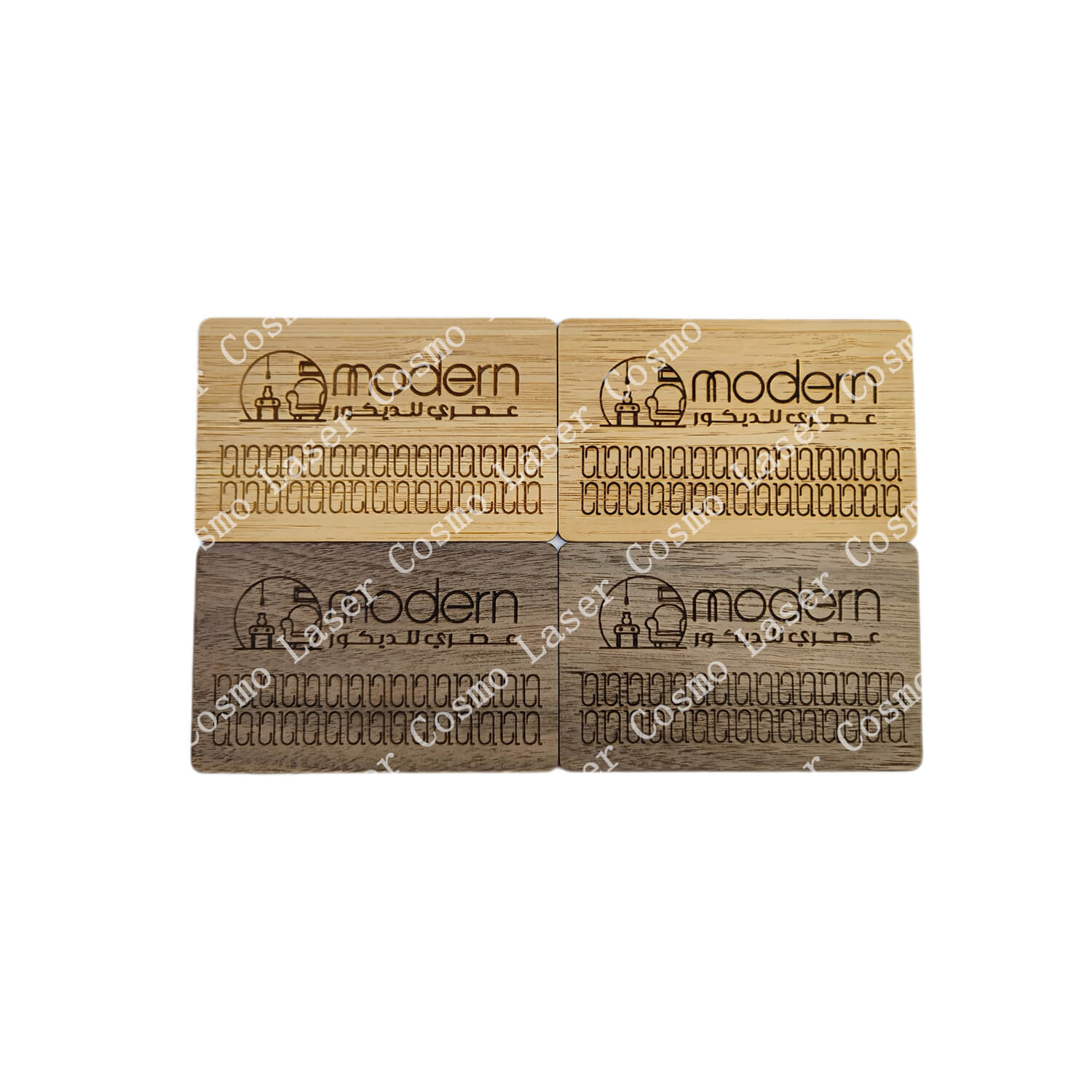

Sample Display
