Product Features
bg
  • ◪  This Fiber Laser marking machine--Sparrow20 is a desktop marking/engraving machine.

  • ◪  It has a built-in touch screen computer system researched by our company.

  • ◪  It is portable with a net weight of 30kg.

  • ◪  It offers users an out-of-the-box plug-and-use experience.

  • ◪  It is a fully enclosed air-cool laser marking system. It is built for industries looking for trouble-free, high-speed deep marking for all metal and some non-metal materials.

  • ◪  Ultra-low power consumption, high efficiency, and long lifetime.



Specification
bg
  • Model
    Sparrow20
  • Laser Source
    Fiber Laser
  • Laser Power
    20W
  • Min Character Height
    0.2mm
  • Marking Area
    100mm×100mm
  • Cooling Mode
    Air Cooled
  • Marking Depth
    Up to 1.0mm
  • Computer
    Built-in touch screen computer system
  • Max Power Consumption
    700W
  • Power Supply
    220V/1P (Standard); 110V/1P (Optional)
  • Machine Dimension
    340mm×540mm×650mm
  • Weight
    30kg (Net); 40kg (Gross)

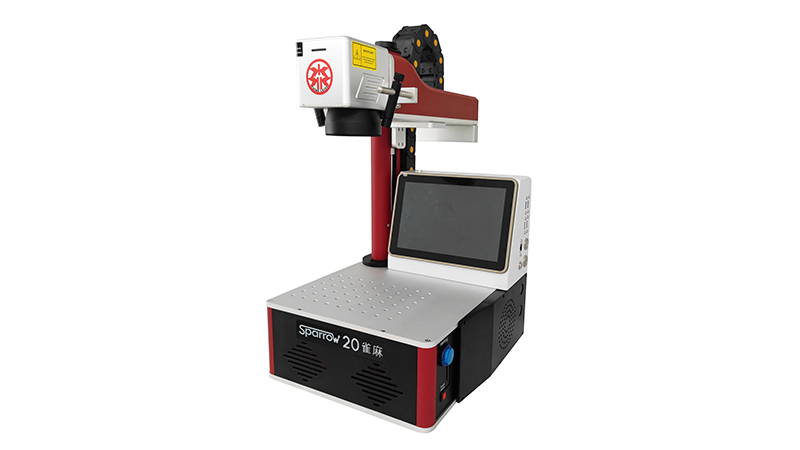

machine appearance
Optional Accessories
bg

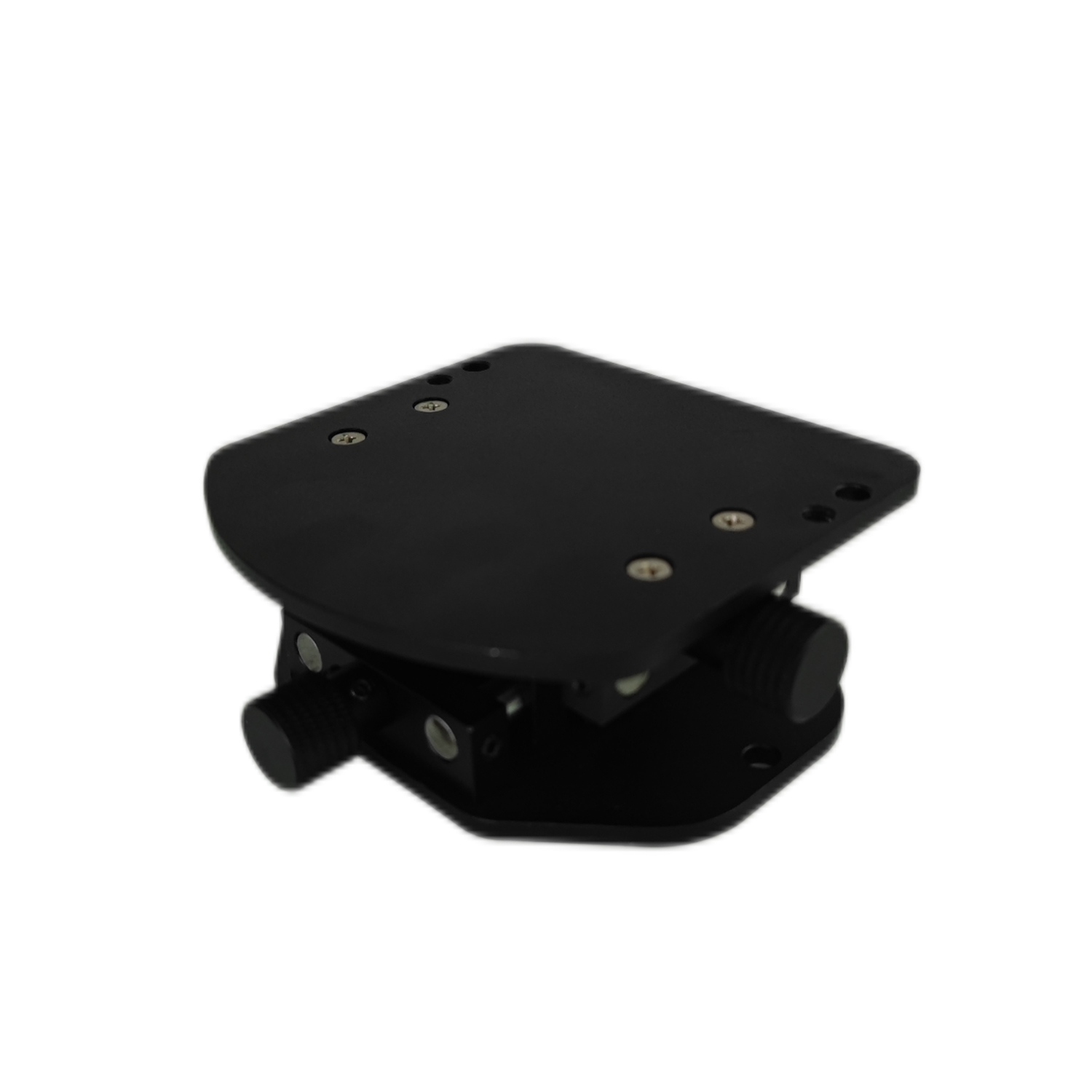

movable X, Y marking table of a 20W fiber laser marking machine

 Movable X, Y Marking Table

(for better adjusting the position of workpieces.)

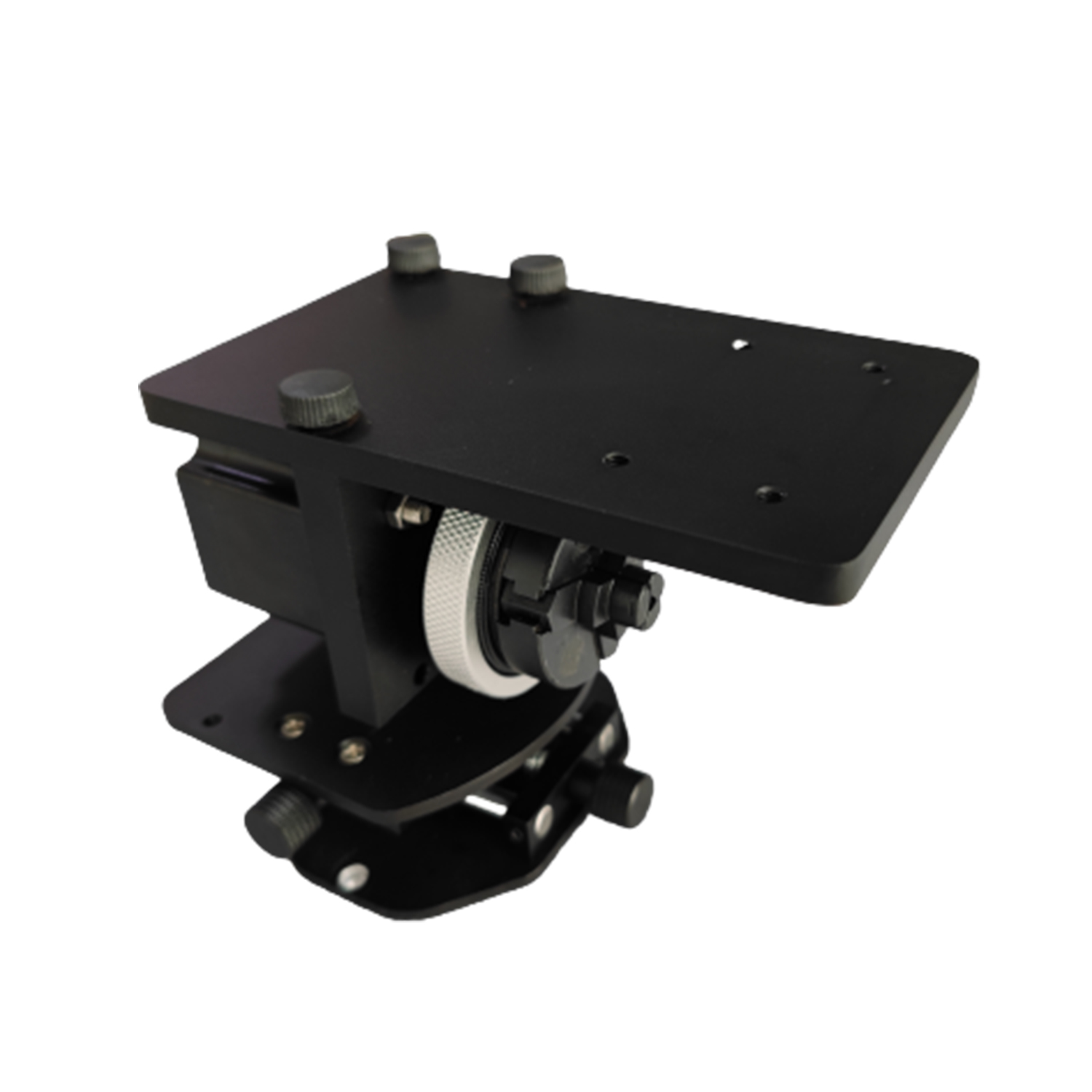

rotary marking table of a 20W fiber laser marking machine

 Rotary Marking Device  (for fixing rings, bangles and other circular objects) and Movable X, Y Marking Table Kit

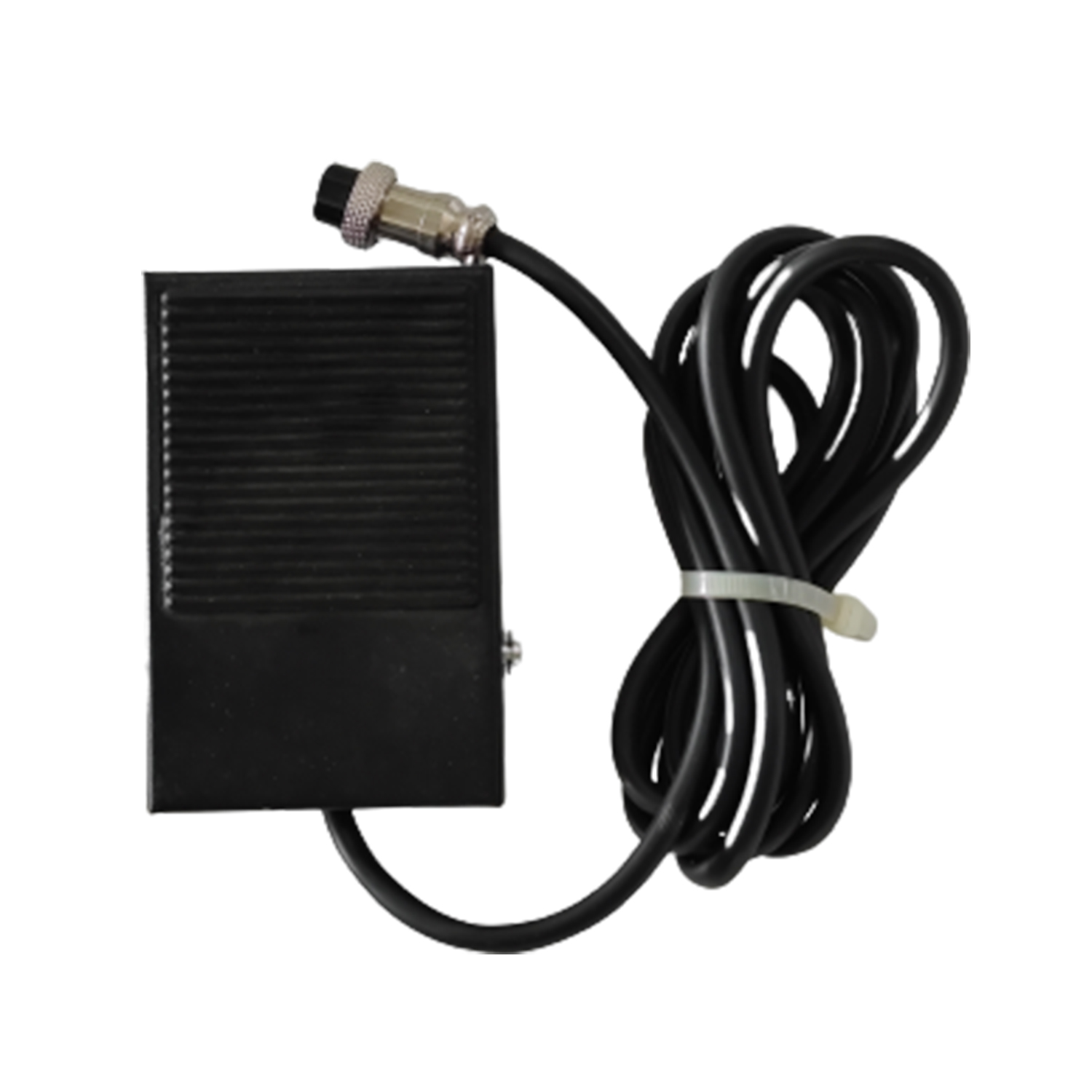

foot switch of a 20W fiber laser marking machine

 Foot Switch  (a switching device which is operated by the user's foot)

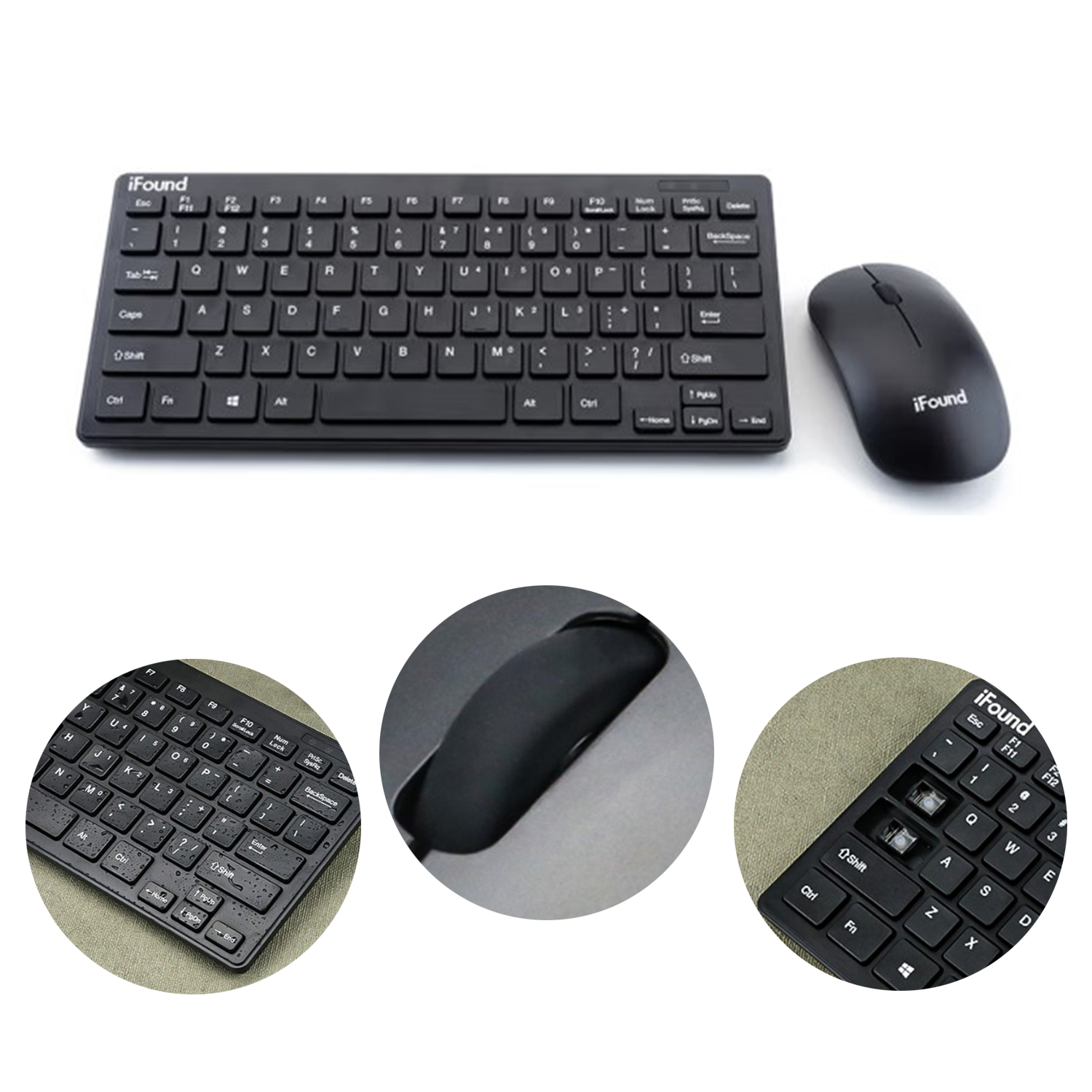

wireless keyboard and mouse for a 20W fiber laser marking machine

 Wireless Keyboard and Mouse Kit



Marking Content & Applicable Materials
bg
  • ◪  Can mark any language's letters and characters

  • ◪  Can mark any graphics/special symbols/logos

  • ◪  Can mark time & date

  • ◪  Can mark all numbers

  • ◪  Can mark barcode/2D codes/Qr code, etc.


  • ◪  Can mark on all metal materials

  • ◪  Can mark on some non-metal materials

  • ◪  Metals include raw metal, coating metal, electroplating metal, precious metal...

  • ◪  Non-metals include plastic materials (such as PP, PE, PVC, ABS), rubber, epoxy resin, etc...




Applicable Industries
bg

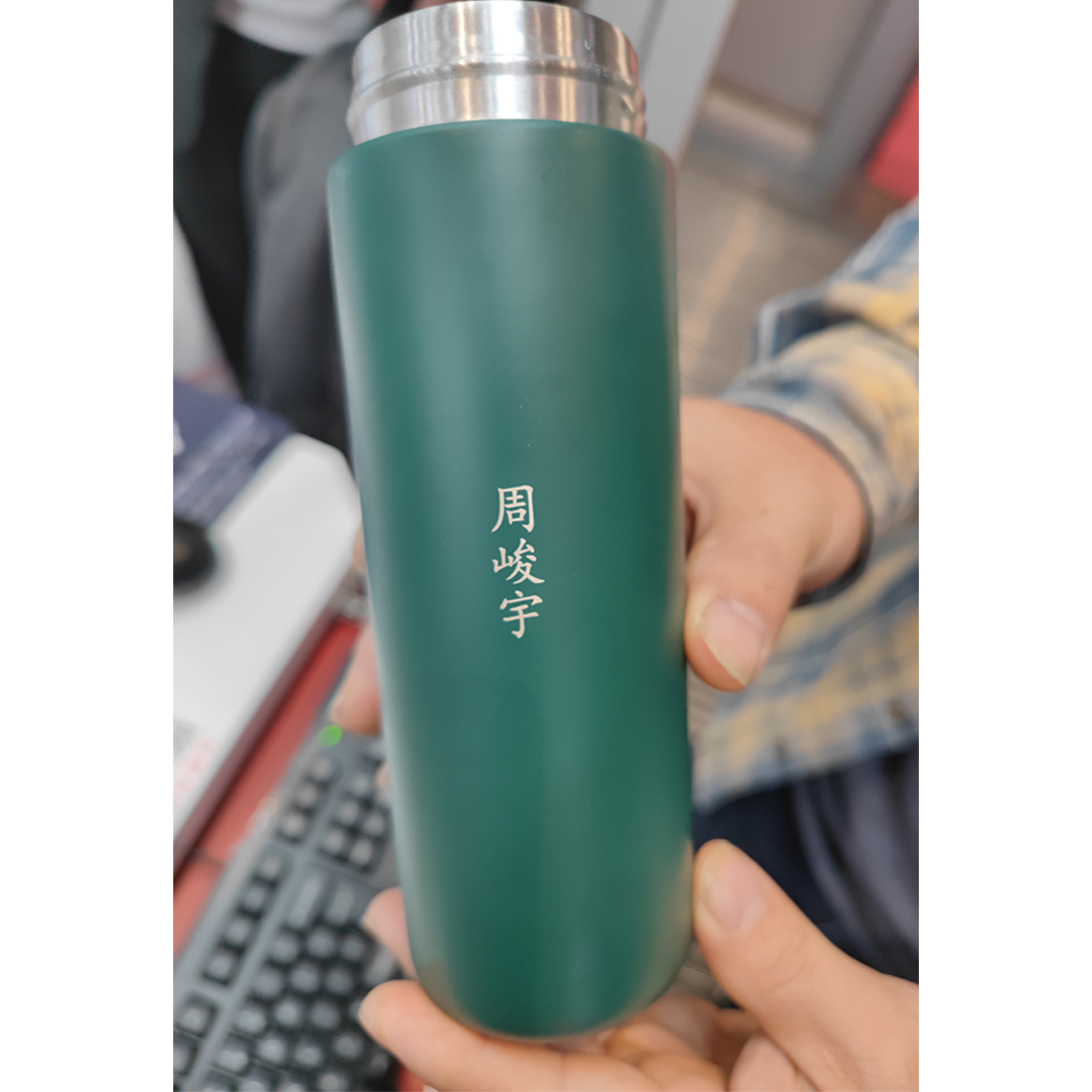

thermos laser marking

Thermos

phone case laser marking

Phone Case

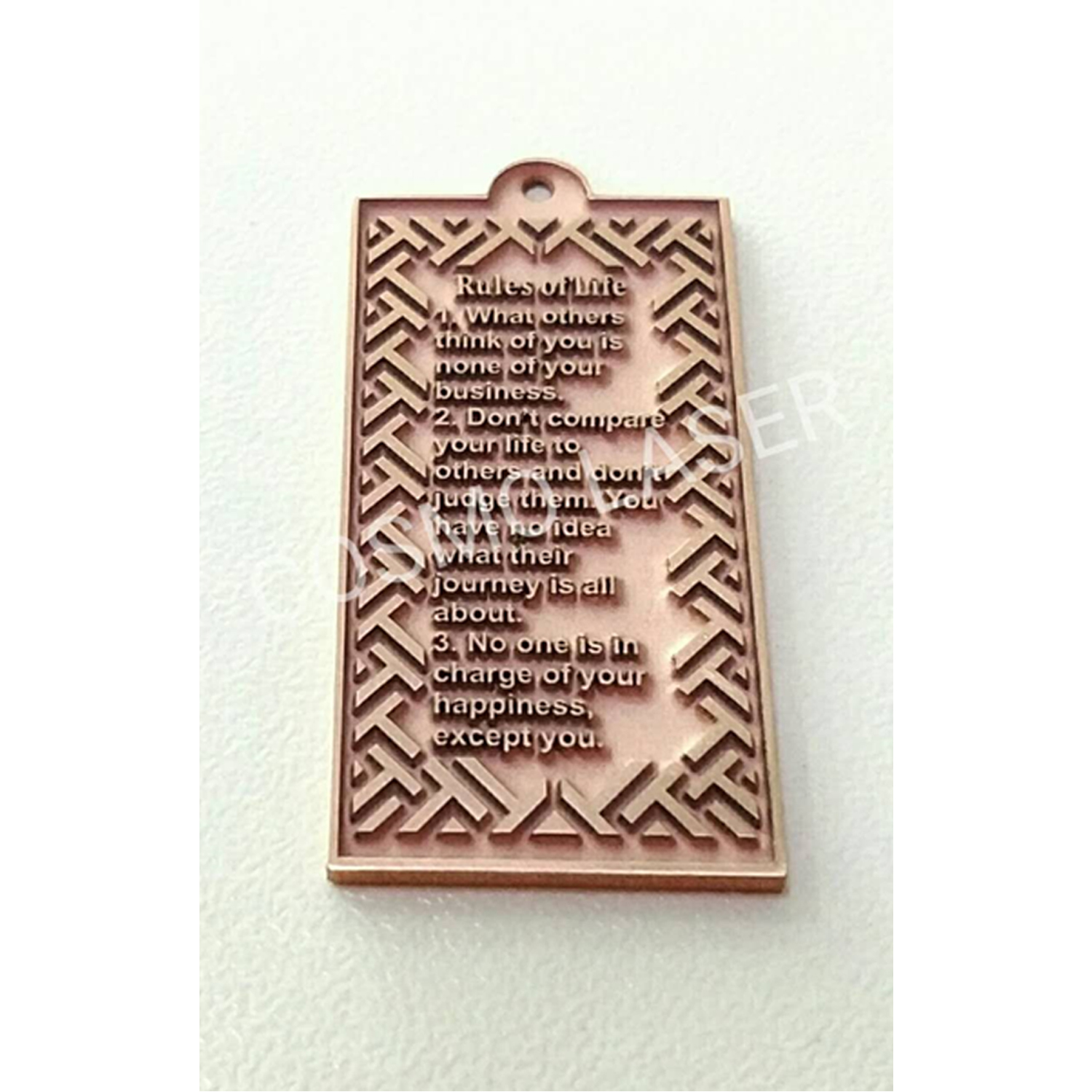

art craft laser marking

Art Craft

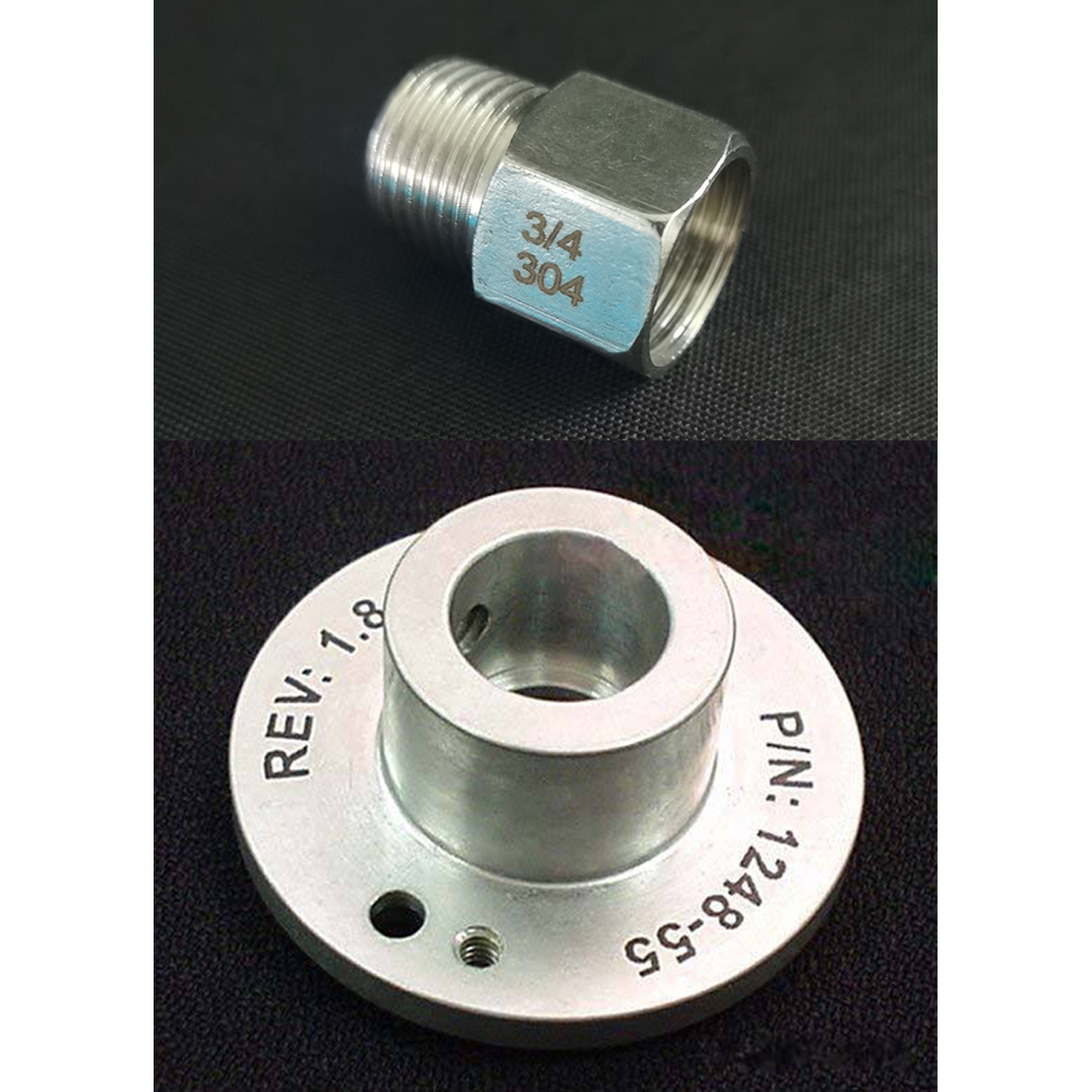

hardware laser marking

Hardware Products

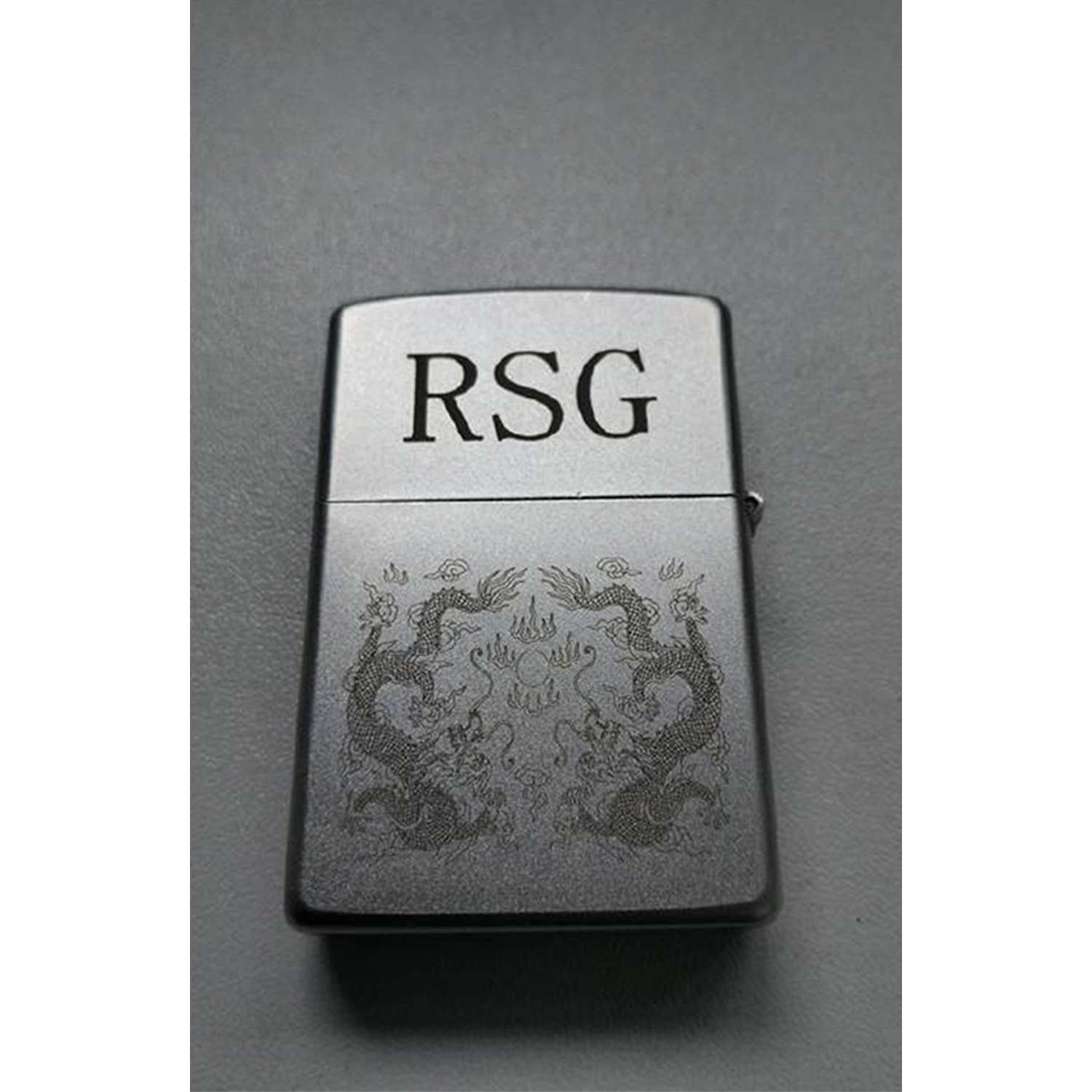

cigarette lighter laser marking

Cigarette Lighter

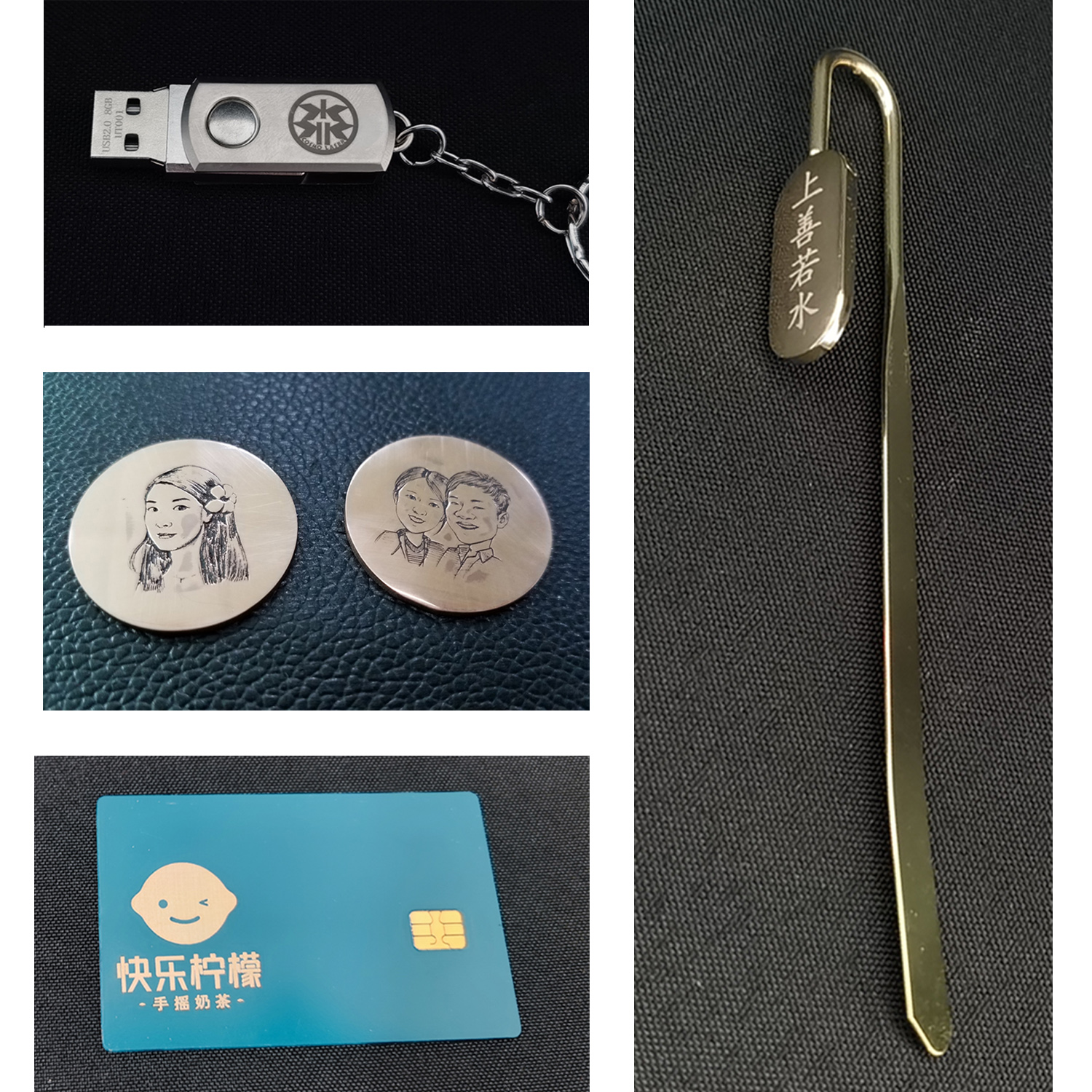

gift laser marking

Gift products/ Daily necessities




Application in the jewellery industry
bg

finger ring laser marking

Ring

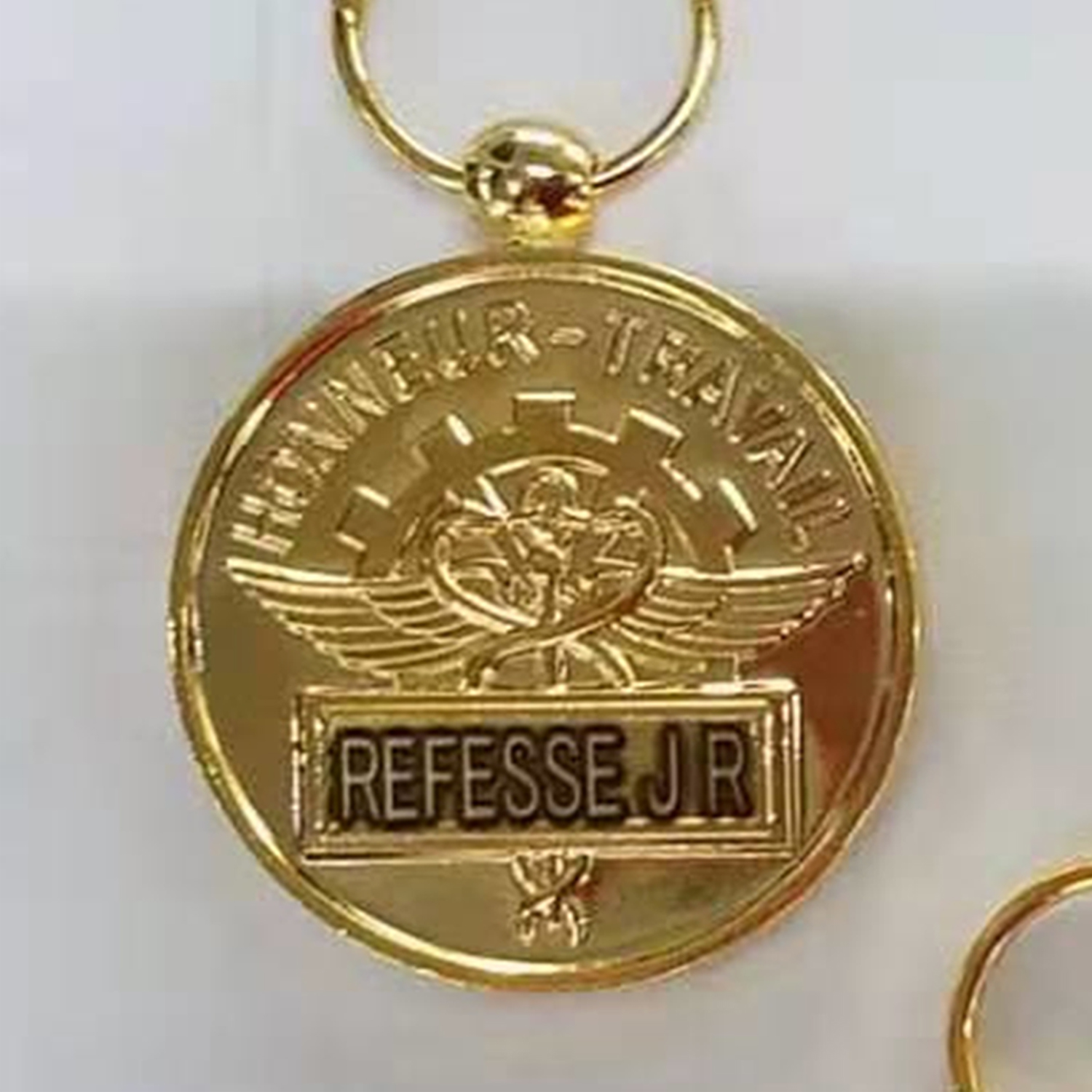

badge laser marking

Badge

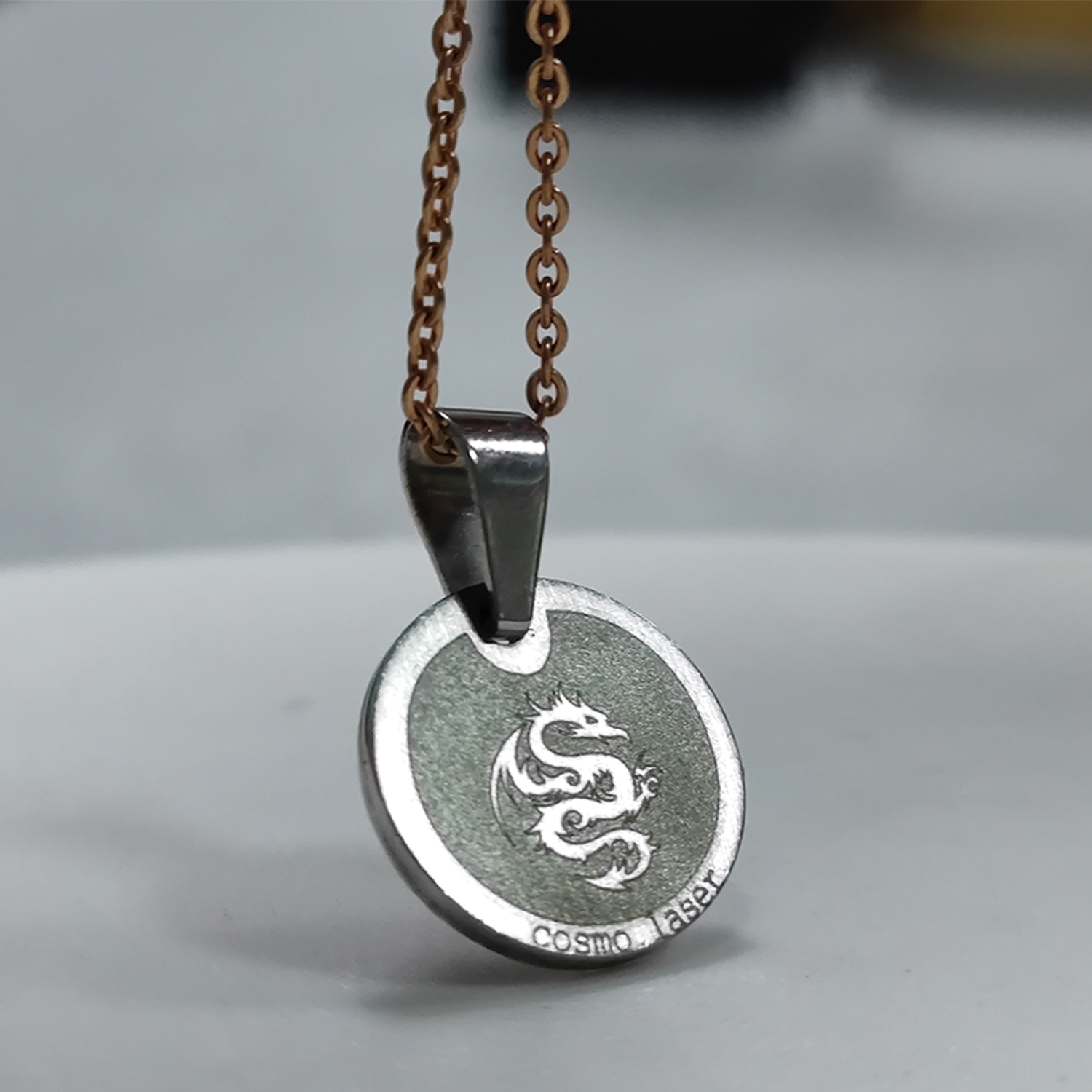

pendant laser marking

Pendant

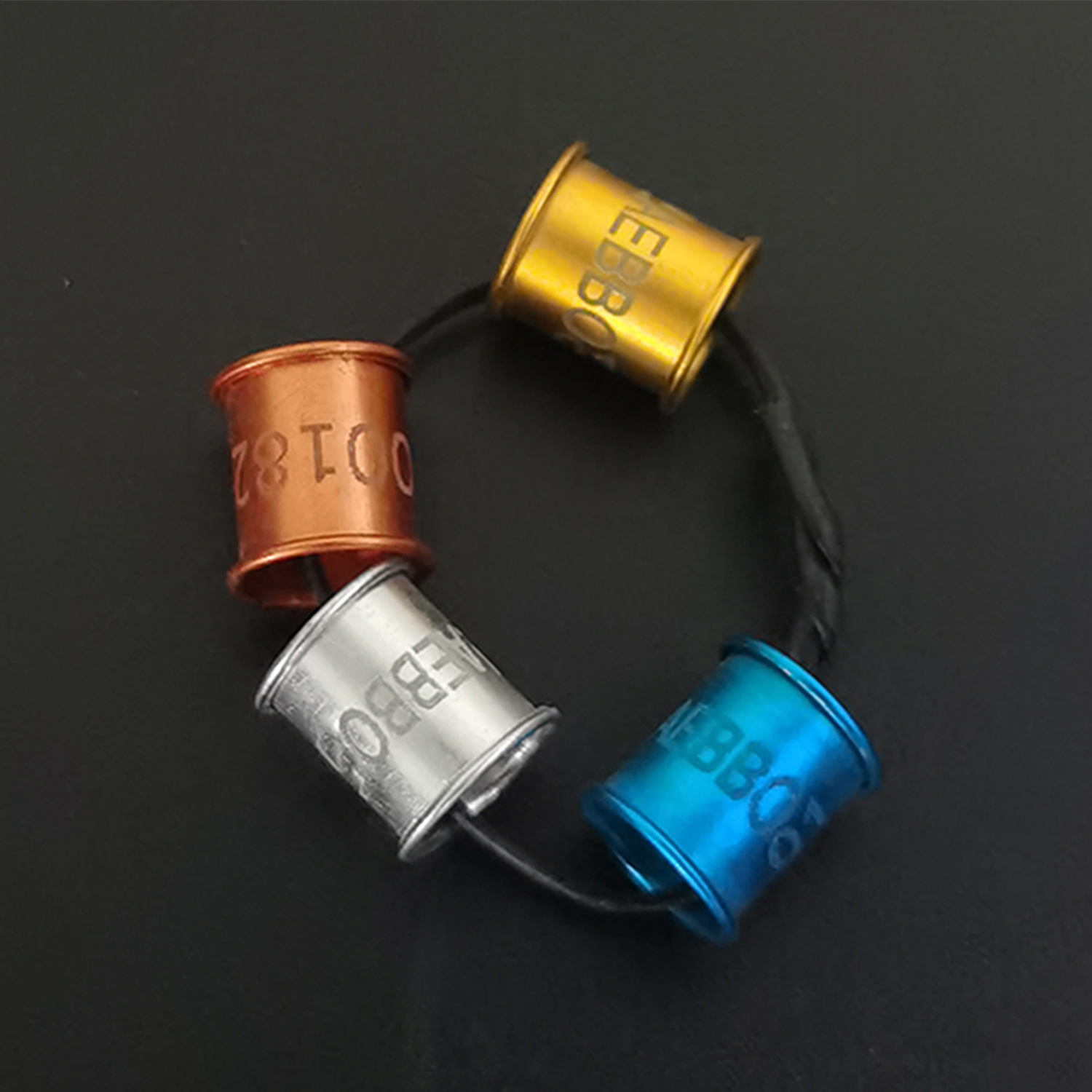

bracelet laser marking

Accessories

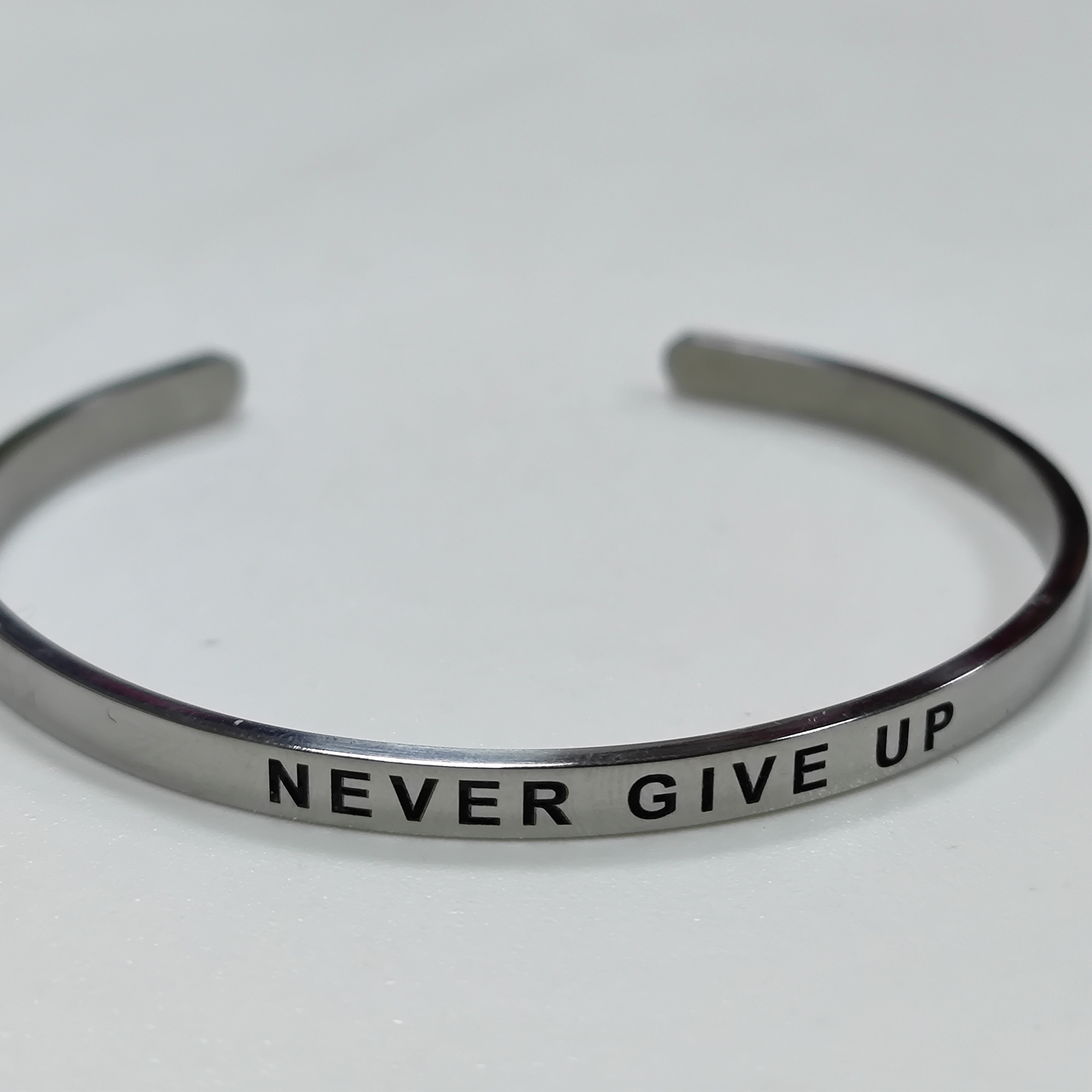

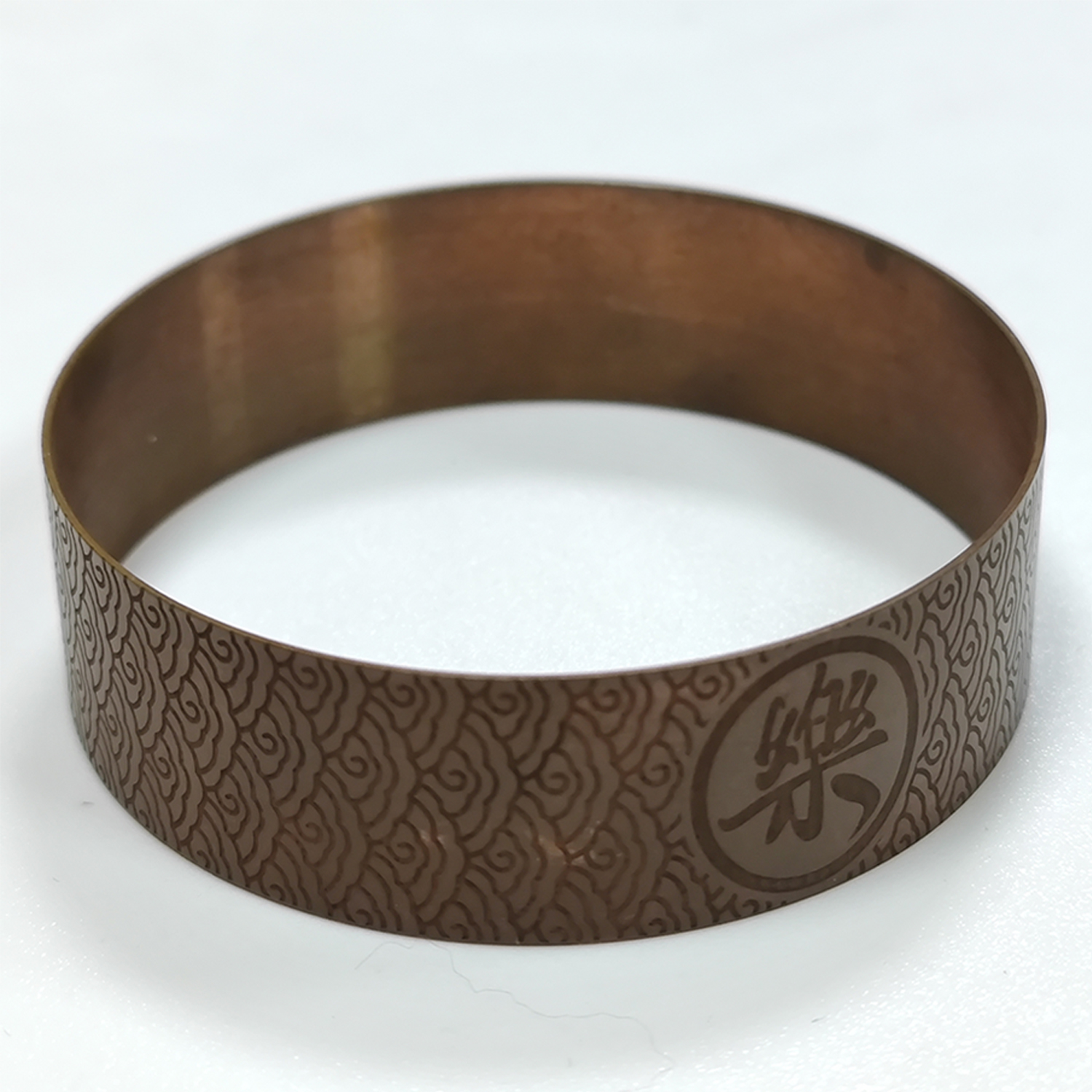

bangle laser marking

Bangle

bangle laser marking

Bangle

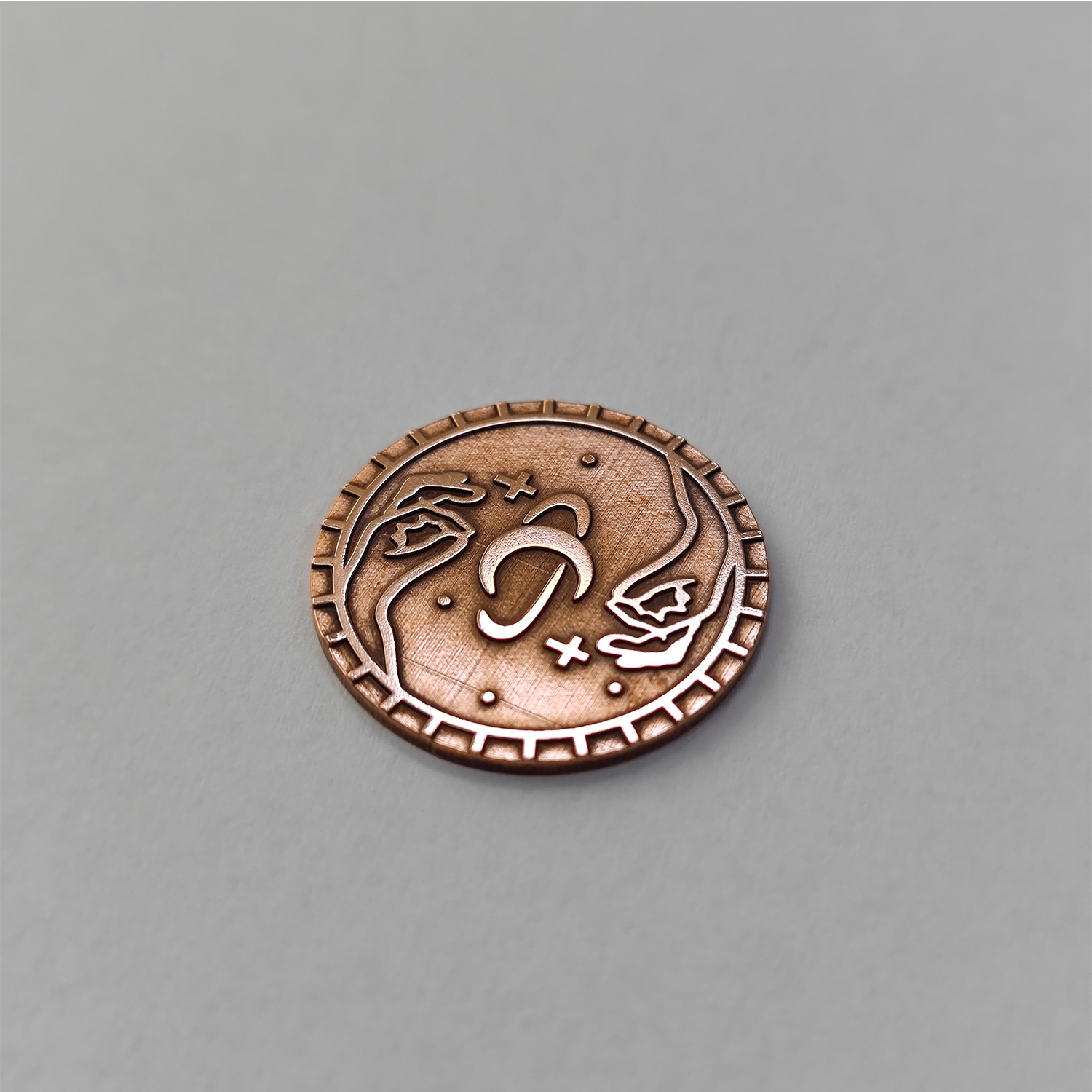

coin laser marking

Coin

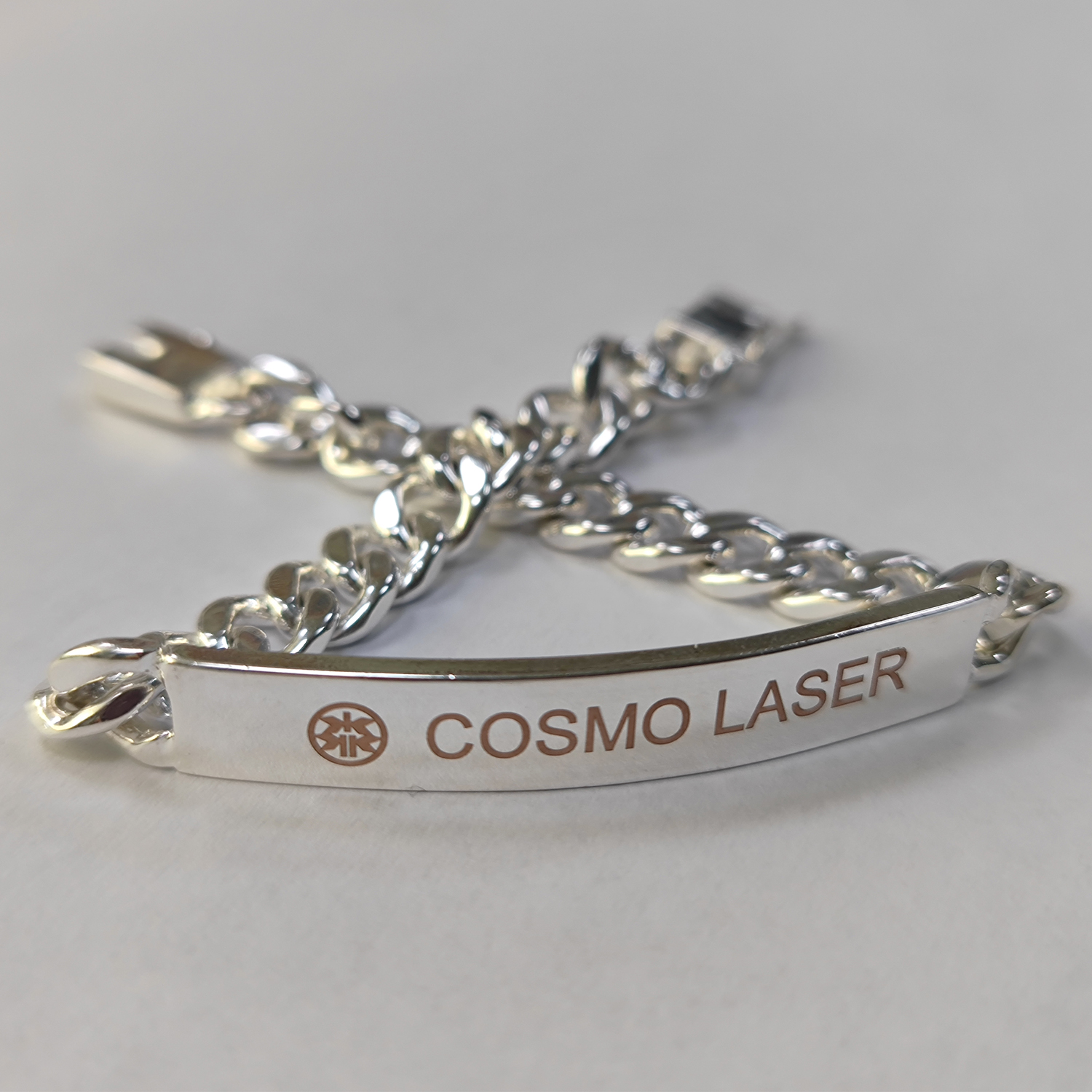

bracelet laser marking

Bracelet

pendant laser marking

Pendant
