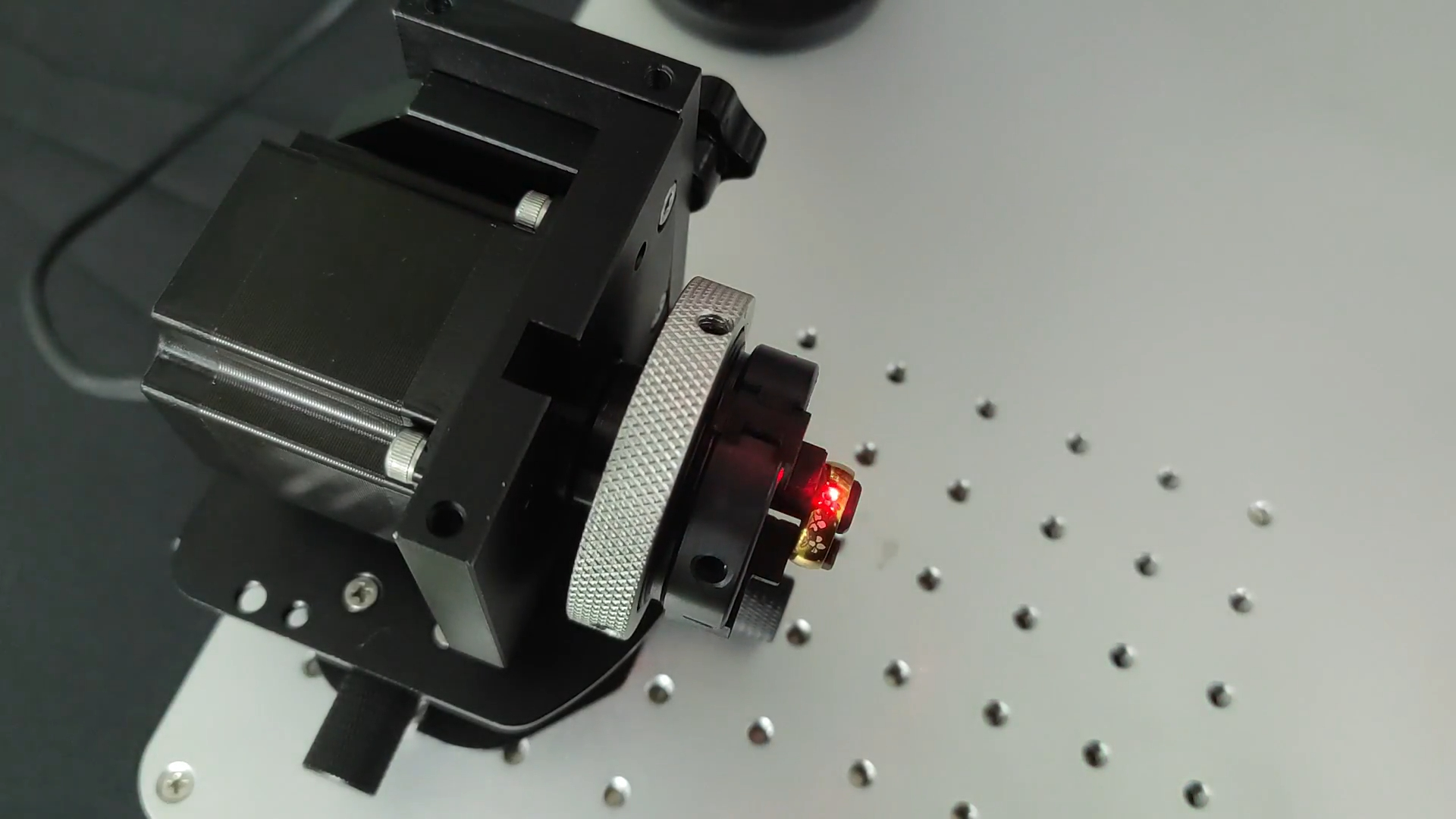

Outside Ring Laser Marking (Model: Sparrow20E)

• Model
  Sparrow20E
• Laser Source
  Fiber Laser
• Laser Power
  20W
• Min Character Height
  0.2mm
• Marking Area
  100mm×100mm
• Cooling Mode
  Air Cooled
• Engraving Depth
  1mm
• Computer
  not included
• X, Y Marking Table & Rotary Marking Device
  Optional
• Max Power Consumption
  300W
• Power Supply
  220V/1P (Standard); 110V/1P (Optional)
• Machine Dimension
  320mm×540mm×650mm
• Weight
  30kg (Net); 40kg (Gross)



Machine Description

————

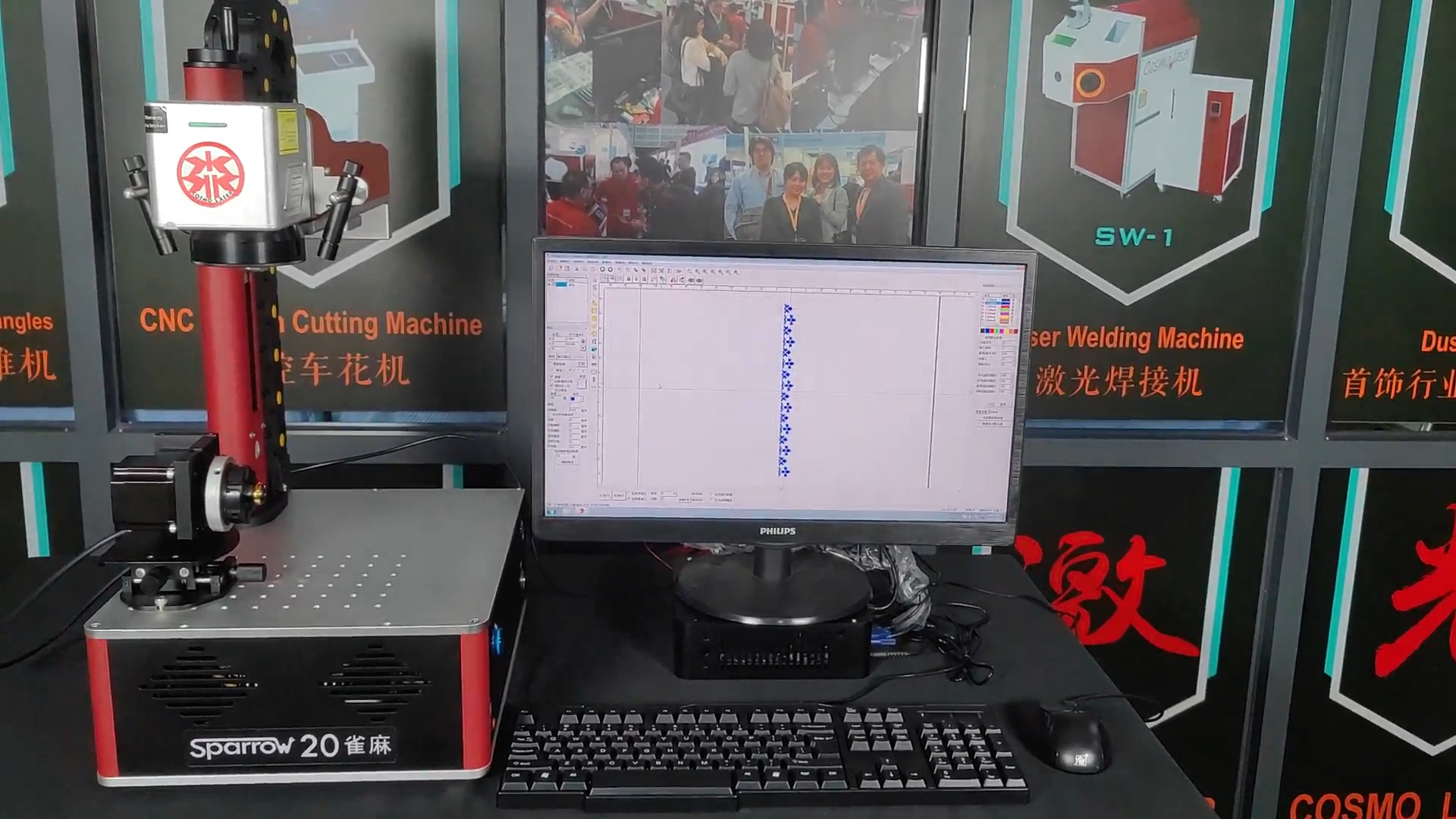

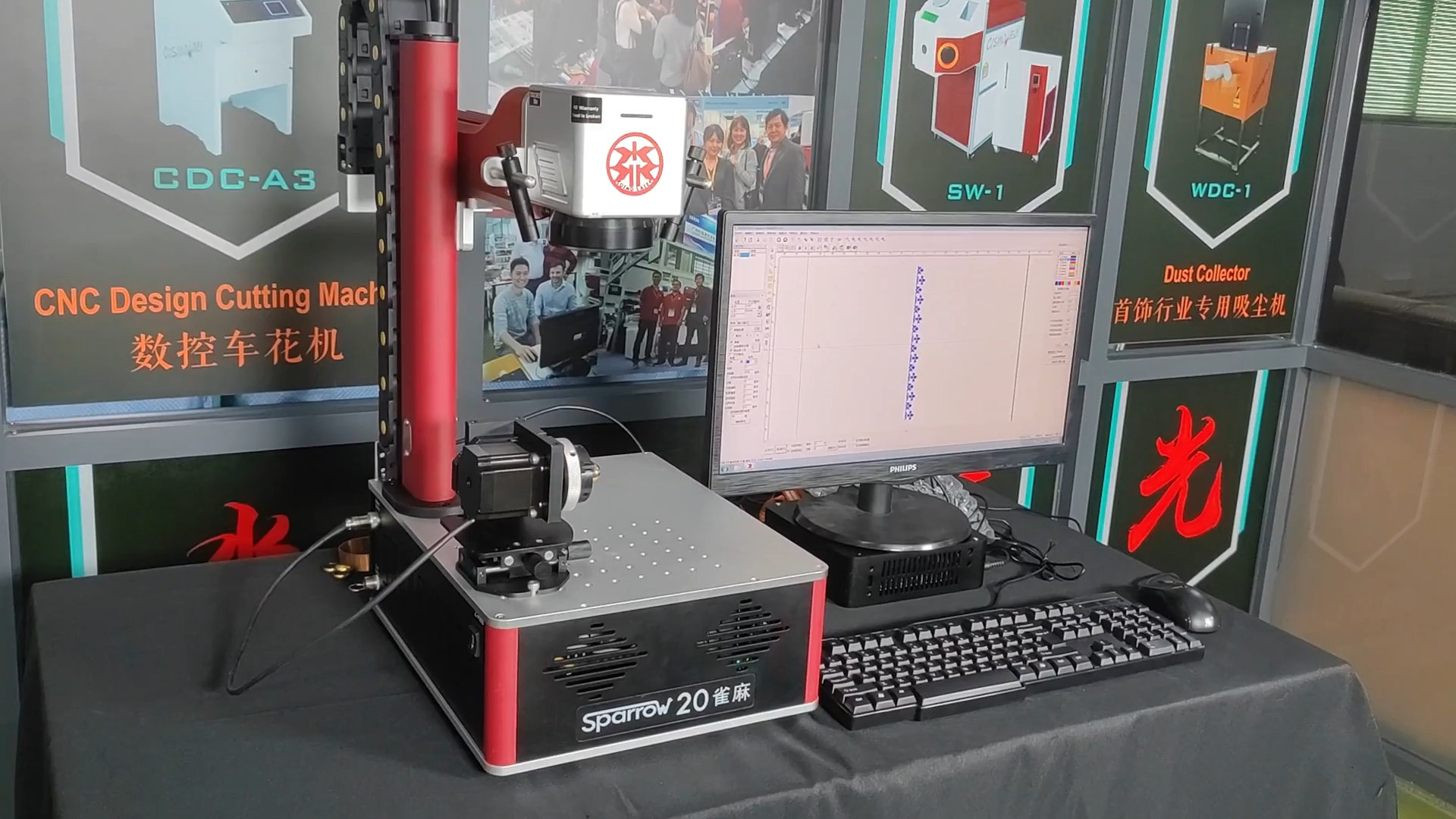

Model Sparrow20E is an air-cooled 20W fiber laser machine. It is the split unit of Sparrow20. With same functions, it is small and compact, and weighs only 30kg. It is with the marking software and manual. Besides you need an extra computer/laptop on it, the machine is exactly like the Sparrow20. It can do fine marking, and deep engraving on all metals, including precious metals like gold and silver and some non-metals. Switches are on both the machine and PC and are very easy to use. The marking software is easy to use and is compatible with most file formats like AI, PLT, DXF, BMP, JPEG, etc. It is suitable for various industries, such as jewellery accessories, eyeglasses, clocks and watches, hardware, tools, accessories, electronic components, integrated circuits IC, precision equipment, etc.

Included Accessories:

1) marking software

2) motorized Z-axis (up/down)

Optional Accessories:

1) X, Y working table

2) rotary marking device
