APPLICATION

Machine Parameter

————

  • Model
    Sparrow20E
  • Laser Source
    Fiber Laser
  • Laser Power
    20W
  • Min Character Height
    0.2mm
  • Marking Area
    100mm×100mm
  • Cooling Mode
    Air Cooled
  • Engraving Depth
    1mm
  • Computer
    not included
  • X, Y Marking Table & Rotary Marking Device
    Optional
  • Max Power Consumption
    300W
  • Power Supply
    220V/1P (Standard); 110V/1P (Optional)
  • Machine Dimension
    320mm×540mm×650mm
  • Weight
    30kg (Net); 40kg (Gross)
Cosmo Sparrow20E



Samples of Thermos Cup

————

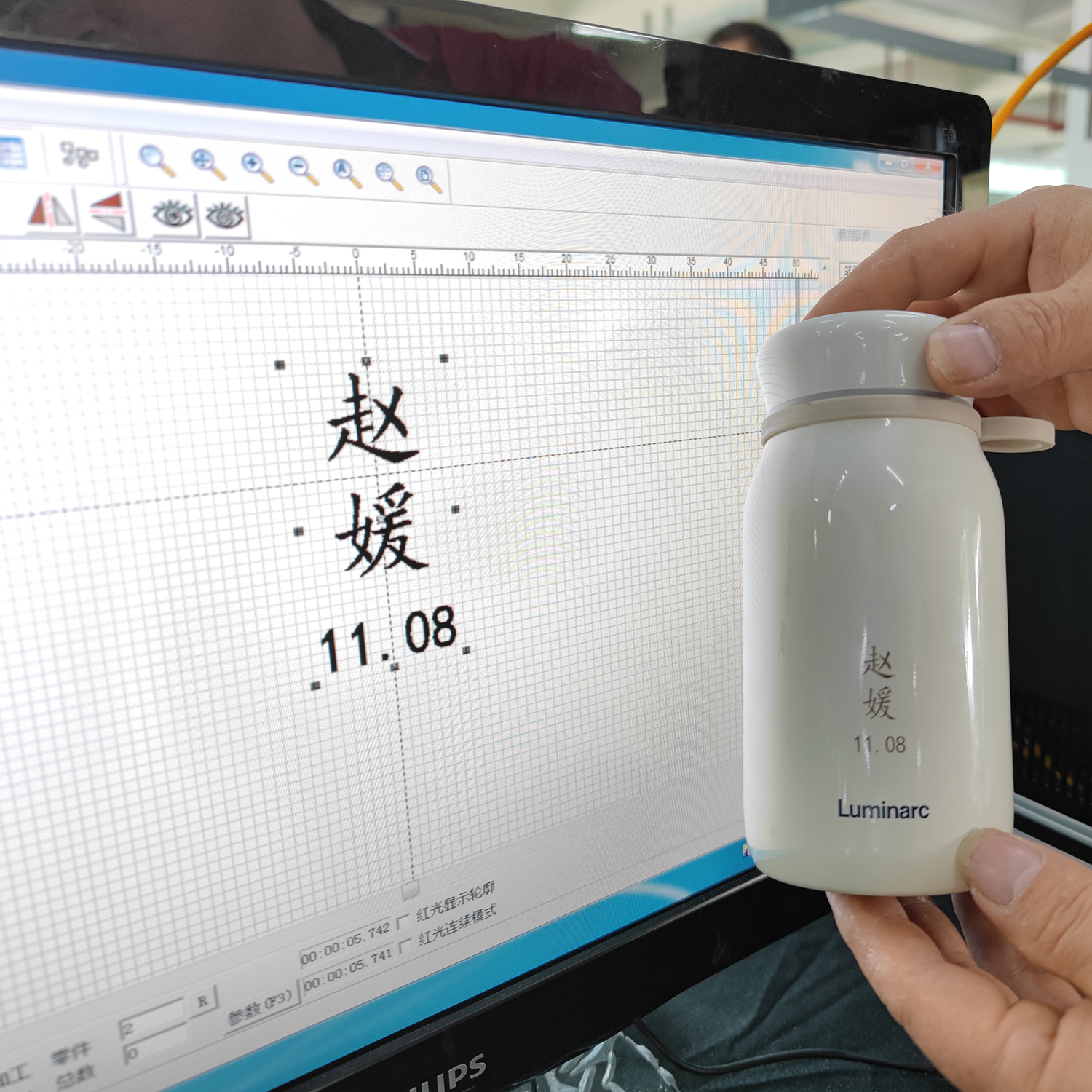

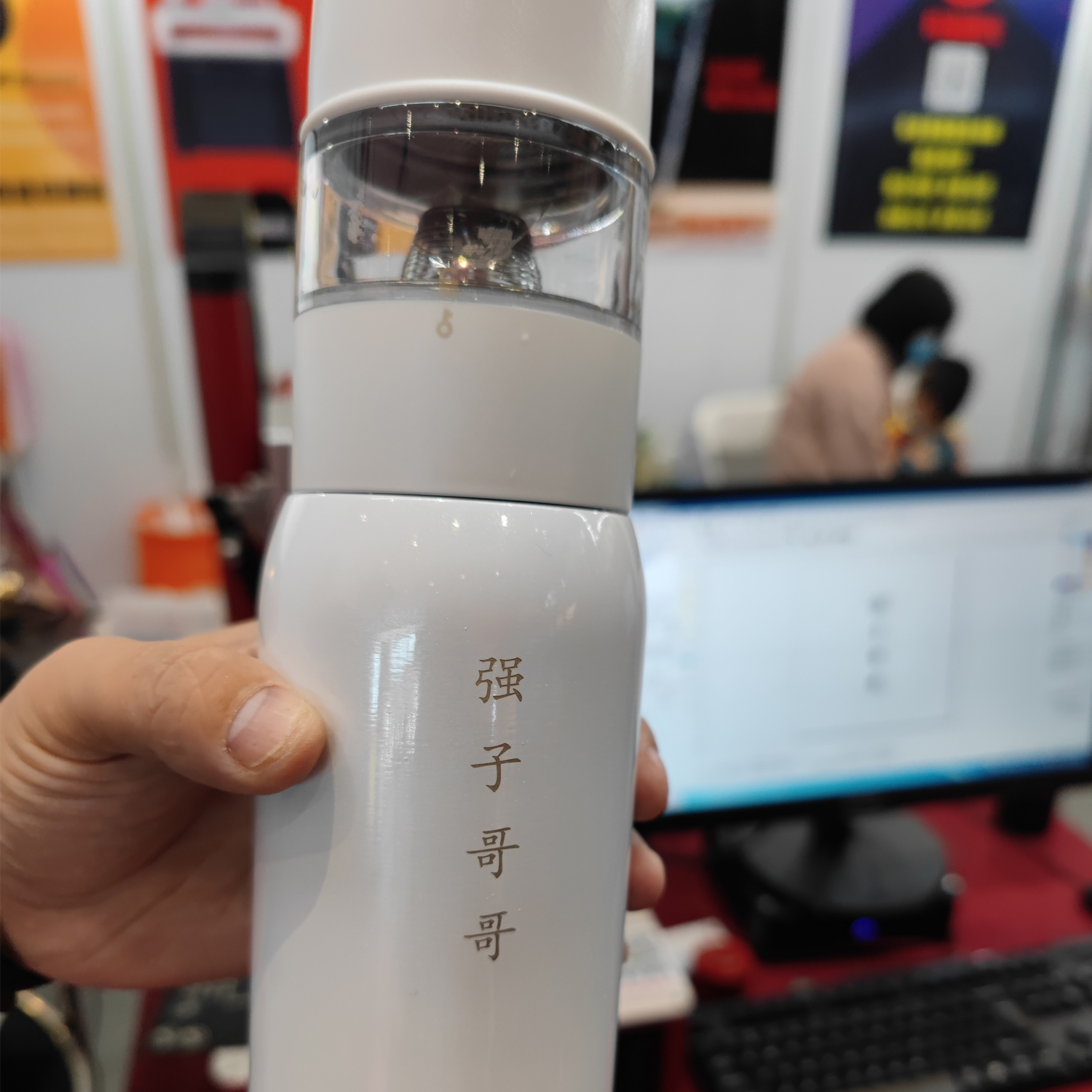

Thermos Cup Laser Marking Sample

Thermos Cup Laser Marking Sample

Thermos Cup Laser Marking Sample

Thermos Cup Laser Marking Sample

Thermos Cup Laser Marking Sample

Thermos Cup Laser Marking Sample




Machine Description

————


Model Sparrow20E is an air-cooled 20W fiber laser machine. It is the split unit of Sparrow20. With same functions, it is small and compact, and weighs only 30kg. It is with the marking software and manual. Besides you need an extra computer/laptop on it, the machine is exactly like the Sparrow20. It can do fine marking, and deep engraving on all metals, including precious metals like gold and silver and some non-metals. Switches are on both the machine and PC and are very easy to use. The marking software is easy to use and is compatible with most file formats like AI, PLT, DXF, BMP, JPEG, etc. It is suitable for various industries, such as jewellery accessories, eyeglasses, clocks and watches, hardware, tools, accessories, electronic components, integrated circuits IC, precision equipment, etc.


Included Accessories:

1) marking software

2) motorized Z-axis (up/down)


Optional Accessories:

1) X, Y working table

2) rotary marking device
